Signature Hardware GREYFIELD 948657 Quick Start Manual

Signature Hardware GREYFIELD 948657 Quick Start Manual

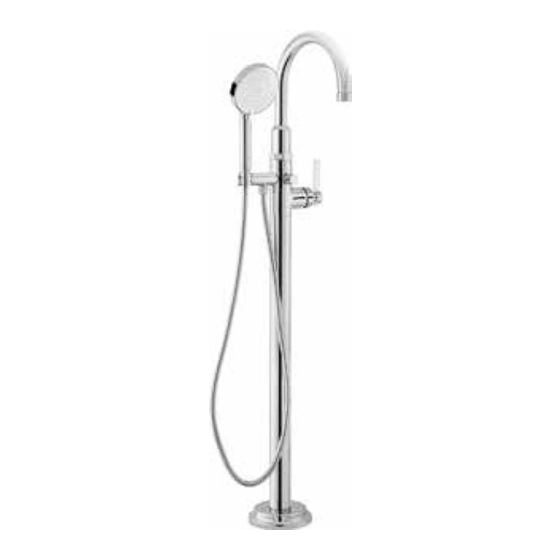

Freestanding tub faucet

Advertisement

Quick Links

G R E Y F I E L D
FREESTANDING TUB FAUCET
GRIFO PARA TINA SIN EMPOTRAR GREYFIELD
SKU: 948657
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, tub, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the faucet for shipping damage.
If any damage is found, contact our Customer
Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados al grifo, plomería,
bañera, pared, ni por daños personales que ocurran
durante la instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el grifo del empaque y verifique que no se hayan
producido daños durante el envío. Si encuentra algún
daño, comuníquese con nuestro equipo de Servicio al
cliente al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.
TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
Safety Glasses
Gafas de seguridad
Hex Wrench
Llave hexagonal
1
Adjustable Wrench
Hacksaw
Llave Ajustable
Sierra para
metales
REVISED 11/28/2022
CODES: SHGFFS2000G
1.800.221.3379

Advertisement

loading
Need help?

Need help?

Do you have a question about the GREYFIELD 948657 and is the answer not in the manual?

Questions and answers

Summary of Contents for Signature Hardware GREYFIELD 948657

  • Page 1 G R E Y F I E L D FREESTANDING TUB FAUCET GRIFO PARA TINA SIN EMPOTRAR GREYFIELD SKU: 948657 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are HERRAMIENTAS Y MATERIALES: unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the faucet, plumbing, tub, or for personal injury during installation.
  • Page 2 G R E Y F I E L D FREESTANDING TUB FAUCET GRIFO PARA TINA SIN EMPOTRAR GREYFIELD SKU: 948657 INSTALLATION Slide the �ange over the standpipe. Place the faucet assembly (1) onto the rough-in body (3), then push the INSTALACIÓN connections (2) of inlet supply line into the rough-in body (3).
  • Page 3 G R E Y F I E L D FREESTANDING TUB FAUCET GRIFO PARA TINA SIN EMPOTRAR GREYFIELD SKU: 948657 5. Insert the spout (1) into the faucet assembly (2). 7. Turn the supply lines on, and turn handle (1) to the full on mix position.
  • Page 4 G R E Y F I E L D FREESTANDING TUB FAUCET GRIFO PARA TINA SIN EMPOTRAR GREYFIELD SKU: 948657 8. Make sure washer (1) is installed in hose end (2). Hand tighten hand shower (3) onto hose. Place hand shower into holder (4).
