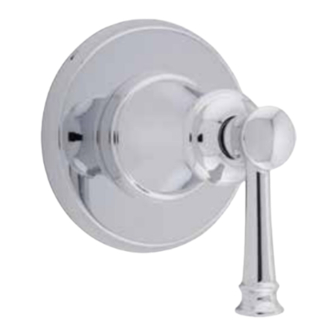

In-wall shower diverter
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
B E A S L E Y
IN-WALL SHOWER DIVERTER
DESVIADOR DE DUCHA DE PARED BEASLEY
SKU: 948692
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
plumbing, shower, wall, or for personal injury during
installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping
damage. If any damage is found, contact our
Customer Relations team at 1-800-221-3379.
ANTES DE COMENZAR
Le recomendamos que consulte a un profesional si no
sabe cómo instalar accesorios de plomería. Signature
Hardware no asume ninguna responsabilidad con
respecto a los daños causados a la plomería, la pared, ni
por daños personales que ocurran durante la
instalación.
Cumpla con todas las normas locales de plomería y
construcción.
Retire el producto del empaque y verifique si no sufrió
daños durante el envío. Si encuentra algún daño,
comuníquese con nuestro equipo de Servicio al cliente
al 1-800-221-3379.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
CÓMO COMENZAR
Asegúrese de haber reunido todos los materiales
necesarios para la instalación.
TOOLS AND MATERIALS:
HERRAMIENTAS Y MATERIALES:
Plumbers Tape
Cinta Selladora
Para Rosca
Safety Glasses
Gafas de seguridad
Thread Sealant
Adjustable Wrench
Sellador de rosca
1
Pliers
Hex Wrench
Llave hexagonal
Pinzas
de punta
Long-nose Pliers
Phillips
Screwdriver
Pinzas de punta
Destornillador
Phillips
Groove
Joint Plier
Llave Ajustable
Pinzas
ajustable
REVISED 01/26/2021
CODES: SHBE9005, SH6103
1.800.221.3379

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEASLEY SHBE9005 and is the answer not in the manual?

Questions and answers

Related Manuals for Signature Hardware BEASLEY SHBE9005

Summary of Contents for Signature Hardware BEASLEY SHBE9005

  • Page 1 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are HERRAMIENTAS Y MATERIALES: unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the plumbing, shower, wall, or for personal injury during installation.

  • Page 2: Before Installation

    B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 1-5/8” to 2-3/8” 41.2 mm a 60.3 mm BEFORE INSTALLATION rough-in dimensions dimensiones de las ANTES DE LA INSTALACIÓN supply pipe instalaciones ocultas tubo de suministro 1.
  • Page 3 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 2. Recommended valve depth is 1-5/8” min to 2-3/8” 4. Apply thread sealant to inlet port threads and max from the center of the valve to the �nished wall. connect the water supply to the transfer valve inlet.

  • Page 4: Outlet Connections

    B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 3. After outlets have been installed turn on the water 7. Remove and discard the plaster guard. supply to the transfer valve and check for leaks. Then turn the water o�...
  • Page 5 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 4. Adjust handle position to control �owing pattern. 2. Screw nut onto thread section of valve body. Other position settings may or may not be used Insert the brass stem extension to valve body.
  • Page 6 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 REMOVAL OF CARTRIDGE 3. Grasp the cartridge stem and pull out the cartridge, making note of correct position for seal. FOR MAINTENACE MANTENIMIENTO DE DESMONTAJE 3.
  • Page 7 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 6. Reassemble the top cover to the transfer valve by turning it clockwise until hand tight. Then turn additional 1/2 turn with a wrench. Note: Make sure the handle stem is positioned correctly.
  • Page 8 B E A S L E Y IN-WALL SHOWER DIVERTER DESVIADOR DE DUCHA DE PARED BEASLEY SKU: 948692 Part No. Numéro de pièce Part name Nom de la pièce Nombre de pieza N.º de pieza Metal handle assembly Assemblage de manette en métal Ensamblaje de manija metálicas A662A58 Adaptor assembly...
