Product manual
5909

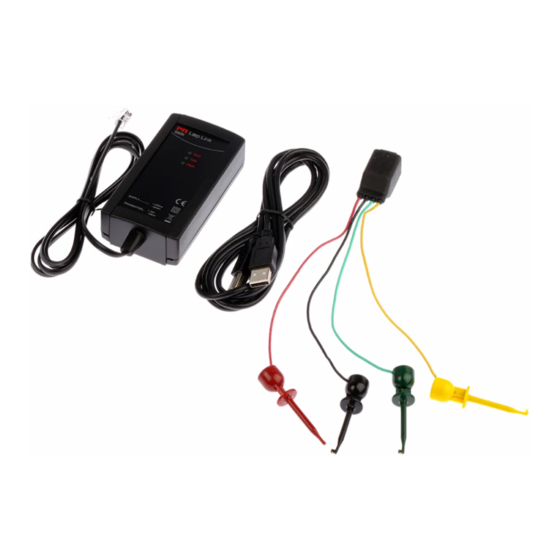

Loop Link
USB communications interface
T E M P E R AT U R E
|
I . S . I N T E R FA C E S
No. 590 9V103- UK
From serial no. : 0599999 99
|
CO M M U N I C AT I O N I N T E R FA C E S
|
M U LT I F U N C T I O N A L
|
I S O L AT I O N
PERFORMANCE
MADE
SMARTER
|
D I S P L AY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5909 and is the answer not in the manual?

Questions and answers

Summary of Contents for PR electronics 5909

  • Page 1 PERFORMANCE MADE SMARTER Product manual 5909 Loop Link USB communications interface T E M P E R AT U R E I . S . I N T E R FA C E S CO M M U N I C AT I O N I N T E R FA C E S...
  • Page 2 6 Product Pillars to meet your every need Individually outstanding, unrivalled in combination With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial and factory automation.
  • Page 3: Table Of Contents

    5909 installation on Windows 10 ........
  • Page 4: Warning

    Warning The female communication connector of SYSTEM 5000 is connected to the input terminals on which dangerous voltages can occur. It must only be connected to the programming unit 5909 by way of the attached communication cable. 5909 is provided with intrinsically safe galvanic isolation and protective components according to INSTAL- EN60079-11 §...
  • Page 5: Safety Instructions

    Should there be any doubt as to the correct handling of the device, please contact your local distributor or, alternatively, PR electronics A/S www.prelectronics.com Year of manufacture can be taken from the first two digits in the serial number.
  • Page 6: Application

    The PC program CD PReset ver. 5.0 or higher contains the necessary (unsigned) USB drivers. Loop Link 5909 is supplied from the USB port of the PC. If you want to conserve power on a laptop, the USB connector of the 5909 can be connected to an externally supplied hub.
  • Page 7: Preset Installation On Windows 7 / 8 / 10

    PReset installation on Windows 7 / 8 / 10 To install PReset on Windows 7 / Windows 8 / Windows 10 it is necessary to be a local administrator on the PC. Install from the CD or the USB or download the software from www.prelectronics.com Run setup and follow the instructions on the screen.
  • Page 8 5909 installation on Windows 7 To install 5909 on Windows 7 it is necessary to be a local administrator on the pc. 1. Connect your 5909 to a USB port on your machine. 2. Click [Close] in the following dialog: 3.
  • Page 9 6. If your computer is running the 32 bit version of Windows 7, browse to “%ProgramFiles%\PR electronics\PReset\Drivers” If your computer is running the 64 bit version of Windows 7, browse to “%ProgramFiles(x86)%\PR electronics\PReset\Drivers” 7. Click [Next]. 8. Now the driver for your 5909 will be installed.
  • Page 10 9. When you see this screen click [Close]. 10. The installation of 5909 driver is complete! 5909V103-UK...
  • Page 11: 5909 Installation On Windows 8

    5909 installation on Windows 8 To install 5909 on Windows 8 it is necessary to be a local administrator on the pc. 1. Connect your 5909 to a USB port on your machine. Go to Windows control panel and click [System] and then [Device manager].
  • Page 12 4. If your computer is running the 32 bit version of Windows 8, browse to “%ProgramFiles%\PR electronics\PReset\Drivers” If your computer is running the 64 bit version of Windows 8, browse to “%ProgramFiles(x86)%\PR electronics\PReset\Drivers” 5. Click [Next]. 6. Click [Install]. Now the driver for your 5909 will be installed.
  • Page 13 7. When you see this screen click [Close]. The installation of 5909 driver is complete! 5909V103-UK...
  • Page 14 Troubleshooting for Windows 7 & 8 If you are unable to install the USB Loop Link follow these steps: 1. Disconnect the 5909. 2. Go to the Control Panel. 3. Go to Devices and Printers. 4. Locate your PC (under devices).
  • Page 15: 5909 Installation On Windows 10

    5909 installation on Windows 10 To install 5909 on Windows 10 it is necessary to be a local administrator on the pc. 1. Connect your 5909 to a USB port on your machine. 2. Windows 10 will automatically start the installation process.
  • Page 16 5. Click [Browse my Computer for driver software]. 6. If your computer is running the 32 bit version of Windows 10, browse to “%ProgramFiles%\PR electronics\PReset\Drivers” If your computer is running the 64 bit version of Windows 10, browse to “%ProgramFiles(x86)%\PR electronics\PReset\ Drivers”...
  • Page 17 8. Click [Install]. Now the driver for your 5909 will be installed. 9. When you see this screen click [Close]. The installation of the 5909 driver is complete! 10. You can now see the 5909 USB to Loop Link device in the Device Manager.
  • Page 18: Configuration Of Usb Communication In Preset

    1. Start the PReset program and choose [Tools] [Select COM port], and the ”Options” window is shown on screen. 2. Select PR electronics Loop Link. Click OK. 3. If you want to configure Loop Link for other USB ports, you must connect Loop Link to these ports and install the USB drivers for each port.
  • Page 19: Connection Of Pr Devices Using Ez-Mini-Hooks

    Connection of PR devices using EZ-Mini-Hooks Receiving Equipment Disconnect +Vsupply Yellow Input PR 5331, 5333, 5334, Green 5335, 5337 Black (21) (23) Connector * Connected only for on-line programming PR 6331, 6333, 6334, L oop 6335, 6337 L ink USB cable Connection of PR devices using a modular connector Programming cable with modular connector...
