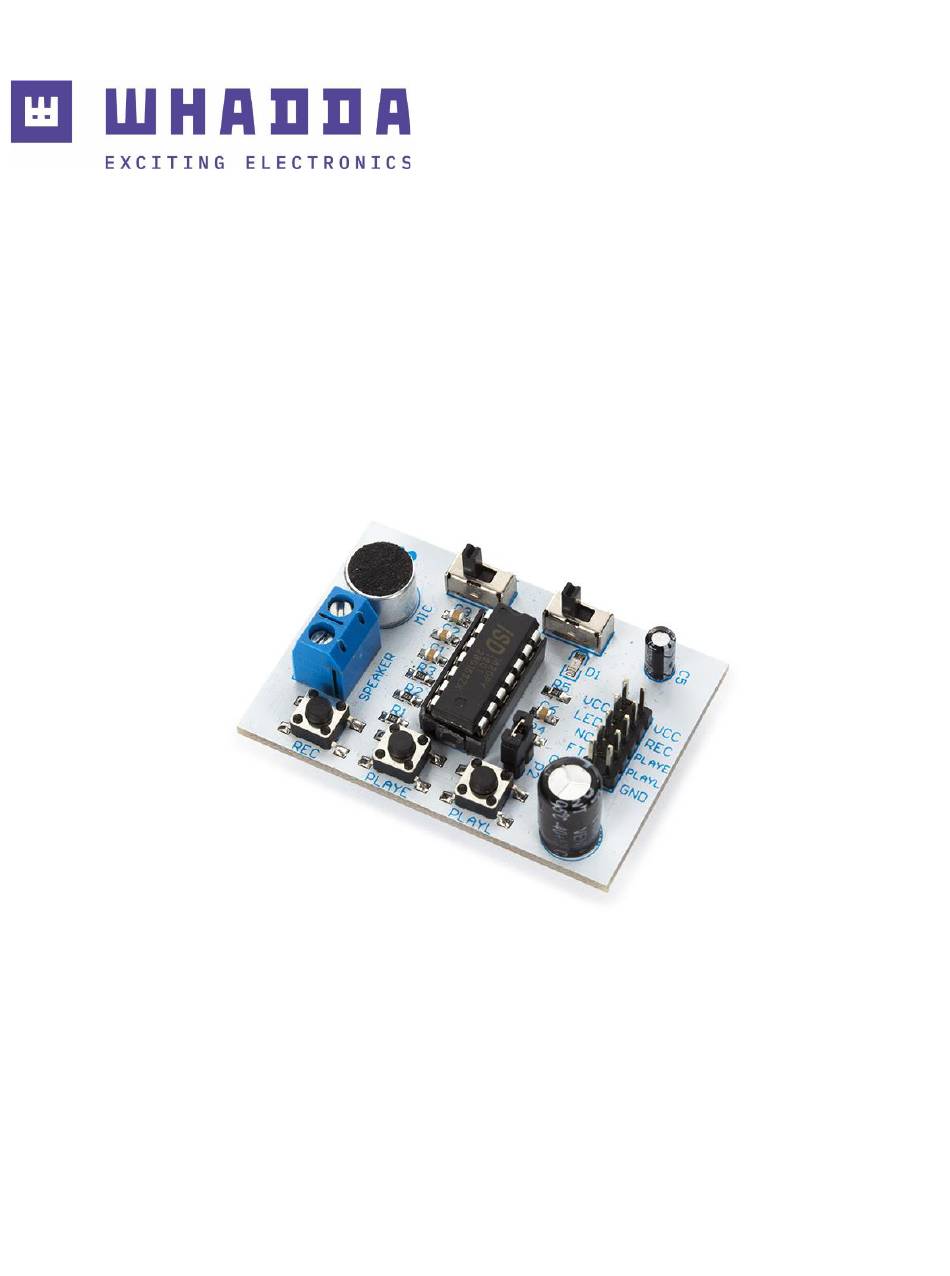

- Page 1 USER MANUAL ISD1820 voice record/play module WPM449 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 What is Arduino® Arduino is an open-source prototyping platform based on easy-to-use hardware and ® software. Arduino ® boards are able to read inputs – light-on sensor, a finger on a button or a Twitter message – and turn it into an output – activating of a motor, turning on an LED, publishing something online.
- Page 4 P2 – Default short connection Rosc to 100 kΩ resistor R4, which means the record duration is 10 seconds. PLAYL – Playback, level activated. When this input transits from LOW to High a playback cycle is initiated. PLAYE – Playback, edge-activated. When a HIGH going transition is detected the recorded message will be played until the end of the recording.
- Page 5 Operating Guide Hold the REC button to record. The REC LED (D1) will light. Releasing the REC button will stop the recording. Select the playback mode: PLAYE: push one time and the full recording will be played. PLAYL: the recording plays as long as the button is pushed. REPEAT: move this sliding switch to the other position and the recording will continue playing time after time.
- Page 6 Modifications and typographical errors reserved - © Velleman Group nv. WPM449_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
