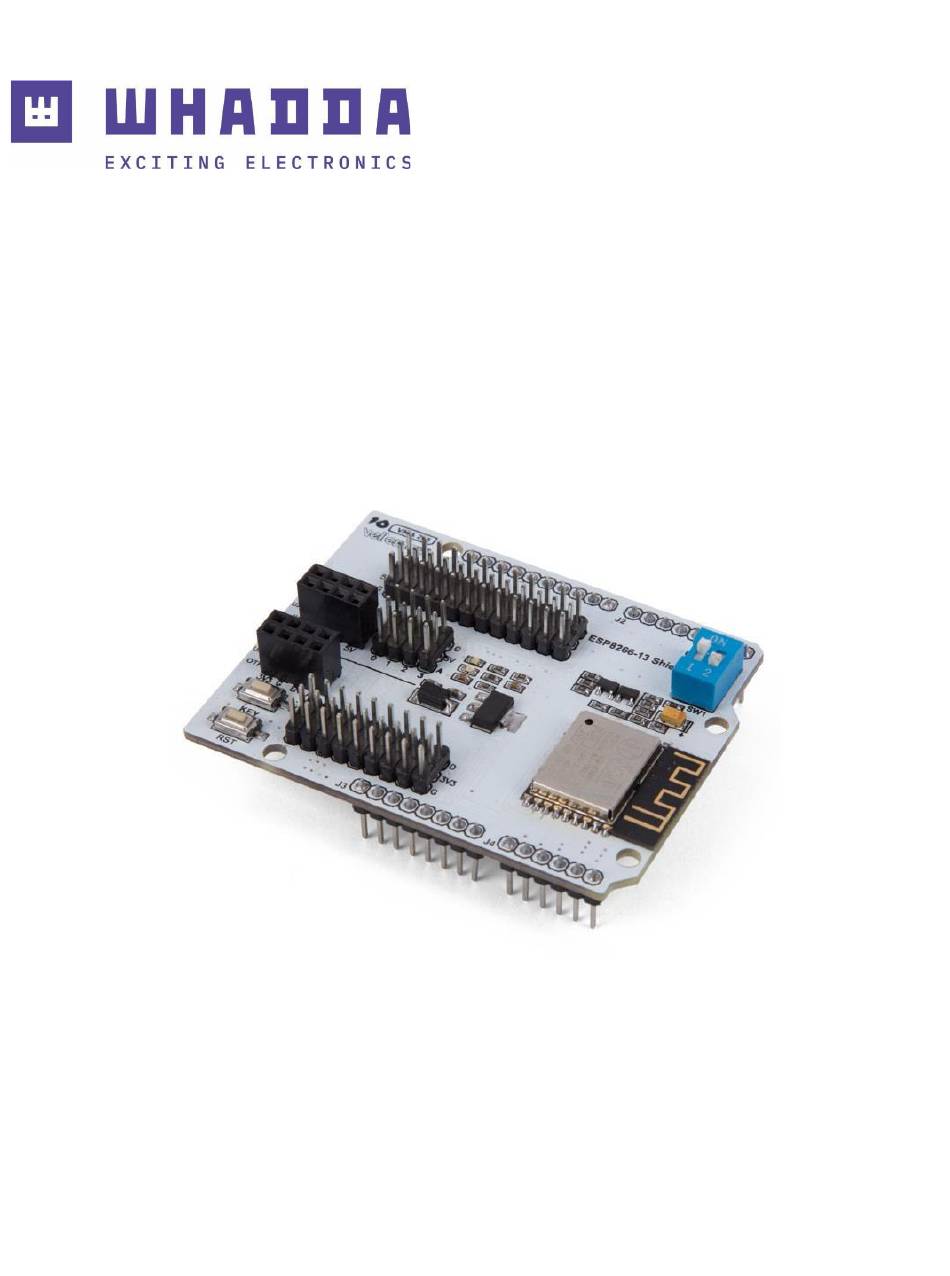

- Page 1 MANUAL WLAN ESP-WROOM-02 Shield WPSH205 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 RED Declaration of Conformity Hereby, Velleman Group nv declares that the radio equipment type WPSH205 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.velleman.eu.
- Page 4 ESP8266 and Arduino® Arduino with IDE, SW1 and SW2 must be set to OFF Example Hardware Requirements • 1x Arduino® Uno board • 1x WPSH205 • 1x PC with wireless LAN • 1x USB cable Software Requirements • 1x Arduino® IDE •...
- Page 5 Before the shield can be used in this manner however, some initial configuration steps need to be done to update the firmware on the module and enable it to communicate with the Arduino® compatible board: Connect a USB to Serial adapter to the ESP13 shield UART pins (RX->TXO,TX->RXO) 2.
- Page 6 d. Press and hold the RST and KEY buttons on the shield, while pressing START in the ESP8266 Download tool. e. Release the RST button but keep holding down the KEY button until the firmware download has finished. 3. The new firmware enables another UART port on the ESP-WROOM-02 module that listens to AT commands.
