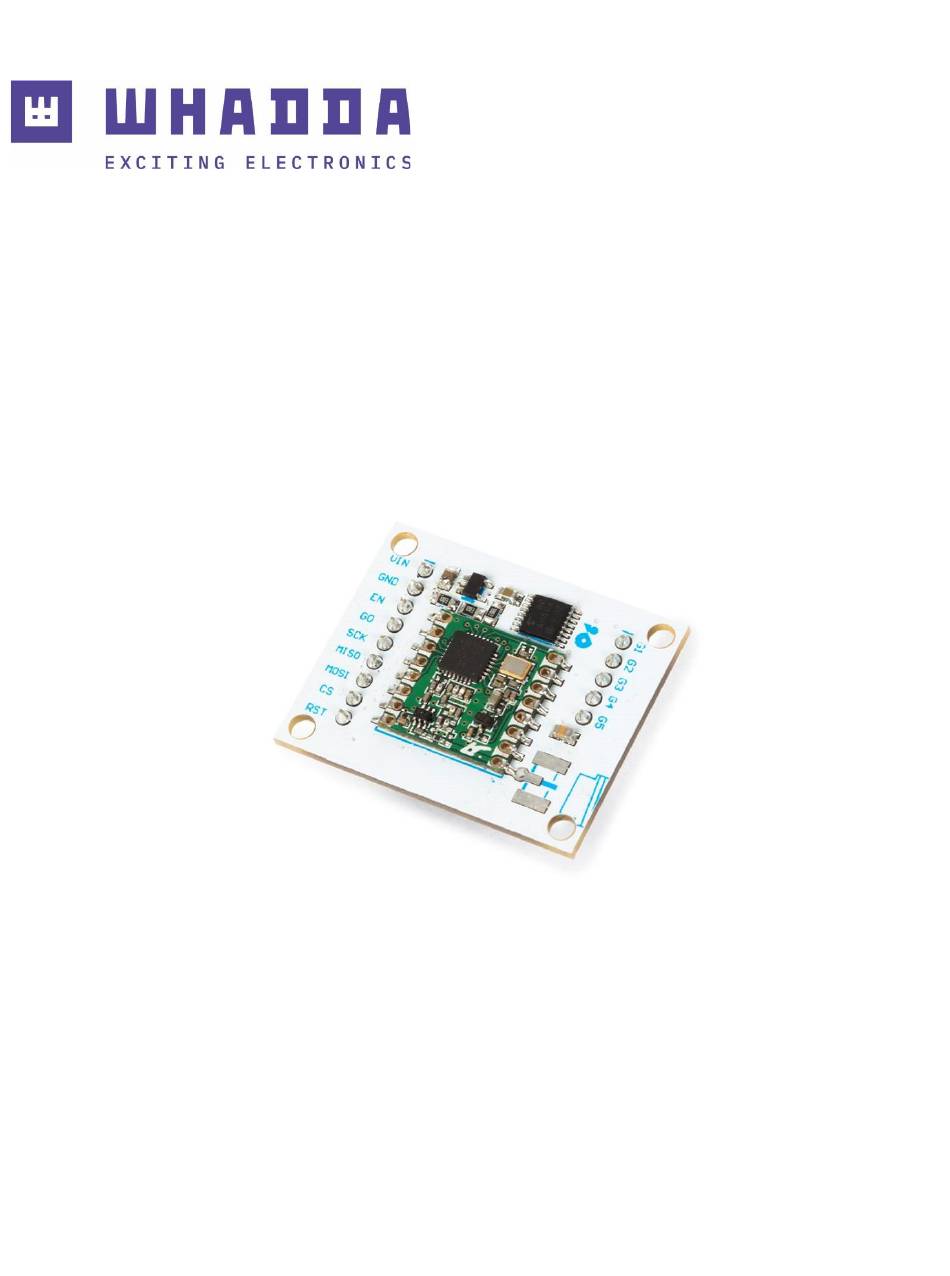

- Page 1 USER MANUAL RFM69HCW transceiver breakout board WPI348 whadda.com...
- Page 2 If in doubt, contact your local waste disposal authorities. Thank you for choosing Whadda! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
- Page 3 Product Overview The RFM69HCW module is an inexpensive and versatile radio module. You can use it to send text or binary data between two or hundreds of modules. It's perfect for building inexpensive short-range wireless networks for home and building automation, sensor...
- Page 4 We will connect two radio modules to one another, read the temperature and send the temperature value to another module. Requirements: • 2x Arduino ® • 2x WPI348 RFM69HCW module • 1x WPSE320 analogue temperature sensor module • 20x jumper wire • 2x USB-A to USB-B cable...
- Page 5 Connecting Arduino® Connect the WPI348 module to the Arduino ® as depicted below. We will only connect one temperature sensor to one Arduino ® Programming Download the RadioHead library here and add it to the Arduino IDE. ® 2. Go to GitHub and download both codes here. 3.
- Page 6 4. Open a new IDE with the RF69_SERVER_RECEIVE_DATA code and upload to the Arduino without the temperature sensor. You should see following output: ® Now, it’s time to try and send data using all kinds of sensors, e.g. reading and sending the status of a PIR sensor to the Arduino so you can make a relay switch or control LEDs…...
- Page 7 Modifications and typographical errors reserved - © Velleman Group nv. WPI348_v01 Velleman Group nv, Legen Heirweg 33 - 9890 Gavere...
