OTHER COMPONENTS
Bolt, Anchor
Siphon Kit
DESCRIPTION OF SENSOR PART
25mm (Safety switch ON)
21mm (Pump ON)
13mm (Pump OFF)
Float
(*Magnet always
positioned on top)
*Position tolerance( 2mm)
Bottom of
Reservoir
FLOW RATES AT EACH HEAD
Head
0m / 0ft
4m / 13ft
6m / 20ft
8m / 26ft
Rate of Flow(L/h)
29
19
15
12
Rate of Flow(gal/h)
7.66
5.01
3.96
3.17
w w w. d i v e r s i t e c h . c o m
|
8 0 0 . 9 9 5 . 2 2 2 2
WARRANTY
All pumps manufactured by or for DiversiTech Corporation (the Company) and sold
by the Company under the Asurity or DiversiTech brand are warranted to be free of
defects in workmanship and materials for a period of 24 months from date of sale from
the distributor to the contractor. The Company will credit, repair or replace, at its option,
any Pump if deemed defective within this time period. All products returned to the
Company must include a return authorization issued by the Company. The returned
product should be suitably packaged and shipped prepaid from the point of shipment
to the point designated in the
Company's return authorization.
This warranty is a limited warranty and shall be in lieu of any other warranties,
expressed or implied, including, but not limited to, any implied warranty of
merchantability or fitness for a particular purpose. There are no other warranties that
extend beyond the description of the face hereof. The liability of the Company
arising out of its supply of said products, or their use shall not in any case exceed
the cost of correcting defects in the products as set forth above. The Company shall
not be liable for any costs or damage incurred by its customers in the removal or
replacement of defective products from units in which the products have been
assembled. In no event shall the company be liable for loss of profits, indirect,
consequential, or incidental damages.
©2021 DiversiTech Corporation
Asurity
is a registered trademark of
Duluth, GA 30097
TM
DiversiTech Corporation
Pump Ductless
Standard Applications
Installation Instructions
CONDENSATE MANAGEMENT
800.995.2222
AS URITY
TM
FUNCTION OF THE PRODUCT
Condensate
QUIETMINI-M condensate removal pump is designed to
remove condensate from air conditioner automatically.
COMPONENTS
Pump
Model: QUIETMINI-M
Cover
ULTRA QUIET AND LOW PROFILE UNDERMOUNT PUMP
CONDENSATE MANAGEMENT
Power cable
Inlet hole
Discharge hose
Reservoir
Advertisement
Table of Contents
Related Manuals for ASURITY QUIETMINI-M
Summary of Contents for ASURITY QUIETMINI-M
- Page 1 Condensate QUIETMINI-M condensate removal pump is designed to by the Company under the Asurity or DiversiTech brand are warranted to be free of defects in workmanship and materials for a period of 24 months from date of sale from remove condensate from air conditioner automatically.
- Page 2 ASUR IT Y HOW TO INSTALL THE PRODUCT MAINTENANCE Insert the air conditioner drain hose all the way into the reservoir and connect the After installation is complete, install the cover according to the rubber parts. pump's discharge hose to the external drain hose. (At this time, be careful that the 1.
Need help?
Do you have a question about the QUIETMINI-M and is the answer not in the manual?
Questions and answers

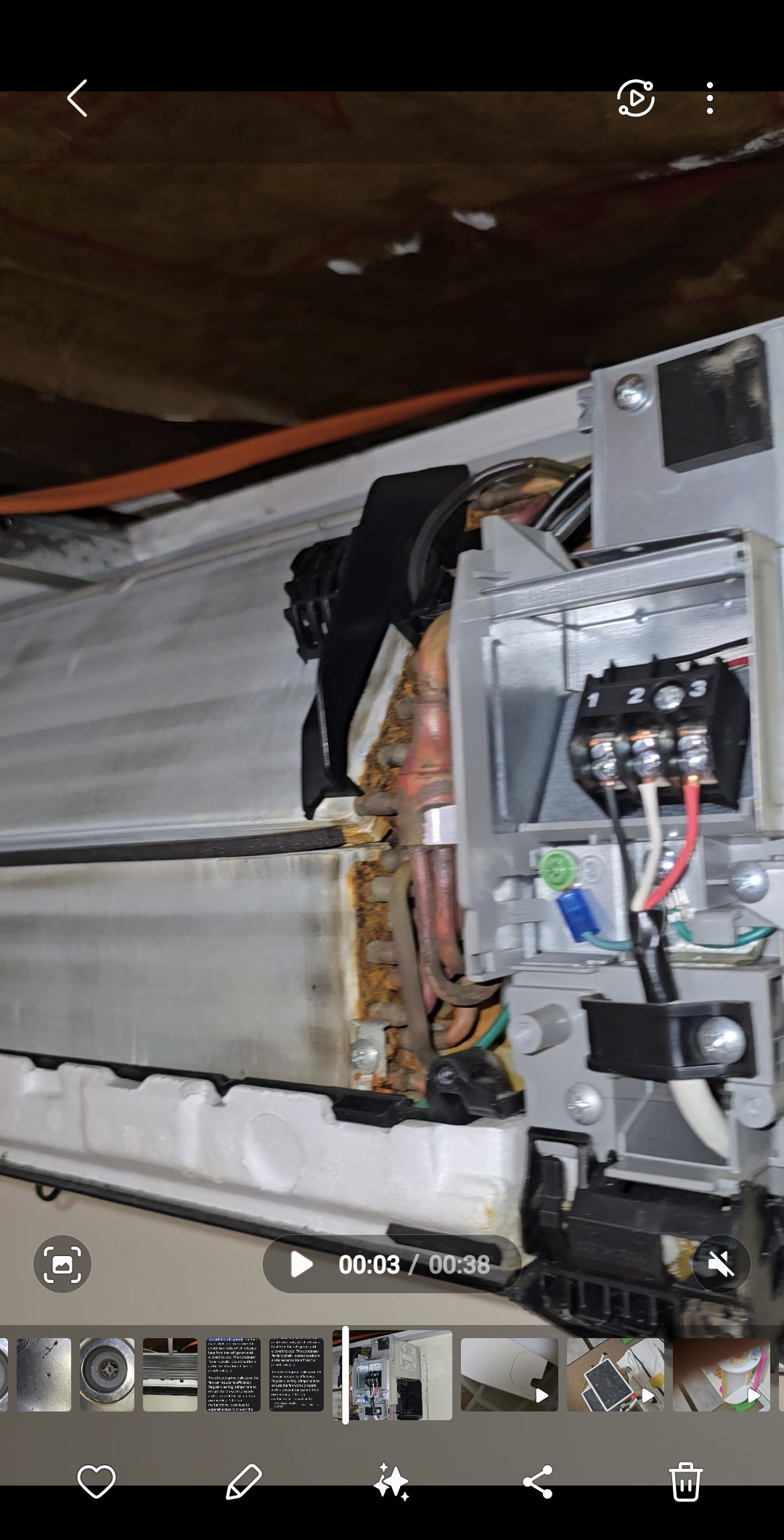

I am a homeowner who purchased an Asurity mini condensate pump. I want to install it on a basement fujitsu 9000 btu handler. I turned off the power to the unit. I took off the cover to the electrical connections. They are numbered 1,2 and 3. Can someone there tell me which wires from the pump need to be connected to 1,2 and or 3? At the present time I do not want to connect for the automatic shut off in case of pump failure. Any or all information will be appreciated .Thank you Peter
