Summary of Contents for ASURITY PROCP-46

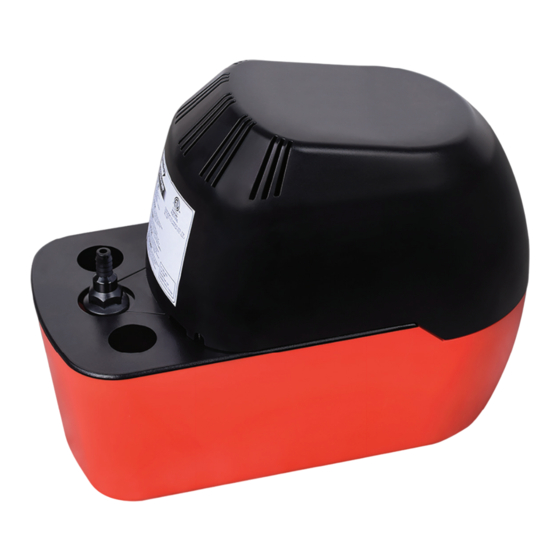

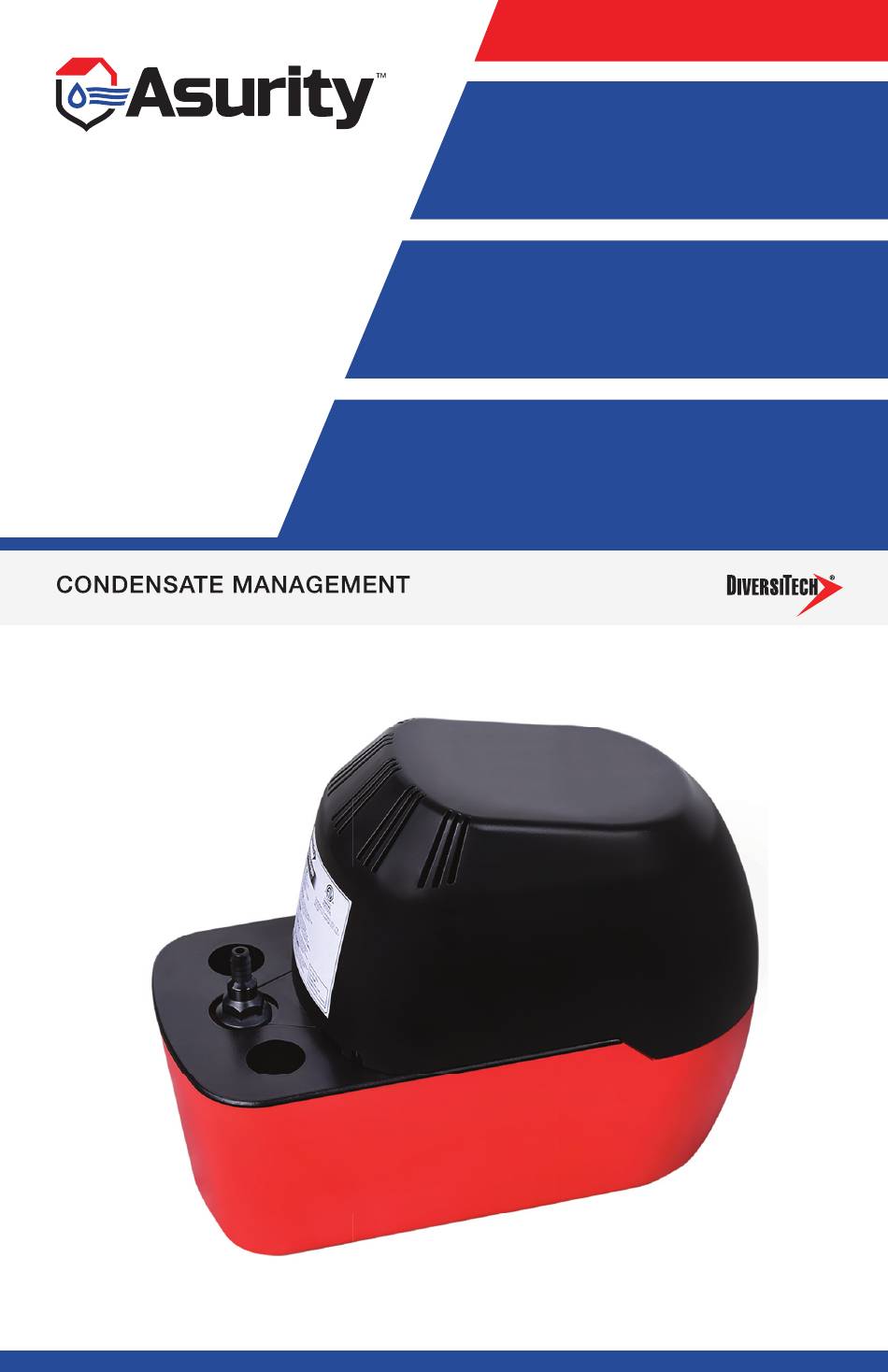

- Page 1 Condensate Pump Specialty Acidic, Max Temperature & High Lift/Flow Applications Models: PROCP-46, PROCP-46-230 Installation Instructions...
- Page 2 ASU RI TY INTRODUCTION The Asurity Condensate Pump is designed to automatically remove the water produced by condensing furnace and boilers that produce high temperature condensate. Can also be used for air conditioning evaporation coils, especially when high lift is required. These pumps can also be used for other types of fresh water removal from refrigeration equipment, dehumidifiers, water dispensers, etc.
- Page 3 This is not a submersible pump All service and installation should be done by a qualified service technician The intermittent rating of this pump is not longer than 5 minutes SPECIFICATIONS Boiler Pump 230V 115V PROCP-46 PROCP-46-230 Model Length 12.8” Max Flow Width 6.3”...
- Page 4 ASU RI TY INSTALLATION GUIDE (CONTINUED) If installed for combined boiler condensate & PRV discharge, this pump is only suitable for boilers up to 143MBH. HOW TO USE THE CHECK VALVE TO UNINSTALL TURN 90° COUNTER-CLOCK-WISE PULL UP TO REMOVE CHECK VALVE FROM HOLE TO INSTALL INSERT THE CHECK VALVE INTO THE HOLE TURN CHECK VALVE 90°...
- Page 5 INSTALLING THE PUMP (CONTINUED) 3. The pump should not be installled in a manner that will subject it to splashing or spraying. 4. PRV discharge should be routed through a tundish before entering the pump. ELECTRICAL CONNECTIONS 1. If desired, connect overflow safety switch terminals. Normally closed contact can be used to shut down equipment and normally open contact can be used to activate optional audible or visual alarm.
- Page 6 ASU RI TY tubing. The non return valve has a quick release mechanism with a 1/4 turn bayonet type fitting. 2. Tubing should rise vertically but not exceed the maximum shut off head (pumping height) of 49’ above the pump. Any horizontal runs should be tak- en into consideration when assessing the maximum shut off.
- Page 7 LIMITED WARRANTY All pumps manufactured by or for DiversiTech Corporation (the Company) and sold by the Company under the Asurity or Diversitech brand are warranted to be free of defects in workmanship and materials for a period of 36 months from date of sale from the distributor to the contractor. The Company will credit, repair or replace, at its option, any Pump if deemed defective within this time period.
- Page 8 Asurity is a registered trademark of DiversiTech Corporation DiversiTech Corporation Duluth, GA 30097 800.995.2222 ©2020 DiversiTech Corporation DOC172640...
