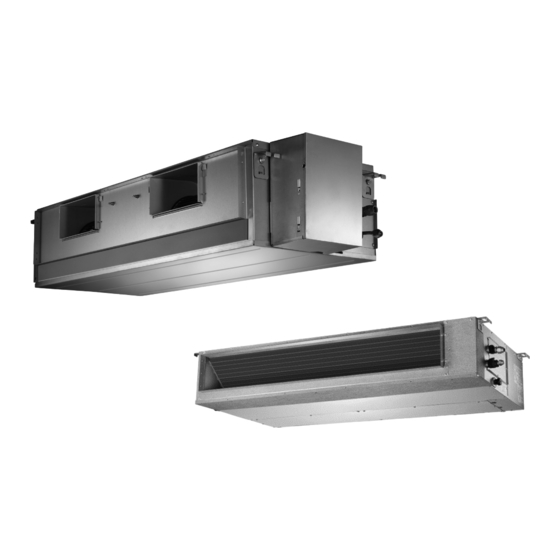

Ultraslim ducted split system air conditioner
Hide thumbs Also See for LRC-071CS:
Table of Contents

Advertisement

Quick Links

UltraSlim Ducted
Split System Air Conditioner
Installation and Commissioning Guide
Installation and Commissioning Guide
Model Numbers
LRC-071CS / LRE-071CS
LRC-100CS / LRE-100CS
URC-125CS / LRE-125CS
URC-140CS / LRE-140CS
LRC-170CS / LRE-170CS
IMPORTANT NOTE:
Please read this manual carefully before installing or operating your air conditioning unit. Make sure to save this manual for
future reference.
future reference.
CAUTION:
CAUTION:
The system is charged with fl ammable refrigerant, safety checks are necessary to ensure that the
The system is charged with fl ammable refrigerant, safety checks are necessary to ensure that the
risk of ignition is minimised.
risk of ignition is minimised.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRC-071CS and is the answer not in the manual?

Questions and answers

Related Manuals for ActronAir LRC-071CS

Summary of Contents for ActronAir LRC-071CS

  • Page 1 UltraSlim Ducted Split System Air Conditioner Installation and Commissioning Guide Installation and Commissioning Guide Model Numbers LRC-071CS / LRE-071CS LRC-100CS / LRE-100CS URC-125CS / LRE-125CS URC-140CS / LRE-140CS LRC-170CS / LRE-170CS IMPORTANT NOTE: Please read this manual carefully before installing or operating your air conditioning unit. Make sure to save this manual for future reference.

  • Page 2: Table Of Contents

    18. Test Run ............................45 This manual is a controlled document which contains confidential and proprietary information. Distribution, modification, copying and/or reproduction are prohibited without written consent from ActronAir Product design and specifications are subject to change without prior notice for product improvement.

  • Page 3: Symbols

    Check your air conditioning unit and all items against the invoice upon receiving your shipment. Inspect the unit, components and accessories for any sign of damage. If there is any damage to the unit, contact ActronAir Customer Care Department immediately on: 1300 522 722 to obtain a Goods Return Number.

  • Page 4: Safety Instructions

    Gold Hydrophillic Coat Coil Protection heat exchangers ensures an enhanced heat transfer with increased performance efficiency. System Flexibility The ActronAir air conditioning units are the first choice for residential, office, schools and other air conditioning facilities applications, both for new construction or retrofitting projects. Refrigerant Handling and Accountability ActronAir strongly urges that all service technicians make every effort to eliminate the emission of refrigerants to the atmosphere.
  • Page 5 Ultraslim Split System Installation and Commissioning Guide DANGER Hazardous Voltage - Risk of Electrocution. Turn Off the power from main isolator before proceeding with any service work of the unit. Observe proper LOCK-OUT/TAG-OUT (LOTO) procedures for electrical appliances in order to prevent accidental switching-on of the power supply.

  • Page 6: Installation Information

    Ultraslim Split System Installation and Commissioning Guide 05. Installation Information All service technicians handling this unit must be licensed to handle R-32 refrigerant. Recover and Recycle Refrigerants Never release refrigerant to the atmosphere! It is an offence in Australia to do so. Always recover, recycle and reuse refrigerants.

  • Page 7: Components

    3000 (also known as Australian Wiring Rules). NOTE This indoor unit is designed to match only with the ActronAir outdoor unit as specified in the Technical Selection Catalogue. This unit is designed for use with R-32 refrigerant only. The unit is supplied with factory charged R-32 refrigerant. Be aware of all the relevant regulations concerning the handling of refrigerant.

  • Page 8: Installation Overview

    Ultraslim Split System Installation and Commissioning Guide 07. Installation Overview Installation Order Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...

  • Page 9: Indoor Units Parts

    Ultraslim Split System Installation and Commissioning Guide 08. Indoor Units Parts LRE-071CS / LRE-100CS / LRE-125CS (A) For the unit which the filter is removed for left or right side Air inlet Electric control cabinet Air filter Air outlet Drain hose Refrigerant connecting pipe LRE-140CS / LRE-170CS Air inlet...

  • Page 10: Indoor Unit Dimensions

    CAUTION These indoor units are: • Designed to match only with the ActronAir outdoor unit as specified in the Technical Selection Catalogue. • Designed for use with R-32 refrigerant only. • Supplied with factory charged R-32 refrigerant. Be aware of all the relevant regulations concerning the handling of refrigerant.
  • Page 11 Ultraslim Split System Installation and Commissioning Guide LRE-140CS / LRE-170CS Outline Dimensions Mounting Air Outlet Opening Size Air Inlet Opening Size Distance Model Depth Width Height (Center to Center) LRE-140CS 1200 1236 1000 1145 LRE-170CS 1400 1436 1188 1000 1188 1000 Installation and Commissioning Guide - Ultraslim 2 Split System Doc.

  • Page 12: Indoor Unit Installation

    Ultraslim Split System Installation and Commissioning Guide 10. Indoor Unit Installation WARNING • Securely install the indoor unit on a structure that can sustain its weight. If the structure is too weak the unit may fall causing personal injury, unit and property damage or death. •...
  • Page 13 Ultraslim Split System Installation and Commissioning Guide LRE-140CS / LRE-170CS SERVICE ACCESS AREAS Roof beam Ceiling Hanging screw bolts (Blade shape insertion) (Slide insertion) Roof beam Steel bar Ceiling Embedding screw bolt (Pipe hanging and embedding screw bolt) Hanging screw bolts 10.01.
  • Page 14 (Blade shape insertion) (Slide insertion) Ultraslim Split System Installation and Commissioning Guide crew bolt edding screw bolt) 5. Install the four suspension bolts. 6. Mount the indoor unit. Ensure an adequate lifting device is used. Insert suspension bolts into the unit’s hanging holes. Fasten them using the included Steel bar washers and nuts, see the image à...
  • Page 15 Ultraslim Split System Installation and Commissioning Guide Set External Static Pressure Settings for external static pressure can be achieved by using the wired controller supplied with the unit. When the air conditioning unit is off, perform the next steps: - Press and hold “COPY” button for 3 seconds - Press the button “+”...
  • Page 16 Ultraslim Split System Installation and Commissioning Guide Bend the rear ventilation panel 90 degrees along the dotted line into a descending ventilation panel. 2. Change the mounting positions of the ventilation panel and air return flange. 3. Stick the filter mesh into the flange as per the indicating place (see below). 10.04.
  • Page 17 Ultraslim Split System Installation and Commissioning Guide LRE-140CS / LRE-170CS For above models, three methods are applied. 1. Remove the front side plate from the top. a. Remove the top cover as shown. b. Loosen the four bolts and two c.

  • Page 18: Indoor Drainpipe Installation

    Ultraslim Split System Installation and Commissioning Guide Drain Pump Maintenance: 1. Unplug pump power supply and water level switch cable. 2. Remove four screws from drain pump. 3. Take off pump. LRE-071CS / LRE-100CS / LRE-125CS LRE-140CS / LRE-170CS Pump Pump 11.
  • Page 19 Pipe clasp Drainpipe Insulation connecting port Ultraslim Split System Installation and Commissioning Guide LRE-071CS / LRE-100CS / LRE-125CS Ceiling 1-1.5 m 1-1.Sm " Lean over 1/50 (2% Fall) Lean over 1/50 (2% Fall) ""-"' ::::: The drain pipe installation for the unit with a drain pump: Ceiling Ceiling <...
  • Page 20 Ultraslim Split System Installation and Commissioning Guide NOTE • When using an extended drainpipe, tighten the indoor connection with an additional protection tube to prevent it from pulling loose. • The drainpipe should slope downward to prevent water from flowing back into the air conditioner. •...
  • Page 21 Ultraslim Split System Installation and Commissioning Guide NOTE The drainpipe outlet should be at least 5cm above the ground. If it touches the ground, the unit may become blocked and malfunction. If you discharge the water directly into a sewer, make sure that the drain has a U or S pipe to catch odour that might otherwise come back into the house.
  • Page 22 Ultraslim Split System Installation and Commissioning Guide Disconnect-Type Installation (For LRE-170CS Model Only) 1. Remove electrical control box cover. Pull out the temperature sensor line and water pump line from the main control board. 2. Remove 6 screws on the top cover and 3 screws on the connecting plate of the left side plate. 3.
  • Page 23 Ultraslim Split System Installation and Commissioning Guide 5. Move the two boxes to the installation position (the chassis faces up and the water tray faces down) 6. Connect the temperature sensing cable / water pump cable to the main board in the electric control box. 7.

  • Page 24: Outdoor Unit Installation

    Ultraslim Split System Installation and Commissioning Guide 12. Outdoor Unit Installation Install the unit by following local codes and regulations , there may be differ slightly between different regions. 12.01. Outdoor Unit Clearance NOTE These are the minimum required distances for correct operation and servicing of the unit. 12.02.
  • Page 25 Ultraslim Split System Installation and Commissioning Guide If the unit is frequently exposed to heavy rain or snow: Build a shelter above the unit to protect it from the rain or snow. Be careful not to obstruct air flow around the unit. If the unit is frequently exposed to salty air (seaside): Use outdoor unit that is specially designed to resist corrosion.
  • Page 26 Outdoor Unit Specifications Table Mounting Dimensions Model Number Outdoor Unit Dimensions (Centre to Centre) H x W x D A (mm) B (mm) LRC-071CS 673 x 890 x 342 LRC-100CS 810 x 946 x 410 URC-125CS URC-140CS 1333 x 952 x 415 LRC-170CS...

  • Page 27: Refrigerant Piping Connection

    Ultraslim Split System Installation and Commissioning Guide 13. Refrigerant Piping Connection LRC-071CS LRC-100CS URC-125CS URC-140CS LRC-170CS Outdoor Model Minimum Field Pipe Length (m) Maximum Field Pipe Length (m) including vertical rise Maximum Vertical (m) Liquid Pipe (mm) 9.52 (3/8") Gas Pipe (mm) 15.88 (5/8")
  • Page 28 Ultraslim Split System Installation and Commissioning Guide Pipe Flare Dimension and Tightening Torque Guide Flare Dimension Tightening Pipe Size Flare Shape Torque (mm) (mm) LRE-071CS / LRE-100CS / LRE-125CS / LRE-140CS Ø 9.52 25 - 26 Nm 13.2 13.5 Ø 15.88 45 - 47 Nm 19.2 19.7...
  • Page 29 Ultraslim Split System Installation and Commissioning Guide 2. Remove protective caps from ends of valves. 3. Align flared pipe end with each valve, and tighten the flare nut as tightly as possible by hand. 4. Using a spanner, grip the body of the valve. Do not grip the nut that seals the service valve. NOTE USE SPANNER TO GRIP MAIN BODY OF VALVE.
  • Page 30 Ultraslim Split System Installation and Commissioning Guide Indoor Above Outdoor Unit CAUTION If the indoor unit is installed at a higher position than the outdoor unit , there is chance that oil may flow into the compressor. This may cause liquid compression or deterioration of oil return. Use oil traps in the gas piping to prevent this. An oil trap should be installed every 10m in the vertical suction line riser.
  • Page 31 Ultraslim Split System Installation and Commissioning Guide Outdoor Above Indoor Unit CAUTION If the outdoor unit is installed at a higher position than the indoor unit , it is recommended that the vertical suction risers not be upsized. Proper oil return to the compressor should be maintained with suction gas velocity. If velocities drop below 7.62 m/s, oil return will be decreased.

  • Page 32: Wiring

    Ultraslim Split System Installation and Commissioning Guide 14. Wiring Safety Precautions WARNING • Be sure to disconnect the power supply before working on the unit. • All electrical wiring must be done according to local and national regulations. • Electrical wiring must be done by a qualified technician. Improper connections may cause electrical malfunction, injury and fire.
  • Page 33 Ultraslim Split System Installation and Commissioning Guide 3. Connect the u-lugs to the terminals. Match the wire colors/labels with the labels on the terminal block. Firmly screw the u-lug of each wire to its corresponding terminal. Refer to the Serial Number and Wiring Diagram located on the cover of the electric control box.
  • Page 34 Ultraslim Split System Installation and Commissioning Guide Electrical Connection EXTRA LOW VOLTAGE DATA CONTROL WIRING MAINS WIRING (220-240VAC) 2 core shielded data cable 14/0.20 (0.44mm (Single Phase + Neutral) 50Hz maximum length: equivalent to the maximum pipe length CONTROL WIRING (220-240VAC) DATA CABLE TO WALL CONTROLLER (Single Phase + Neutral) 50Hz 2 Core + Earth Supplied with the controller 12m.
  • Page 35 Ultraslim Split System Installation and Commissioning Guide Connecting Diagram LRE to LRC-071CS OUTDOOR UNIT (1)L (2)N POWER SUPPLY See Outdoor Unit (URC/CRC) Installation Guide for suggested minimum 14/0.20 (0.44mm²) SHIELDED DATA CABLE WITH SHIELD WIRE CONNECTED TO EARTH TERMINAL Data Cable...
  • Page 36 Ultraslim Split System Installation and Commissioning Guide Connecting Diagram LRE to LRC-100CS / LRE to URC-125CS / LRE to URC-140CS / LRE to LRC-170CS INDOOR BOARD AUXILIARY BOARD (1)L (2)N POWER SUPPLY See Outdoor Unit (URC/CRC) 14/0.20 (0.44mm²) Installation Guide for suggested Ferrite Ring SHIELDED DATA CABLE minimum...

  • Page 37: Wiring Diagram

    Ultraslim Split System Installation and Commissioning Guide 15. Wiring Diagram LRC-071CS CN17 CN414 Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...
  • Page 38 Ultraslim Split System Installation and Commissioning Guide LRC-100CS TO OUTDOOR UNIT CN16 CN26 HP SWITCH LP SWITCH Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...
  • Page 39 Ultraslim Split System Installation and Commissioning Guide URC-125CS / URC-140CS / LRC-170CS DISCHARGE SENSOR Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...
  • Page 40 Ultraslim Split System Installation and Commissioning Guide LRE-071CS CN10 S1 SW4 SW5 SW1 CN34 CN45 CN13 CN43 CN43 Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...
  • Page 41 Ultraslim Split System Installation and Commissioning Guide LRE-100CS / LRE-125CS / LRE-140CS / LRE-170CS CN10 S1 SW4 SW5 SW1 CN34 CN40 CN43 CN13 CN43 Installation and Commissioning Guide - Ultraslim 2 Split System Doc. No. 9590-5014 Ver. 3 221129...

  • Page 42: Air Evacuation

    Ultraslim Split System Installation and Commissioning Guide 16. Air Evacuation CAUTION • Refrigerant charging must be performed after wiring, vacuuming and the leak test. • DO NOT exceed the maximum allowable quantity of refrigerant or overcharge the system. Doing so can damage or impact the unit’s function.
  • Page 43 13. If the outdoor unit uses all vacuum valves, and the vacuum position is at the main valve, the system is not connected with the indoor unit. The valve must be tightened with a screw nut. Check for gas leaks before operation to prevent leakage. 16.01. Refrigerant Charge Details Model LRC-071CS LRC-100CS URC-125CS URC-140CS LRC-170CS...

  • Page 44: Electrical And Gas Leak Checks

    Ultraslim Split System Installation and Commissioning Guide 17. Electrical and Gas Leak Checks 17.01. Gas Leak Checks Proper pressure test with dry nitrogen should be performed, prior to air evacuation. Perform leak detection test with electronic leak detector after letting refrigerant into pipework Leak Test 1.

  • Page 45: Test Run

    Ultraslim Split System Installation and Commissioning Guide CAUTION • Use a vacuum pump and a vac stat reading lower than 500 microns and an air discharge capacity above 40L/min. • The outdoor unit does not need vacuuming DO NOT open the outdoor unit’s gas and liquid stop valves. •...
  • Page 46 Ultraslim Split System Installation and Commissioning Guide Test Run Instructions 1. Open both the liquid and gas stop valves. 2. Turn on the main power switch and allow the unit to warm up. 3. Set the air conditioner to COOL mode. 4.
  • Page 47 Ultraslim Split System Installation and Commissioning Guide ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................Installation and Commissioning Guide - Ultraslim 2 Split System Doc.
  • Page 48 ©Copyright 2022 Actron Engineering Pty Limited ABN 34 002767240. ®Registered Trade Marks of Actron Engineering Pty Limited. ActronAir is constantly seeking ways to improve the design of its products. Therefore, specifi cations are subject to change without notice. Installation and Commissioning Guide - Ultraslim 2 Split System...
