Summary of Contents for Element ERBM19CBS

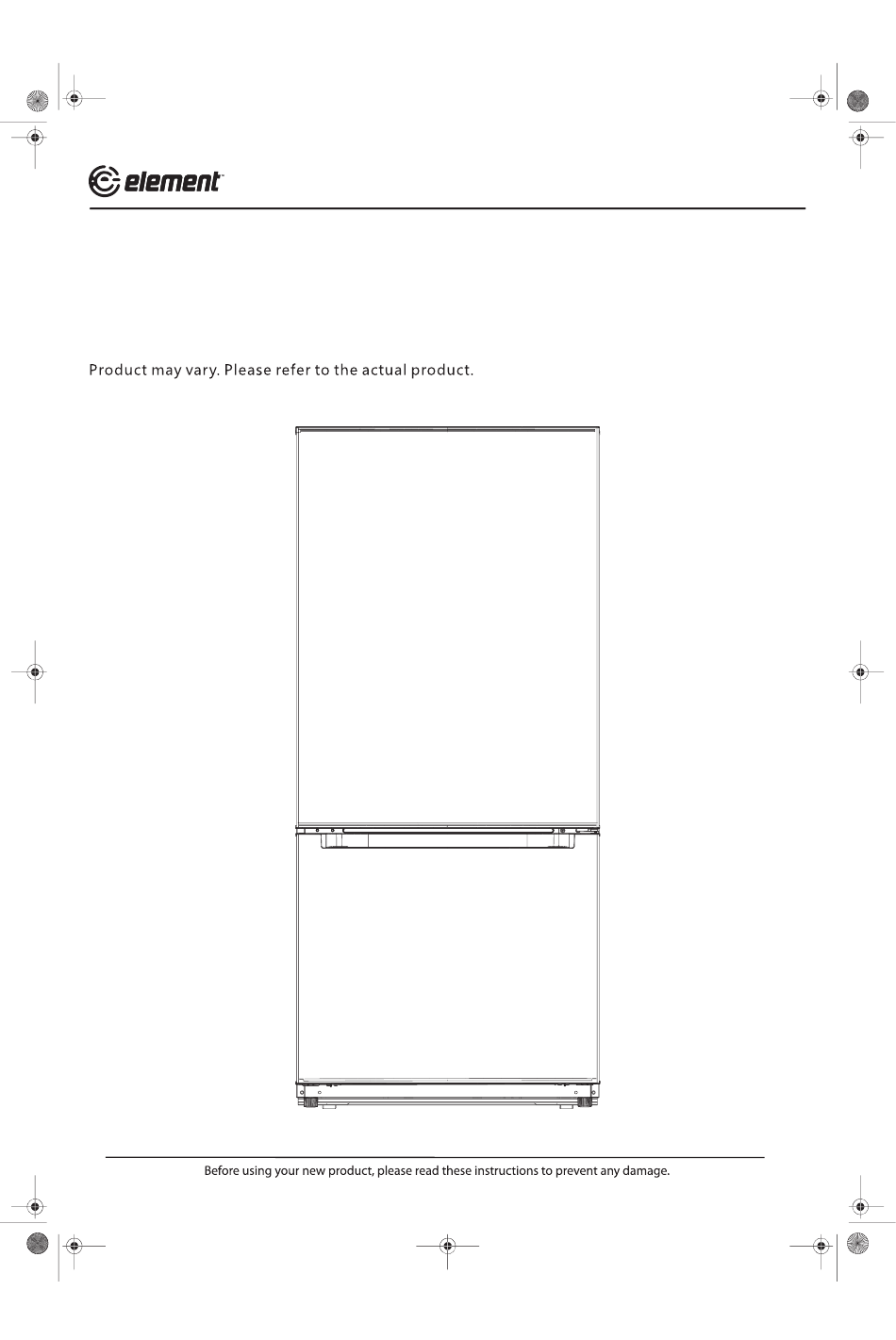

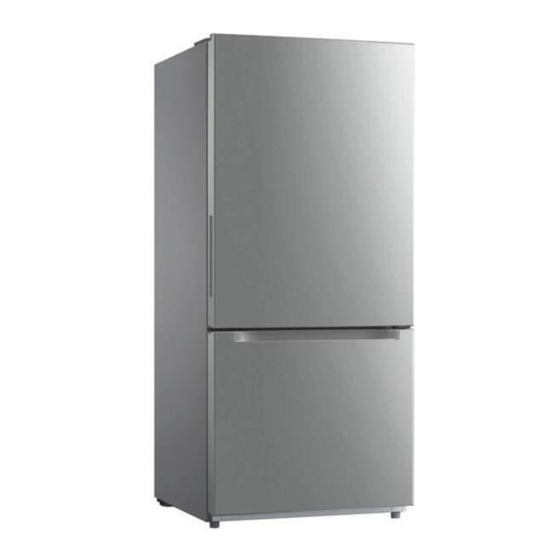

- Page 1 User Manual 18.7 cu.ft. Bottom Freezer ERBM19CBS ERBM19CBW...
-
Page 2: Table Of Contents
CONTENTS 1 Safety Warnings 2 Proper Use of the Refrigerator 4 Maintenance and Care of the Refrigerator 5 Troubleshooting 6 Warranty 6.1Warranty 18-19... -
Page 3: Safety Warnings
1 Safety Warnings 1.1 WARNING Warning risk of fire / flammable materials This appliance is intended to be used in household and similar locations such as staff kitchen areas in shops, offices and other working environments, farmhouses and by clients in hotels, motels and other residential type environments, bed and breakfast type environments, catering and similar non- retail locations. - Page 4 Children should be supervised to ensure that they do not play with the appliance. The instructions should include the substance of the following:To avoid contamination of food, follow the instructions: – Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
- Page 5 Meaning of safety warning symbols This is a prohibition symbol. Any incompliance with instructions marked with this symbol may result in damage to the product Prohibition symbol or endanger the personal safety of the user. This is a warning symbol. It is required to operate in strict observance of instructions marked with this symbol;...
- Page 6 1.4 Warnings for using Do not arbitrarily disassemble or reconstruct the refrigerator, or damage the refrigerant circuit. Maintenance of the appliance must be conducted by a specialist Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.
- Page 7 Do not store beer, beverage or other fluids contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages. 1.6 Warning for energy Warning for energy 1)Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance...
-
Page 8: Proper Use Of The Refrigerator
2 Proper Use of the Refrigerator 2.1 Placement Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside the refrigerator. Tear off the protective film on the doors and the refrigerator body. Keep away from heat and avoid direct sunlight. Do not place the refrigerator in moist or watery places to prevent rust or reduction of insulating effect. - Page 10 Door right-left change 1）Unplug your refrigerator and remove all food from the door shelves. Remove all food from the inner door liner. Fix the door by tape. 2）Remove the left cover plate and the right top hinge cover, then unscrew screws and remove the right top hinge.
- Page 11 6)Remove the center hinge, then remove the center hinge shaft with a slotted screwdriver. Install the hinge shaft on opposite side of the hinge and install the hinge to the left of the box. In the order shown above,the center hinge shaft is changed.
- Page 12 Put the refrigerator door vertically down on the middle hinge, then take out the top hinge and cover of other side from accessory bag, assemble top hinge, hinge cover and hole cover. Top hinge Hole cover (The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.) 2.4 Changing the Light Any replacement or maintenance of the LED lights is intended...
- Page 13 3 Structure and Functions Hot food should not It is recommended that all food is sealed before putting into the refrigerator. Note that food should Stored food should...
- Page 14 46.4℉ 39.2℉ 35.6℉ 2) Freezer 3.2℉ -2.2℉ -11.2℉ mode. All loads...
- Page 15 should...
-
Page 16: Maintenance And Care Of The Refrigerator
4 Maintenance and Care of the Refrigerator 4.1 Overall cleaning Dust behind the refrigerator and on the ground should be timely cleaned to improve the cooling effect and energy saving. Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent. - Page 17 4.3 Glass shelf cleaning Since the shelf and box gall have the innermost stop, first lift the shelf up. Then pull the shelf outward so it can be removed. Clean and adjust as needed. 4.4 Box gall bottom roller groove cleaning 1.First pull out the fruit and vegetable box.
- Page 18 4.5 Defrosting The refrigerator is made based on the air-cooling principle and has an automatic defrosting function. Frost formed due to change of season or temperature may also be manually removed by disconnection of the appliance from power supply or by wiping with a dry towel. 4.6 Out of operation Power failure: In case of power failure, even if it is summer, food inside the appliance can be kept for several hours.
-
Page 19: Troubleshooting
Troubleshooting You may try to solve the following simple problems by yourself. If the problems cannot be solved, contact the after-sales department. Check whether the appliance is connected to power or whether the plug is in well contact . Failed operation Check whether the voltage is too low. -
Page 20: Warranty
Product. To remain eligible for Warranty service, Original Customer may not return the Product or any part or component thereof to the retailer or Element without Element’s prior written consent. 2.EXCLUSIONS AND LIMITATIONS TO WARRANTY SERVICE... - Page 21 Product if it was purchased and serviced in the United States. The addition of equipment or features to the Product that are not manufactured or recommended by Element could affect the intended function of the Product, and therefore may void the Warranty. Furthermore, the exposure of the Product to...
