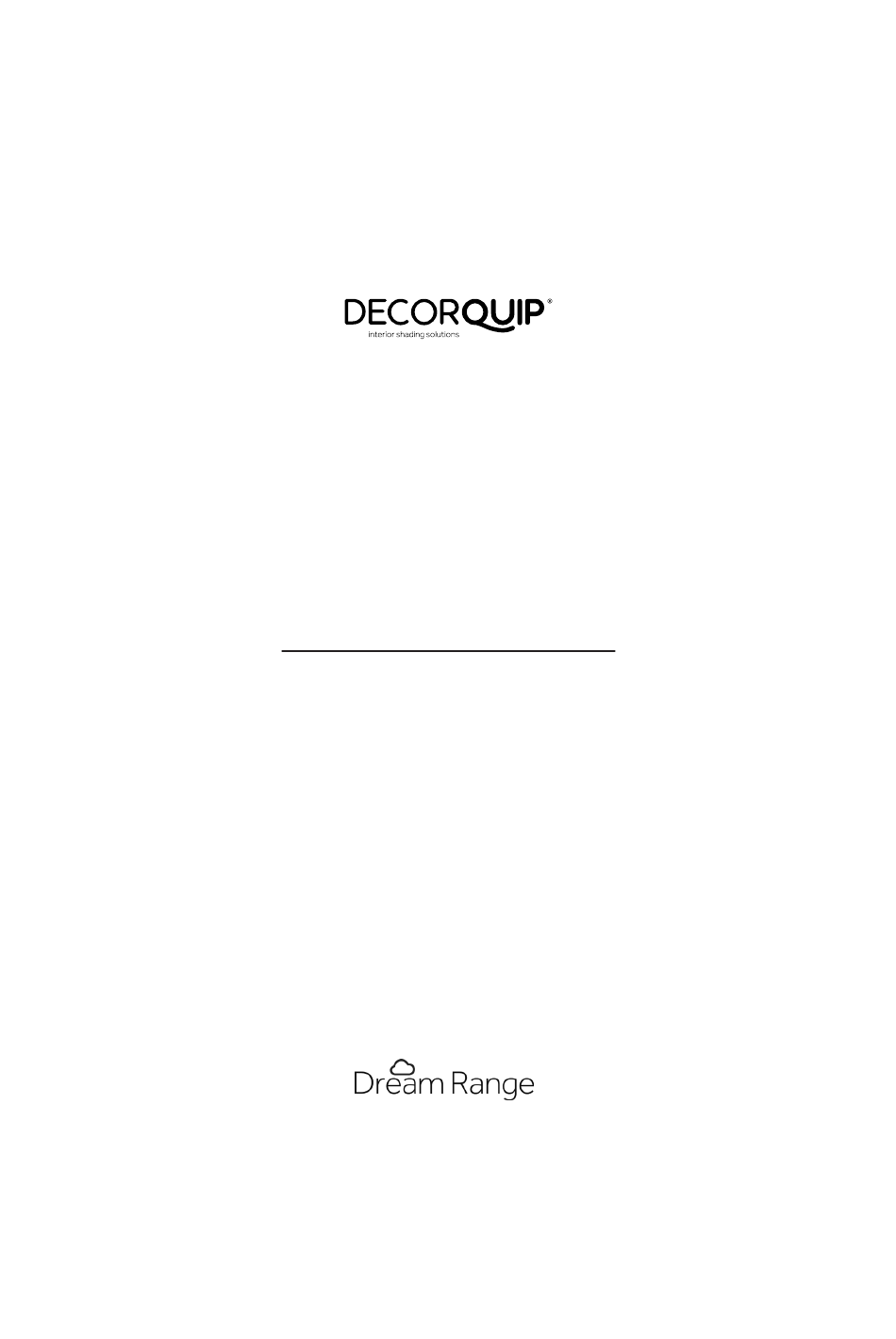

- Page 1 THE DREAM RANGE USER’S GUIDE MOTORISATION MADE EASY...
-
Page 2: Table Of Contents
CONTENTS DREAM RANGE PRODUCT SPECIFICATION............ 5 1. DREAM MOTORS..................... 6 1a. ROLLER MOTORS....................6 FUNCTIONAL FEATURES.................. 8 INSTALLATION..................... 8 CHARGING......................8 1b. ROMAN AND PLEATED MOTOR..............9 FUNCTIONAL FEATURES.................. 9 INSTALLATION..................... 9 POWER SOURCE....................CHARGING......................10 2. DREAM CONTROLS..................10 2a. - Page 3 CONTENTS PROGRAMMING INSTRUCTIONS - CONTROLS..........20 2. DREAM MULTI-CHANNEL REMOTE (ADDITIONAL FUNCTIONS)....20 HIDE OR UNHIDE CHANNEL FUNCTIONS........... 20 UNI-DIRECTION/BI-DIRECTION SWITCHING MODE......... LOCK/UNLOCK MODE..................20 3. DREAM 15 CHANNEL WALL SWITCH (ADDITIONAL FUNCTIONS).... 21 HIDE OR UNHIDE CHANNEL FUNCTIONS........... 21 UNI-DIRECTION/BI-DIRECTION SWITCHING MODE.........
-
Page 5: Dream Range Product Specification
PRODUCT SPECIFICATION... -
Page 6: Dream Motors
1.DREAM MOTORS The Dream Motors come in a few shapes and sizes but the setup and programming options are identical for all of them. For programming options go to page 10. 1a. ROLLER MOTORS ROLLER 38 BATTERY MOTOR 191723 510mm CHARGER Micro TECHNICAL SPECIFICATION... - Page 7 ROLLER 45 MAINS MOTOR 191633 580mm COMMON - BLACK1 HOME AUTOMATION/EXTERNAL SWITCH WIRE UP - YELLOW DOWN - GREEN STOP - RED CABLE NEUTRAL - BLUE LENGTH LIVE - BROWN 2.5m MAINS WIRE EARTH - GREEN & YELLOW TECHNICAL SPECIFICATION CONTROL TYPE RADIO RATED VOLTAGE...
-
Page 8: Functional Features
- Micro USB Mains Charger 191701 for 38 and 45 motors - Micro USB Solar Panel 191683 for 38 and 45 motors - ‘Jack’ Plug Mains Charger 191692 for 55 motor - Solar Panel 191682 for 55 motor CONNECT YOUR SHADING SOLUTIONS www.decorquip.com/made-to-measure/roller-blinds/dream-range/... -
Page 9: 1B. Roman And Pleated Motor
1b. ROMAN/PLEATED MOTORS ROMAN LV BATTERY MOTOR 191695 / PLEATED LV BATTERY MOTOR 191699 205mm TECHNICAL SPECIFICATION CONTROL TYPE RADIO RATED VOLTAGE 12 V IP RATING IP1.9 LIMITS ELECTRONIC RATED POWER 12 W LIFTING CAPACITY 8 Kg (set remotely) OUTPUT SPEED 34 rpm RATED CURRENT 0.3 A... -
Page 10: Charging
BATTERY RECHARGING Li-ion rechargeable battery utillises Mains Charger 191692 or Solar Panel 191682 to recharge. CONNECT YOUR SHADING SOLUTIONS www.decorquip.com/made-to-measure/roller-blinds/dream-range/ 2.DREAM CONTROLS 2a. DREAM 15-CHANNEL REMOTE 191679 The remote is compatible with all bi-directional Dream Motors and older uni-directional motors. -
Page 11: 2B. Dream 15-Channel Wall Switch
2b. DREAM 15-CHANNEL WALL SWITCH 191685 The wall switch is compatible with all bi-directional Dream Motors and older uni-directional motors. The programming and paring proccess is exactly the same as for the remote. For programming and paring options go to page 10. 80mm P2 Setting button TECHNICAL SPECIFICATION... -
Page 12: 2D. Dreamhub-Mini
2d. DREAMHUB-MINI 191717 The Dream Hub-Mini is a smaller version of its Pro equivalent and likewise works with all Dream Motors, by connecting them to your Wi-Fi network to allow you to operate your blinds via smartphone with the free Connector app or voice control devices. For Connector App download instructions go to page 18. 84mm INDICATOR PROGRAMMING... -
Page 13: Programming Instructions - Motors
PROGRAMMING INSTRUCTIONS... -
Page 14: Dream Motors And Multi-Channel Remote
1. DREAM MOTORS/MULTI-CHANNEL REMOTE CONTROL Every motor in our Dream range is equipped with bi-directional technology that only affords them some very clever functionality when they’re coupled with smart devices, but also makes set up and operation with our Dream Multi-Channel Handheld Remote Control a quick and easy process. -
Page 15: Sleep Mode
Switching direction using the P1 button is only available once a remote has been paired with the motor. RESTORING FACTORY SETTINGS Motor jogs x4 Beeps x4 FACTORY SETTINGS RESTORED Hold P1 for 14sec Visit our YouTube channel for video equivalent of these instructions. DREAM RANGE PROGRAMMING INSTRICTIONS - OVERVIEW & P1 FUNCTIONALITY YouTube/Decorquip Channel... -
Page 16: 1C. Pairing A Remote And Initial Settings
1c. PARING A REMOTE AND INITIAL SETTINGS Before starting the process of pairing a handheld remote to a Dream motor, choose the channel to which it is to be paired. Channel Zero is reserved for simultaneously controlling all blinds paired to a remote and cannot be used for pairing, programming or other adjustments. -
Page 17: Setting The Bottom Limit
After setting top and bottom limits, the motor will automatically switch to continuous mode. To switch to jog mode, see ADVANCED FUNCTIONALITY - SWITCHING BETWEEN JOG MODE AND CONTINUOUS MODE on page 15. Visit our YouTube channel for video equivalent of these instructions. DREAM RANGE PROGRAMMING INSTRICTIONS - PARING A REMOTE AND INITIAL SETTINGS YouTube/Decorquip Channel 1d. -
Page 18: Increasing Motor Speed
INCREASING MOTOR SPEED (BATTERY MOTORS ONLY) Motor jogs x1 Motor jogs x1 Motor jogs x2 Beeps x1 Beeps x1 Beeps x1 SPEED Press P2 INCREASED for 1sec Press for Press for 1sec 1sec Note: If the motor does not response to these instructions, it has already reached its upper speed setting. DECREASING MOTOR SPEED (BATTERY MOTORS ONLY) Motor jogs x1 Motor jogs x1... -
Page 19: Fine-Tuning A Top Limit
Beeps x3 Beeps x1 BLIND MOVED Select Press P2 Press P2 Select channel for 1sec for 1sec channel Hold for 2sec Visit our YouTube channel for video equivalent of these instructions. DREAM RANGE PROGRAMMING INSTRICTIONS - ADVANCED FUNCTIONALITY YouTube/Decorquip Channel... -
Page 20: Programming Instructions - Controls
2. DREAM MULTI-CHANNEL REMOTE CONTROL ADDITIONAL FUNCTIONS HIDE/UNHIDE CHANNEL FUNCTION Allows the user to hide or unhide unused or used channels. By selecting a channel, i.e. channel 5, channels 1,2,3,4 and 5 will remain active while the other 10 unused channels will become hidden. Factory default: 15 channels unhidden. -
Page 21: Dream 15 Channel Wall Switch (Additional Functions)
3. DREAM 15 CHANNEL WALL SWITCH ADDITIONAL FUNCTIONS HIDE/UNHIDE CHANNEL FUNCTION Allows the user to hide or unhide unused or used channels. By selecting a channel, i.e. channel 5, channels 1,2,3,4 and 5 will remain active while the other 10 unused channels will become hidden. Factory default: 15 channels unhidden. -
Page 22: Dreamhub-Pro/Dreamhub-Mini
2. If using the Connector app for the first time, create an account and sign in. Andriod 3. Once signed in, follow the in-app wizard for setup and operation instructions. Visit our YouTube channel for the video step-by-step guide. DREAMHUB SETUP YouTube/Decorquip Channel 5. DREAM SIGNAL BOOSTER INSTALLATION SINGLE BLIP BOOSTER READY TO RECIEVE... -
Page 23: Sun Sensor
6. SUN SENSOR PAIRING A SENSOR WITH A SINGLE BLIND Within 4sec SENSOR PAIRED Press P2 Press P2 button x1 button x2 PAIRING A SENSOR WITH MULTIPLE BLINDS Within 4sec SENSOR PAIRED Select Press P2 Press P2 a blind button x1 button x2 SWITCHING BETWEEN SENSOR MODES MODE 1... -
Page 24: Modes Indication
Sensor for at least 2 mins. CONFORMITY DECLARATION Decorquip Ltd. hereby declare that the Dream Range products are in confirmity with the essential requirements of the applicable European Directives and, in particular, the Electromagnetic Compatibility Directive 2014/30/EU, Machinery Directive 2006/42/EC and Radio Directive 2014/53/EU.
