ROLLER 38
BATTERY MOTOR
191723
510mm

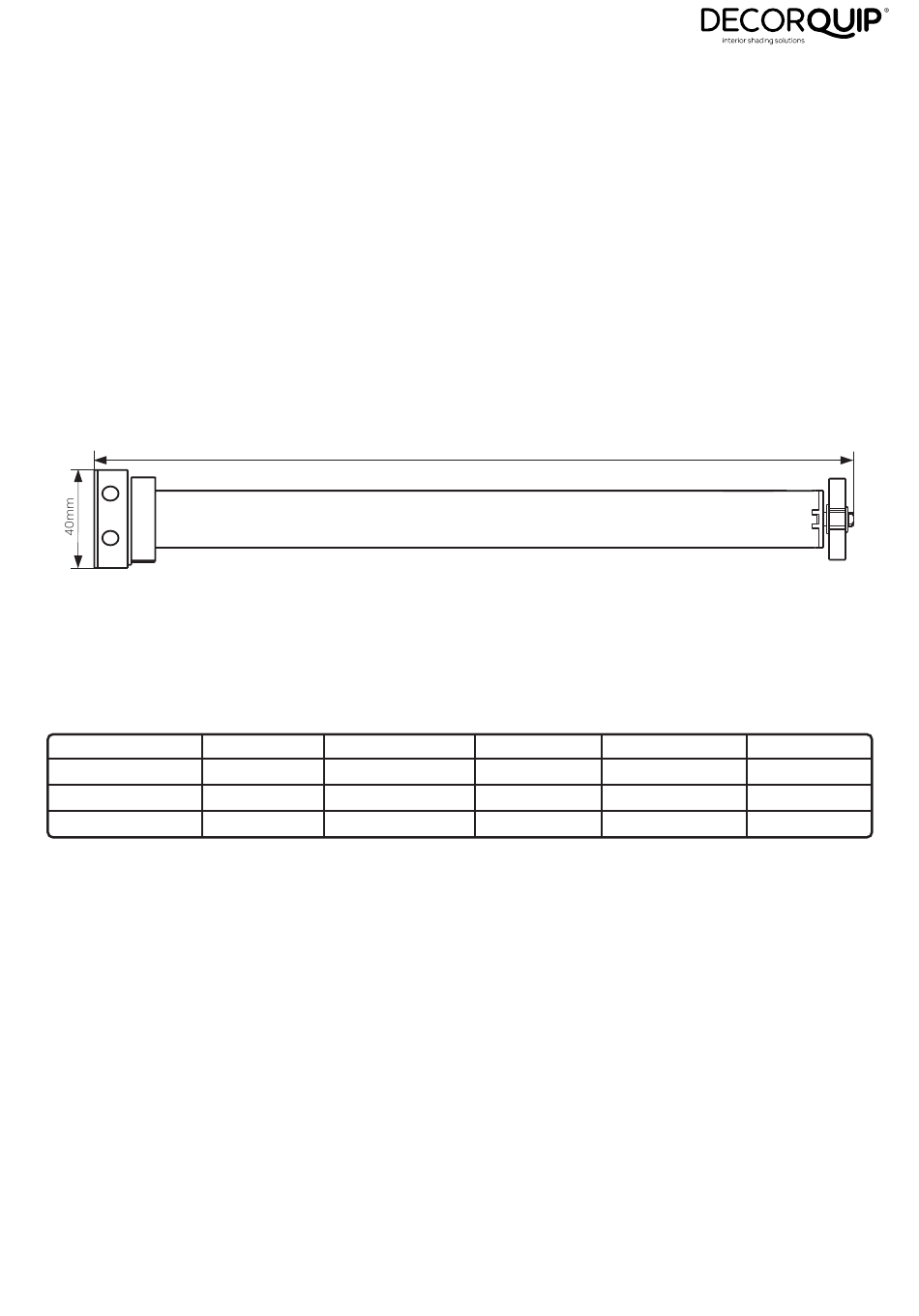

TECHNICAL SPECIFICATION
RATED VOLT AGE
RATED POWER
RATED CURRENT
RADIO FREQUENCY
FUNCTIONAL FEATURES
INSTALLATION
IP RATING
12 V
10 W
LIFTING CAPACITY
0.83 A
MIN. BLIND WIDTH
433.92 MHz
MOTOR LENGTH
MOTOR LENGHT
•
Mains / Solar Charging (battery motors)
•
Switch Direction
•
Built-in Radio Receiver
•
Favourite Stop Position
•
Internally Stored Settings
•
Pair with up to 10 Control Devices
IP44
5.8 Kg
590 mm
510 mm
Advertisement
Related Manuals for DecorQuip ROLLER 38
Summary of Contents for DecorQuip ROLLER 38
- Page 1 ROLLER 38 BATTERY MOTOR 191723 510mm TECHNICAL SPECIFICATION CONTROL TYPE RADIO RATED VOLT AGE IP RATING 12 V IP44 LIMITS ELECTRONIC RATED POWER 10 W LIFTING CAPACITY 5.8 Kg (set remotely) OUTPUT SPEED 40 rmp RATED CURRENT 0.83 A MIN. BLIND WIDTH...
-
Page 2: Programming Instructions
1. DREAM MOTORS/MULTI-CHANNEL REMOTE CONTROL Every motor in our Dream range is equipped with bi-directional technology that only a� ords them 1a. BUTTON SPECIFICATION some very clever functionality when they’re coupled with smart devices, but also makes set up and operation with our Dream Multi-Channel Handheld Remote Control a quick and easy process. - Page 3 functionality. functionality. SWITCHING DIRECTION SWITCHING DIRECTION SWITCHING DIRECTION Motor Beeps x3 jogs x3 Motor Beeps x3 Motor Beeps x3 jogs x3 jogs x3 DIRECTION SWITCHED DIRECTION DIRECTION SWITCHED Hold P1 Release P1 SWITCHED for 10sec Hold P1 Release P1 Hold P1 Release P1 for 10sec for 10sec...
- Page 4 MODE AND CONTINUOUS MODE on page 15. MODE AND CONTINUOUS MODE on page 15. SWITCHING DIRECTION SWITCHING DIRECTION Motor Motor jogs x1 jogs x1 DIRECTION DIRECTION SWITCHED SWITCHED Press together Press together for 2sec for 2sec Note: Note: Switching direction with a remote device is only possible before setting top and bottom limits. Switching direction with a remote device is only possible before setting top and bottom limits.
-
Page 5: Advanced Settings
1d. ADVANCED SETTINGS 3. ADVANCED SETTINGS SWITCHING FROM CONTINUOUS MODE TO JOG MODE Motor Motor jogs x1 jogs x1 Beeps x1 MODE Hold together Press for for 5sec 1sec Note: When in jog mode, holding the up or down buttons will provide continuous-moving temporarily. SWITCHING FROM JOG MODE TO CONTINUOUS MODE SWITCHING FROM JOG MODE TO CONTINUOUS MODE SWITCHING FROM JOG MODE TO CONTINUOUS MODE... - Page 6 If the motor does not response to these instructions, it has already reached its upper speed setting. DECREASING MOTOR SPEED BATTERY MOTORS ONLY Motor jogs x1 Motor jogs x1 Motor jogs x2 Beeps x1 Beeps x1 Beeps x1 SPEED Press P2 DECREASED for 1sec Press for...
- Page 7 - no matter where you are. Find out more about the Dream Range products - from battery motors and controls to smart home automation options, whatever bespoke solution you’re looking to create - we’ve got you covered. www.decorquip.com...
