Summary of Contents for Scaime eNodTouch-M

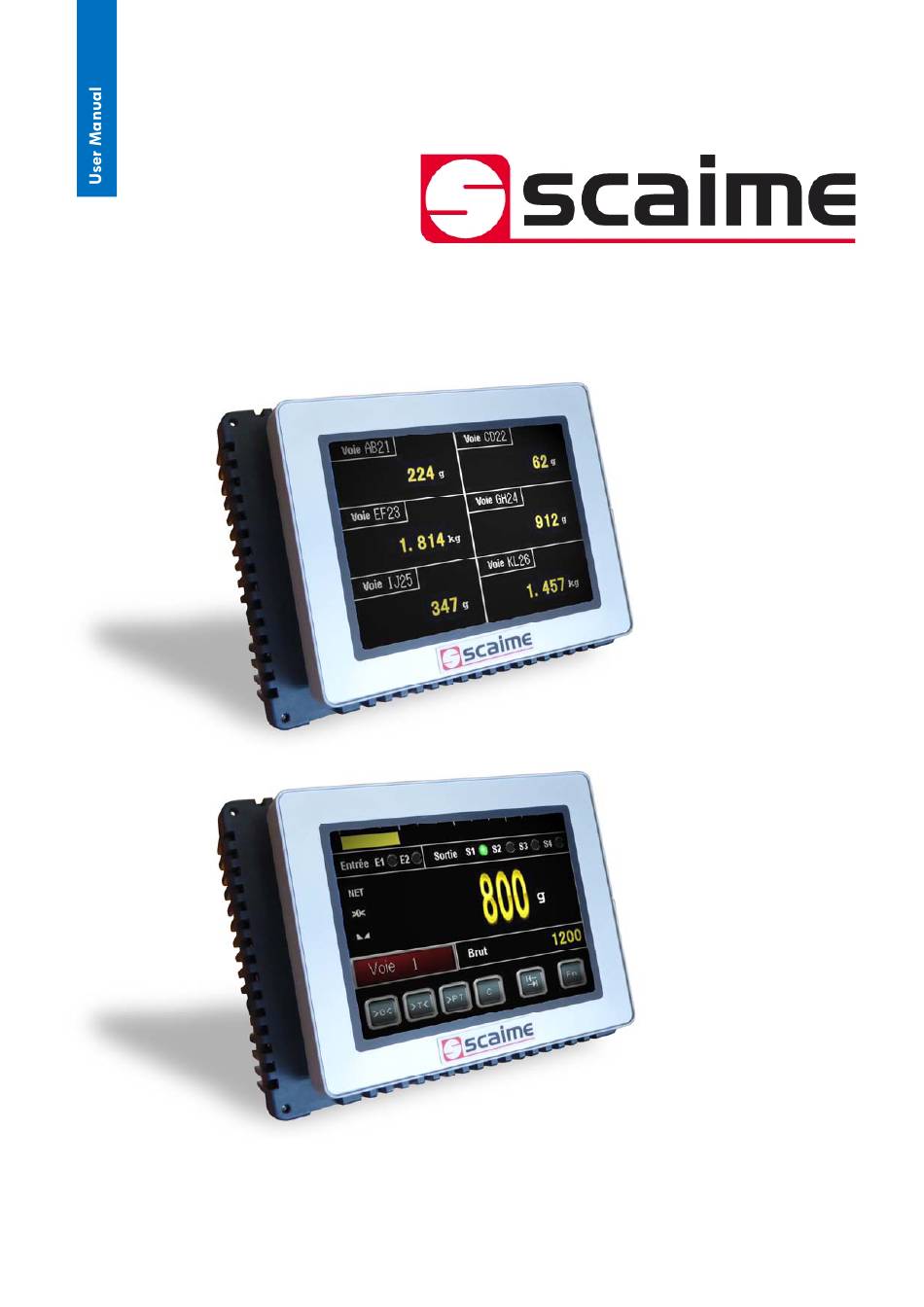

- Page 1 Touch screen for multiple eNod4 controllers NU-eNodTouchM-E-0815_196774-B SCAIME SAS – Technosite Altéa –BP501- 74105 ANNEMASSE Cedex Tél. : +33 (0)4 50 87 78 64 – www.scaime.com...
-
Page 2: Table Of Contents
3.7.3. Dosing Timing Setup ................. 45 3.7.4. In-flight correction Settings ............. 46 3.7.5. Flow rate control settings ..............47 3.7.6. Dosing Tolerance control ..............47 3.8. Dosing Target values ..................48 3.9. Configuration of Quick Access menu .............. 49 User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 3: Hardware
Speed: 2,400 bps to 115.2 kbps, Communication Distance: 30 m or less USB1 interface Conforms to USB2.0 (Type A), Power Supply Voltage: DC 5 V ±5 %, Communication Distance: 5 m or less USB2 interface Conforms to USB2.0 (mini-B), Communication Distance: 5 m or less User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 4 (A) USB Interface (Type A) (USB1) (B) Serial Interface (COM1) (C) Ethernet Port (D) Supply connector (E) USB Interface (mini B) (USB2) User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 5: Dimensions
1.2. Dimensions 1.2.1. eNodTouch M User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 6: Enodtouch Ml
1.2.2. eNodTouch ML User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 7: Installation
(Surrounding air temperature: 0 to 50°C, Ambient humidity: 85% RH, Wet bulb temperature: 39°C max.) When installing eNodTouch on the panel of a cabinet or enclosure, “Surrounding air temperature” indicates both the panel face and cabinet or enclosure’s internal temperature. • The panel should not be inclined more than 30°. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 8: Enodtouch Installation
Create the correct sized hole with a diameter of 22.5mm (tol -0.30) on the panel. Insert the display module following the illustration : Screw the nut with the socket wrench with a torque between 1.2 and 2 N.m. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 9 IMPORTANT: Install the rear module in the orientation shown in the illustration. If either unit is installed incorrectly, the connector may be damaged. To remove the rear module, push the yellow button to unlock it, then pull the rear module out following the illustration: User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 10: Electrical Powering
1.4. Electrical powering • Supplying a power voltage other than that specified will damage the power source and the unit. • When the FG terminal is connected, be sure the wire is grounded. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 11: Rs485 Interface For Connection To Enod4
1.5. RS485 interface for connection to eNod4 RS485 uses a DB9 connector. Please follow the below cable recommendation or use a SCAIME Cable ref 632153. Contact your local sales representative for more information. Important: You may need to add a terminating resistor (120 Ohm) if the distance between eNod4Touch and eNod4 is important. -
Page 12: Off-Line Setting
Touch the upper right then bottom left corners, or the upper left and bottom right corners of the panel (within a 40 pixel area) in 0.5 seconds. When the system menu is displayed, touch the [Offline] button User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 13: Offline Mode Operations
Bar to adjust brightness and contrast. D-Script_debug Enable Function Menu and Error System Language English Show System Menu Lower Part Show Error Online [None] Error Display Position Lower Part Note: Never change the parameters in grey User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 14: Brightness/Contrast Control
Enter System password to operate, or 1101 (default password) Backup Data Clears all the data stored in the display unit's backup memory. Enter System password to operate, or 1101 (default password) Note: Never use the commands in grey: You’ll lost the SCAIME eNodtouch application User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 15: Maintenance Menu
Touch panel check. Checks that the touched area lights up correctly. Calibration Correct an analog touch panel. Continue touching until the crosshatch moves or disappears. Check com Check the send and receive lines of network communication User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 16: On-Line Functioning
In this case, check the wiring between eNodTouch and eNod4 (§1.4) and check that the communication parameters of eNodTouch and eNod4 are correct (§2.2.3). Connection screen Communication error screen Redirection screen • When communication is established the main screen of eNod4 appears : User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 17: Multi-Enod Screens
If starting eNod is disconnected or have communication problems, the multi-eNod screen appears. • When settings are finished, touch the left arrow button, to restart eNod Touch. • According to the number of eNod settled, eNodTouch redirects to the following multi-eNod screens : User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 18 Channel name Weight value Gross/Net Indicator Unit Multi-eNod (2 eNod) Multi-eNod (3 eNod) Multi-eNod (4 eNod) Multi-eNod (5 eNod) eNod4_1 eNod4_2 eNod4_3 eNod4_4 eNod4_5 eNod4_6 Multi-eNod (6 eNod) User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 19: Select An Enod
To display the main screen of an eNod, touch its display area (Example for eNod n°1): Touch its display area Main screen of eNod • To return to multi eNod screen, touch the channel red button: Touch of channel button Multi-eNod screen User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 20: Communication Error And Disconnection
The display module tries to recover the communication with eNod4 during 1 second, the button toggles to the « Reconnection » state. After 1 second if data from the eNod4 appears, the communication is re-established, else the button toggles to « eNod disconnected » state. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 21: Main Screen
Measure near zero indicator Stability indicator Gross weight Channel selection button Main keyboard Keyboard masked keyboard • To switch from the main keyboard to the 2 keyboard touch To switch from the main screen to the multi-eNod screen touch User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 22: Checkweigher Mode (Enod4-C)
Access to result screen Checkweigher Last Checkweigher keyboard Status Bar Result Main keyboard Transmitter mode • To switch from the main keyboard to the 2 keyboard touch • To enter the checkweigher quick access menu touch User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 23: Dosing Mode (Enod4-D)
Dosing faults : « F Err » = flow rate failure; « OUT+ » = Dosing result upper to max tolerance value ; «OUT -» = Dosing result lower to min tolerance value ; « STA Err » = Error in launch cycle User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 24: Keyboard Functions
Invisible if dosing cycle is ongoing. eNod4 C and D C: Enter in the Quick Access Menu Checkweigher Target and tolerances, see §3.6 D: Enter in the Quick Access Menu for Dosing data adjustment, see §3.9 User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 25: Result Displaying And Storage (Enod4-C, Enod4-D)
When the recorder is running, only the main screen and the result screen are accessible to enable this recording. • As a consequence, some touch keys giving access to other screens are no longer visible (eg. Access touch to settings menu). To make these buttons visible again, stop the results recorder. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 26 Access to a screen displaying the table of stored results Access to a screen allowing the Transfer of stored results to an USB key, under .CSV file. Indicators Indicates the recorder running. Indicates the maximum recorder capacity (1000 results) is reached User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 27: Main Setup Menu
Setup menu access can be secured by password (see § 3.5.1). In that case, the following screen is displayed: • After entering a valid password (or OLEG if you’ve forgot your password), the following menu will be displayed: eNod4-T: Transmitter mode eNod4-C: Checkweigher mode eNod4-D: Dosing mode User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 28: Enodtouch Setup
[Yes], [No] Enable/Disable the function to start on main screen of a specific eNod Starting eNod 1 – eNod Number Number of starting eNod4. If there is only one eNod4 supported this function is necessarily activate. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 29: Calibration Setup
Maximum weighing capacity Division 1, 2, 5, 10, 20, 50 Difference between two consecutive indicated values Decimals Position of decimal point Unit 4 visible char Weight measurement unit (g, kg, t, lb…) displayed on main screen User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 30 Number of calibration loads used during the physical calibration. load 1/2/3 1 – 1 000 000 Weight values corresponding to each calibration segment. Zero Calibration Allows acquiring stable measurement with no load on the scale to set the calibration Zero User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
- Page 31 Load cell sensitivity in mV/V at maximum capacity Span Calibration correction Span. cor 0.9 – 1.100000 Allows to adjust initial calibration Calibration g >0 (9.805470) Allows compensating the gravity difference between calibration place and using place. Use g >0 (9.805470) User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 32: I/O Setup
3.5.4. I/O Setup < eNod4-T , eNod4-D eNod4-C User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 33 Cycle ongoing, result available, Out of tolerance, Dosing fault, Input copy, Remote control, Out of tolerance +, Out of tolerance – Logic [Positive], [Negative] Defines idle output state. Mode [Windows], [Hysteresis] Thresholds functioning principle Comparison [Gross], [Net], [result] Comparison value for thresholds control User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
- Page 34 Allows fixing the level [On], [Off], of the concerned outputs. Outputs 1-4 timings In Checkweigher, allows modifying timings on outputs with functions « Remote control » (activation time), « Result within tolerances » and « Result out of tolerances » (activation time and delay). User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 35: Configuration Setup
Metrology Parameters Stability criterion None, 0.25 0.5, 1, 2d Defines a stability interval, related to scale interval. Zero at Startup [Yes], [No] Enable the Automatic Zeroing at power-on Zero Tracking [Yes], [No] Enable the Zero tracking function User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 36 Allows on Save automatic appending of hexadecimal representation of rotary switches in Option « Use rotary the Name. switch in Name » Byte order in Profinet exchanges ([Little Endian], [Big Endian]) Byte order User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
- Page 37 Minimum cut-off frequency value depend on the A/D converter rate: 0.10 Hz for 6.25 meas/s, 4 Hz for 400 meas/s Notch Filter parameters High & Low 0.1 to 200Hz Frequency band to attenuate with the digital Notch filter Frequency User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 38: Function Mode Setup (Enod4-C & Enod4-D)
Name or rename the channel with a maximum of 4 characters 3.5.6. Function mode setup (eNod4-C & eNod4-D) • According to the eNod4 model, the following screen is displayed to select the functioning mode eNod4-C eNod4-D User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 39: Checkweigher Setup Menu (Enod4-C)
[Yes], [No] Automatic zero correction allows to dynamically track the Zero evolution. When enabled, an average Zero value is continuously calculated, using the Zero correction range 0 – 255d ‘Dyn Zero time’ and ‘Zero Correction range’ parameters. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 40 During this time, measurements are not taken into account for result calculation Measuring time 0 – 65535 ms During that time the signal is taken in account to calculate the result. Result correction 0.9 – 1.100000 Eventually used to adjust the checkweigher result. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
- Page 41 Define the acceptable lower range for checkweigher results Tolerance + Define the acceptable upper range for checkweigher results Stats only on in Tol Option for only use checkweigher results within tolerances to calculate statistics (results average, running total (results sum), standard deviation) User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 42: Dosing Setup Menu (Enod4-D)
Detailed explanations on Dosing functioning and parameters could be found into eNod4-D manuals • The following setup menu allows modifying the parameters related to dosing (Filling or Unloading) mode. 3.7.1. Dosing Cycle Setup Parameter Possible Value Description Dosing cycle parameters User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... - Page 43 In filling mode, this option automatically restart the Fine Feed if dosing result is below low tolerance Suspend/Resume [Yes], [No] Allows SUSPEND and RESUME cycle. It makes possible to restart a dosing cycle allowed cycle when starting weight is greater than "empty max. weight". User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
-
Page 44: Starting Conditions Setup
Filling cycle starts automatically when the gross weight is between the 'Min. empty weight' and 'Max. empty weight'. Unloading mode Residual weight 0 – 1 000 000 eNod4-D refuse ‘start cycle’ and reports a dosing error if gross measurement < (target weight + residual weight). User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 45: Dosing Timing Setup
Calculation time for Max. time to search stability for Tare or Result determination. In dynamic Tare / result mode, Time to calculate Tare or Result Dynamic Zero time time for average calculation used for ‘Dynamic Zero’ command User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 46: In-Flight Correction Settings
In-flight = In-flight + (Dosing result – Target weight) x Correction %. X3 correction if Out [Yes], [No] If the Dosing result is out of Tolerance, ‘Correction %’ is multiplied by 3 of Tolerance (limited at 100 %) inside the correction formula. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 47: Flow Rate Control Settings
Tolerance control parameters Tolerance – and + 0 – 65565 Define the acceptable range for dosing results. An output assigned to the ‘out of tolerances’ is set active if the dosing result is not within the range. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 48: Dosing Target Values
Defines the transition threshold, relative to the target weight, between the Fine Feed and Coarse Feed phase. HF to CF Level Used in sequences using 3 feeds. Defines the transition threshold, relative to the target weight, between the High Feed and Coarse Feed phase. User manual SCAIME: NU-eNodTouchM-E-0815_196774-B... -
Page 49: Configuration Of Quick Access Menu
3.9. Configuration of Quick Access menu • Allows selecting the dosing data accessible by the touch, from the main screen (§3.3.3 and §3.3.4). • With the example shown above, the touch will open the following menu : User manual SCAIME: NU-eNodTouchM-E-0815_196774-B...
