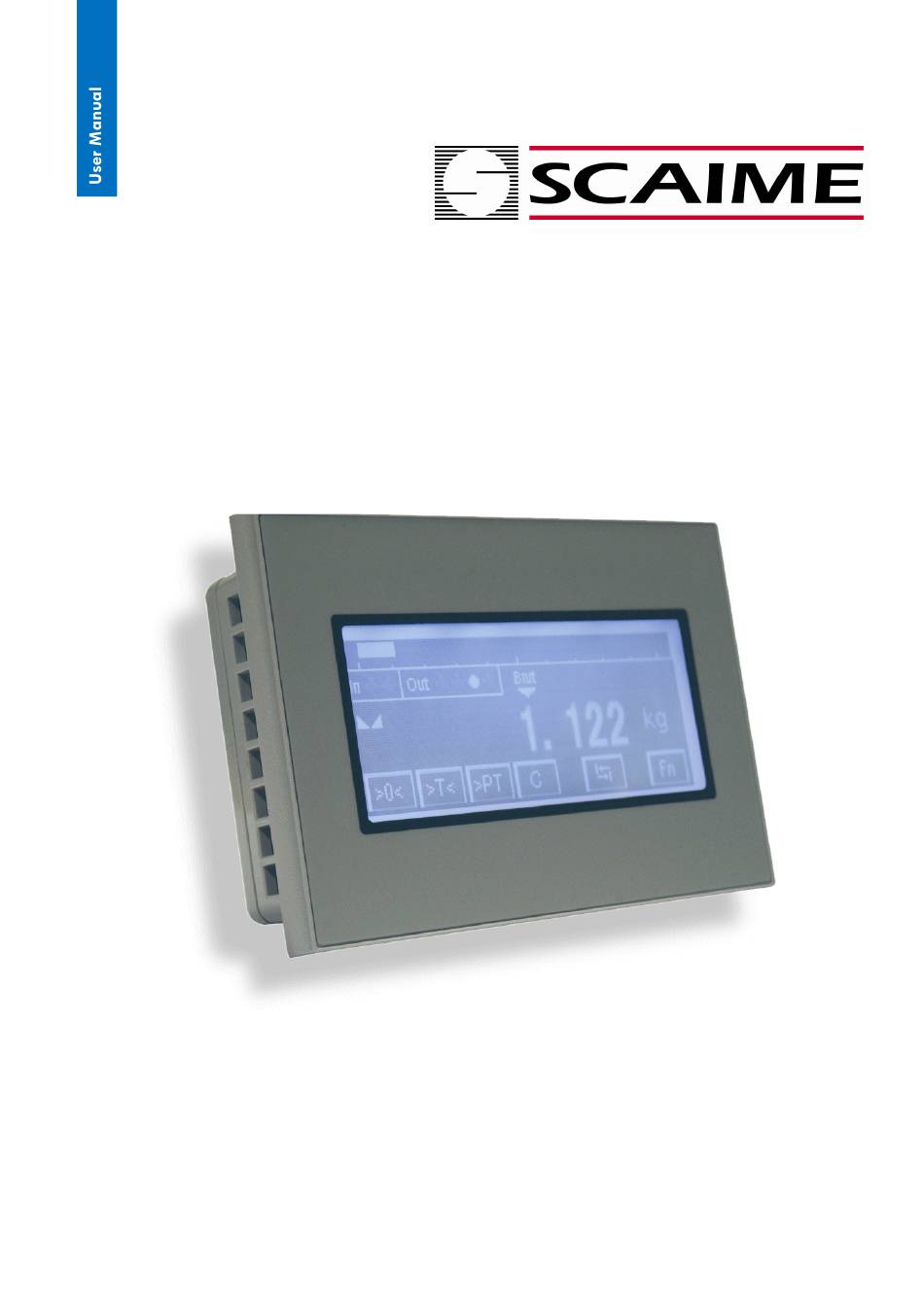

- Page 1 Touch screen for eNod4 controllers NU-eNodTouch-E-0413 SCAIME SAS – Technosite Altéa –BP501- 74105 ANNEMASSE Cedex Tél. : +33 (0)4 50 87 78 64 – www.scaime.com...
-
Page 2: Table Of Contents
1.1. Presentation ......................... 3 1.2. Installation ........................4 1.2.1. Installation requirements ......................4 1.2.2. eNodTouch installation ......................4 1.3. Electrical powering ....................... 5 1.4. RS485 interface for connection to eNod4 ..............5 Off-Line setting ......................6 2.1. Entering Offline mode ....................6 2.2. -
Page 3: Hardware
1. Hardware 1.1. Presentation eNodTouch, is a compact graphic operator interface with the following specifications: Display type Back lighted 3.4” STN Monochrome LCD Resolution W200 x H80 pixels Display area W80 x H40 mm Display colours Monochrome White/Red/Pink (16 Levels) -
Page 4: Installation
Cut a hole in the panel according to the eNodtouch cutout dimensions. • Confirm that the installation gasket is attached Confirm that the installation gasket is attached to eNodTouch unit and then place the unit into the unit into the Panel from the front. •... -
Page 5: Electrical Powering
Supplying a power voltage other than that specified will damage the power source and the unit. • When the FG terminal is connected, be sure the wire is grounded. Grounding Terminal connected to eNodTouch chassis Simple Wire: 0.75 to 1.5mm2 Stranded Wire: 0.75 to 1mm2 Conductor type 1.4. RS485 interface for connection to eNod4 •... -
Page 6: Off-Line Setting
• Touch [Offline] to go to Offline mode • Touch [USB] to start the USB memory loader tool, allowing you to upload or download eNodTouch software from USB port. 2.2. Offline mode operations After entering in Offline mode, eNodTouch displays a menu allowing consulting and modifying the eNodTouch settings... -
Page 7: Main Unit Menu
Control Bar] in [Display Settings] (§2.2.1) • Touch the upper right then left corners, or the Bottom left and right corners of the display in 0.5 seconds. • To end Brightness/Contrast Control mode, touch the [x] on the Brightness/Contrast Control Bar. User manual SCAIME: NU-eNodTouch-E-0413... -
Page 8: Device/Plc Menu
Enter System password to operate, or 1101 (default password) Backup Data Clears all the data stored in the display unit's backup memory. Enter System password to operate, or 1101 (default password) Note: Never use the commands in grey: You’ll lost the SCAIME eNodtouch application User manual SCAIME: NU-eNodTouch-E-0413... -
Page 9: Maintenance Menu
3.1. Startup screens • At Power-On, the connection screen is displayed while eNodTouch try to communicate with connected eNod4 device. • If the connection screen is displayed more than 5 seconds or if the communication error screen is displayed, consider the connection cannot be established: check the RS485 wiring (§1.4) and check the eNod4 and eNodTouch... -
Page 10: Main Screen
Dosing cycle fault indicator Status bar Dosing Status bar Keyboard • To switch from the Bar graph to the Status bar, touch the Weight value area • To switch from the main keyboard to the 2 keyboard, touch User manual SCAIME: NU-eNodTouch-E-0413... -
Page 11: Keyboard Functions
(eg. Access touch to r visible (eg. Access touch to settings menu). To make these buttons visible again, st menu). To make these buttons visible again, stop the results recorder. User manual SCAIME: NU-eNodTouch-E-0413... -
Page 12: Main Setup Menu
Indicate the maximum recorder capacity (1000 results) is reached 3.4. Main setup menu • eNodTouch setup menu allows to display and modify all the eNod4 parameters. For more information about parameters, consult eNod4 software manuals. • Setup menu access can be secured by password (see § 3.4.1). In that case, the following screen is displayed: •... -
Page 13: Calibration Setup
Load cell sensitivity in mV/V at maximum capacity Span Calibration correction Span. cor 0.9 – 1.100000 Allows to adjust initial calibration Calibration g >0 (9.805470) Allows compensating the gravity difference between calibration place and using place. Use g >0 (9.805470) User manual SCAIME: NU-eNodTouch-E-0413... -
Page 14: I/O Setup
[Windows], [Hysteresis] Thresholds functioning principle Comparison [Gross], [Net], [result] Comparison value for thresholds control Thresholds control Allows modifying the Threshold values of the concerned outputs. Remote Control Allows fixing the level [On], [Off], of the concerned outputs. User manual SCAIME: NU-eNodTouch-E-0413... -
Page 15: Configuration Setup
0.10 Hz for 6.25 meas/s, 4 Hz for 400 meas/s Notch Filter parameters High & Low 0.1 to 200Hz Frequency band to attenuate with the digital Notch filter Frequency Reset, factory setting Allows resetting eNod4 or making eNod4 come back to factory settings User manual SCAIME: NU-eNodTouch-E-0413... -
Page 16: Function Mode Setup (Enod4-C & Enod4-D)
During this time, measurements are not taken into account for result calculation Measuring time 0 – 65535 ms During that time the signal is taken in account to calculate the result. Result correction 0.9 – 1.100000 Eventually used to adjust the checkweigher result. User manual SCAIME: NU-eNodTouch-E-0413... -
Page 17: Dosing Setup Menu (Enod4-D)
In filling mode, this option automatically restart the Fine Feed if dosing result is below low tolerance Suspend/Resume [Yes], [No] Allows SUSPEND and RESUME cycle. It makes possible to restart a dosing cycle allowed cycle when starting weight is greater than "empty max. weight". User manual SCAIME: NU-eNodTouch-E-0413... -
Page 18: Starting Conditions Setup
Calculation time for Max. time to search stability for Tare or Result determination. In dynamic Tare / result mode, Time to calculate Tare or Result Dynamic Zero time time for average calculation used for ‘Dynamic Zero’ command User manual SCAIME: NU-eNodTouch-E-0413... -
Page 19: In-Flight Correction Settings
Tolerance control parameters Tolerance – and + 0 – 65565 Define the acceptable range for dosing results. An output assigned to the ‘out of tolerances’ is set active if the dosing result is not within the range. User manual SCAIME: NU-eNodTouch-E-0413... -
Page 20: Dosing Target Values
Fine Feed and Coarse Feed phase. HF to CF Level Used in sequences using 3 feeds. Defines the transition threshold, relative to the target weight relative to the target weight, between the High Feed and Coarse Feed phase. User manual SCAIME: NU-eNodTouch-E-0413...
