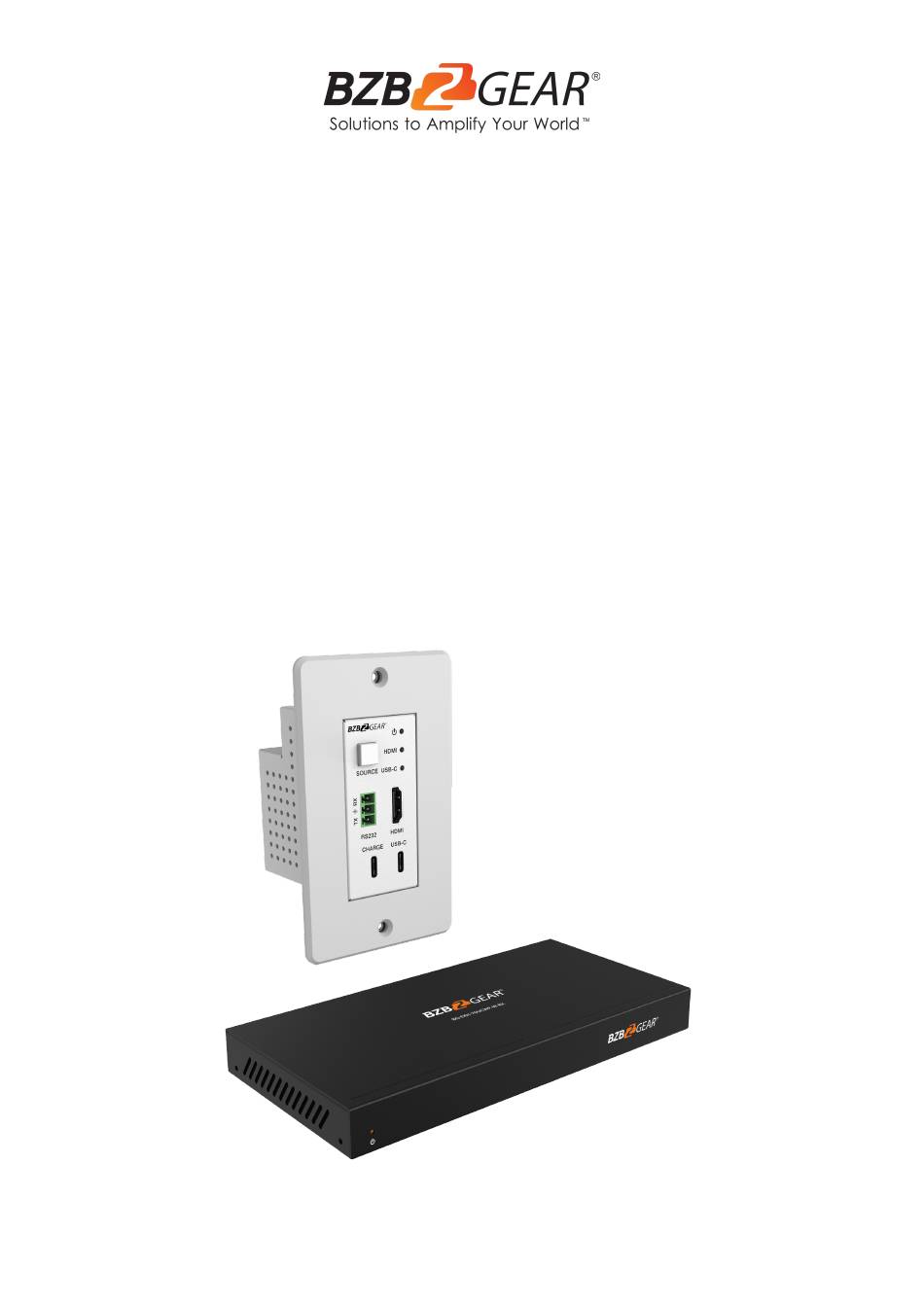

- Page 1 BG-EXH-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit with USB-C/HDMI Wall Plate Transmitter & HDBaseT to HDMI Receiver User Manual...
- Page 2 BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Statement Safety Precaution Surge protection device recommended Introduction Features Packing List Specifications Product Dimensions Operation Controls and Functions Connection Diagram Troubleshooting Tech Support Warranty Mission Statement Copyright · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 4: Statement
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Introduction Introducing the BG-EXH-70UCWP-W 18Gbps HDBaseT 230ft Wall Plate Kit, a comprehensive solution for advanced signal transmission and distribution. This kit features a USB-C/HDMI Wall Plate Transmitter and an HDBaseT to HDMI Receiver, delivering exceptional performance and versatility for professional AV installations. -
Page 6: Specifications
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Specifications Technical HDMI Compliance HDMI 2.0b HDCP Compliance HDCP 2.2 DP Compliance Display Port 1.2a (Adapter required for Display Port) Video Bandwidth USB-C: 5.4 Gbps HDMI: 18 Gbps Video Resolution 480i~1080p50/60Hz, 4Kx2K@24/30Hz, 4K2K@60Hz Color Space RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0... -
Page 7: Product Dimensions
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Product Dimensions · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 8: Operation Controls And Functions
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Operation Controls and Functions Front and Rear Panel Transmitter Panel Name Function Description The power LED indicator will illuminate in green Power LED when the product is powered on, and red when the product is on standby. - Page 9 BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Receiver Panel Name Function Description Power LED When the product is powered on, the red LED indicator will be on. DC 24V DC 24V power supply port. Firmware update port. HDBaseT IN Connect to the HDBaseT OUT port of Transmitter with a CAT6/6a/7 cable.
-
Page 10: Connection Diagram
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Connection Diagram · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 11: Troubleshooting
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Troubleshooting Problems Causes Solutions No Power / All LED off Power supply not connected, Check if the power supply is connected fully, or wrong power connected correctly and the supply. output voltage value is within recommended specifications. -
Page 12: Tech Support
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions. -
Page 13: Mission Statement
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Mission Statement BZBGEAR is a breakthrough manufacturer of high-quality, innovative audiovisual equipment ranging from AVoIP, professional broadcasting, conferencing, home theater, to live streaming solutions. We pride ourselves on unparalleled customer support and services. Our team offers system design consultation, and highly reviewed technical support for all the products in our catalog. -
Page 14: Copyright
BZBGEAR BG-EXH-70UCWP-W PRODUCT MANUAL Copyright All the contents in this manual and its copyright are owned by BZBGEAR. No one is allowed to imitate, copy, or translate this manual without BZBGEAR’s permission. This manual contains no guarantee, standpoint expression or other implies in any form. Product specification and information in this manual is for reference only and subject to change...
