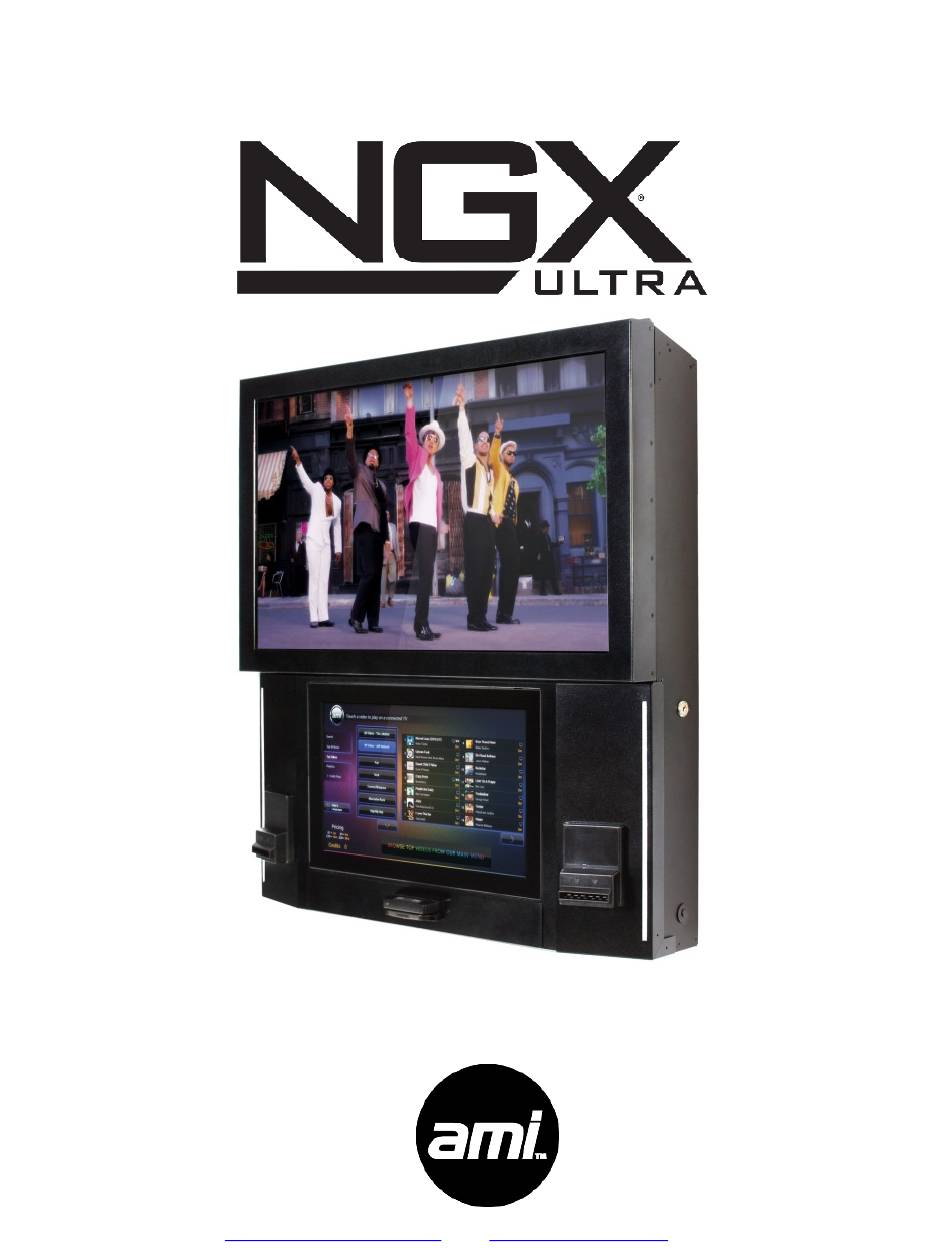

AMI NGX ULTRA Installation & Owner's Manual
  1. Manuals
  2. Brands
  3. AMI Manuals
  4. Jukebox
  5. NGX ULTRA
  6. Installation & owner's manual

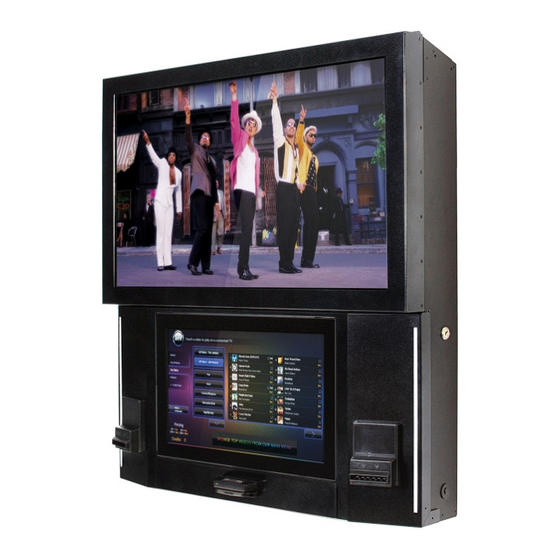

AMI NGX ULTRA Installation & Owner's Manual

With 1000 watt amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Owner's Manual
With 1000 Watt Amplifier
U.S. and Canada; call toll-free:
Outside the U.S. and Canada; call:
1-877-ROC_N_ROL (1-877-762-6765)
+1 (616) 243-3633
E-Mail:
support@amientertainment.com
Web:
www.amietertainment.com
22022626 Rev A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGX ULTRA and is the answer not in the manual?

Questions and answers

Related Manuals for AMI NGX ULTRA

Summary of Contents for AMI NGX ULTRA

  • Page 1 Installation & Owner’s Manual With 1000 Watt Amplifier U.S. and Canada; call toll-free: Outside the U.S. and Canada; call: 1-877-ROC_N_ROL (1-877-762-6765) +1 (616) 243-3633 E-Mail: support@amientertainment.com Web: www.amietertainment.com 22022626 Rev A...
  • Page 2 AMI Entertainment Network, LLC (AMI) extends the original operator of this equipment the following warranty: All parts are guaranteed to be free of defects in material and workmanship for the specific periods listed. AMI agrees to repair or replace without charge during such period any part which proves defective upon examination by AMI. All costs of shipping a defective part to AMI’s offices shall be borne by the original operator.

  • Page 3: Table Of Contents

    LED Indicators ____________________________________________________________ 28 Troubleshooting Charts _____________________________________________________ 30 Connection Diagrams _______________________________________________________ 32 Section F - Parts Catalog ___________________________________________ 39 Upper Display Assembly ____________________________________________________ 40 Currency Components ______________________________________________________ 43 Electronic Components _____________________________________________________ 44 Accessories ______________________________________________________________ 47 NGX Ultra Jukebox 22022626 Rev A...

  • Page 4: Important Safety Instructions

    REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTION! RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR NE JAMAIS RETIRER LES COUVERCLES, GARDES, OU DES BOUCLIERS. AUCUNE PIÈCE RÉPARABLE DANS CE JUKEBOX. CONFIER L'ENTRETIEN DE PERSONNEL QUALIFIÉ. 22022626 Rev A NGX Ultra Jukebox...

  • Page 5: Section A - Jukebox Specifications

    1000 Watts, 4 channels (Standard) into 2 Ohm Load Protection: Thermal and speaker overload Automatic, self-resetting Voltage: 120VAC Frequency: 60Hz LCD (User Interface): 18.5” HD flat screen LCD (Video Display): 32” HD flat screen Speakers: none NGX Ultra Jukebox 22022626 Rev A...
  • Page 6 This page is intentionally left blank. 22022626 Rev A NGX Ultra Jukebox...

  • Page 7: Section B - Placing The Wall-Mounted Jukebox On Location

    Placing the Wall-Mounted Jukebox on Location • Location Power and Warnings • Jukebox Power and Reset Switch • Wall Mounting Instructions • IR Remote Installation Instructions • Testing the Unit • Lighting Controller • Marque Display NGX Ultra Jukebox 22022626 Rev A...
  • Page 8 The main power distribution unit is the power supply. This device contains a 10 amp fuse with a separate ON/OFF power switch located on the front of the power supply chassis. Figure 1-B – Inside View of Cabinet with Front Door Opened 22022626 Rev A NGX Ultra Jukebox...
  • Page 9 Jukebox Power and Reset Switch The NGX Ultra jukebox is powered from a standard Hard Power Down 120VAC wall plug using the provided power cord. When the jukebox power cord is unplugged or the Inside the jukebox, power is routed to a power...
  • Page 10 (See Mounting the Jukebox Cabinet Figure 4-B). The NGX Ultra uses a simple mounting bracket Caution: the jukebox cabinet weighs about 78 designed to attach to two wall studs spaced 16” pounds. Use a helper if you cannot safely on center.
  • Page 11 Slide the Upper Display onto the hinges. Caution: the Upper Display weighs about 30 pounds. Use a helper if you cannot safely manage this much weight. Figure 5-B – Upper Display Hinges NGX Ultra Jukebox 22022626 Rev A...
  • Page 12 IR Remote Installation Instructions IR Remote Control Installation Instructions Wired 6 Button Volume Control The NGX Ultra Jukebox also comes with a small 6 The NGX Ultra Jukebox comes with an IR remote button wired remote control. This control is designed (located in the Handy Pack).
  • Page 13 Connection button. This test confirms the jukebox within 24 hours (as long as the jukebox is jukebox can connect to AMI’s server (“Server connected). If the jukebox becomes disconnected, Found”), and authenticate a connection with any songs not yet downloaded will be unavailable to AMI’s server (“Connected”).

  • Page 14: Lighting Controller

    Route the HDMI cable out one of the cable electronics retailer like Best Buy or Amazon.com. access holes in the bottom of the NGX Ultra cabinet. The HDMI splitter should be installed inside the If the splitter needs 120 volt power, you may be able jukebox.

  • Page 15: Video Setup

    By enabling video capability you are acknowledging that this jukebox is connected to a high capacity wired connection. AMI will not be responsible for any overage charges that may result from operating a Music Video jukebox on capped bandwidth data plans.

  • Page 16: Video User Interface Features

    The Priority Play option will place the selection in a priority pay queue. Selections in the priority play queue are played ahead of any selections in the regular play queue. 22022626 Rev A NGX Ultra Jukebox...

  • Page 17: Section C - Sound System Set Up

    Section C - Sound System Set Up • Extension Speaker Operation • Selecting Speaker Power • Speaker Connection Diagrams NGX Ultra Jukebox 22022626 Rev A...

  • Page 18: Selection Procedures

    Sound System Set Up The NGX Ultra jukebox sound system is powered by a 1000 Watt S-Pro2 Class 2 power amplifier manufactured by Pascal. Speaker terminals are provided to connect extension speakers directly to the amplifier. An Audio Output Transformer Kit (part number 22180806) is available if your installation uses 70 volt speakers or you need to connect extension speakers using various power taps.

  • Page 19: Extension Speakers Connected To Amplifier Channel + And - Terminals

    After you fix the short, disconnect a few speakers to reduce the wattage. Repeat Step 2. • If no overload is detected, reconnect the disconnected speakers (ensure you do not have too many • speakers, use Table 1-1). Repeat step 2. NGX Ultra Jukebox 22022626 Rev A...
  • Page 20 Channel 2 - Load as show n is 240 W per Channel 1 + channel Channel 1 - 4 Ohms 8 Ohms 75 W Primary 150 W 4 Ohms Amplifier 75 W Figure 1-C 22022626 Rev A NGX Ultra Jukebox...
  • Page 21 4 Ohms 4 Ohms 4 Ohms Primary 75 W 75 W 75 W 75 W Amplifier 4 Ohms 4 Ohms 4 Ohms 4 Ohms 75 W 75 W 75 W 75 W Figure 1-C (continued) NGX Ultra Jukebox 22022626 Rev A...
  • Page 22 Secondary Amplifier bridged driving a sub-woofer 4 Ohms Sub-Woof er Channel 3 - Note : Sub-Woofe r s hould incorporate a low pas s filte r Secondary Amplifier Figure 1-C (continued) 22022626 Rev A NGX Ultra Jukebox...
  • Page 23 Audio Mode - Output Routing Channel Linkage Ch 1/2 = Stereo or Mono Ch1 In Ch1 & Ch3 Out (Ch1 + Ch2) (Ch3) (Ch4) Ch 3/4 = Mono Ch2 In Ch2 & Ch4 Out Figure 1-C Continued NGX Ultra Jukebox 22022626 Rev A...
  • Page 24 Audio Mode - Output Routing Channel Linkage Ch 1/2 = Mono Ch1 In Ch1 & Ch3 Out (Ch1) (Ch2) (Ch3) (Ch4) Ch 3/4 = Mono Ch2 In Ch2 & Ch4 Out Figure 1-C Continued 22022626 Rev A NGX Ultra Jukebox...

  • Page 25: Section D - Service & Maintenance

    Section D - Service & Maintenance • Recommended Routine Maintenance NGX Ultra Jukebox 22022626 Rev A...
  • Page 26 3. Open the side door on the bill stacker to remove the cash. 4. Push the Service button to access the Collect Now function to help manage and audit your collections. 22022626 Rev A NGX Ultra Jukebox...

  • Page 27: Calibrating The Touchscreen

    2. Close the jukebox door and make sure it is locked. 3. Follow the directions on the screen, touching the center of the targets, and then touching different areas on the screen. If the cursor follows your movement, touch YES to exit. NGX Ultra Jukebox 22022626 Rev A...
  • Page 28 This page is intentionally left blank. 22022626 Rev A NGX Ultra Jukebox...

  • Page 29: Section E - Troubleshooting

    Section E - Troubleshooting • LED Indicators • Troubleshooting Chart • Connection Diagrams NGX Ultra Jukebox 22022626 Rev A...
  • Page 30 RAIL VOLTAGE – When lit, indicates the Amplifier power supply is on or the power supply capacitors have not yet discharged. To prevent damage to the Amplifiers, DO NOT connect or disconnect the cable between the Primary Amplifier and the Secondary Amplifier while these two LEDs are lit. 22022626 Rev A NGX Ultra Jukebox...
  • Page 31 JP4, JP5: MODE – set these jumpers to the STANDARD position for normal operation. The SUB position implements a High Pass Filter on Channel 1 and a Low Pass Filter on Channel 2. NGX Ultra Jukebox 22022626 Rev A...

  • Page 32: Troubleshooting Charts

    5. The amplifier is overloaded and shutdown. No sound from jukebox 1. There are no more credits available for play. and the application doesn’t 2. Reject song was activated. appear to be playing the song selected. 22022626 Rev A NGX Ultra Jukebox...
  • Page 33 3. All the lights on the front of the router are ON. 4. The router was shut off or lost power. 5. The Internet service provider (ISP) is down. 6. The AMI Entertainment server is down. NGX Ultra Jukebox 22022626 Rev A...

  • Page 34: Connection Diagrams

    COM 2 To I/O Board +12 V (22339701) ATX Power OUT - To 61197008 CORE Jukebox Power Supply COMPUTER and/or Other Devices +5 V NGX ULTRA COMPUTER CORE SCHEMATIC (PAGE 1) 22022626 Rev A NGX Ultra Jukebox...
  • Page 35 JUKEBOX I/O BROW N +12 VDC SPECIAL EVENT +12 V +12 V OUTPUT B ROUTER POWER ATX POWER OUTPUT A +5 V +5 V MONEY METER +12 V NGX ULTRA COMPUTER CORE SCHEMATIC (PAGE 2) NGX Ultra Jukebox 22022626 Rev A...
  • Page 36 28280004 4-PORT WIRELESS ROUTER TO LOCATION INTERNET SOURCE TO RJ45 ETHERNET WAN PORT ON CORE COMPUTER ETHERNET CABLE SUPPLIED WITH ROUTER KIT LAN PORTS OPTIONAL 26704801 WIRELESS ROUTER NGX ULTRA WIRING DIAGRAM (PAGE 1) 22022626 Rev A NGX Ultra Jukebox...
  • Page 37 N.O. +5 V POWER IN DISPLAY POWER AMPLIFIER DISPLAY POWER POWER N.O. ROUTER POWER N.C. POWER 21121240 POWER 120 VAC INPUT 40984303 POWER DISTRIBUTION ASSY 22121250 POWER CORD NGX ULTRA WIRING DIAGRAM (PAGE 2) NGX Ultra Jukebox 22022626 Rev A...
  • Page 38 CH 2/3 Vdriv e 61200706 40983903 +70V PREAMP PRIMARY AMPLIFIER TO AMPLIFIER POWER ON POWER DISTRIBUTION ASSY LINE 34104404 Part of 61113312 NEUTRAL MAIN HARNESS ST100 40991407 PRIMARY AMPLIFIER NGX ULTRA WIRING DIAGRAM (PAGE 3) 22022626 Rev A NGX Ultra Jukebox...
  • Page 39 MAIN HARNESS POWER 22145632 TO CORE COMPUTER 30934237 AUDIO TO ROWELINK (GREEN) AT CORE COMPUTER 34102004 LED CONTROLLER SIDELIGHT PANEL 41012001 22145633 34105807 LIGHTSHOW SIDELIGHT PANEL 34105807 SPEED BRIGHT NGX ULTRA WIRING DIAGRAM (PAGE 4) NGX Ultra Jukebox 22022626 Rev A...
  • Page 40 This page is intentionally left blank. 22022626 Rev A NGX Ultra Jukebox...

  • Page 41: Section F - Parts Catalog

    Section F - Parts Catalog • Upper Display Assembly • UI Panel Door Latch Assembly • Inside Cabinet • Currency Components • Electronic Components • Computer Core • Power Supply • Amplifier Assembly • Accessories NGX Ultra Jukebox 22022626 Rev A...
  • Page 42 78 4 + 3 5 UI Panel Door Latch Assembly Ref. Qty. Part # Description Ref. Qty. Part # Description % & ' ( -9 : 7 % & + . ; + <8 . 22022626 Rev A NGX Ultra Jukebox...
  • Page 43 Upper Display Assembly Display Support Assembly Ref Qty Part # Description Ref. Qty. Part # Description < " % ( & % & " %7 &1 .+ % & NGX Ultra Jukebox 22022626 Rev A...
  • Page 44 3 + A 0 & 4! 5 ) = *- * + ) 0 . 3 & %1 ' ( * * + " * + " . 3 % & ' ( " % & 22022626 Rev A NGX Ultra Jukebox...

  • Page 45: Currency Components

    % & 0 66 ) # ) . 3 ) 0 % & ) # &A?= ) # &< ) 0 ) 0 ! 0 * + <8 . ) 0 ) 0 ! 0 NGX Ultra Jukebox 22022626 Rev A...

  • Page 46: Electronic Components

    $$ 1 # ' ) 4 $1 5 1$ 1 ) 0 = 8(D + 0 4 $1 5 . 3 D (! ) = . 3 D (! ) ; & 2 " < 22022626 Rev A NGX Ultra Jukebox...
  • Page 47 Power Supply Assembly 40984303 Ref. Qty. Part # Description Ref. Qty. Part # Description . 3 8 ( 3 + 1 $$1 ) ; & ) = . 3 ) $1 1 % & ' ( NGX Ultra Jukebox 22022626 Rev A...
  • Page 48 Label – “3 4” 34104201 Dual Binding Post 80342304 #6-32 1/4” Pan Head Screw 34101805 CBA – Interface Components not shown in diagram: 34113001 Harness Assy-Secondary Amp 34113002 Cable Assy-Ribbon 34104505 Audio Out Harness 22022626 Rev A NGX Ultra Jukebox...

  • Page 49: Accessories

    ) # ! ! " 3" * ( F ' & ( 2& $ 4 5 ( .+ &)+ Optional Kits " : " ! ! 3 + ) # 3( ) # = = ) NGX Ultra Jukebox 22022626 Rev A...
  • Page 50 AMI Entertainment Network, LLC – 4147 Eastern Avenue SE – Grand Rapids, Michigan 49508...
