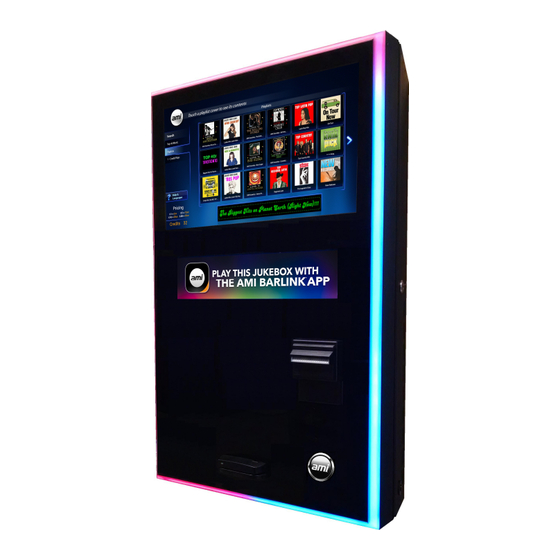

AMI NGX MINI 2 Installation & Owner's Manual

With 1000 watt amplifier
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Installation & Owner's Manual
With 1000 Watt Amplifier
U.S. and Canada; call toll-free:
Outside the U.S. and Canada; call:
1-877-ROC_N_ROL (1-877-762-6765)
+1 (616) 243-3633
E-Mail:
support@amientertainment.com
Web:
www.amietertainment.com
22022623 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NGX MINI 2 and is the answer not in the manual?

Questions and answers

Related Manuals for AMI NGX MINI 2

Summary of Contents for AMI NGX MINI 2

  • Page 1 Installation & Owner’s Manual With 1000 Watt Amplifier U.S. and Canada; call toll-free: Outside the U.S. and Canada; call: 1-877-ROC_N_ROL (1-877-762-6765) +1 (616) 243-3633 E-Mail: support@amientertainment.com Web: www.amietertainment.com 22022623 Rev B...
  • Page 2 AMI extends the original operator of this equipment the following warranty: All parts are guaranteed to be free of defects in material and workmanship for the specific periods listed. AMI agrees to repair or replace without charge during such period any part which proves defective upon examination by AMI. All costs of shipping a defective part to AMI’s offices shall be borne by the original operator.

  • Page 3: Table Of Contents

    Troubleshooting Charts _____________________________________________________ 26 Connection Diagrams _______________________________________________________ 28 Section F - Parts Catalog ___________________________________________ 35 Front Door _______________________________________________________________ 36 Currency Components ______________________________________________________ 39 Currency Components ______________________________________________________ 40 Electronic Components _____________________________________________________ 41 Accessories ______________________________________________________________ 44 NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 4: Important Safety Instructions

    REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. ATTENTION! RISQUE DE CHOC ÉLECTRIQUE. NE PAS OUVRIR NE JAMAIS RETIRER LES COUVERCLES, GARDES, OU DES BOUCLIERS. AUCUNE PIÈCE RÉPARABLE DANS CE JUKEBOX. CONFIER L'ENTRETIEN DE PERSONNEL QUALIFIÉ. 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 5: Section A - Jukebox Specifications

    66 lbs. Crated 85 lbs. Amplifier: Output Power: 1000 Wrms into 2 Ohm Load (Standard) Protection: Thermal and speaker overload Automatic, self resetting Voltage: 115VAC Frequency: 60Hz LCD: 18.5” HD flat screen Speakers: none NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 6 This page is intentionally left blank. 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 7: Section B - Placing The Wall-Mounted Jukebox On Location

    Placing the Wall-Mounted Jukebox on Location • Location Power and Warnings • Jukebox Power and Reset Switch • Wall Mounting Instructions • IR Remote Installation Instructions • Testing the Unit • Lighting Controller • Marque Display NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 8 The main power distribution unit is the power supply. This device contains a 10 amp fuse with a separate ON/OFF power switch located on the bottom of the power supply chassis. Figure 1-B – Inside View of Cabinet with Front Door Opened 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 9 Jukebox Power and Reset Switch The NGX MINI 2 jukebox is powered from a standard Hard Power Down 115VAC wall plug using the provided power cord. When the jukebox power cord is unplugged or the Inside the jukebox, power is routed to a power...
  • Page 10 The wall and installation hardware MUST be capable of supporting a 700 lb. load for the NGX MINI 2. Failure to follow these instructions could result in serious injury. Tools and hardware required for normal installation into wood wall studs: •...
  • Page 11 Make sure nothing interferes with opening and closing the door. Figure 3-B – Detail View of Top Cabinet Hinge Figure 4-B – Inside View of NGX MINI 2 Jukebox with Front Door Opened NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 12 IR Remote Installation Instructions IR Remote Control Installation Instructions Wired 6 Button Volume Control The NGX Mini 2 Jukebox also comes with a small 6 The NGX Mini 2 Jukebox comes with an IR remote button wired remote control. This control is designed (located in the Handy Pack).
  • Page 13 Connection button. This test confirms the jukebox within 24 hours (as long as the jukebox is jukebox can connect to AMI’s server (“Server connected). If the jukebox becomes disconnected, Found”), and authenticate a connection with any songs not yet downloaded will be unavailable to AMI’s server (“Connected”).

  • Page 14: Lighting Controller

    Beat to the Music To change the mode, open the main door of the The NGX Mini 2 includes an audio interface, located jukebox. The LED controller is located on the back of next to the LED Controller, which allows the LEDs to the door just above the currency panel.

  • Page 15: Section C - Sound System Set Up

    Section C - Sound System Set Up • Extension Speaker Operation • Selecting Speaker Power • Speaker Connection Diagrams NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 16: Selection Procedures

    Sound System Set Up The NGX Mini 2 jukebox sound system is powered by a 1000 Watt S-Pro2 Class 2 power amplifier manufactured by Pascal. Speaker terminals are provided to connect extension speakers directly to the amplifier. An Audio Output Transformer Kit (part number 22180806) is available if your installation uses 70 volt speakers or you need to connect extension speakers using various power taps.

  • Page 17: Extension Speakers Connected To Amplifier Channel + And - Terminals

    After you fix the short, disconnect a few speakers to reduce the wattage. Repeat Step 2. • If no overload is detected, reconnect the disconnected speakers (ensure you do not have too many • speakers, use Table 1-1). Repeat step 2. NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 18 Channel 2 - Load as show n is 240 W per Channel 1 + channel Channel 1 - 4 Ohms 8 Ohms 75 W Primary 150 W 4 Ohms Amplifier 75 W Figure 1-C 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 19 4 Ohms 4 Ohms Primary 75 W 75 W 75 W 75 W Amplifier 4 Ohms 4 Ohms 4 Ohms 4 Ohms 75 W 75 W 75 W 75 W Figure 1-C (continued) NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 20 This page is intentionally left blank. 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 21: Section D - Service & Maintenance

    Section D - Service & Maintenance • Recommended Routine Maintenance NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 22 3. Open the side door on the bill stacker to remove the cash. 4. Push the Service button to access the Collect Now function to help manage and audit your collections. 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 23: Calibrating The Touchscreen

    3. Follow the directions on the screen, touching the center of the targets, and then touching different areas on the screen. If the cursor follows your movement, touch YES to exit. NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 24 This page is intentionally left blank. 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 25: Section E - Troubleshooting

    Section E - Troubleshooting • LED Indicators • Troubleshooting Chart • Connection Diagrams NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 26 RAIL VOLTAGE – When lit, indicates the Amplifier power supply is on or the power supply capacitors have not yet discharged. To prevent damage to the Amplifiers, DO NOT connect or disconnect the cable between the Primary Amplifier and the Secondary Amplifier while these two LEDs are lit. 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 27 JP4, JP5: MODE – set these jumpers to the STANDARD position for normal operation. The SUB position implements a High Pass Filter on Channel 1 and a Low Pass Filter on Channel 2. NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 28: Troubleshooting Charts

    5. The amplifier is overloaded and shutdown. No sound from jukebox 1. There are no more credits available for play. and the application doesn’t 2. Reject song was activated. appear to be playing the song selected. 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 29 3. All the lights on the front of the router are ON. 4. The router was shut off or lost power. 5. The Internet service provider (ISP) is down. 6. The AMI Entertainment server is down. NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 30: Connection Diagrams

    COM 2 To I/O Board +12 V (22339701) ATX Power OUT - To 61197004 CORE Jukebox Power Supply COMPUTER and/or Other Devices +5 V NGX MINI 2 COMPUTER CORE SCHEMATIC (PAGE 1) 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 31 BROW N +12 VDC SPECIAL EVENT OUTPUT B +12 V +12 V ROUTER POWER OUTPUT A ATX POWER MONEY METER +5 V +5 V +12 V NGX MINI 2 COMPUTER CORE SCHEMATIC (PAGE 2) NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 32 TO LOCATION INTERNET SOURCE TO RJ45 ETHERNET WAN PORT ON CORE COMPUTER ETHERNET CABLE SUPPLIED W ITH ROUTER KIT LAN PORTS OPTIONAL 26704801 WIRELESS ROUTER KIT NGX MINI 2 WIRING DIAGRAM (PAGE 1) 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 33 N.O. N.O. +5 V POWER IN AMPLIFIER DISPLAY POWER POWER N.O. ROUTER POWER N.C. POWER POWER 120 VAC INPUT 40984302 POWER DISTRIBUTION ASSY 22121206 POWER CORD NGX MINI 2 WIRING DIAGRAM (PAGE 2) NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 34 PASCAL ST100 AMPLIFIER TO AMPLIFIER POWER ON POWER DISTRIBUTION ASSY LINE 34104404 Part of 61113311 NEUTRAL MAIN HARNESS POWER 40991407 AMPLIFIER ASSY NGX MINI 2 WIRING DIAGRAM – SINGLE AMPLIFIER CONFIGURATION (PAGE 3) 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 35 ENABLE TO LED CONTROLLER DATA TO BILLS (WHITE) ON CORE COMPUTER 22185350 TO POWER CREDIT CARD READER DISTRIBUTION ASSY Supplied with Card Reader TO CORE COMPUTER NGX MINI 2 WIRING DIAGRAM (PAGE 4) NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 36 LED CONTROLLER 41011901 LIGHTSHOW LIGHTING STARTS IN THE MIDDLE OF THE LOWER LED BOARD SPEED BRIGHT NO SHUNTS INSTALLED LED BOARD 41024201 LIGHTING ENDS HERE 22145629 NGX MINI 2 WIRING DIAGRAM (PAGE 5) 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 37: Section F - Parts Catalog

    Parts Catalog • Front Door • Front Door Assembly • Frame and LED Lighting • Inside Cabinet • Currency Components • Electronic Components • Computer Core • Power Supply • Amplifier Assembly • Accessories NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 38: Front Door

    OSD Board Components not shown in assembly above 21121225 Power Cord 22164202 Cable-VGA 34022357 Harness Assy-Door 34068706 Cable-USB 22145629 Harness Assy-LED Lights 34115001 Bracket-Mounting 34052610 Harness Assy-Backlight Panels 34103701 Catch-Top 22145624 Harness Assy-LED Controller 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 39 #M3x6mm PPHMS 61209801 Frame Assy-Door 70120511 Washer-Nylon 89974808 #10-32x1/2 Carriage Bolt 22339301 Bracket-Mounting-Diffuser 87844400 #10-32 KEPS Hex MS Nut 41023803 Diffuser 22323002 Hinge-Female 22339201 Bracket-Seam 00710206 Gasket-Foam Tape 8.4 Ft 22339101 Spacer Block-Seam NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 40 30934235 Cable-Y Splitter, Stereo 34103602 Baffle - Long 30934236 Cable-Audio, Stereo 3.5mm 34053004 Air Filter – Long 34102005 Cable-Modular Rowelink (Green)(50”) 34039109 Fan with Connector 34102008 Cable-Modular Rowelink (Green)(25”) 21895503 Fan Finger Guard 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 41: Currency Components

    Item 9 – one used on Dual BA configuration, two used on Single BA configuration. Item 11 – one used on Dual BA configuration, Card Reader, no Coin Acceptor. Item 12 – one used on Single BA configuration, Card Reader, no Coin Acceptor. NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 42 Item 11 – one used on BA Ready configuration with NRI coin acceptor and card reader. Item 12 – one used on BA Ready configuration with NRI coin acceptor, without card reader. Item 17 – 22178603 South Africa 22178612 Canada 22178613 New Zealand 22178614 Australia 22178615 Euro 22022623 Rev B NGX Mini 2 Jukebox...

  • Page 43: Electronic Components

    Cable – SATA Data 91197103 Housing – Core Computer 22137302 Guide – Card 40983503 Cover - Top 22219001 Hard Drive – System, US 22167704 Label – Computer Connections 22219002 Hard Drive – System, Canada NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 44 Part # Description Ref. Qty. Part # Description 40984402 Power Supply Cover 25077506 Cover - Fuse Clip 22118707 Power Inlet/Switch 70072129 Fuse – 10A 40983802 Power Control CBA 21375905 Convenience Outlet 80352304 #6-32x1/4” Screw 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 45 #M3x5 Phil Flat Head Screw 34104404 Amp Power Harness 80342304 #6-32 1/4” Pan Head Screw 89281606 #4-24 x 3/8 Pan Head Screw Components not shown in diagram: 34104608 Audio In Harness 34104504 Audio Out Harness NGX Mini 2 Jukebox 22022623 Rev B...

  • Page 46: Accessories

    Kit – 2nd Bill Acceptor (includes MEI Bill Acceptor) 26695501 Kit – NGX Video 26679605 Kit – Secondary Amplifier 26684705 Kit – Trackball ADA Compliant (Single BA) 26684704 Kit – Trackball ADA Compliant (Dual BA) 22022623 Rev B NGX Mini 2 Jukebox...
  • Page 47 Notes: NGX Mini 2 Jukebox 22022623 Rev B...
  • Page 48 AMI Entertainment Network, LLC – 4147 Eastern Avenue SE – Grand Rapids, Michigan 49508...
