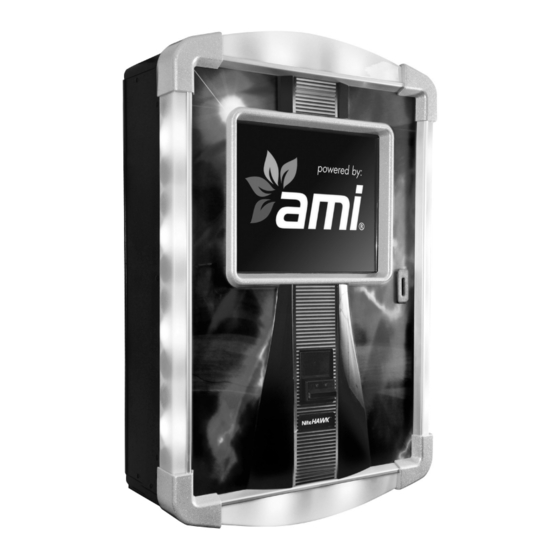

AMI NiteHawk Installation And Owner's Manual

Internet jukebox
Hide thumbs Also See for NiteHawk:
Table of Contents

Advertisement

Quick Links

See also: Installation & Owner's Manual
Installation and Owner's Manual
U.S. and Canada call toll-free:
1-877-ROC-N-ROL
(1-877-762-6765)
Outside the U.S. and Canada, call:
(616) 243-3633
E-mail: support@amientertainment.net
www.amientertainment.net
22022613 Rev B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NiteHawk and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMI NiteHawk

Summary of Contents for AMI NiteHawk

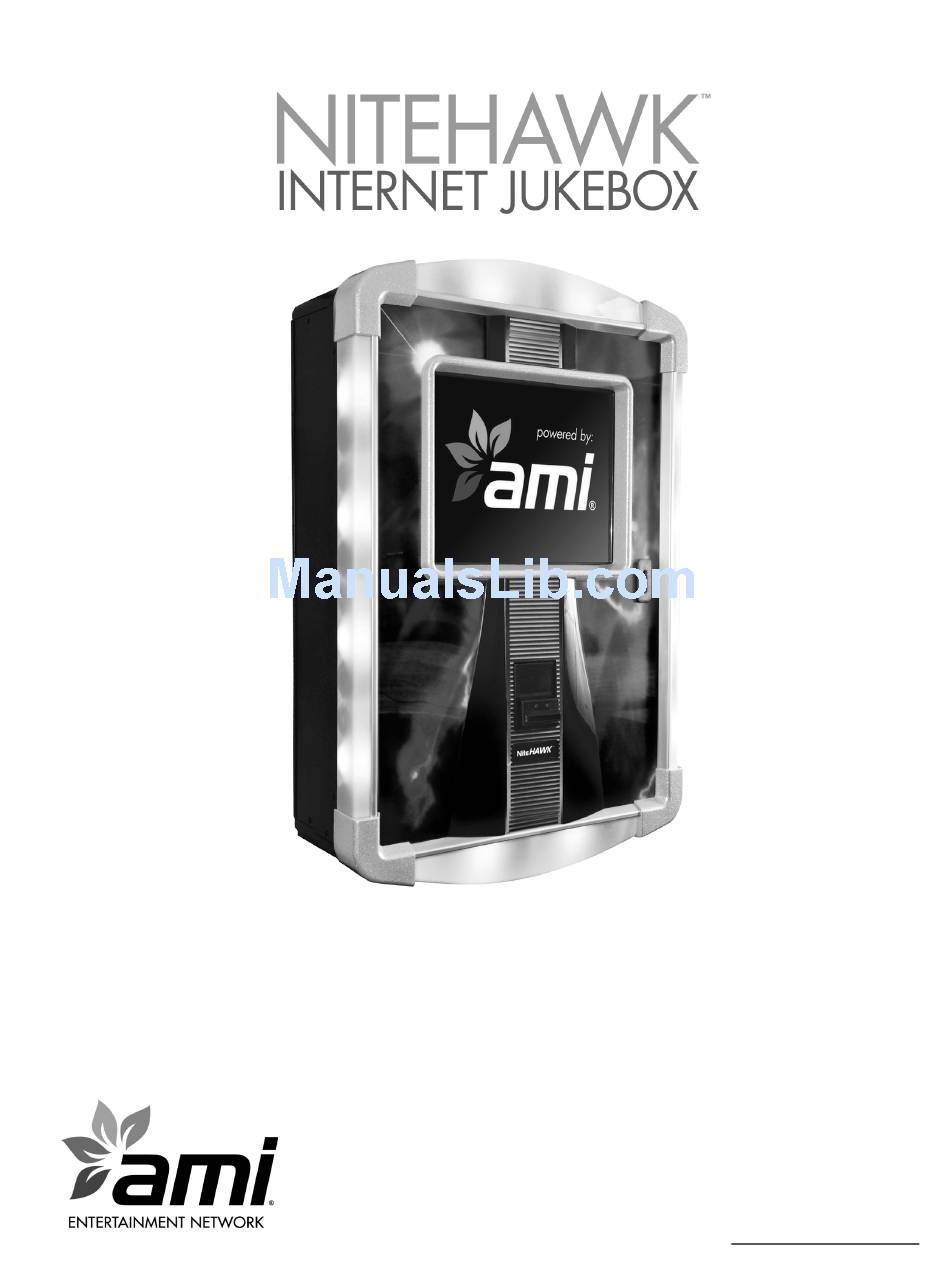

  • Page 1 Installation and Owner’s Manual U.S. and Canada call toll-free: 1-877-ROC-N-ROL (1-877-762-6765) Outside the U.S. and Canada, call: (616) 243-3633 E-mail: support@amientertainment.net www.amientertainment.net 22022613 Rev B...
  • Page 3 NiteHAWK Internet Jukebox Safety Safety IMPORTANT SAFETY INFORMATION 1. Read these instructions. 10. Only use the attachments/accessories specified by the manufacturer. 2. Keep these instructions. 11. Use only with the cart, stand, 3. Heed all warnings. tripod, bracket, or table 4.
  • Page 4 Safety NiteHAWK Internet Jukebox CAUTION! The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of non- insulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

  • Page 5: Table Of Contents

    Warranty Registration Card ........................1-2 Installation Instructions ..........................1-3 Installing the Hanger Bracket ........................1-3 Hanging the NiteHAWK on a Bracket ...................... 1-5 Major Components of the NiteHAWK ....................... 1-6 Computer Core Assembly ........................1-6 Touchscreen 19” LCD Monitor ......................1-6 System Power Supply .........................
  • Page 6 Table of Contents NiteHAWK Internet Jukebox Extension Speakers Connected E1 to E7 or T1 to T7................. 3-4 4-Ohm Speakers Connected to Transformer Taps E1 through E6 or T1 through T6 ......3-5 4-Ohm Speakers Connected to Channel 1 Transformer Taps: ............3-5 4-Ohm Speakers Connected to Channel 2 Transformer Taps: ............
  • Page 7 NiteHAWK Internet Jukebox Table of Contents List of Tables Table 3–1 – Extension Speaker Worksheet Sheet 1 ................... 3-4 Table 3–2 – Extension Speaker Worksheet Sheet 2 ................... 3-5 Table 3–3 – Extension Speaker Worksheet Sheet 3 ................... 3-6 Table 3–4 – Extension Speaker Worksheet Sheet 4 ................... 3-7 Table 3–5 –...
  • Page 8 Figure 6–3 – Computer Core ..........................6-2 Figure 6–4 – Filter Removal ..........................6-3 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 1) ..................7-6 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 2) ..................7-7 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 3) ..................7-8...
  • Page 9 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 7) ..................7-12 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 8) ..................7-13 Figure 7–1 – NiteHAWK Computer Core Schematic (Page 1) ..............7-14 Figure 7–1 – NiteHAWK Computer Core Schematic (Page 2) ..............7-15 Figure 8–1 –...
  • Page 10 This page intentionally left blank.

  • Page 11: Section: 1 Unpacking & System Description

    Unpacking & System Description Section: 1 Unpacking & System Description Introduction The NiteHAWK jukebox is part of a much larger system – the AMI Entertainment network. This network is a digital platform that delivers music across the Internet to Rowe Jukeboxes anywhere.

  • Page 12: Unpacking Instructions

    The jukebox is shipped with all major components except the Volume Control Unit in place. Save all tie-down hardware in case the NiteHAWK must be moved to another location. 1. Remove the shipping carton with care: Do not use shipping hooks or sharp tools that could damage the jukebox cabinet.

  • Page 13: Installation Instructions

    IMPORTANT: If replacing a WP-100 series CD Box or an NDW-1 Duet Box, use the level to mark a line that is exactly 4 1/2" directly below the existing holes. This will allow the use of existing lower holes in the wall and place the NiteHAWK at the same recommended height.

  • Page 14: Figure 1-1 - Installing The Hanger Bracket

    Unpacking & System Description NiteHAWK Internet Jukebox 5.615 16.000 5.665 5.112 8.132 7.868 5.162 Hanger 17.750 Bracket 35.703 66.500* 2.700 30.80 FLOOR Figure 1–1 – Installing the Hanger Bracket 22022613 Rev B...

  • Page 15: Hanging The Nitehawk On A Bracket

    To see the Hanger Bracket alignment to the holes in the back panel, open the Main Door. 1. As you lift the NiteHAWK to the Hanger Bracket, look through the opened door to be sure the keyhole slots of the NiteHAWK Back Panel are aligned with the spools of the Hanger Bracket.

  • Page 16: Major Components Of The Nitehawk

    Unpacking & System Description NiteHAWK Internet Jukebox Major Components of the NiteHAWK Figures 1–3 and 1–4 show the major components of the NiteHAWK Jukebox. Take a minute to familiarize yourself with these components. Computer Core Assembly The Computer Core Assembly is the heart of the system and has a removable hard drive and a single board computer.

  • Page 17: Volume Control Unit

    If an existing 100 foot cable is already in place, you can use the 3-wire or 4-wire (see Figure 3-16) alternate wiring. • The POWER button turns the NiteHAWK Jukebox lights, touchscreen monitor and Bill Acceptor ON or OFF. •...

  • Page 18: Figure 1-3 - Major Components

    Unpacking & System Description NiteHAWK Internet Jukebox 1000 Watt Digital Audio Router Output Transformer Power Transformer System Power Supply Audio Output Transformer Coin Acceptor Computer Core 4-Channel Pre-amplifier Cabinet Fan Air Filter Touchscreen LED Controller 19” LCD Monitor LCD Power...

  • Page 19: Figure 1-4 - Bottom Panel Filter And Switches

    NiteHAWK Internet Jukebox Unpacking & System Description Router Computer Reset Core Reset Filter Figure 1–4 – Bottom Panel Filter and Switches 22022613 Rev B...

  • Page 20: Nitehawk Specifications

    Unpacking & System Description NiteHAWK Internet Jukebox NiteHAWK Specifications General Depth ........................15 in. Width ......................... 27-1/4 in. Height ........................42 in. Power Requirements ................120 VAC 60 Hz. Maximum Power Consumption (dual amp configuration) ....1200 watts 11.9 amps Maximum Power Consumption (single amp configuration) ....

  • Page 21: Section: 2 Initial Set Up And Testing

    1. Touch the System Setup button and then touch Advanced Administration. 2. On the Advanced Administration Screen, touch Configure Server. Then touch the Test Connection button. This test confirms the jukebox can connect to AMI’s server (“Server Found”), and authenticate a connection with AMI’s server (“Connected”).

  • Page 22: Credit Test

    Figure 2–1 – Computer Core Figure 2–2 – Calibration Screen 3. If you’ve installed a Hard Drive which had previously been connected to the AMI Network, skip ahead to Step 4. If you are installing a new hard drive open the jukebox door again and press the “SERVICE”...

  • Page 23: Audio Test

    The first time you boot up the NiteHAWK with your hard drive, a 60-day licensing grace period will begin. If at the end of these 60 days your jukebox has not connected to the AMI Entertainment Network to validate its licenses, the computer will cease to play music.
  • Page 24 This page intentionally left blank.

  • Page 25: Section: 3 Sound System Setup

    See the included manual “Network Setup, Jukebox Operation, Operator Setup Screens” if you have any questions about setting up the Network or the jukebox for operation. AMI Entertainment supports 2 electrically equivalent Output Transformer Assemblies. Rock-Ola 70251-A Audio Rowe 40832115...
  • Page 26 Sound System Setup NiteHAWK Internet Jukebox Speakers connected across terminals E1 to E7 or T1 to T7 bypass the transformer and are driven directly by an amplifier channel. Each transformer provides 70V terminals for driving 70V speakers, and provides taps (E1- E6 or T1-T6) for driving extension speakers at a lower volume.

  • Page 27: Selecting Speaker Power

    NiteHAWK Internet Jukebox Sound System Setup Low Impedance Speakers Low impedance speakers (8- or 4-ohm) can be used when the connecting cable is less than 100 feet. Keep the following two things in mind when wiring your speakers: 1. No more than one 4-ohm speaker should be connected to a speaker line. If several 4-ohm speakers are to be used, each speaker should have its own line.

  • Page 28: Extension Speakers Connected E1 To E7 Or T1 To T7

    Sound System Setup NiteHAWK Internet Jukebox – Table 3–1 Extension Speaker Worksheet Sheet 1 Extension Speakers Connected E1 to E7 or T1 to T7 Place the quantity of speakers in the blank under Qty and multiply the quantity times the power consumption.

  • Page 29: 4-Ohm Speakers Connected To Transformer Taps E1 Through E6 Or T1 Through T6

    NiteHAWK Internet Jukebox Sound System Setup – Table 3–2 Extension Speaker Worksheet Sheet 2 4-Ohm Speakers Connected to Transformer Taps E1 through E6 or T1 through T6 Place the quantity of speakers in the blank under Qty and multiply the quantity times the power consumption.

  • Page 30: 8-Ohm Speakers Connected To Transformer Taps E1 Through E6 Or T1 Through T6

    Sound System Setup NiteHAWK Internet Jukebox – Table 3–3 Extension Speaker Worksheet Sheet 3 8-Ohm Speakers Connected to Transformer Taps E1 through E6 or T1 through T6 Place the quantity of speakers in the blank under Qty and multiply the quantity times the power consumption.

  • Page 31: Table 3–5 – Jukebox Speaker Power

    NiteHAWK Internet Jukebox Sound System Setup – Table 3–4 Extension Speaker Worksheet Sheet 4 Combine power consumption of all speakers: Channel 1 Channel 2 Connected E1 to E7 Sum of tapped and 70-Volt A1, A2 must Tapped 4-Ohm not exceed 125 watts Tapped 8-Ohm per channel.

  • Page 32: Amplifier Overload Check

    Sound System Setup NiteHAWK Internet Jukebox Rock-Ola Floor Model Jukeboxes: The jukebox wires to change are the White (Channel 1) and the Red (Channel 2) on the Output Transformer Assembly. Use Table3- 6 as a guide to select the power used by the jukebox.
  • Page 33 This page intentionally left blank.

  • Page 34: Figure 3-2 - Speaker Connections Rowe Floor Models

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–2 – Speaker Connections Rowe Floor Models 3-10 22022613 Rev B...
  • Page 35 NiteHAWK Internet Jukebox Sound System Setup 22022613 Rev B 3-11...

  • Page 36: Figure 3-3 - Speaker Connections Rowe Wall-Mounted Model

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–3 – Speaker Connections Rowe Wall-Mounted Model 3-12 22022613 Rev B...
  • Page 37 NiteHAWK Internet Jukebox Sound System Setup Extension Speakers NOTE: The 70-volt phrasing is reversed inside the output transformer assembly. 22022613 Rev B 3-13...

  • Page 38: Figure 3-4 - Speaker Connections Rock-Ola

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–4 – Speaker Connections Rock-Ola 3-14 22022613 Rev B...
  • Page 39 NiteHAWK Internet Jukebox Sound System Setup 22022613 Rev B 3-15...

  • Page 40: Figure 3-5 - Audio Output Transformer Wiring Diagram (#40832115)

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–5 – Audio Output Transformer Wiring Diagram (#40832115) 3-16 22022613 Rev B...

  • Page 41: Figure 3-6 - Audio Distribution Assembly Wiring Diagram (70251-A)

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–6 – Audio Distribution Assembly Wiring Diagram (70251-A) 22022613 Rev B 3-17...

  • Page 42: Speaker Synopsis

    Sound System Setup NiteHAWK Internet Jukebox Speaker Synopsis 1000 Watts of RMS Power per Amplifier or 500 Watts per Channel. The generic speaker wiring diagrams cover 6 to 18 speakers. These speakers are expensive, providing a lot of sound in a localized area, which does not always optimize the room sound.

  • Page 43: Figure 3-7 - External Speakers With Jukebox Speakers Connected To E1 - E7 Rowe Floor Model

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–7 – External Speakers with Jukebox Speakers Connected to E1 – E7 Rowe Floor Model 22022613 Rev B 3-19...

  • Page 44: Figure 3-8 - Ten Speakers With Jukebox Speakers Connected To E3 - E7 Rowe Floor Model

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–8 – Ten speakers with Jukebox Speakers Connected to E3 – E7 Rowe Floor Model 3-20 22022613 Rev B...

  • Page 45: Figure 3-9 - Low Voltage And 70V Speakers With Jukebox Speakers Connected To E1 - E7

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–9 – Low Voltage and 70V Speakers with Jukebox Speakers Connected to E1 – E7 Rowe Floor Model 22022613 Rev B 3-21...

  • Page 46: Figure 3-10 - Ten Speaker Connected To E1 - E7 Rowe Wall-Mounted Model

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–10 – Ten Speaker Connected to E1 – E7 Rowe Wall-Mounted Model 3-22 22022613 Rev B...

  • Page 47: Figure 3-11 - Low Voltage And 70V Speaker Connection To E1 - E7 Rowe Wall-Mounted Model

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–11 – Low Voltage and 70V Speaker Connection to E1 – E7 Rowe Wall-Mounted Model 22022613 Rev B 3-23...

  • Page 48: Figure 3-12 - External Speaker Connection With Jukebox Speakers Connected To E1 - E7 Rock-Ola

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–12 – External Speaker Connection with Jukebox speakers connected to E1 – E7 Rock-Ola 3-24 22022613 Rev B...

  • Page 49: Figure 3-13 - Ten Speakers With Jukebox Speakers Connected To T3-T7 Rock-Ola

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–13 – Ten Speakers with Jukebox Speakers Connected to T3–T7 Rock-Ola 22022613 Rev B 3-25...

  • Page 50: Figure 3-14 - Low Voltage And 70V Speakers With Jukebox Speakers Connected To T1-T7 Rock-Ola

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–14 – Low Voltage and 70V Speakers with Jukebox Speakers Connected to T1-T7 Rock-Ola 3-26 22022613 Rev B...

  • Page 51: Figure 3-15- Volume Control Unit

    NiteHAWK Internet Jukebox Sound System Setup Figure 3–15– Volume Control Unit 22022613 Rev B 3-27...

  • Page 52: Figure 3-16 - Volume Connections Using Existing 3-Wire Or 4-Wire Cable 6 Conductor Modular Wall Jack Radio Shack Model Lt-468 Catalog #279-005

    Sound System Setup NiteHAWK Internet Jukebox Figure 3–16 – Volume Connections Using Existing 3-Wire or 4-Wire Cable 6 Conductor Modular Wall Jack Radio Shack Model LT-468 Catalog #279-005 3-28 22022613 Rev B...

  • Page 53: Section: 4 Adding Microphones

    Adaptor. Paging Mic Adaptor Figure 4–1 – Microphone Connections Adding Microphone(s) The jukebox factory settings have all microphones unmuted and routed to the four channel signal outputs and . For assistance contact AMI Technical Service. AUXILIARY OUT 22022613 Rev B...

  • Page 54: Figure 4-2 - Paging Microphone Setup Screen

    Adding Microphones NiteHAWK Internet Jukebox All of the following steps must be completed to navigate properly through the Audio setup menus as you add microphones to your jukebox system. If you need to start over from the beginning of a step, touch Cancel.

  • Page 55: Figure 4-3 - Vcu Setup Screen

    NiteHAWK Internet Jukebox Adding Microphones Step 4 If not in SERVICE mode press the SERVICE button on the Computer Core to enter the Main Menu, and then Touch Hardware Setup. • Touch VCU Setup to view the VCU Setup screen (see •...
  • Page 56 This page intentionally left blank.

  • Page 57: Section: 5 Led Lighting And Bill Acceptor

    Section: 5 LED Lighting and Bill Acceptor LED Control Assembly (#61182001) The LED Control Assembly in the NiteHAWK jukebox supplies all the lighting in the jukebox. There are no fluorescent bulbs, starters, ballasts, or 12 V peanut lights. All lighting is supplied by the use of 49 ultra bright LEDs.

  • Page 58: Music Beat Sensitivity For Perimeter Leds

    LED Lighting & Bill Acceptor NiteHAWK Internet Jukebox Music Beat Sensitivity for Perimeter LEDs The MUSIC pot on the LED Control Assembly sets the music beat sensitivity. Also, the SPEED pot on the LED Control Assembly somewhat affects the Music Beat Sensitivity. The faster the speed control is set, the less influence music will have on the LED display.

  • Page 59: Figure 5-1 - Led Control Assembly

    NiteHAWK Internet Jukebox LED Lighting & Bill Acceptor Figure 5–1 – LED Control Assembly Figure 5–2 – Program DIP Switches 22022613 Rev B...

  • Page 60: Bill Acceptor Settings

    LED Lighting & Bill Acceptor NiteHAWK Internet Jukebox Bill Acceptor Settings The NiteHAWK uses either a Coinco® Vantage™ or a MEI® AE2611 Bill Acceptor. In order to function properly in the NiteHAWK, these Bill Acceptors must be configured as follows: Coinco Vantage Setup Figure 5–3 shows the location and orientation of the DIP Switches.

  • Page 61: Figure 5-5 - Removing The Lower Housing

    NiteHAWK Internet Jukebox LED Lighting & Bill Acceptor Figure 5–5 – Removing the Lower Housing 4. Referring now to the LED’s on the Inlet Bezel, the ‘Page’ LED will now be blinking a single-flash pattern. Figure 5–6 shows the 5 LEDs and their meanings Figure 5–6 –...

  • Page 62: Mei Ae2611 Setup

    LED Lighting & Bill Acceptor NiteHAWK Internet Jukebox 7. Continue these steps through the Page 3 and Page 4 options. When you have the settings as you want them, simply re-install the Lower Housing. The Inlet LEDs will flash 5 times confirming that your settings have been saved.

  • Page 63: Section: 6 Routine Service

    Changing music, collecting statistic figures, and changing other location-specific features can be done using the AMI Entertainment Secure Web site via the Internet. Detailed instructions on how to use AMI Entertainment’s Web Application are located in the included manual “Network Setup, Jukebox Operation, Operator Setup Screens” and on the Web site itself.

  • Page 64: Touchscreen Calibration

    Routine Service NiteHAWK Internet Jukebox Touchscreen Calibration The following procedure describes how to calibrate the touchscreen: 1. Power on the jukebox and allow it to complete the startup sequence. 2. Open the door of the jukebox. 3. Locate the “Calibrate” button on the Computer Core. Refer to Figure 6–1.

  • Page 65: Air Filter

    Routine Service Air Filter Filtered cooling air is provided for the components inside the NiteHAWK via a fan mounted on the bottom of the jukebox. The speed of this fan is controlled by the Computer Core – if the temperature is moderate, the fan runs at a low speed, but as the temperature inside the box rises, the fan is driven faster.
  • Page 66 This page intentionally left blank.

  • Page 67: Section: 7 Troubleshooting

    Troubleshooting Section: 7 Troubleshooting Introduction The NiteHAWK Jukebox incorporates several modules which plug in for rapid service. The most likely cause of jukebox problems is: 1. Continuous or intermittent open circuits in a harness. The cause can be broken or cut wires, a damaged terminal, or a bad terminal crimp.

  • Page 68: Power Supply Board

    Troubleshooting NiteHAWK Internet Jukebox Power Supply Board +9 V LED Should be on. Indicates +9 VDC is available at the Power Supply. +12 V LED Should be on. Indicates +12 VDC is available at the Power Supply. +24 V LED Should be on.

  • Page 69: Computer Core Assembly

    NiteHAWK Internet Jukebox Troubleshooting Computer Core Assembly The Computer Core Assembly also has two Ethernet LEDs that are built into the Ethernet socket. The yellow LED indicates a connection at 10 MB and the green LED indicates a connection at 100 MB.

  • Page 70: Sequence Of Operation

    • Low-level hardware checks • Windows XP Embedded Operating System Loads • NiteHAWK Operating System Loads Step 3: The user interface is viewed on the monitor. No music is in the queue, no selections are available and the amplifier is muted.
  • Page 71 This page intentionally left blank.

  • Page 72: Figure 7-1 - Nitehawk Wiring Diagram (Sheet 1)

    TO 6 BUTTON REMOTE (Red) ON CORE COMPUTER 62009-A-LF 21958306 TRANSMITTER POWER OPTIONAL 40846302 70004-1A WIRED REMOTE RECEIVER TO IR REMOTE (Y ellow) ON CORE COMPUTER 34037905 NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 1 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 1) 22022613 Rev B...

  • Page 73: Figure 7-1 - Nitehawk Wiring Diagram (Sheet 2)

    TO BILLS (White) ON LED ON CORE COMPUTER INHIBIT COIN 1 34032519 COIN 2 COIN 3 COIN 4 +5 V CREDIT ESCROW ENABLE 34022344 DATA NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 2 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 2) 22022613 Rev B...

  • Page 74: Figure 7-1 - Nitehawk Wiring Diagram (Sheet 3)

    22 VAC BL/W 22 VAC 50 VAC *B/W 50 VAC *R/Y *B/R *B/Y *G/Y 20 VAC 34059103 Optional Second Amp Kit P/N 26694911 NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 3 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 3) 22022613 Rev B...

  • Page 75: Figure 7–1 – Nitehawk Wiring Diagram (Sheet 4)

    CH 3 O /W CH 3 34033402 70 V * R/Y **B/W CH 4 **BR 61170003 O /B CH 4 1000 WATT AMPLIFIER NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 4 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 4) 22022613 Rev B...

  • Page 76: Figure 7–1 – Nitehawk Wiring Diagram (Sheet 5)

    AND LED CONTROL CABINET TO P1 ON LIGHTS COOLING GROUND INTERCONNECT ROUTER BOARD 34052901 TO CABINET FANS ON CORE COMPUTER POWER POWER NITEHAWK (CJE) 34052608 MACHINE SCHEMATIC PAGE 5 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 5) 7-10 22022613 Rev B...

  • Page 77: Figure 7–1 – Nitehawk Wiring Diagram (Sheet 6)

    *R/B 34038808 120 V MAINS 21121216 POWER CORD ROUTER RESET TO POWER INPUT ON ROUTER TO ATX POWER SUPPLY ON CORE COMPUTER NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 6 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 6) 22022613 Rev B 7-11...

  • Page 78: Figure 7–1 – Nitehawk Wiring Diagram (Sheet 7)

    LED DRIVE PANEL LIGHTING TO AUX OUTPUT ON PREAMP J9 LEFT AUDIO IN 40960205 J10 RIGHT SERVICE LIGHTING NITEHAWK (CJE) (CBA LED CONTROLLER 40965701) MACHINE SCHEMATIC PAGE 7 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 7) 7-12 22022613 Rev B...

  • Page 79: Figure 7–1 – Nitehawk Wiring Diagram (Sheet 8)

    (6 REQUIRED) - BLUE & RED VERSIONS BLUE BLUE BLUE BLUE BLUE BLUE BLUE BLUE BLUE BLUE 22164602 BACKLIGHT LED (12 REQUIRED) NITEHAWK (CJE) MACHINE SCHEMATIC PAGE 8 Figure 7–1 – NiteHAWK Wiring Diagram (Sheet 8) 22022613 Rev B 7-13...

  • Page 80: Figure 7–1 – Nitehawk Computer Core Schematic (Page 1)

    30800429 - CPU 2.6GHz DUAL PENTIUM COMPUTER SCHEMATIC and/or Other Devices +5 V COMPUTER SCHEMATIC 34039505 - HEATSINK FAN ASSY PAGE 1 70036632 - RAM 1GB PAGE 1 Figure 7–1 – NiteHAWK Computer Core Schematic (Page 1) 7-14 22022613 Rev B...

  • Page 81: Figure 7–1 – Nitehawk Computer Core Schematic (Page 2)

    SPARE OUT A ATX POWER MONEY METER +5 V 61197001 (CJE) CORE 61197002 (CJE) CORE +5 V +12 V COMPUTER SCHEMATIC COMPUTER SCHEMATIC PAGE 2 PAGE 2 Figure 7–1 – NiteHAWK Computer Core Schematic (Page 2) 22022613 Rev B 7-15...

  • Page 82: Troubleshooting Charts

    Troubleshooting NiteHAWK Internet Jukebox Troubleshooting Charts The best way to determine a problem is to isolate its cause. The following charts should help to narrow down which module is failing and whether it can be fixed or needs to be replaced.
  • Page 83 3. All the lights on the front of the router are ON. 4. The router was shut off or lost power. 5. The Internet service provider (ISP) is down. 6. The AMI Entertainment server is down. 22022613 Rev B 7-17...

  • Page 85: Section: 8 Parts Catalog

    NiteHAWK Internet Jukebox Parts Catalog Section: 8 Parts Catalog Figure 8–1 – Door Assembly (External View) ............... 8-4 Figure 8–2 – Door Assembly – Internal View ..............8-6 Figure 8–3 – Shell Assembly (Internal View) ..............8-8 Figure 8–4 – Shell Assembly (Internal View, Left-Hand Side) ........8-10 Figure 8–5 –...

  • Page 86: Introduction

    Parts Catalog NiteHAWK Internet Jukebox Introduction This parts catalog lists replacement parts for the jukebox. The purpose of this parts catalog is to locate and identify replaceable components and supply information on how to order them. Catalog Description This catalog is divided into major sections labeled with figure numbers, which correspond to the illustrations used.
  • Page 87 This page intentionally left blank.

  • Page 88: Figure 8–1 – Door Assembly (External View)

    Parts Catalog NiteHAWK Internet Jukebox Figure 8–1 – Door Assembly (External View) 22022613 Rev B...
  • Page 89 NiteHAWK Internet Jukebox Parts Catalog DOOR ASSEMBLY (External View) Refer to Figure 8–1. Ref. Part No. Description 61181201 Door Assembly – Front (Blue) ................Ref. 61181202 Door Assembly – Front (Green) ................Ref. 61181203 Door Assembly – Front (Red) ................Ref.

  • Page 90: Figure 8–2 – Door Assembly – Internal View

    Parts Catalog NiteHAWK Internet Jukebox Figure 8–2 – Door Assembly – Internal View 22022613 Rev B...
  • Page 91 Strap – Corner ......................4 Items not shown: 21121236 Harness Assembly – Monitor Power ................1 40960205 Cable Assembly – NiteHAWK Back light ..............2 40960204 Cable Assembly – NiteHAWK Perimeter light ............. 1 40846302 IR Receiver ........................1 22022613 Rev B...

  • Page 92: Figure 8–3 – Shell Assembly (Internal View)

    Parts Catalog NiteHAWK Internet Jukebox Figure 8–3 – Shell Assembly (Internal View) 22022613 Rev B...
  • Page 93 NiteHAWK Internet Jukebox Parts Catalog SHELL ASSEMBLY (Internal View) Refer to Figure 8–3. Ref. Part No. Description Shell Assembly Internal View ................... Ref 22147604 Shell Assembly ......................1 34087701 Surge Suppressor Assembly ..................1 22145809 Power Supply Assembly–System (See Figure 8–7) ............ 1 22158201 Retainer –...

  • Page 94: Figure 8–4 – Shell Assembly (Internal View, Left Hand Side)

    Parts Catalog NiteHAWK Internet Jukebox (behind coin box) Figure 8–4 – Shell Assembly (Internal View, Left Hand Side) Part No. Description 22214003 Bracket – Door Ramp ....................1 21998205 Coupler Latch ....................... 1 61182401 Chute – Coin ........................ 1 40966001 Bracket –...

  • Page 95: Figure 8–5 – Shell Assembly (Internal View, Right Hand Side)

    NiteHAWK Internet Jukebox Parts Catalog Figure 8–5 – Shell Assembly (Internal View, Right Hand Side) Part No. Description 61182103 Panel – Cabinet Back ....................1 70134146 Bolt – 1/2 x 13 x 1.25 Carriage ..................1 92400061 Nut 1/2–13 Type 7 (Not Shown) .................. 1 34007701 Bezel –...

  • Page 96: Figure 8–6 – Computer Core Assembly

    Parts Catalog NiteHAWK Internet Jukebox FASTENS POWER SUPPLY Figure 8–6 – Computer Core Assembly Ref. Part No. Description 61197002 Computer Core and Bracket Assembly ..............Ref. 22137302 Card Guide ........................3 34052406 Circuit Board Assembly – power on/reset/LEDs ............1 34101101 Cover –...

  • Page 97: Figure 8–7 – Power Supply Assembly

    NiteHAWK Internet Jukebox Parts Catalog Figure 8–7 – Power Supply Assembly Ref. Part No. Description 22145809 Power Supply Assembly ..................Ref. 21375902 Outlet – Convenience ....................2 22118703 Power Inlet IEC 320 C-14 .................... 1 34038808 Harness Assembly – Power Supply (Only Connectors Shown) ........1 22145908 Chassis –...

  • Page 98: Figure 8–8 – 4-Channel Pre-Amplifier

    Parts Catalog NiteHAWK Internet Jukebox Figure 8–8 – 4-Channel Pre-Amplifier Ref. Part No. Description 40982601 4-Channel Pre-amplifier Assembly ................. Ref. 40982701 Cover – Pre-amplifier ....................1 61195201 CBA – 4-Channel Pre-amplifier ..................1 80713008 #8-32 x 1/2 SEMS Hex WRHS..................5...

  • Page 99: Figure 8–9 – Output Transformer Assembly

    NiteHAWK Internet Jukebox Parts Catalog Figure 8–9 – Output Transformer Assembly Ref. Part No. Description 40832115 Output Transformer Assembly .................. Ref 61133101 Chassis – Audio Output ....................1 30426707 Binding Post Strip ......................2 30426706 Binding Post Strip ......................1 70233206 Bushing –...

  • Page 100: Figure 8–10 – Hanger Bracket Assembly

    Parts Catalog NiteHAWK Internet Jukebox Figure 8–10 – Hanger Bracket Assembly Ref. Part No. Description 61114003 Hanger Bracket Assembly ..................Ref 87843700 #10-24 Hex Keps Nut ....................4 34015401 Standoff – Hanger ......................4 61114103 Hanger – Weld Assembly ..................... 1 89973724 #10-24 x 1 1/2 Carriage Bolt ..................

  • Page 101: Accessory Equipment

    NiteHAWK Internet Jukebox Parts Catalog Accessory Equipment Part. No. Description Function 26679501 Paging System with Hand-Held Paging System not affected by 4-Channel Pre- Microphone Amplifier. All plug-in unit, complete with microphone and 50 foot microphone cable. 26679502 Paging System with Hand-Held Paging System not affected by A.V.C.
  • Page 102 NOTES: ______________________________________________________ ______________________________________________________ ______________________________________________________ ______________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________ _______________________________________________________________________________________...

Table of Contents

Save PDF
