Wireless Remote Controller
Model: SPRC-101
1. Before Installation
2. Mounting of Battery
3. Instructions
4. Description
5. Signal Transmission
6. Operation
7. Installation
Thank you for selecting C&H central air-
conditioner!
To ensure using the wireless remote controller
correctly, please read this manual carefully
before use, and keep it properly. For any
questions, please contact your dealer or our
service center.
Operation
Manual
1
1
1
1
2
3
14
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Cooper & Hunter SPRC-101
Summary of Contents for Cooper & Hunter SPRC-101

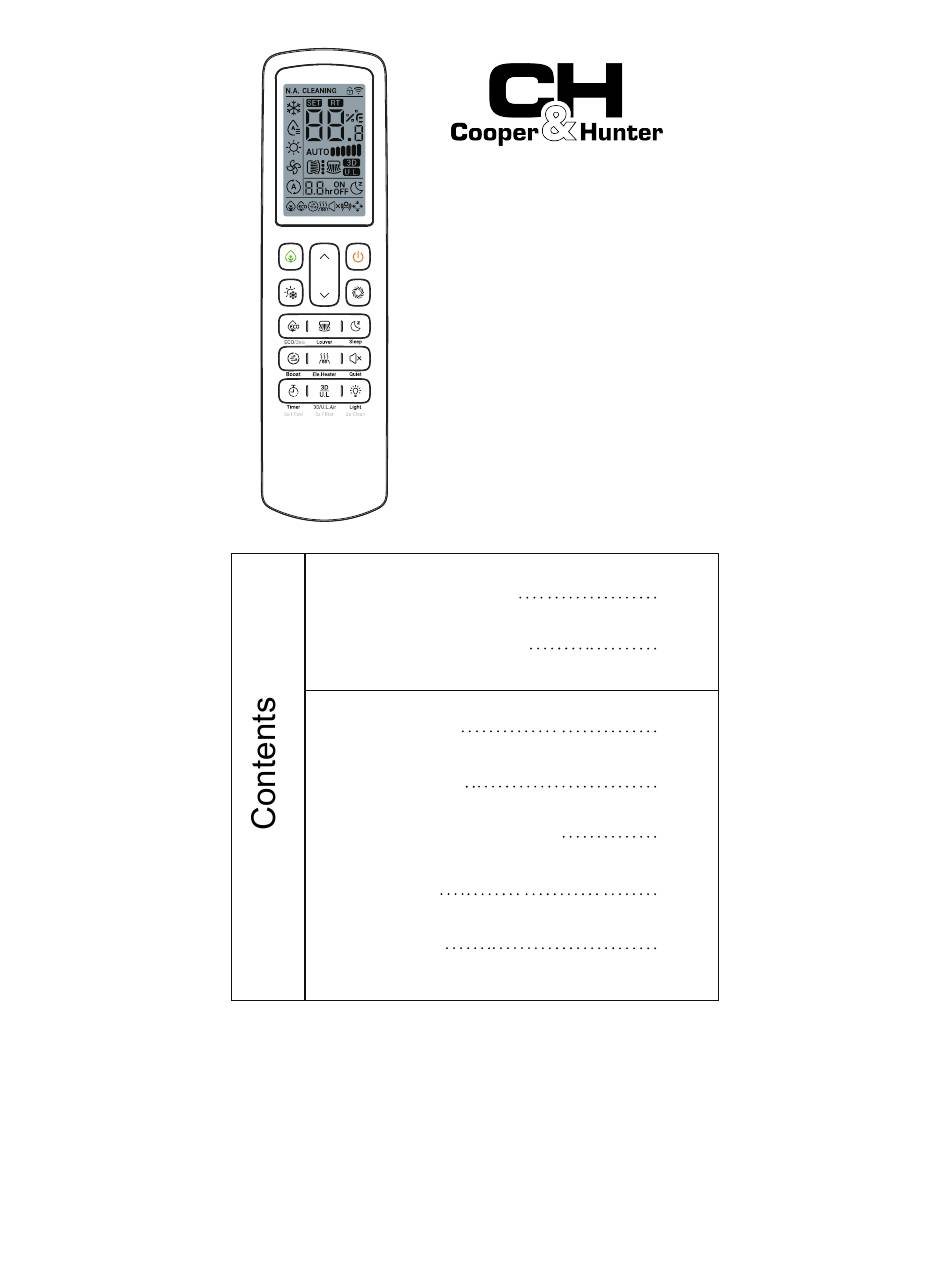

- Page 1 Operation Manual Wireless Remote Controller Model: SPRC-101 1. Before Installation 2. Mounting of Battery 3. Instructions 4. Description 5. Signal Transmission 6. Operation 7. Installation Thank you for selecting C&H central air- conditioner! To ensure using the wireless remote controller correctly, please read this manual carefully before use, and keep it properly.
-
Page 2: Before Installation
Operation Manual for ire ess e ote ontro er Mode: SPRC-101 To ensure using the controller correctly, please read this manual carefully before use. This manual should be read along with the installation manual of air-conditioner (A/C). Additional functions of this controller include Health, ECO, Sleep, Boost, Electric Heater, Quiet, I Feel, and Wind-free, Self-cleaning. - Page 3 Signal transmission part Point the controller perpendicularly to the receiver on indoor unit when transmitting signals, and the signal icon will keep flashing. Signal transmission indication Display screen Display setting temperature, operating time, position of louver, operation mode and air volume type, etc. All the icons are displayed here for reference, the display will be different in practice.
- Page 4 Max. transmission distance: 5m Signal receiver Controller Virtual line between signal transmitter and receiver □ Please note: the ceiling ducted type A/C shown in the figure above is taken as an example. Other types may vary from this one. Tips Signal receiver will beep when signal received.
-
Page 5: Temperature And Humidity
Point signal transmitter of the controller to the signal receiver and press , the signal receiver will beep once to indicate a successful reception. ON/OFF operation should be performed at an interval ● of min.3s, otherwise it may lead to a failure to actuate. Mode The icons on screen will switch in the following sequence at each press of Mode button... - Page 6 Point signal transmitter on the controller to the signal receiver, and press Each press of will increase the humidity by 5% (max. 90%)； Each press of will decrease the humidity by 5% (min. 35%). ● Humidity can be adjusted when in auto-Dry mode. Press to set speed.
- Page 7 Press "ON/OFF" to start operation, then press "Louver" to adjust direction of air flow. The louver will adjust as the following sequence at each press. Louver setting when connected with 3D panel. Hold "Louver+Health" for over 3s to switch to "3d" for controlling 3D panel.
- Page 8 When the controller is , press "3D/U. ." and the icon is displa ed. Press "3D/U. ." again and the icon is displa ed, indicating the louver is in ultra far air suppl mode. Louver setting when connected with 1-way panel. Hold "Louver+Health"...
- Page 9 Louver setting when connected with K3 4-way or K3 2- way cassette type indoor units Hold "Fan+Health" for over 3s to switch to "4F" to control the louver. Louver unified setting: when the controller is ON, press "Louver", the icon of up&down air supply flashes.
-
Page 10: Timed Operation
● The setting content will be memorized, no repeat setting is required in daily operation. If the setting has to be changed, please refer to this page (setting of temperature, fan and volume) Timed Operation Functions Timed operation is to turn ON/OFF A/C after ●... - Page 11 he following additional functions are not available for ever / , please consult distributer for details. When set an additional function from wireless remote controller, it does not wor if the / does not have this function. When there is conflict between additional functions, the previousl set function will be canceled automaticall .
- Page 12 Sleep mode is available when controller is ON. ● ● Sleep mode will be canceled when operation mode is changed. ● Sleep mode will be canceled when controller is switched from ON to OFF. ● When the Timer is canceled by pressing Timer button, Sleep mode will also be canceled.
- Page 13 Point the signal transmitter on controller to signal receiver, and hold for over 3s. The icon lights up on the screen, indicating the A/C is switched to Wind-Free mode. Hold for over 3s to exit from Wind-Free mode. Wind-Free mode is available when operating in Fan, Cool, ●...
-
Page 14: Additional Functions
Additional Functions for over 3s. The icon lights up on the screen, indicating the buttons of the controller are locked. Press for over 3s to unlock. When controller is turned OFF, hold "Mode+Quiet" for over 3s to enter Adjacent Unit Setting mode, and switch between Mode A/B. - Page 15 . Insta ation □ Note: when the controller is installed on the wall, do not operate it directly from the wall just in case the indoor unit failing to receive signals. Please take the controller off from the wall, and operate by pointing it to the receiver.
- Page 16 e o pan is co itted to continuous product i pro e ent. e reser e t e ri t t ere ore to a ter t e product in or ation at an ti e and it out 05.2022 V00 prior announce ent.
