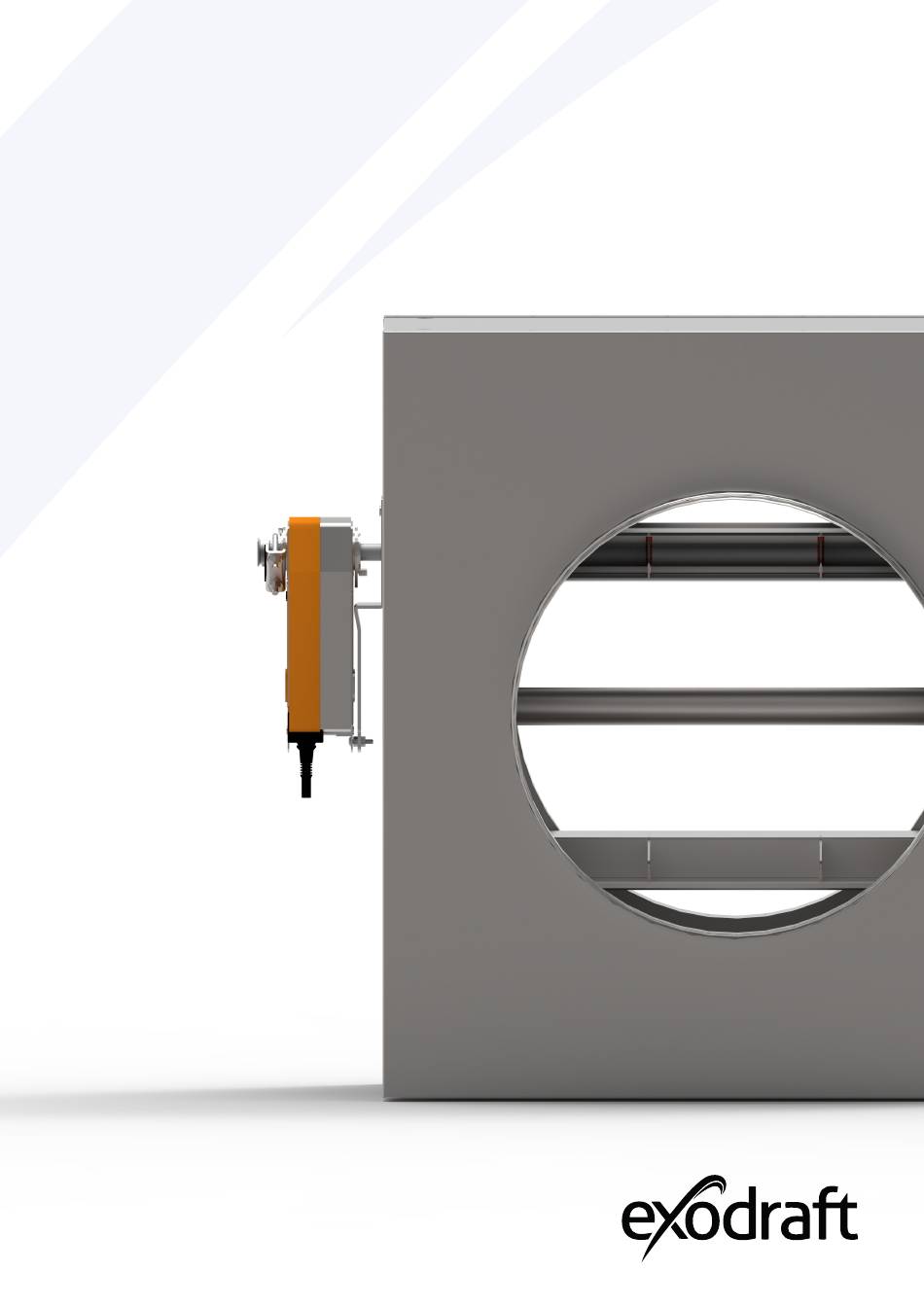

  • Page 1 Heat Recovery | Read and save these instructions! Your energy. Optimized.

  • Page 3: Table Of Contents

    Your energy. Optimized. Heat Recovery | Damper Motor Content Product information Scope of supply Accessories and spare parts Warranty Technical specifications Mechanical installation Placement and orientation Flue gas direction Damper dicretion Mounting Mounting points Electrical installation Wiring Diagram/Electrical Connection of Damper Motor Installation and Placement of Belimo Motor Unit Installation/adjustment with Belimo motor type NFA 10 Nm Installation/adjustment with Belimo motor type NF24A-SZ...
  • Page 4 How to use this manual This manual has been prepared based on the specific product and contains relevant technical information and installations guides. Accessories and spare parts are not covered by this manual. Please refer to the individual manuals of these components. This installation manual does not contain any system design documentation.
  • Page 5 Symbols The following symbols may be used in the manual to draw attention to danger or risk of personal injury or damage to the product. General prohibition Failure to observe instructions marked with the prohibited symbol may result in extreme danger or serious personal injury. General attention Marks a dangerous situation that, in the worst-case scenario, can cause serious personal injury or significant damage to the product.
  • Page 6 • Please always read the manual and only use the product in accordance with the manufacturer’s instructions. If in doubt, contact one of the Exodraft specialized dealers. • All installations must be carried out by properly qualifi ed personnel in accordance with national legislation and regulations.

  • Page 7: Product Information

    An integrated electric motor opens and closes the flue. Two types: on/off or modulating motor. Power supply and start/stop signal come from an external exodraft control, and thus is not part of the Damper Motor. The Damper Motor has a safety feature causing it to enter safety mode automatically in case of power failure.

  • Page 8: Accessories And Spare Parts

    Damper motor NFA 10 Nm 3201078 Damper motor NF24A-SZ 10 Nm *This manual does not describe the specific use of spare parts. We refer to the separate manuals for such components. For more details contact your Exodraft dealer. 8 | UK...

  • Page 9: Warranty

    3112028_DM_UK Warranty All Exodraft products are covered by a 2-year guarantee as per European consumer rights legislation. For some countries an extended period of guarantee may apply depending on either national legislation or other clearly stipulated conditions. Customer complaints must be handled by a specialised dealer or wholesaler (preferably where the Exodraft product has been bought originally).

  • Page 10: Technical Specifications

    Your energy. Optimized. Technical specifications Basic types Exodraft Type Inlet Ø Outlet Ø Description Motor type item number (Damper Motor) exterior [mm] interior [mm] On/off damper with motor Standard pipe connection Damper motor 8004500 DM350 350,5 351,2 dimensions NFA 10 Nm Max 600 °C...
  • Page 11 3112028_DM_UK Standard components Danger/Caution sign Nameplate Damper motor M12 thread with lifting bolts for mounting Housing Inlet Damper flaps Outlet (behind the product) UK | 11 Proje...
  • Page 12 Your energy. Optimized. Technical data Dimensions [mm] Model DM350 563,4 424,4 347,5 347,5 696,4 755,1 638,2 351,5 350,5 DM400 563,4 424,4 347,5 347,5 696,4 755,1 638,2 401,5 400,5 DM500 563,4 424,4 347,5 347,5 696,4 755,1 638,2 501,5 500,5 *Specifies inside sleeve dimensions **Specifies outside adapter dimensions 12 | UK...

  • Page 13: Mechanical Installation

    CAUTION! If the exodraft Damper Motor is not installed, maintained, and/or operated in compliance with the manufactu- rer’s instructions, conditions may arise which could lead to personal injury or material damage.

  • Page 14: Placement And Orientation

    Your energy. Optimized. Placement and orientation You must allow for hot surfaces on the Damper Motor. If the Damper Motor is placed where it is easily accessible, it must be shielded to avoid inadvertent touch and any risk of collision. DANGER! Observe national regulations regarding distance from flammable materials.

  • Page 15: Flue Gas Direction

    3112028_DM_UK Flue gas direction FLOW FLOW Inlet Outlet Inlet Outlet Outlet Outlet Project: c t : Title: Material: i a l Date: 20-12-2 Rev.: Inlet Inlet Unless otherwi c i f UK | 15...

  • Page 16: Damper Dicretion

    Your energy. Optimized. Damper dicretion To ensure which direction the dampers are, when the unit is mounted, a damper indicator is mounted at the end of the shaft. The arrow points in the direction of the damper. See examples below and next page. Vertical damper direction and horizontal flue gas direction –...
  • Page 17 3112028_DM_UK Horizontal damper direction and horizontal flue gas direction - Therefor open DETAIL A DETAIL A Title: DM400 Draw. No.: Material: Weight: 123,769 kg Dimensions: Created by: Last updated by: Format: Rev. No.: Metric Date: 31-10-2016 Date: Scale: 1:3,33 Uspecified tolerances acc.: DS/EN 22768 m Sheet: 1 of 1...

  • Page 18: Mounting

    Mounting points are only intended to support the weight of the product itself. As such, the Damper Motor is not built to support the weight of any chimney. DANGER! Max. load on mounting corner 100kg Exodraft item number Type (Damper Motor) Weight...

  • Page 19: Mounting Points

    3112028_DM_UK Mounting points When mounting the Damper Motor, you must use a minimum of four loadbearing mounting points. Damper Motor should not be mounted using four points on the same side, unless it is the top or the bottom. Top and bottom depends on the position, i.e. the top is the side facing the ceiling. Damper Motor should not be mounted using four points where two surfaces meet or where the points are offset.
  • Page 20 Your energy. Optimized. Unapproved mounting methods Project: DM400 Project: Title: Title: DM400, Material: Material: Date: 20-12-2 Date: 20-12-2017 Rev.: Rev.: Unless otherw Unless otherwise specified M400 20 | UK M400, komplet Draw. No.:...

  • Page 21: Electrical Installation

    Wiring Diagram/Electrical Connection of Damper Motor 804500 / 804600 / 804700 804501 / 804601 / 804701 DM 350 / 400 / 500 DM 350 / 400 / 500 AC 24... 240 V / DC 24... 125 V AC 24 V / DC 24 V...

  • Page 22: Installation And Placement Of Belimo Motor Unit

    Your energy. Optimized. Installation and Placement of Belimo Motor Unit The damper can be set to be closed or open as a safety position. By default, the Damper Motor is always installed with the exodrafts factory settings with the damper clo- sed when going into safety position.

  • Page 23: Installation/Adjustment With Belimo Motor Type Nfa 10 Nm

    3112028_DM_UK Installation/adjustment with Belimo motor type NFA 10 Nm For safety position with For safety position with Step by step Open damper Closed damper The damper is closed as default The damper is open as default 1. Damper Motor seen from the side.
  • Page 24 Your energy. Optimized. 4. Flip the motor and uninstall Uninstall striker plate and stop Uninstall striker plate and stop washer washer striker plate and stop washer. 5. On the opposite side, Uninstall striker plate and Uninstall striker plate and uninstall striker clamps clamps plate and...
  • Page 25 3112028_DM_UK 8. Place the mechanical stop- Place the mechanical stop Place the mechanical stop per at position 0, and tighten and tighten and tighten the screw. 9. Place motor on the axle and Loosely tighten bolts Loosely tighten bolts loosely tighten bolts.
  • Page 26 Your energy. Optimized. The damper should now be The damper should now be completely closed completely open 12. Check if the damper is in the following position - if not, push the damper into the correct position by hand DM400 Project: DM400 Project:...
  • Page 27 3112028_DM_UK Turn the handle manually until Place the handle as indicated in the damper is in the full open the picture. 16. Next, place position, and hold the position the handle with with the lock splitter. side facing the Then skip to step 19! motor as shown in the picture.

  • Page 28: Installation/Adjustment With Belimo Motor Type Nf24A-Sz

    Your energy. Optimized. Installation/adjustment with Belimo motor type NF24A-SZ Damper Motor products with the NF24A-SZ damper engine are modulating. They can be set to operate with an effect from 0-10 V or from 10-0 V, depending what you want. You can invert the control signal from 0-10 V or from 10-0 V by turning the button as shown in the illustration.

  • Page 29: Startup And Configuration

    3112028_DM_UK Startup and configuration System startup CAUTION! Damper Motor should not be put into operation before being properly installed. Remember: Danger may be associated with touching hot components Check the voltage comparing it to the name plate of the damper motor Turn on the power and ensure that the damper is working correctlyt Ensure that the spring return works correctly Do a slow and controlled warmup of the Damper Motor...

  • Page 30: Maintenance And Troubleshooting Troubleshooting

    Your energy. Optimized. Maintenance and troubleshooting Troubleshooting Problem Possible cause Rectification Check voltage and connection to damper Defect in damper motor motor Supply to damper motor has become loose Clean the device, check function of damper movement The damper doesn’t change position Damper is jammed Check mounting on damper axis and adjust Mounting of damper motor has become...

  • Page 31: Uk Conformity Assessed

    UK Conformity Assessed UK Conformity Assessed Exodraft a/s Industrivej 10 DK-5550 Langeskov Hereby declares that the following products: DM350, DM400, DM500 Were manufactured in conformity with the provisions of the following regulations: The Supply of Machinery (Safety) Regulations 2008 Electrical Equipment (Safety) Regulations 2016...

  • Page 32: Declaration Of Conformity

    EU-Vaatimustenmukaisuusvakuutus Déclaration de conformité de l’Union Européenne ESS-Samræmisstaðfesting EU-Samsvarserklæring Dichiarazione di Conformità Unione Europea EU Deklaracja zgodności Exodraft a/s Industrivej 10 DK-5550 Langeskov Erklærer på eget ansvar, at følgende produkter: Veklaart dat onderstaande producten: Hereby declares that the following products: Deklarerar på...
  • Page 36 DK: Exodraft a/s Industrivej 10 DK-5550 Langeskov Tel: +45 7010 2234 Fax: +45 7010 2235 info@exodraft.dk www.exodraft.dk SE: Exodraft a/s Kalendevägen 2 SE-302 39 Halmstad Tel: +46 (0)8-5000 1520 info@exodraft.se www.exodraft.se NO: Exodraft a/s Storgaten 88 NO-3060 Svelvik Tel: +47 3329 7062 info@exodraft.no...

This manual is also suitable for:

Dm350Dm400Dm500
