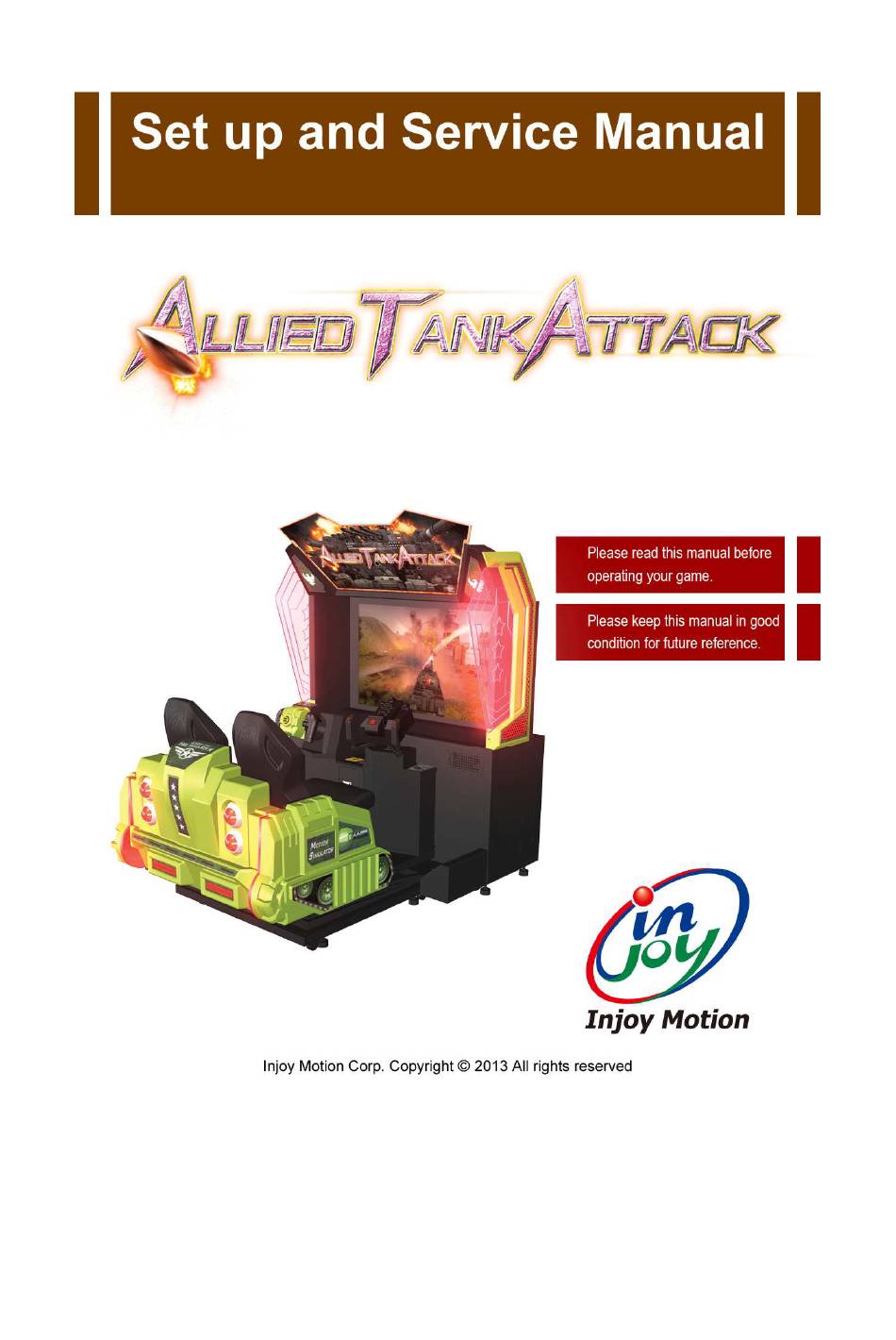

Injoy Motion ALLIED TANK ATTACK Setup And Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALLIED TANK ATTACK and is the answer not in the manual?

Questions and answers

Related Manuals for Injoy Motion ALLIED TANK ATTACK

Summary of Contents for Injoy Motion ALLIED TANK ATTACK

  • Page 3 • The product specifications are subject to change without notice. • This game content, equipment and design protected by law, including patents, copyrights and intellectual property rights. • Unauthorized reproduction of this document or any of its contents is strictly prohibited. ©2013 Injoy Motion Corp.
  • Page 4 ©2013 Injoy Motion Corp.
  • Page 5 ©2013 Injoy Motion Corp.

  • Page 6: Table Of Contents

    Appendix A: How to connect tubes ....34 Appendix B: Clean the two way drain valve..37 Appendix C: Clean the two way drain valve..39 Appendix D: How to change airbag....43 Appendix E: The assembly of the Yoke controller........50 ©2013 Injoy Motion Corp.

  • Page 7: General Information

    Be sure to turn off the power before maintenance Earth Connection To avoid electrical shock! Please use earth connection. Using connectors properly Check direction before connect Move PC with care ©2013 Injoy Motion Corp.

  • Page 8: Specifications

    ( LxWxH ) Approximate Weight 637kgs Voltage & Power AC 220VAC, 50/60Hz, 2000W Requirement Note: The power cord should be connected to a dedicated 15A/220V circuit. No other game should share the circuit with this game. ©2013 Injoy Motion Corp.

  • Page 9: Installation

    Note: This machine must be installed indoor, need to maintain a distance of 1 m from the wall. Make sure the unit stands are placed flat on the ground and the machine is not moving when playing. Assembly Diagram ©2013 Injoy Motion Corp.

  • Page 10: Installation

    2.2 Installation ： Step1 Inspect the exterior of the cabinet for any damage. ： Step2 Find headlight set and install the headlight carefully. Carefully move the TV cabinet (monitor base) close to the Cockpit (seat base). ©2013 Injoy Motion Corp.
  • Page 11 ⑥ ψ10 Orange Tube ② ψ6 Orange Tube ⑦ ψ10 Blue Tube ③ ψ6 Blue Tube ⑧ ψ10 Red Tube ④ ψ6 No-color Tube ⑨ ψ10 No-color Tube ⑤ ψ10 Black Tube ⑩ ψ10 Transparent-Blue Tube ©2013 Injoy Motion Corp.
  • Page 12 ： ○ ○ Step4 Collect the connectors from TV cabinet to the connector box on Cockpit right hand side by the same pin-number and the same name tag. ©2013 Injoy Motion Corp.
  • Page 13 Number Shape Tag name ○ SysGH ○ Coin Power ○ ○ Coin EX ○ START ○ ○ BTN&SB ©2013 Injoy Motion Corp.
  • Page 14 Use two side screws in each connector box to mount the cockpit. Watch out each connector and tube when connecting the monitor base and the cockpit. Do not bend the tube or wire under any metal piece. Side screws and front screw: ©2013 Injoy Motion Corp.
  • Page 15 Step6 Connect the air tubes in the connector box on Cockpit left hand side by the same color, do not mix the orange color with the red color tubes. Connecting air tubes in the connector box ©2013 Injoy Motion Corp.
  • Page 16 ： ○ ○ Step7 Connect the cables in the connector box on Cockpit right hand side by the same pin-number and the same name tag. ©2013 Injoy Motion Corp.
  • Page 17 ： Step8 Attach the cover plate to the cable base, and use the screws to fix it. ： Step9 Attach the cover plates to the connector boxes, and use the screws to fix it. ©2013 Injoy Motion Corp.
  • Page 18 Connect the AC power cord from the cabinet to the AC wall outlet. 1. The power cord should be connected to a dedicated 15A/220V circuit. 2. No other game should share the circuit with this game ©2013 Injoy Motion Corp.
  • Page 19 The air compressor tank drains water after machine power off. So it is suggested to put a container on the floor and right under the drain valve to catch the water. Generally, a plastic plate around 25x20x3 cm (LxWxH) is suggested. Plate ©2013 Injoy Motion Corp.

  • Page 20: Game Setting (Operator Menu)

    To access Operator Menu, after the Power is switched ON and the screen shows “insert coin”, find the red operator menu switch located inside the coin box, switch it to “I” position to enter. Operator Recovery Menu Then you will see below screen. ©2013 Injoy Motion Corp.

  • Page 21: Coin Options

    4. “Coins per Pulse (Coin Acceptor 1)” allows you to adapt different currency acceptors. The default value is 1. 5. “Coins per Pulse (Coin Acceptor 2)” allows you to adapt different currency acceptors. The default value is 1. ©2013 Injoy Motion Corp.

  • Page 22: Game Options

    3.2 Game Options 1. “Continue Timer Length” no function. 2. “Game Show Operation” - Enable sets free game play. Click “+” or “-“ button to “Enable” or “Disable” this function. ©2013 Injoy Motion Corp.

  • Page 23: Joystick Setting

    Step1. Follow the directions on the screen; Hold the “Calibrate” button on the joystick (Gun) to calibrate the yoke, machine gun, pedal and brake. Release the Brake and Pedal. Step2. Follow the directions on the screen, Release the joystick (Gun), then press “Next” button. ©2013 Injoy Motion Corp.
  • Page 24 Step3. Follow the directions on the screen, turn the joystick (Gun) Up/down, Left/Right, move the yoke up/down and then press “Next” button. Step4. Follow the directions on the screen, after finish the calibration, press “Exit” button to finish. ©2013 Injoy Motion Corp.

  • Page 25: Volume Setting

    “Game Volume” can adjust the system volume, suggestion 75~85. “Idle Movie Volume” can adjust Idle Movie volume, suggestion 15~35. 3.5 Device Test After entering device test, all airbags will be aerated，and we can check their conditions. Normal(Full) Broken(Soft) ©2013 Injoy Motion Corp.

  • Page 26: Save & Exit

    After the setup is completed, please select “Save & Exit”, and then select “Yes”. Lastly, switch the red operator menu switch back to “O” position and turn off the machine. Then wait for 30secs and turn on machine power. ©2013 Injoy Motion Corp.

  • Page 27: System Recovery

    Step4：If success, will see screen as below. Step5：Turn the key left and take it out. Step6：Turn the machine off, wait for 30 seconds Step7：Turn on the power. <Finish> ©2013 Injoy Motion Corp.

  • Page 28: Trouble Shooting

    The potentiometer resistance potentiometer resistance, increases as the steering wheel moves please replace the clockwise, and decreases as the steering potentiometer. wheel moves counterclockwise. ) 2. The cockpit card breaks down. Replace the cockpit card. ©2013 Injoy Motion Corp.
  • Page 29 2. Use an electric meter to check Change the brake potentiometer, and out if the brake potentiometer is enter the game operation menu to normal. calibrate again. ©2013 Injoy Motion Corp.
  • Page 30 (Please note if the potentiometer exceed the dead zone, enter the OP menu and calibrate the joystick again..) 2. up/down potentiometer broken Replace the potentiometer, Enter the OP menu and calibrate the joystick again. ©2013 Injoy Motion Corp.

  • Page 31: General Issues

    Reinstall reference coin. Make sure recover USB disk is connect to the PC. Can not recover system Contact Injoy Motion Corp. to change the Hard Disk. Check wire connecting between cockpit card and OP switch. Can not enter Recover the system operator menu Contact Injoy Motion Corp.

  • Page 32: Display

    Check the connection for the monitor. No screen Clean and reconnect the graphic card. Contact Injoy Motion Corp. to change the graphic card. Contact Injoy Motion Corp. to change the LCD. Check the power cord and power switch on the PC.

  • Page 33: Control

    Check if air compressor works properly. game. Check the 12V on the SSR card near the cockpit card. Contact Injoy Motion Corp. to change air compressor or SSR card. 4.6 Link Problem Solution Make sure cable is good.
  • Page 34 ➂ ➀ ➃ ➁ ➄ ➇ ➆ ➅ ➈ ○ ○ Air control card ○ ○ Air compressor Water filter ○ ○ Cockpit card Drain valve ○ ○ Power supply Input AC power ○ Pneumatic valve ©2013 Injoy Motion Corp.

  • Page 35: Technical Support

    4.6 Technical Support Service center: Injoy Motion Corp. Phone: +886-2-2267-6317 Fax: +886-2-2267-5906 Time: 9:00AM~6:00PM (GMT+8), Monday to Friday E-mail: support@injoymotion.com When you contact technical support, please provide the following information so that we can understand the situation and solve your problem as soon as possible, thank you for your cooperation: 1、...
  • Page 36 Pedal module: 1. Remove potentiometer: ◎ Step1: Loosen and remove screw○ ○ Step2: Take off gear ○ Step3: Loosen screw ○ Step4: Take off gear ○ Step5: Loosen and remove the washer ○ Step6: Take out potentiometer ©2013 Injoy Motion Corp.
  • Page 37 Step2: Placed Washer and fix it. Step3: Use meter to measure resistance value between pin2 and pin3 of the potentiometer，and make sure 1.6Kohm for pedal, 2.6Kohm for brake. ○ Step4: Install gear ○ Step5: Fix screw ©2013 Injoy Motion Corp.
  • Page 38 Step8: Use meter to measure resistance value between pin2 and pin3 of the potentiometer. <Finish> Release accelerator should be 1.6 Kohm Press the accelerator should be 3.2 Kohm Release the brake should be 2.6 Kohm Press the brake should be 3.5 Kohm ©2013 Injoy Motion Corp.

  • Page 39: Appendix A: How To Connect Tubes

    Appendix B: How to connect tubes 1. Insert A. Insert the tube to the end. B. Finish ©2013 Injoy Motion Corp.
  • Page 40 2. Pull out A. Push the releasing ring in the front of the quick coupler. B. Pull out the tubes ©2013 Injoy Motion Corp.

  • Page 41: Appendix C: Clean The Two Way Drain Valve

    Appendix C: Clean the two-way drain valve Two-way drain valve Follow the steps below to clean the pathway inside the drain valve: 1. Remove the metal piece ©2013 Injoy Motion Corp.
  • Page 42 2. Remove the body-part 3. Remove 4 screws 4. Remove the core-part ©2013 Injoy Motion Corp.
  • Page 43 5. Clean the two-way valve inside 6. Install the core-part 7. Install 4 screws ©2013 Injoy Motion Corp.
  • Page 44 8. Install the body-part 9. Install the metal piece <Finish> ©2013 Injoy Motion Corp.

  • Page 45: Appendix D: How To Change Airbag

    B. Change Airbag no.1~4 C. Change Airbag no.5 A. Introduction Front：Airbag no.1 Right: Airbag no.4 Mid: Airbag no.5 Back: Airbag no.2 Left: Airbag no.3 ○ Airbag screws ○ Airbag screws ○ Fixation screws ○ Quick coupler ©2013 Injoy Motion Corp.
  • Page 46 B. Change Airbag no.1~4 （ （ （ （ Take changing airbag no. 3 for example） ） ） ） Step1：Use solid object to support the motion base. Step2：Remove 2 airbag screws. Step3：Remove 4 fixation screws. ©2013 Injoy Motion Corp.
  • Page 47 Step4：Remove the tube（refer to Appendix B）. Step5：Remove 2 airbag screws and quick coupler. Step6：All Components are as below. ©2013 Injoy Motion Corp.
  • Page 48 Step7：After change airbag, tighten 2 airbag screws and quick coupler. Step8：Install 4 fixation screws. Step9：Install 2 airbag screws. <Finish> ©2013 Injoy Motion Corp.
  • Page 49 C. Change Airbag no.5 Step1：Remove 4 seat fixation screws. （Left） （Right） Step2：Remove the seat. Step3：Remove 2 airbag screws. ©2013 Injoy Motion Corp.
  • Page 50 Step4：Open the seat base, and find the airbag 5. Step5：Remove 2 fixation screws. Step6：Remove the tube and screws, and change airbag. ©2013 Injoy Motion Corp.
  • Page 51 Step7：After changing, lock 2 airbag screws, tube, and 2 fixation screws. Step8：Cover the seat base, tighten 2 airbag screws. Step9：Install the seat back. <Finish> ©2013 Injoy Motion Corp.

  • Page 52: Appendix E: The Assembly Of The Yoke Controller

    Appendix E: The assembly of the Yoke controller ©2013 Injoy Motion Corp.
  • Page 53 • The product specifications are subject to change without notice. • This game content, equipment and design protected by law, including patents, copyrights and intellectual property rights. • Unauthorized reproduction of this document or any of its contents is strictly prohibited. ©2013 Injoy Motion Corp.
