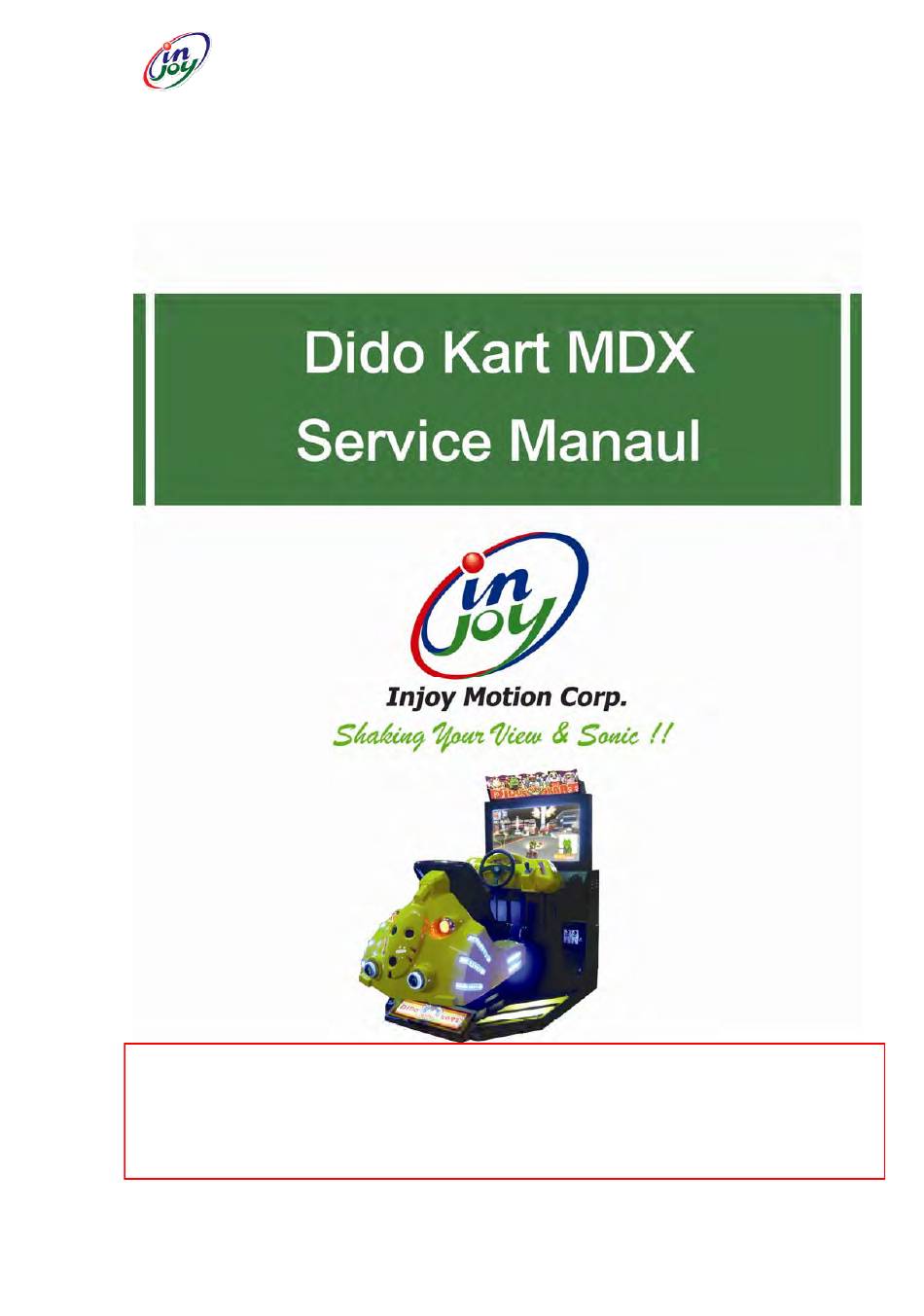

- Page 1 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual...
-
Page 2: Table Of Contents
Injoy – DIDO KART MDX OPERATOR Service Manual 1. INTRODUCTION .................... 3 2. SPECIFICATIONS ................... 4 2.1 INJOY–DIDO KART MDX MOTION BASE ..........4 3. INSTALLATION ....................5 3.1 SERVICE KIT ................... 5 3.2 SET UP INSTRUCTIONS ................ 5 3.2.1 PRE-INSTALL PREREQUISITES/CAUTIONS ......5 3.2.3 INSTALL SIDE STEPS .............. -
Page 3: Introduction
Injoy that are well distributed in many markets and territories. This manual will guide you through the set-up and operation of Injoy- DIDO KART MDX, an ultimate game motion system for arcade environments. This unit is different from any other machines of its kind you have ever owned. -
Page 4: Specifications
Injoy–DIDO KART MDX @Motion System Unit US & GB: 120.90” x 65.35” Minimum Installed Footprint Metric: 3.07m x 1.66m 2.1 INJOY–DIDO KART MDX MOTION BASE Injoy–DIDO KART MDX Motion Base Simulator (single) Item Specification Installed Dimensions / Weight 120.90” x 65.35”... -
Page 5: Installation
3.2 SET UP INSTRUCTIONS 3.2.1 PRE-INSTALL PREREQUISITES/CAUTIONS Injoy–DIDO KART MDX is designed for indoor use only. To ensure trouble-free and safe operation, the following conditions are recommended: 1. The motion system must be located out of direct exposure to sunlight, high humidity, dust, salt mist, high heat, or extreme cold. - Page 6 Description & Diagram Move two units side by side. Place the plate in the center of two DIDO KART MDX. Adjust the gap of two units, if the plate can’t be installed. Fix the two sides of the plate by fastening the screws.
- Page 7 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Plug in Center Acrylic Sheet (Figure A), and then fix it with four screws (Figure Figure A Figure B...
-
Page 8: Install Side Steps
Description & Diagram Step Adjust unit stands by hex wrench to make sure DIDO KART MDX motion system is placed flat on the ground and the brackets are tightly installed. Place the two side steps and the back lamp near the base, and then connect Light connectors. - Page 9 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Push the two side steps and the back lamp close to the base, and then fix them by L...
-
Page 10: Install Head Lamp
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 3.2.4 INSTALL HEAD LAMP Please follow the steps to install the Head Lamp. Note: Be careful when installing the Acrylic Sheet. Don’t damage it. -
Page 11: Setcoin Acceptor
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Place the Acrylic Sheet on the Light Box, and then fix it with four fixing screws. 3.2.5 SETCOIN ACCEPTOR Please follow the steps to set up the coin acceptor. - Page 12 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Push down the slider to fix the coin acceptor. The coin acceptor is set up then, and can take the coin you want.
-
Page 13: Debit Card Install
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 3.2.7 DEBIT CARD INSTALL Figure 4 below illustrates the connection of the debit card reader if it or other device needs to install. -
Page 14: Power Input
Injoy Motion Corp DIDO KART MDX Service Manual 3.2.7 POWER INPUT DIDO KART MDX has a single power cord. The motion base requires one dedicated (25-Amp) circuit for (1Φ210~230VAC) power source. Note: 1. AC Power Wire Diameter must be greater than 2.0mm 2. -
Page 15: Game Introduction And Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 4. GAME INTRODUCTION AND SETTING 4.1 GAME SETTING (OPERATOR MENU) To access OPERATOR MENU, after the Power is switched ON and the screen shows “insert coin”, find the OPERATOR SWITCH located inside the coin box door, move it to... -
Page 16: Coin Options
3. “Currency Type” is not to select the currency of a country, but allows selection of the forms of currency i.e. coins or bills you wish your Injoy- DIDO KART MDX accepts. The factory default setting is Coin (combined into one setting) and another setting is the Bill Acceptor or Debit Cards. -
Page 17: Game Options
4.1.2 GAME OPTIONS “Game Options” sub-menu offers settings that you can adjust for each individual software title installed on your Injoy- DIDO KART MDX (Figure 4-5). 1. “Continue Timer Length” adjusts the amount of time for the player to decide to continue playing after their game has ended. -
Page 18: Pedal Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-6 “Clear High Scores” Window 4.1.3 PEDAL SETTING To calibrate the Throttle, follow the directions on the screen and go through these steps (Figure 4-7 ~ Figure 4-10): 1. - Page 19 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-8 Calibrate Pedal Figure 4-9 Calibrate Pedal...
-
Page 20: Language Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-10 Finish calibration 4.1.4 LANGUAGE SETTING Language can be adjusted using the “+” or “-” buttons (Figure 4-11) to change game language. -
Page 21: System Time Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 4.1.5 SYSTEM TIME SETTING Setting the system time can be accomplished using the “switch” button to choose, followed by the “+”... -
Page 22: Device Test
Any software upgrades and/or new software game titles will be downloaded to your Injoy - DIDO KART MDX through the use of USB Flash Disk provided by Injoy or your distributor. The following explains this simple procedure, found in the Operator Menu. - Page 23 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-16 remove the case 2. Locate the system’s PC (Industrial PC): Referring to Figure 4-17, open the front case of the chassis located at the bottom of the motion base.
- Page 24 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-18 “Software Upgrade” sub-menu Figure 4-19 “Software Upgrading” Window Progress will be indicated on screen and you will be notified when download is complete (Figure 4-20).
- Page 25 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 4-20 “Upgrade Success” Window Figure 4-21 Upgrade fails 6. If you wish to cancel the upgrade process, press the” Exit” button (Figure 4-18) to exit “Software Upgrade”...
-
Page 26: Statistic
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 4.1.9 STATISTIC The information related to playing game is given (Figure 4-22) as follows: 1. “Coin Count” to show the amount of coins inserted. -
Page 27: Save & Exit
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 4.1.10 SAVE & EXIT After the setup is completed, the system needs to exit. Please select “Save & Exit”, and then the screen will prompt “Yes”... -
Page 28: Game Introduction
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 4.2 GAME INTRODUCTION 4.2.1 GAME CONTROL The player uses the steering wheel, throttle and buttons (Figure 4-25) to control the boats. - Page 29 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Freezes opponents in bubbles or ice cubes by firing Bubble Gun. Bubble Gun Blurs opponent’s view by throwing Paint Bomb.
-
Page 30: Maintenance
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 5. MAINTENANCE 5.1 CHASSIS ELECTRONIC COMPONENTS Figure 5-1 ~ Figure 5-3 are the electronic components of the chassis. -
Page 31: Cabinet Electronic Components
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 5-3 Chassis Electronic Components-3 5.2 CABINET ELECTRONIC COMPONENTS Figure 5-4 is the Cabinet electronic component. Figure 5-5 is the LCD screen electronic components. -
Page 32: Cockpit Electronic Components
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Figure 5-5 LCD electronic devices 5.3 COCKPIT ELECTRONIC COMPONENTS Figure 5-6 ~ Figure 5-7 are the cockpit electronic components. -
Page 33: Maintenance
DIDO KART MDX Service Manual 5.4 MAINTENANCE Figure 5-8 shows the chassis of the DIDO KART MDX, also known as the “Rotation Point” which needs to be lubricated every half-year. “Rotation Point” is the rotation axis. When the motion starts up, the rotation axis will produce friction, and need lubrication semi-annually. -
Page 34: Trouble Shooting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual 6. TROUBLE SHOOTING After Unit Power is on, the system will follow these steps to start up. Step... - Page 35 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual After Power is ON and PC boots up, the base does not do homing after 40 seconds. Step Trouble shooting Guide Please unload the “back cover”...
- Page 36 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp DIDO KART MDX Service Manual Control interface does not respond. Step Trouble shooting Guide Please unload the back cover of the LCD (Please don’t power off the game).
- Page 37 1. AC Power Wire Diameter must be greater then 2.0mm 2. Earth connect must be indeed 3. No other appliance or game should share this power source on this circuit, otherwise DIDO KART MDX will break down. Please contact our Tech Support at support@imon.com.tw, if the problem persists.
