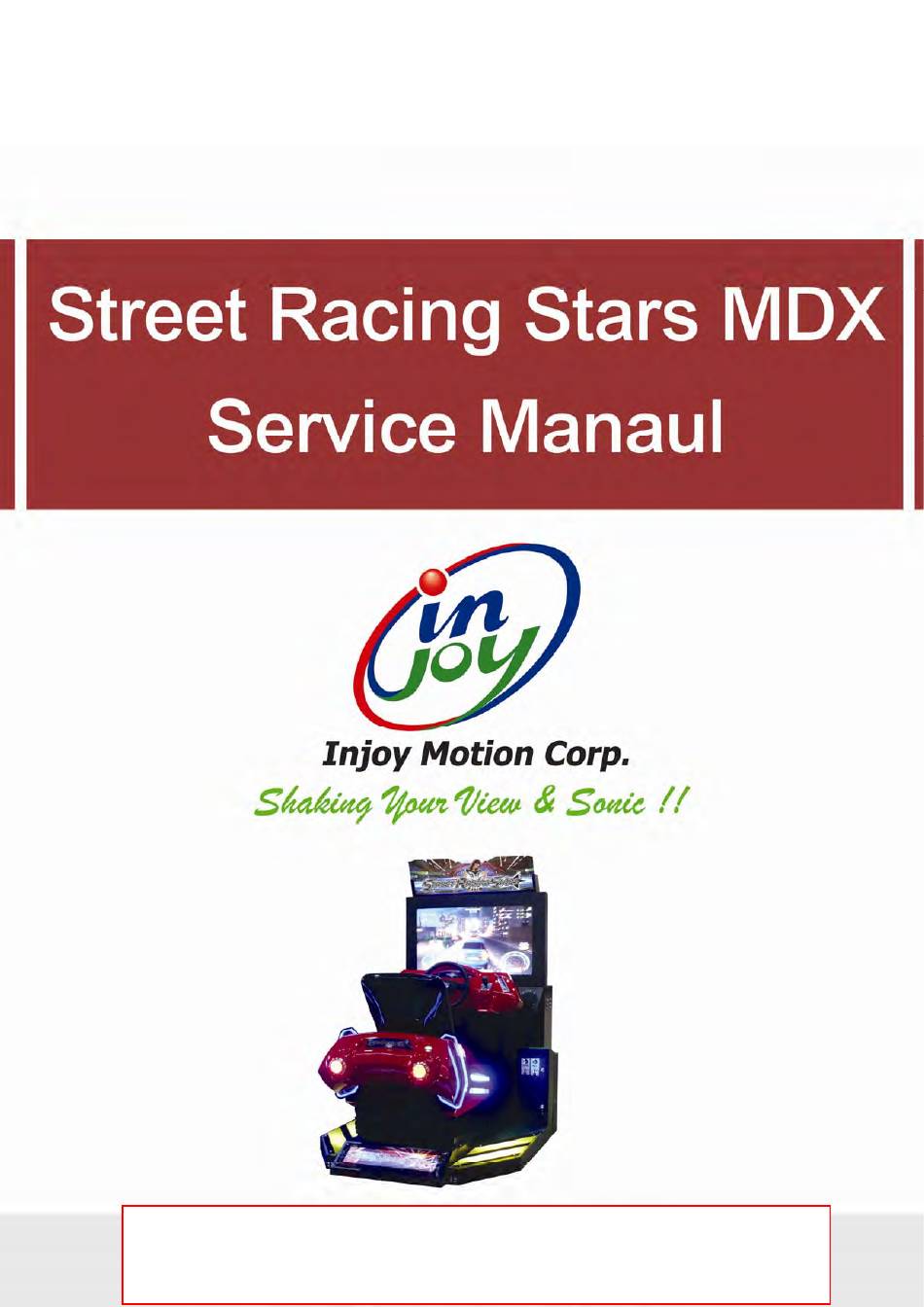

- Page 1 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual...
-
Page 2: Table Of Contents
Injoy – STREET RACING STARS MDX OPERATOR Service Manual INTRODUCTION ..................3 SPECIFICATIONS..................4 2.1 INJOY–STREET RACING STARS MDX MOTION BASE....4 INSTALLATION ..................5 3.1 SERVICE KIT ..................5 3.2 SET UP INSTRUCTIONS ..............5 3.2.1 PRE-INSTALL PREREQUISITES/CAUTIONS ....... 5 3.2.2 INSTALL SIDE STEPS .............. -
Page 3: Introduction
Injoy- STREET RACING STARS MDX is powered by electric motors and with IMON’s patented design, a powerful, mini-motion based platform with physics-based motion dynamics, known as the Hex-Glider. -
Page 4: Specifications
STREET RACING STARS MDX The dimensions given below are Injoy– ’s installed footprint. STREET RACING STARS MDX Injoy–STREET RACING STARS MDX @Motion System Unit US & GB: 86.62” x 53.94” Minimum Installed Footprint Metric: 2.20cm x 1.37cm 2.1 INJOY–STREET RACING STARS MDX MOTION BASE Injoy–STREET RACING STARS MDX Motion Base Simulator... -
Page 5: Installation
3.2 SET UP INSTRUCTIONS 3.2.1 PRE-INSTALL PREREQUISITES/CAUTIONS Injoy–STREET RACING STARS MDX is designed for indoor use only. To ensure trouble-free and safe operation, the following conditions are recommended: 1. The motion system must be located out of direct exposure to sunlight, high humidity, dust, salt mist, high heat, or extreme cold. -
Page 6: Install Side Steps
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 3.2.2 INSTALL SIDE STEPS Please follow the steps to install Side Step. Description & Diagram Step Adjust unit stands by hex wrench to make sure STREET RACING START MDX motion system is placed flat on the ground and the brackets are tightly installed. - Page 7 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Push the two side steps and the back lamp close to the base, and then fix them by L...
-
Page 8: Install Head Lamp
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 3.2.3 INSTALL HEAD LAMP Please follow the steps to install the Head Lamp. Note: Be careful when installing the Acrylic Sheet. Don’t damage it. -
Page 9: Set Coin Acceptor
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Place the Acrylic Sheet on the Light Box, and then fasten it with four fixing screws. 3.2.4 SET COIN ACCEPTOR Please follow the steps to set-up the coin acceptor. - Page 10 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Push down the slider to fix the coin acceptor. The coin acceptor is set up then, and can take the coin you want.
-
Page 11: Debit Card Install
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 3.2.5 DEBIT CARD INSTALL Figure 4 below illustrates the connection of the debit card reader if it or other device needs to install. -
Page 12: Power Input
STREET RACING STARS MDX Service Manual 3.2.6 POWER INPUT STREET RACING STARS MDX has a single power cord. The motion base requires one dedicated (25-Amp) circuit for (1Φ210~230VAC) power source. NEUT to GND voltage should be less than 1 VAC. -
Page 13: Game Introduction And Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4. GAME INTRODUCTION AND SETTING 4.1 GAME SETTING (OPERATOR MENU) To access OPERATOR MENU, after the Power is switched ON and the screen shows “insert coin”, find the OPERATOR SWITCH located inside the coin box door, move it to... -
Page 14: Coin Options
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.1 COIN OPTIONS The “Coin Options” sub-menu allows you to set all coin options on your Injoy- STREET RACING STARS MDX (Figure 4-3). -
Page 15: Game Options
4.1.2 GAME OPTIONS “Game Options” sub-menu offers settings that you can adjust for each individual software title installed on your Injoy- STREET RACING STARS MDX (Figure 4-5). 1. “Continue Timer Length” adjusts the amount of time for the player to decide to continue playing after their game has ended. -
Page 16: Pedal Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.3 PEDAL SETTING To calibrate the Throttle, follow the directions on the screen and go through these steps (Figure 4-6 ~ Figure 4-9): 1. - Page 17 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 4-8 Calibrate Pedal Figure 4-9 Finish calibration...
-
Page 18: Language Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.4 LANGUAGE SETTING Language can be adjusted using the “+” or “-” buttons (Figure 4-10) to change game language. -
Page 19: Volume Setting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.6 VOLUME SETTING “Volume setting” can adjust the system volume (Figure 4-12). Figure 4-12 “Volume Setting” sub-menu 4.1.7 DEVICE TEST... -
Page 20: Software Upgrade
Any software upgrades and/or new software game titles will be downloaded to your Injoy - STREET RACING STARS MDX through the use of USB Flash Disk provided by Injoy or your distributor. The following explains this simple procedure, found in the Operator Menu. - Page 21 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 4-16 Locate the system’s PC (Computer) 3. Plug in the USB Flash Disk. (Only use the USB Flash Disk provided by Injoy or your distributor to upgrade/download the software.
- Page 22 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 4-18 “Software Upgrading” Window Progress will be indicated on screen and you will be notified when download is complete (Figure 4-19).
- Page 23 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 4-20 Upgrade fails 6. If you wish to cancel the upgrade process, press the” Exit” button (Figure 4-19) to exit “Software Upgrade”...
-
Page 24: Statistic
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.9 STATISTIC The information related to playing game is given (Figure 4-21) as follows: 1. “Coin Count” to show the amount of coins inserted. -
Page 25: Save & Exit
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.1.10 SAVE & EXIT After the setup is completed, the system needs to exit. Please select “Save & Exit”, and then the screen will prompt “Yes”... -
Page 26: Game Introduction
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 4.2 GAME INTRODUCTION 4.2.1 GAME CONTROL The player uses the steering wheel, throttle and buttons (Figure 4-24) to control the boats. -
Page 27: Maintenance
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 5. MAINTENANCE 5.1 CHASSIS ELECTRONIC COMPONENTS Figure 5-1 ~ Figure 5-3 are the electronic components of the chassis. -
Page 28: Cabinet Electronic Components
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 5-3 Chassis Electronic Components-3 5.2 CABINET ELECTRONIC COMPONENTS Figure 5-4 is the Cabinet electronic components. Figure 5-5 is the LCD screen electronic components. -
Page 29: Cockpit Electronic Components
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Figure 5-5 LCD electronic devices 5.3 COCKPIT ELECTRONIC COMPONENTS Figure 5-6 ~ Figure 5-7 are the cockpit electronic components. -
Page 30: Maintenance
STREET RACING STARS MDX Service Manual 5.4 MAINTENANCE Figure 5-8 shows the chassis of the STREET RACING STARS MDX, also known as the “Rotation Point” which needs to be lubricated every half-year. “Rotation Point” is the rotation axis. When the motion starts up, the rotation axis will produce friction, and need lubrication semi-annually. -
Page 31: Trouble Shooting
To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual 6. TROUBLE SHOOTING After Unit Power is on, the system will follow these steps to start up. - Page 32 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual After Power is ON and PC boots up, the base does not do homing after 40 seconds.
- Page 33 To Purchase This Item, Visit BMI Gaming | www.bmigaming.com | (800) 746-2255 | +1.561.391.7200 Injoy Motion Corp STREET RACING STARS MDX Service Manual Control interface does not respond. Step Trouble shooting Guide Please unload the back cover of the LCD (Please don’t power off the game) Please check the cockpit control board if it has the Red light.
- Page 34 1. AC Power Wire Diameter must be greater then 2.0mm 2. Earth connect must be indeed 3. No other appliance or game should share this power source on this circuit, otherwise STREET RACING STARS MDX will break down. Please contact our Tech Support at: support@imon.com.tw, if the problem persists.
