TECHNICAL SPECIFICATIONS

Power Supply
Operating Frequency
Power Consumption
Output
Max. Voltage - Relay
Contact
Max. Current - Relay
Contacts

PRECAUTIONS

‰ Shut off all power going to header before attempting any wiring procedures.
!
‰ Maintain a clean and safe environment when working in public areas.
‰ Constantly be aware of pedestrian traffic around the door area.
‰ Always stop pedestrian traffic through the doorway when performing tests that may result in
unexpected reactions by the door.
CAUTION
‰ Always check placement of all wiring before powering up to ensure that moving door parts will
not catch any wires and cause damage to equipment.
‰ Ensure compliance with all applicable safety standards (i.e. ANSI A156.10) upon completion of
installation.
‰ DO NOT attempt any internal repair of the components. All repairs and/or component
replacements must be performed by BEA, Inc. Unauthorized disassembly or repair:
75.5079.10 LO21P 20221219
red LED
DIP switches
green LED
12 – 24 VAC/VDC
4 MHz (microprocessor)
10 mA at rest, 50 mA Max.
SPST Relay
60V DC, 120 VAC
2A DC, 0.5A AC
Specifications are subject to change without prior notice.
All values measured in specific conditions.
1. May jeopardize personal safety and may expose one to the risk of electrical shock.
2. May adversely affect the safe and reliable performance of the product resulting in a voided
warranty.
LO21P

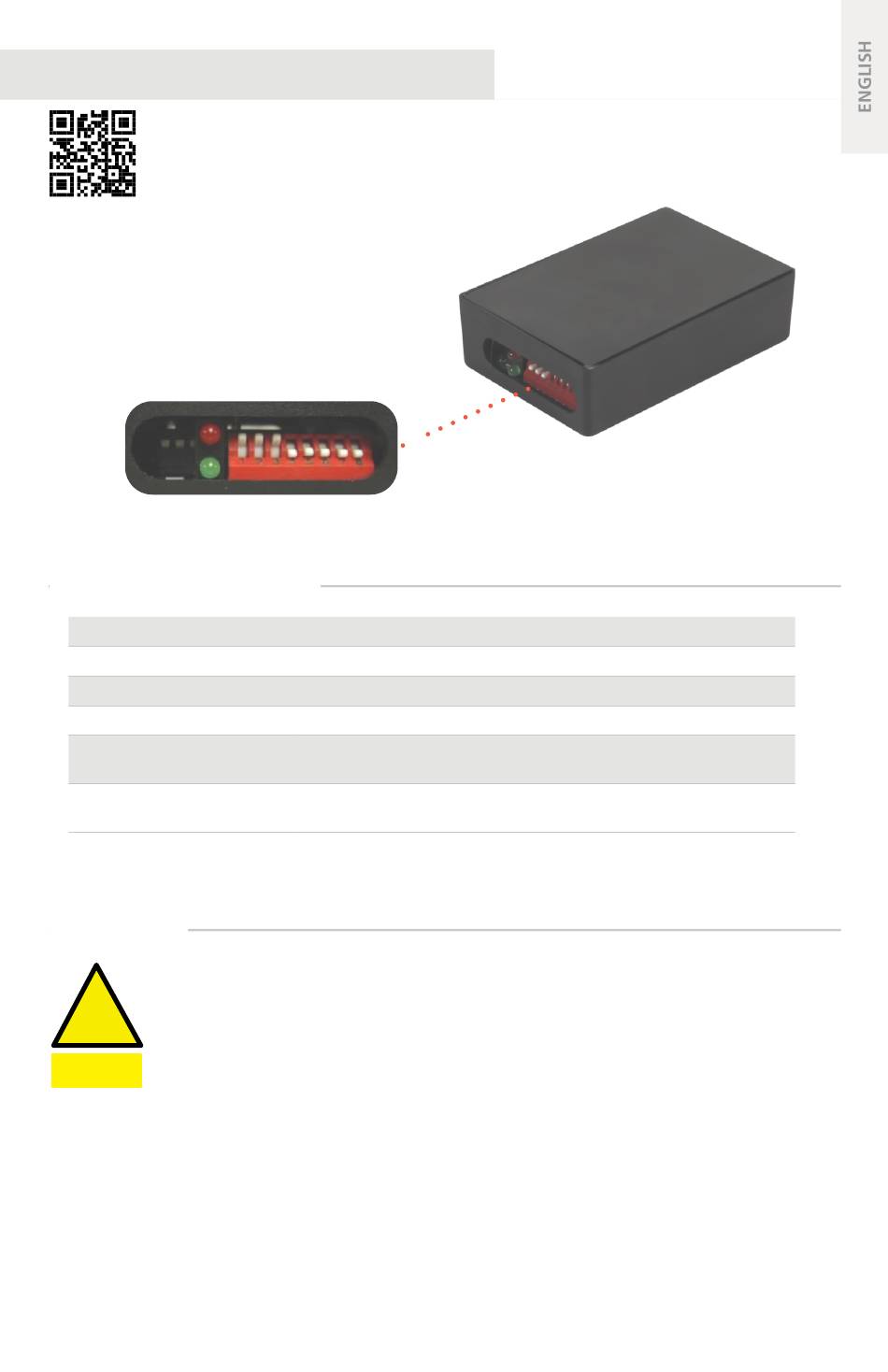

Lock-out relay
Page 1 of 8
