BEA BR2-900 Manual

BEA BR2-900 Manual

2 relay logic module with built-in 900 mhz wireless technology
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
Tech Support: 1-800-407-4545 | Customer Service: 1-800-523-2462 | General Tech Questions: Tech_Services@beainc.com | Tech Docs: www.BEAinc.com

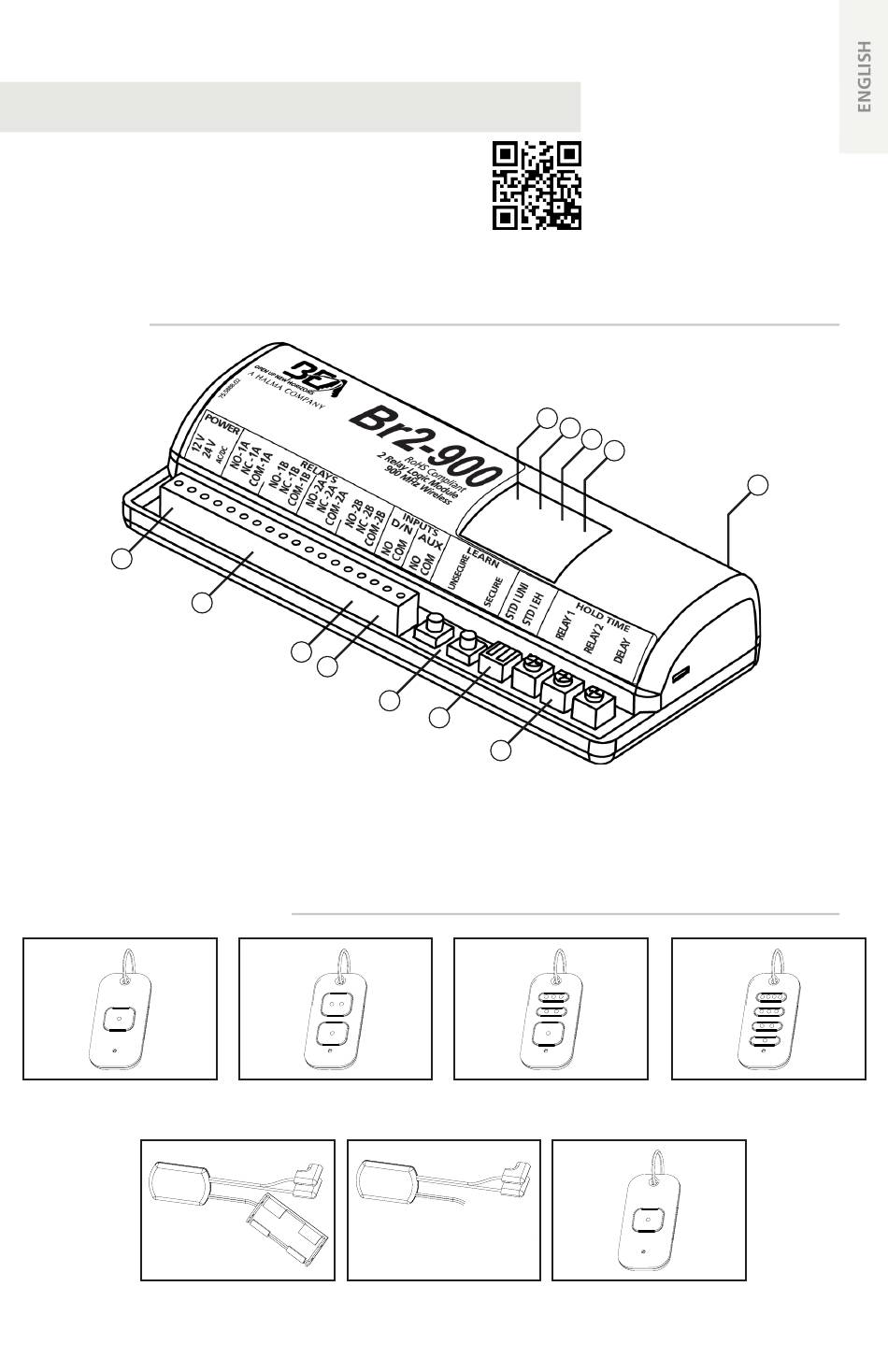

DESCRIPTION
1
1.
Power input
2.
Relay outputs
3.
Day/Night input
4.
AUX input
HAND-HELD TRANSMITTERS
10TD900HH1: 1-button transmitter
10TD900PB: Push Plate
75.5886.01 BR2-900 20170630
75.5886.01 BR2-900 20170630
2
3
4
5.
Learn buttons
6.
DIP-switches
7.
Potentiometers
8.
Radio frequency LED (red)
10TD900HH2: 2-button transmitter
10TD900TR: Touchless Retrofit
transmitter
8
5
6
7
10TD900HH3: 3-button transmitter
transmitter
BR2-900
2 Relay Logic Module
with Built-In 900 MHz
Wireless Technology
(US version)
9
10
11
9.
Relay 2 LED (white)
10. Relay 1 LED (blue)
11. Tri-color signal strength LED
12. Antenna
10TD900HH4: 4-button transmitter
10TD900HH1U: 1-button
Universal transmitter
12
Page 1 of 8
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR2-900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BEA BR2-900

Summary of Contents for BEA BR2-900

  • Page 1 HAND-HELD TRANSMITTERS 10TD900HH1: 1-button transmitter 10TD900HH2: 2-button transmitter 10TD900HH3: 3-button transmitter 10TD900HH4: 4-button transmitter 10TD900PB: Push Plate 10TD900TR: Touchless Retrofit 10TD900HH1U: 1-button transmitter transmitter Universal transmitter 75.5886.01 BR2-900 20170630 75.5886.01 BR2-900 20170630 Page 1 of 8 Page 1 of 8...

  • Page 2: Installation

    DO NOT attempt any internal repair of the components. All repairs and/or component  replacements must be performed by BEA, Inc. Unauthorized disassembly or repair may: 1. jeopardize personal safety and may expose one to the risk of electrical shock.

  • Page 3: User Interface

    0.5 – 10 seconds DELAY delay between relay 1 and relay 2 0 – 3 seconds Signal Strength Indicator Pressing and holding transmitter button for three (3) seconds activates signal strength LED on Br2-900. LED COLOR DESCRIPTION GREEN strong wireless signal...

  • Page 4: Universal Mode

    1. 10TD900PB required for push plates. Universal Mode Universal transmitters (10TD900HH1U) do not need programmed (or "learned") to the Br2-900. Their unique serial number is automatically recognized by the Br2-900. During the Hand-Held Configuration or the Push Plate Configuration steps (above), standard transmitters must be programmed/learned as either "Secure"...
  • Page 5 Vestibule applications may be installed and programmed so that either door 1 and door 2 open simultaneously or door 1 opens first and door 2 opens after a delay (set by HOLD TIME potentiometers). For 2-way traffic, two (2) Br2-900 modules are required. 1-Way Traffic (simultaneous) Door 1 and Door 2 will open simultaneously.

  • Page 6: Single Transmitter

    Push Plate (TD900PB) Replace 2 AAA batteries observing polarity. Low Battery Indicator: After transmitter button is pressed, low battery is indicated by three (3) transmitter red LED blinks. Page 6 of 8 Page 6 of 8 75.5886.01 BR2-900 20170630 75.5886.01 BR2-900 20170630...

  • Page 7: Troubleshooting

    Incorrect power Verify power supply of 12 – 24 react to any inputs VAC/VDC +/-10% is wired to correct terminals Not programmed Ensure a Br2-900 is programmed with wireless transmitter Incorrect wiring Verify wiring Defective Br2-900 Replace Br2-900 Br2-900 has no...
  • Page 8 If you are not an AAADM certifi ed inspector, BEA strongly recommends you have an AAADM certifi ed inspector perform an AAADM inspection and place a valid inspection sticker below the safety information label prior to putting the equipment into operation.
