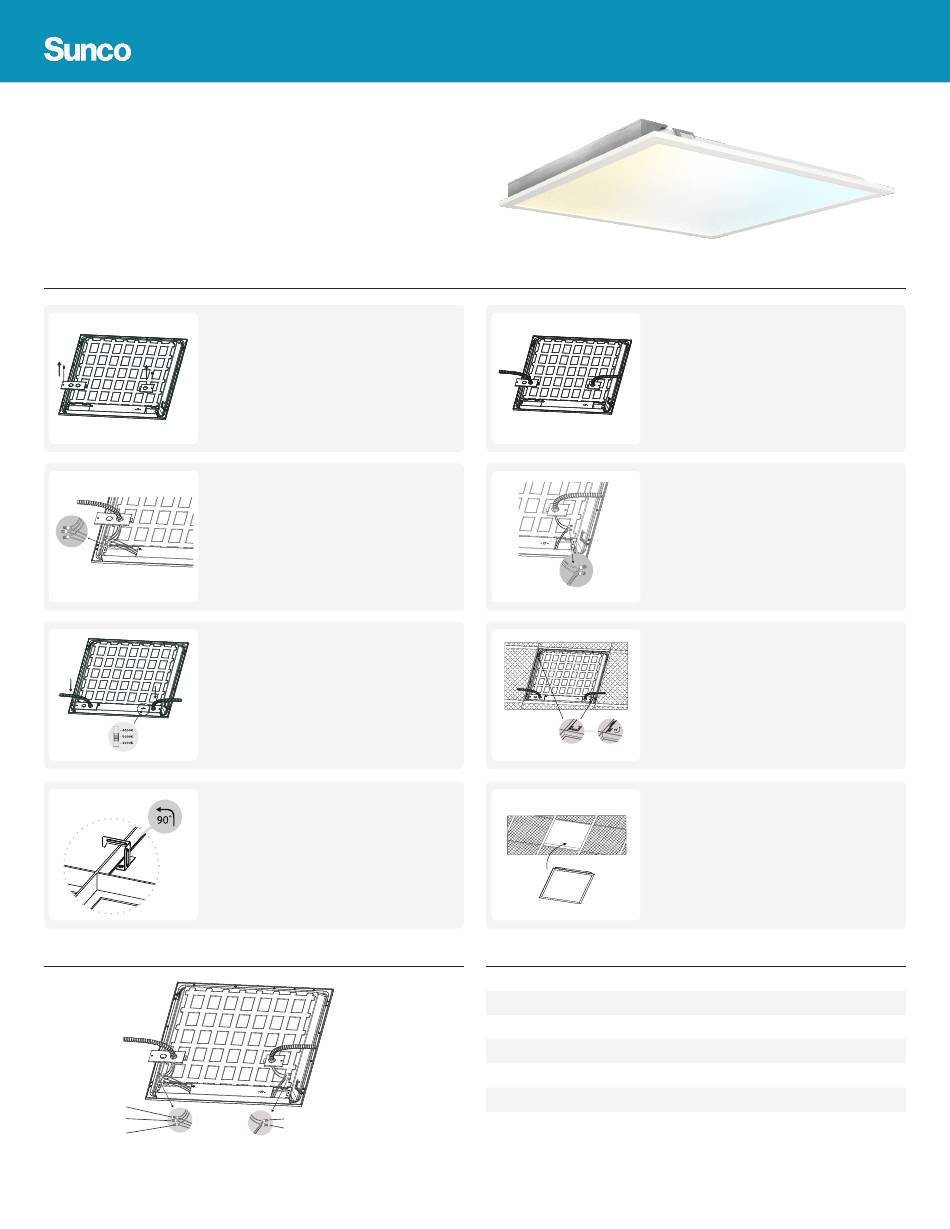

Sunco PN SM2x2-40W-0K-1PK Installation Manual

2x2 LED SELECTABLE
CEILING PANEL
Installation Manual
Please review instructions carefully before proceeding.
EASY INSTALLATION
1.
2.
4.
5.
6.
8.
WIRING DIAGRAM
L (black)
N (white)
ground wire
(green)
Recessed Mount
Turn off circuit breaker before installing.
Place Ceiling Panel face down on flat surface.
• Unscrew left driver and set aside screw.
Optional: If using dimmer, unscrew right driver cover.
Connect supply wires to Ceiling Panel wires
with included wire nuts:
• Black to Black (Live)
• White to White (Neutral)
• Green to Green (Ground)
Replace driver covers.
• Tighten screws.
Set preferred color temperature using CCT on
back of Ceiling Panel.
Turn brackets 90 . Hook should face outside
o
edge of Ceiling Panel.
DIM- (pink)
DIM+ (purple)
Required Tools: Drill, Ladder, Hammer, Pliers, Tape Measure,
Pencil, Philips Screwdriver, Leveler.
3.
7.
9.
SPECIFICATIONS
Voltage
Wattage
Moisture Rating
Housing Material
Weight
Warranty
Pop out knockout (choice of 5).
Optional: If using dimmer, pop out 2 nd knockout.
OPTIONAL: To use dimming feature, connect
pink and purple wires on Ceiling Panel to
compatible dimmer (not included).
Bend 4 protective brackets located on back of
Ceiling Panel up 90 o .
Turn on circuit breaker and test light.
100-277V
40W
Damp
SPCC+PS Lens
4.18lbs
7 Years
