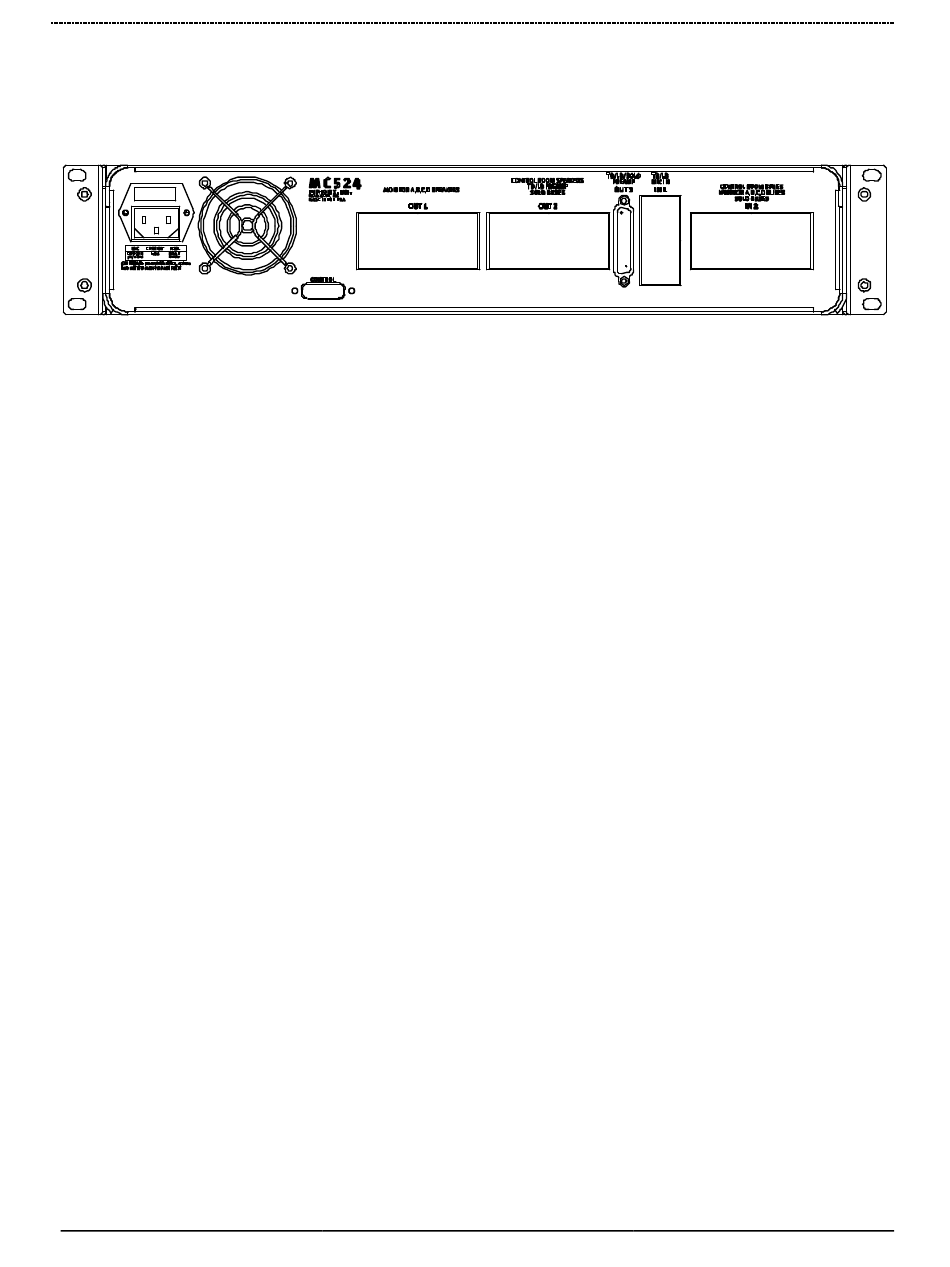

Rear Panel Connectors

In 1 (38 pin ELCO) Talk Back, Listen Back and Mic inputs. This connector is mapped to receive 4
stereo listen channels and 2 stereo talk mic inputs. All signals input at this port can be level
boosted or attenuated. In standard patch configuration, input cable fans out to 12 XLR females.
In 2 (90 pin ELCO) Control Room Busses, Monitor A, B, C, D, and Solo busses inputs. This
connector is mapped to receive 8 Monitor A channels, and 2 each channels for Monitor B, C, D.
Signals input at this port can only be level attenuated. In standard configuration these signals
are fed from the AM713 converter.
Out 1 (90 pin ELCO) Monitor A, B, C, D Speaker outputs. This connector is mapped to output 8
Control Room channels, 8 Monitor A channels, and 2 each channels for Monitor B, C, D, and
Solo. The output cable fans out to 2-38 pin ELCO/Edak connectors for the Euphonix Patchbay.
Out 2 (90 pin ELCO) Control Room Speakers, Talk Back and Listen Back Preamp, and Solo Busses
outputs. This connector is mapped to output 8 Control Room Main channels, 6 Control Room Alt
1 channels, 2 Control Room Alt 2 channels, 4 Listen pre, 2 talk pre and 2 Solo channels. The
output cable fans out to 2-38 pin ELCO/Edak connectors for the Euphonix Patchbay.
Out 3 (DB25 female) Talk Back, Listen Back, and Solo Preamp outputs. This connector is mapped to
output 4 Listen pre, 2 Talk Back pre, and 2 Solo channels, 8 Monitor A channels, and 2 each
channels for Monitor B, C, D, and Solo. Output cable fans out to 8 XLR males.
Control (DB15) Input for digital control signal from Digital Pilot. Signal format is Euphonix TCC bi-
directional serial protocol. All patching, switching and gain controls are communicated via this
connection as well as MC524 IP address.
AC Line In (IEC) and Fuse Tray The IEC power connector accepts standard IEC power cords. 110, 220, or
240 VAC, 50 or 60Hz can be applied at this connector.
