OPTICAL CONVERTER CP-QUAD «FIBER-RF»
Ref. 236973
RF QUAD Outputs for circular polarizations (CP)
Satellite CP IF 950 - 2150 MHz
Band
Output RX1
Right CP
Left CP
Band
Output RX2
Right CP
Left CP
Band
Output RX3
Right CP
Left CP
Band
Output RX4
Right CP
Left CP
Return Loss
Nominal Impedance
Gain Variation Across Band
Terrestrial Rejection
Typical Outputs Levels
FM/DAB/DTT
RF Frequency Range
Return Loss
Nominal Impedance
Gain Variation Across Band
Satellite Rejection
Nº Multiplexes
Typical Outputs Levels
Optical Input
Optical
Optical Wavelenght
Optical Return Loss
Mín.
Optical Input Power
Max.
General
Electrical
by AC/DC adaptor
Power Supply Voltage
or Set Top Box
(RX1 & RX2)
@10V
Current Consumption
(RX3 & RX4)
Mechanical
Operating
Temperature ranges
Storage
Optical Input
RF Output connectors
Weight
Dimensions
(*) An oscillation can occur due to satellite transmission levels
950-2150
MHz
≤14.5V
V
≥15.5V
950-2150
MHz
≤14.5V
V
≥15.5V
950-2150
MHz
≤14.5V
V
≥15.5V
950-2150
MHz
≤14.5V
V
≥15.5V
≥ 10
dB
75
Ω
≤ 7
dB
30
dB
70 *
dBμV
88 - 790
FM 88 - 108
MHz
DAB 174 - 240
DTT 470 - 790
≥ 10
dB
75
Ω
≤ 5
dB
20
dB
FM/DTT
76
1 dBμV
72
6
1100 - 1650
nm
45
dB
- 15
dBm
0
10 - 20
V
230
mA
-15 ... +55
ºC
-20 ... 70
FC / PC
Type
4 x F- female
Type
330
g
129 x 117 x 27
mm
UART
10 - 20V
OPT ON
DC
OPTICAL
INPUT

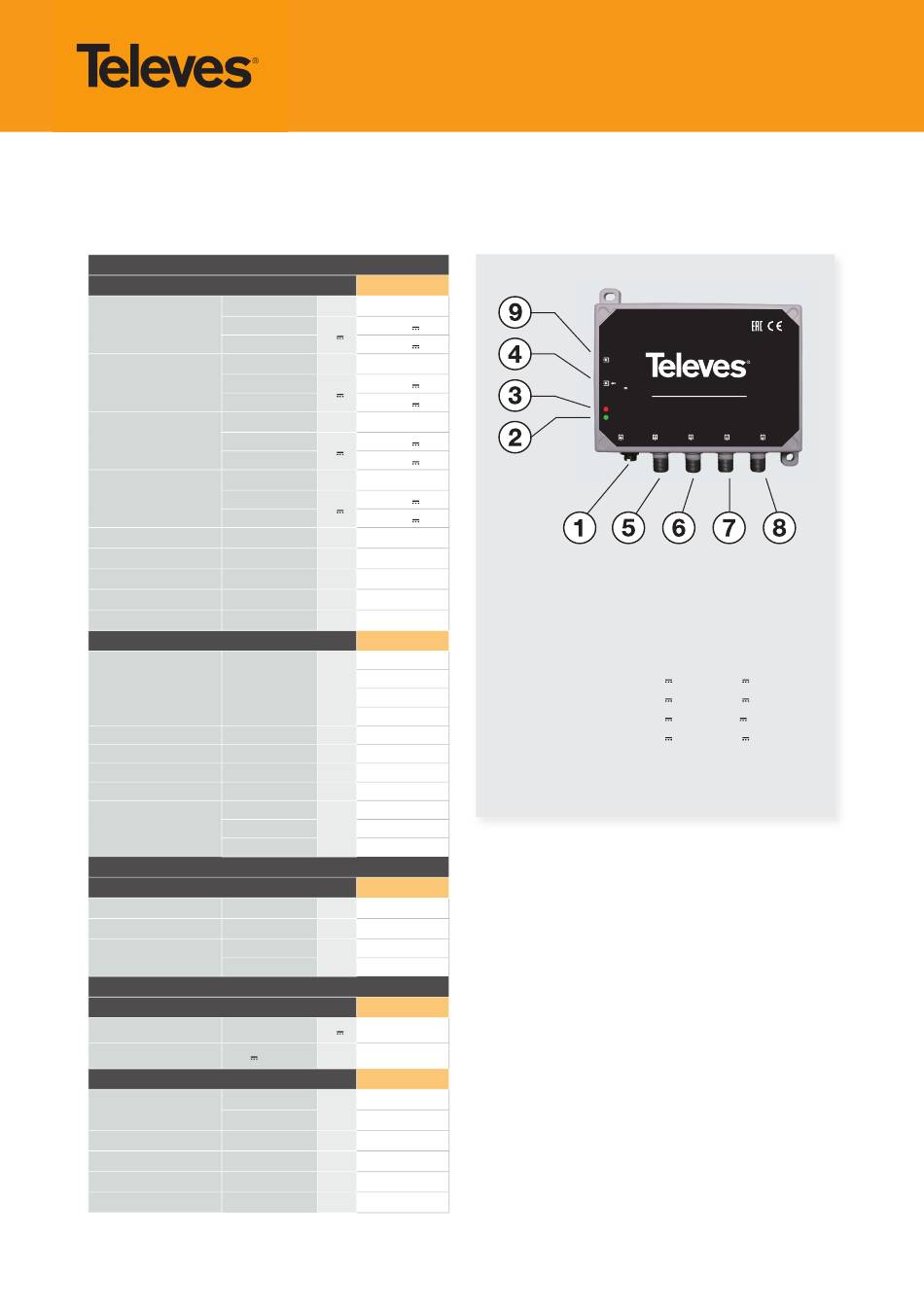

1. Optical Input

2. Power ON indicator LED

3. "Optical input ON" LED indicator

4. DC Power

5. Output RX1: Right CP ≤14.5V / Left ≥15.5V + Terrestrial
6. Output RX2: Right CP ≤14.5V / Left ≥15.5V + Terrestrial
7. Output RX3: Right CP ≤14.5V / Left ≥15.5V + Terrestrial
8. Output RX4: Right CP ≤14.5V / Left ≥15.5V + Terrestrial

9. UART (Programming Port)

Notes:
Max. 64 (32+32) Optical converter (236973).
If only terrestrial is to be used an external power supply (not included
in the kit) ref.732101 should be attached to power the Quad/Quattro
converter.

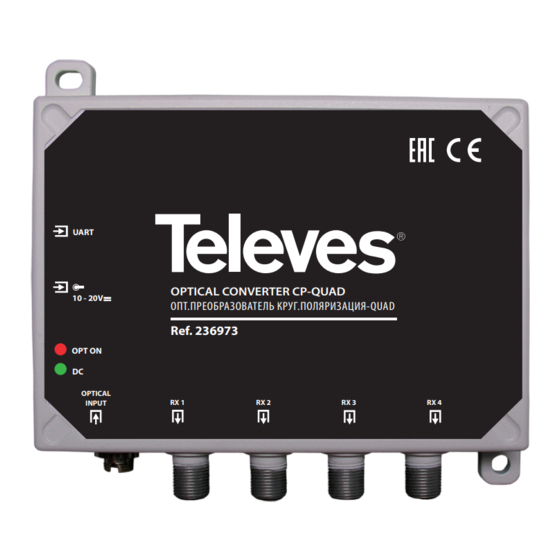

OPTICAL CONVERTER CP-QUAD
ОПТ.ПРЕОБРАЗОВАТЕЛЬ КРУГ.ПОЛЯРИЗАЦИЯ-QUAD
Ref. 236973
RX 1 RX 2 RX 3 RX 4
