Signature Hardware 925025 Manual

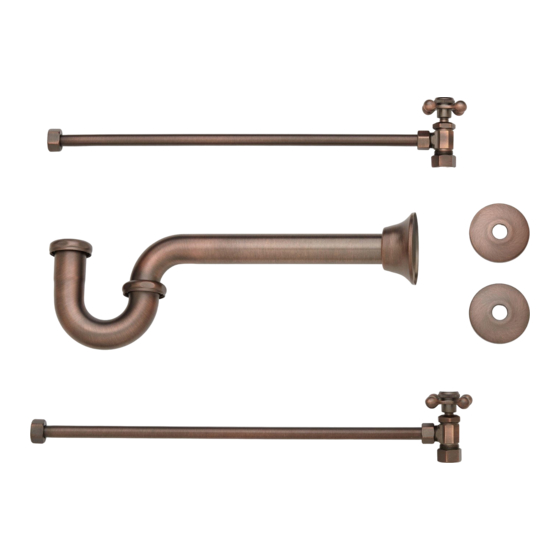

Bathroom trim kit

Download this manual

B AT H R O O M T R I M K I T

SKU: 925025

BEFORE YOU BEGIN

We recommend consulting a professional if you are

unfamiliar with installing plumbing �xtures. Signature

Hardware accepts no liability for any damage to the

faucet, plumbing, sink, counter top, or for personal injury

during installation.

Observe all local plumbing and building codes.

Unpack and inspect the faucet for shipping damage. If

any damage is found, contact our Customer Relations

team at 1-866-855-2284.

GETTING STARTED

Ensure that you have gathered all the required

materials that are needed for the installation. .

For Warranty information, please visit: signaturehardware.com/services/warranty

TOOLS AND MATERIALS:

Adjustable Wrench

Hacksaw

Strap Wrench

Safety Glasses

REVISED 06/01/2020

CODES: 522846, 522847, 522848

522849, 522850

Need help?

Do you have a question about the 925025 and is the answer not in the manual?

Page 1 B AT H R O O M T R I M K I T SKU: 925025 TOOLS AND MATERIALS: BEFORE YOU BEGIN We recommend consulting a professional if you are unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the...
Page 2 B AT H R O O M T R I M K I T SKU: 925025 OUTLET SUPPLY INSTALLATION 1. Do not use thread sealant on compression threads. Ensure water is shut o� before installation. Clean and deburr pipe before installation. Make sure tube is cut so it is squared and not out of round.
Page 3 B AT H R O O M T R I M K I T SKU: 925025 TRAP INSTALLATION 1. Insert tube into drain outlet and connect with nut and gasket 2. Slide �ange back to wall to cover the drain outlet.
