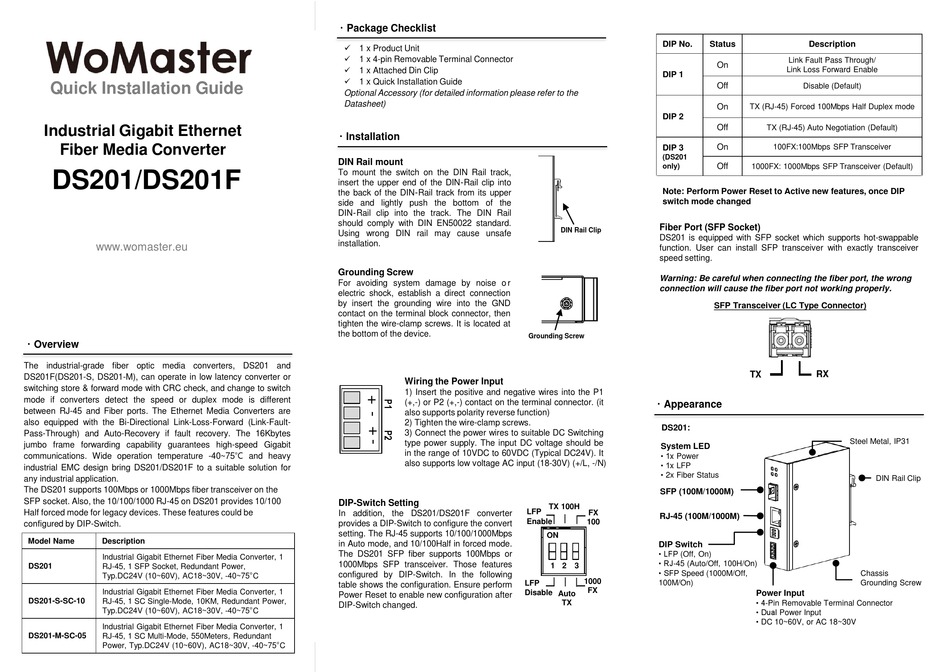

WoMaster DS201 Quick Installation Manual

Quick Installation Guide
Industrial Gigabit Ethernet
Fiber Media Converter
DS201/DS201F
www.womaster.eu
・Overview
The industrial-grade fiber optic media converters, DS201 and
DS201F(DS201-S, DS201-M), can operate in low latency converter or
switching store & forward mode with CRC check, and change to switch
mode if converters detect the speed or duplex mode is different
between RJ-45 and Fiber ports. The Ethernet Media Converters are
also equipped with the Bi-Directional Link-Loss-Forward (Link-Fault-
Pass-Through) and Auto-Recovery if fault recovery. The 16Kbytes
jumbo frame forwarding capability guarantees high-speed Gigabit
communications. Wide operation temperature -40~75℃ and heavy
industrial EMC design bring DS201/DS201F to a suitable solution for
any industrial application.
The DS201 supports 100Mbps or 1000Mbps fiber transceiver on the
SFP socket. Also, the 10/100/1000 RJ-45 on DS201 provides 10/100
Half forced mode for legacy devices. These features could be
configured by DIP-Switch.
Model Name Description
Industrial Gigabit Ethernet Fiber Media Converter, 1
DS201 RJ-45, 1 SFP Socket, Redundant Power,
Typ.DC24V (10~60V), AC18~30V, -40~75°C
Industrial Gigabit Ethernet Fiber Media Converter, 1
DS201-S-SC-10 RJ-45, 1 SC Single-Mode, 10KM, Redundant Power,
Typ.DC24V (10~60V), AC18~30V, -40~75°C
Industrial Gigabit Ethernet Fiber Media Converter, 1
DS201-M-SC-05
RJ-45, 1 SC Multi-Mode, 550Meters, Redundant
Power, Typ.DC24V (10~60V), AC18~30V, -40~75°C
・Package Checklist
 1 x Product Unit

1 x 4-pin Removable Terminal Connector

1 x Attached Din Clip

1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the
Datasheet)
・Installation
DIN Rail mount
To mount the switch on the DIN Rail track,
insert the upper end of the DIN‐Rail clip into
the back of the DIN‐Rail track from its upper
side and lightly push the bottom of the
DIN‐Rail clip into the track. The DIN Rail
should comply with DIN EN50022 standard.
Using wrong DIN rail may cause unsafe

installation.

Grounding Screw

For avoiding system damage by noise o r
electric shock, establish a direct connection
by insert the grounding wire into the GND
contact on the terminal block connector, then
tighten the wire-clamp screws. It is located at
the bottom of the device.
Wiring the Power Input
1) Insert the positive and negative wires into the P1
+
(+,-) or P2 (+,-) contact on the terminal connector. (it
also supports polarity reverse function)
2) Tighten the wire-clamp screws.
+
3) Connect the power wires to suitable DC Switching
type power supply. The input DC voltage should be
in the range of 10VDC to 60VDC (Typical DC24V). It
also supports low voltage AC input (18-30V) (+/L, -/N)

DIP-Switch Setting

In addition, the DS201/DS201F converter
provides a DIP-Switch to configure the convert
setting. The RJ-45 supports 10/100/1000Mbps
in Auto mode, and 10/100Half in forced mode.
The DS201 SFP fiber supports 100Mbps or
1000Mbps SFP transceiver. Those features
configured by DIP-Switch. In the following
table shows the configuration. Ensure perform
Power Reset to enable new configuration after
DIP-Switch changed.
DIP No.
DIP 1
DIP 2
DIP 3
(DS201
only)
Note: Perform Power Reset to Active new features, once DIP
switch mode changed

Fiber Port (SFP Socket)

DIN Rail Clip

DS201 is equipped with SFP socket which supports hot-swappable
function. User can install SFP transceiver with exactly transceiver
speed setting.
Warning: Be careful when connecting the fiber port, the wrong
connection will cause the fiber port not working properly.
Grounding Screw
・Appearance
DS201:

System LED

• 1x Power
• 1x LFP
• 2x Fiber Status
SFP (100M/1000M)
TX 100H
LFP
FX
RJ-45 (100M/1000M)
Enable
100
ON
DIP Switch
• LFP (Off, On)
• RJ-45 (Auto/Off, 100H/On)
1 2 3
• SFP Speed (1000M/Off,
1000
100M/On)
LFP
FX
Disable
Auto
TX
Status Description
Link Fault Pass Through/
On
Link Loss Forward Enable
Off Disable (Default)
On TX (RJ-45) Forced 100Mbps Half Duplex mode
Off TX (RJ-45) Auto Negotiation (Default)
On
100FX:100Mbps SFP Transceiver
Off 1000FX: 1000Mbps SFP Transceiver (Default)

SFP Transceiver (LC Type Connector)

RX
TX
Steel Metal, IP31
DIN Rail Clip
Chassis
Grounding Screw
Power Input
• 4-Pin Removable Terminal Connector
• Dual Power Input
• DC 10~60V, or AC 18~30V
