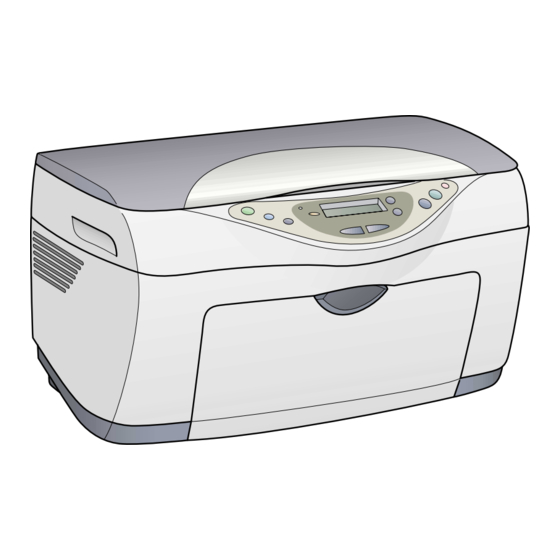

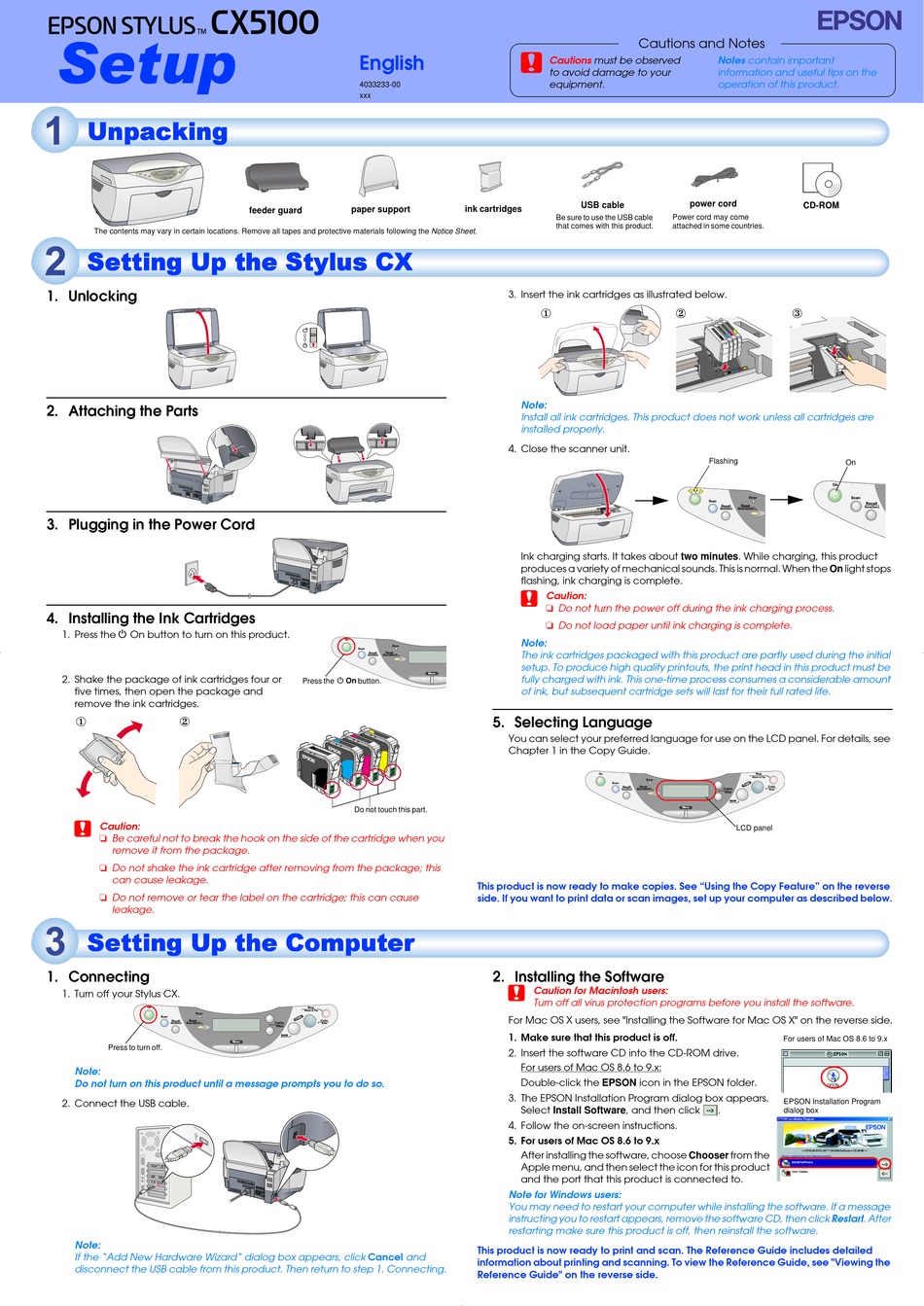

Epson STYLUS CX5100 Setup

Setup

Unpacking

Unpacking Unpacking Unpacking
The contents may vary in certain locations. Remove all tapes and protective materials following the Notice Sheet.

Setting Up the Stylus CX

Setting Up the Stylus CX
Setting Up the Stylus CX Setting Up the Stylus CX

1. Unlocking

2. Attaching the Parts

3. Plugging in the Power Cord

4. Installing the Ink Cartridges

1. Press the P On button to turn on this product.
2. Shake the package of ink cartridges four or
five times, then open the package and
remove the ink cartridges.
c
Caution:
Be careful not to break the hook on the side of the cartridge when you
remove it from the package.
Do not shake the ink cartridge after removing from the package; this
can cause leakage.
Do not remove or tear the label on the cartridge; this can cause
leakage.

Setting Up the Computer

Setting Up the Computer Setting Up the Computer Setting Up the Computer

1. Connecting

1. Turn off your Stylus CX.
On
Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Press to turn off.
Note:
Do not turn on this product until a message prompts you to do so.
2. Connect the USB cable.
Note:
If the "Add New Hardware Wizard" dialog box appears, click Cancel and
disconnect the USB cable from this product. Then return to step 1. Connecting.
English
4033233-00
xxx
paper support
feeder guard
On
Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Press the P On button.
Do not touch this part.
Stop
Return to Top
Color
Copies
Enter
Value
B&W
Menu
c
Cautions must be observed
to avoid damage to your
equipment.
USB cable
ink cartridges
Be sure to use the USB cable
that comes with this product.
3. Insert the ink cartridges as illustrated below.
Note:
Install all ink cartridges. This product does not work unless all cartridges are
installed properly.
4. Close the scanner unit.
Ink charging starts. It takes about two minutes. While charging, this product
produces a variety of mechanical sounds. This is normal. When the On light stops
flashing, ink charging is complete.
c
Caution:
Do not turn the power off during the ink charging process.
Do not load paper until ink charging is complete.
Note:
The ink cartridges packaged with this product are partly used during the initial
setup. To produce high quality printouts, the print head in this product must be
Menu
fully charged with ink. This one-time process consumes a considerable amount
of ink, but subsequent cartridge sets will last for their full rated life.

5. Selecting Language

You can select your preferred language for use on the LCD panel. For details, see
Chapter 1 in the Copy Guide.
On
This product is now ready to make copies. See "Using the Copy Feature" on the reverse
side. If you want to print data or scan images, set up your computer as described below.

2. Installing the Software

c
Caution for Macintosh users:
Turn off all virus protection programs before you install the software.
For Mac OS X users, see "Installing the Software for Mac OS X" on the reverse side.
1. Make sure that this product is off.
2. Insert the software CD into the CD-ROM drive.
For users of Mac OS 8.6 to 9.x:
Double-click the EPSON icon in the EPSON folder.
3. The EPSON Installation Program dialog box appears.
Select Install Software, and then click
4. Follow the on-screen instructions.
5. For users of Mac OS 8.6 to 9.x
After installing the software, choose Chooser from the
Apple menu, and then select the icon for this product
and the port that this product is connected to.
Note for Windows users:
You may need to restart your computer while installing the software. If a message
instructing you to restart appears, remove the software CD, then click Restart. After
restarting make sure this product is off, then reinstall the software.
This product is now ready to print and scan. The Reference Guide includes detailed
information about printing and scanning. To view the Reference Guide, see "Viewing the
Reference Guide" on the reverse side.
Cautions and Notes
Notes contain important
information and useful tips on the
operation of this product.
power cord
Power cord may come
attached in some countries.
Flashing
On
Error
Scan
Recall Reset
Save(3sec) Reset all(3sec)
Stop
Return to Top
Error
Scan
Recall Reset Color
Copies
Save(3sec) Reset all(3sec) Enter
Value
B&W
Menu
LCD panel
For users of Mac OS 8.6 to 9.x
EPSON Installation Program
.
dialog box
CD-ROM
On
On
Scan
Recall
Save(3sec)
