Energi Savr Node
Step 5: Contact Closure Inputs:
Emergency and CCI
WARNING! Danger of Shock. May result in serious
injury or death. DO NOT WIRE WHEN LIVE! Switch off
power to all power feeds via circuit breaker before wiring
or servicing the Energi Savr Node unit.
If line voltage shield is removed, the unit must be accessed
by a certified electrician, following local codes.
• Both Contact Closure Inputs' (Emergency and CCI) wiring is
NEC Class 2/PELV. Follow all applicable national and local
®
codes for proper circuit separation and protection.
• CCI input must be used with dry contact closure devices.
• If the Emergency input is open, the Energi Savr Node unit will
enter Emergency Mode, which will turn on all loads and disable
local zone control and control from sensors and QS devices.
Note: The Energi Savr Node unit will default to Emergency Mode
if the Emergency input is left open. If no Emergency contact
input is required, please leave the wire jumper in the Emergency
input terminals.
Energi Savr Node 0-10V / SoftSwitch
TM
0-10 V / SoftSwitch
TM
CCI – CONTACT CLOSURE INPUT
COM – COMMON
Installation Guide
®
|
Installation Guide
®

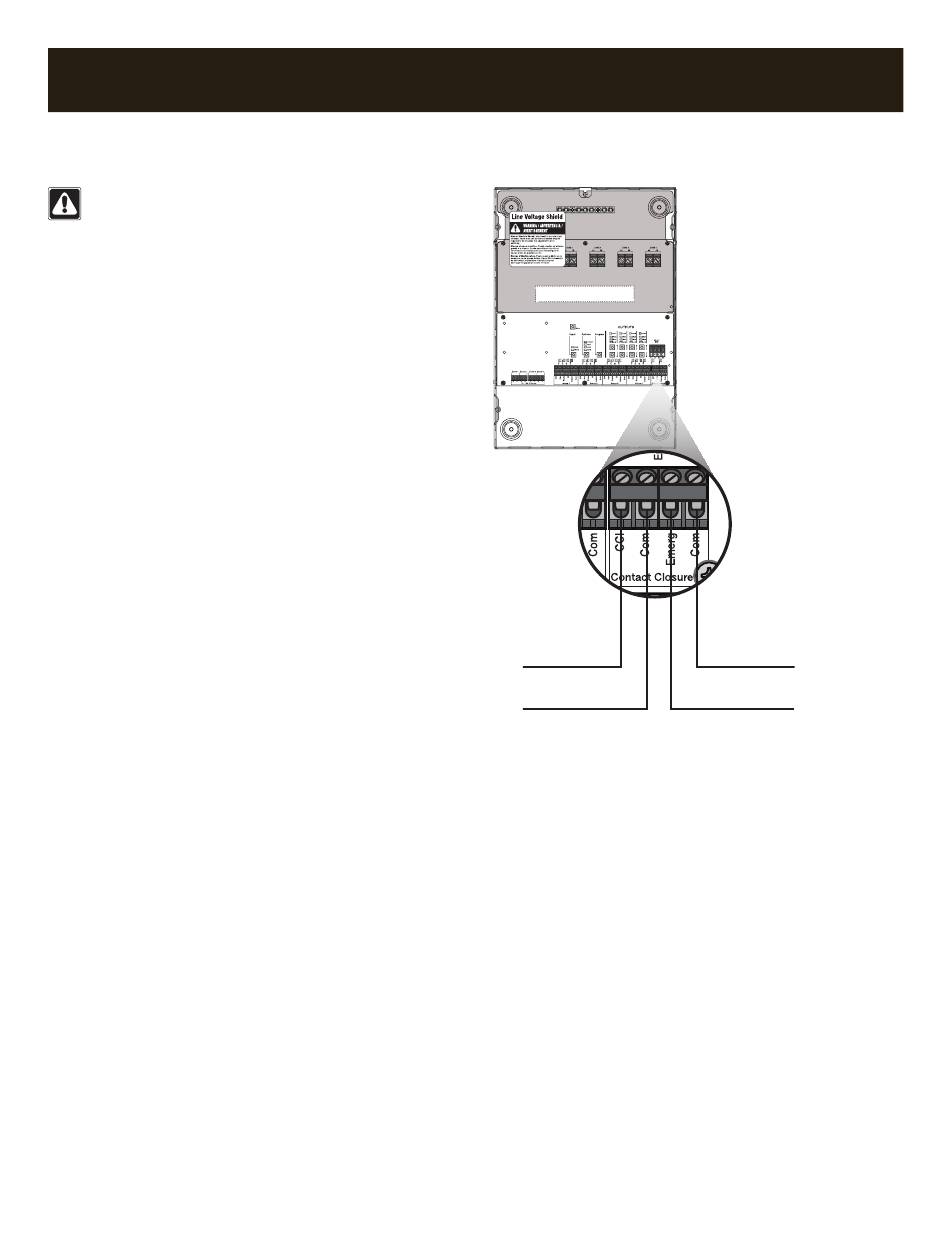

Contact Closure Wiring
Line Voltage Shield
Contact Closure Wiring:
• 20 AWG to 12 AWG
(0.5 mm to 4.0 mm
2
• Strip length: 1/4 in (6 mm)
• Torque: 5 in-lbs (0.5 N
COM – COMMON
EMERG – EMERGENCY
)
2
m)
•
Lutron
|
®
