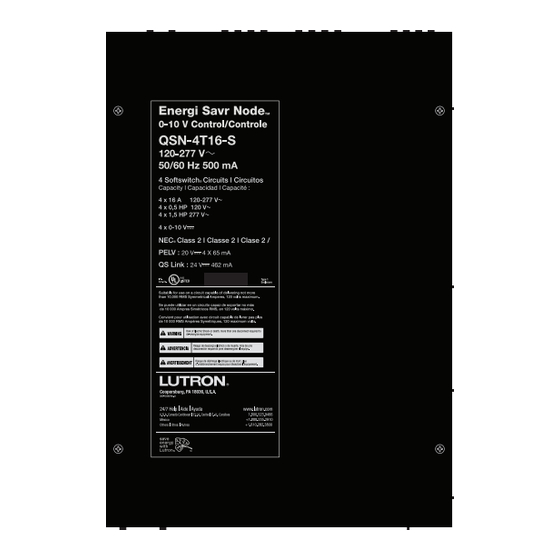

Lutron Electronics Energi Savr Node SoftSwitch QSN-4T16-S Installation Manual

Energi Savr Node
Please read this guide before installing.
Contents
Ratings and Model number overview ....................................1
Product overview..................................................................2
Wiring overview....................................................................2
Mounting ..............................................................................3
Control power wiring ............................................................3
Load wiring ..........................................................................4
Input wiring ..........................................................................6
Contact closure inputs ..........................................................7
QS link wiring .......................................................................8
Applications .......................................................................10
Out of box functionality .......................................................10
Normal operation ................................................................11
QS link input(s) setup .........................................................11
Troubleshooting ..................................................................11
Warranty ............................................................................12
Contact information ............................................................12

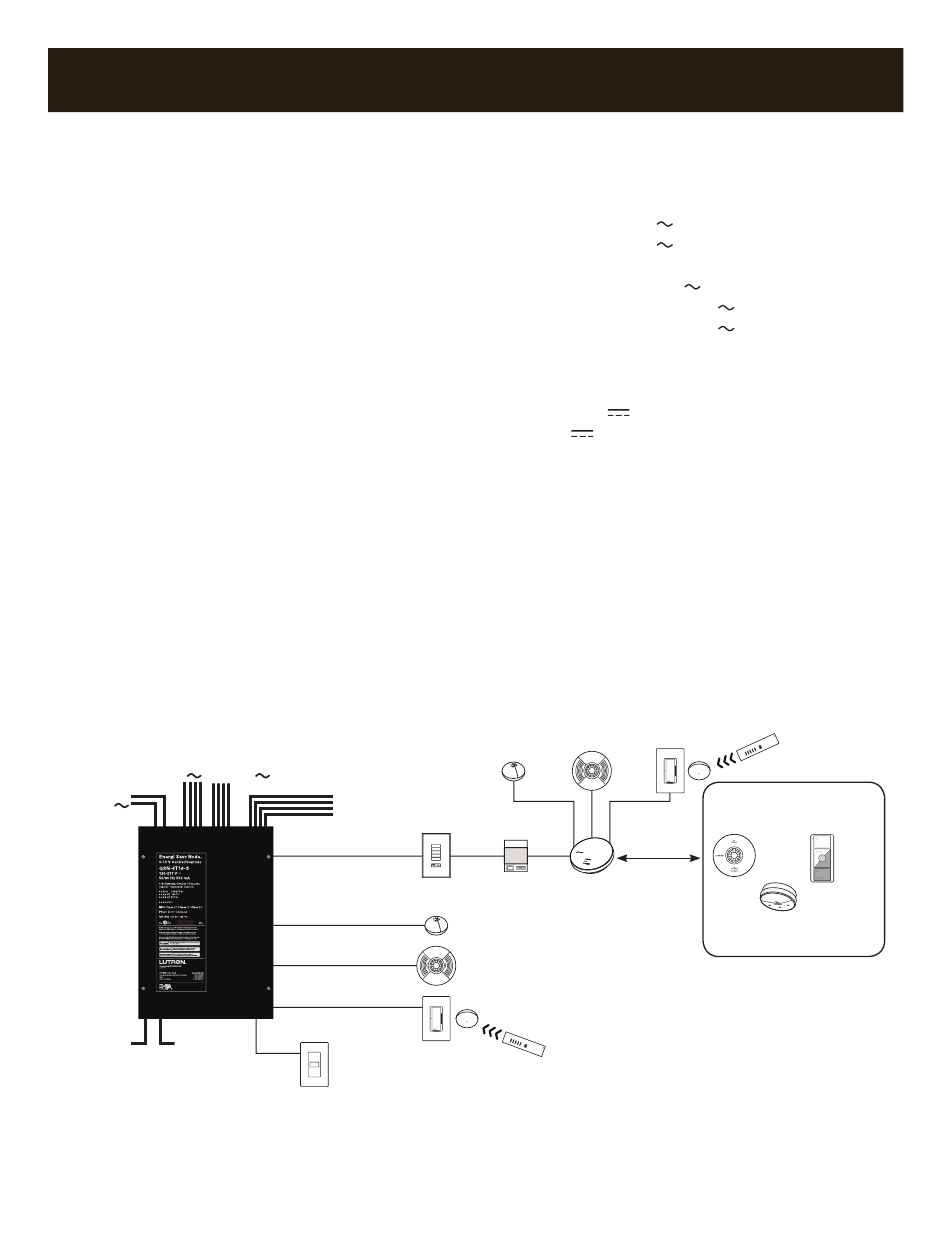

System Example
4 Load Input 4 Switched Load Outputs
Feeds (16 A SoftSwitch
120-277 V 120-277 V
Control Power
120-277 V
Emergency Contact
Contact Closure
Closure Input
Input
Programming Guide available at : www.lutron.com/softswitchenergisavrnode
Energi Savr Node 0-10V / SoftSwitch
TM
0-10 V / SoftSwitch
TM
Page
)
4 0-10 V
Channels
(QSN-4T16-S only)
QS link
seeTouch
®
Wallstation
Wired Daylight
Sensors (up to 4)
2
Wired Occupancy
Sensors (up to 4)
Wired Wallstation
or IR receivers (up to 4)
NEC Class 2/PELV
®
Dry Contact Switch (up to 4)
(by others)
Installation Guide
®
|
Installation Guide
®
Control Panel Ratings
Control Power: 120-277 V
Load Inputs: 120-277 V
Output: 0-10 V: 50 mA sink per zone (QSN-4T16-S only)
SoftSwitch: 120-277 V
0.5 HP @ 120 V
1.5 HP @ 277 V
Operating environment: 32 ˚F to 104 ˚F (0 ˚C to 40 ˚C)
Maximum humidity: 90% non-condensing
Thermal dissipation: 40 BTU/hr
Input Groups: 20 V
QS link: 24 V 14 PDU (Power Draw Units) 432 mA
Model number overview
QSN-4T16-S (Energi Savr Node for 0-10 V)
QSN-4S16-S (SoftSwitch Energi Savr Node)
QSN: Energi Savr Node
4T: 4 output zones, 0-10 V fixture controller
4S: 4 output zones, SoftSwitch
16: 16 A switched outputs
S: Surface mount
Wired Wired
Daylight Occupancy
Sensors Sensors
(up to 4) (up to 4) 1
1,2
ESN Programming
Interface
Communication
QS QSM (new!)
Notes:
1 Up to 4 wired sensors total (of any type).
2 The maximum number of daylight sensors (wired and wireless) that an
Energi Savr Node unit can support is four (1 per zone).
IR Transmitter
50/60 Hz 0.5 A
50/60 Hz
16 A per output
65 mA per group
Wired
Wallstation
or IR Receivers
(up to 4) 1
IR Transmitter
Radio Powr Savr Pico
TM
Occupancy Controller
Sensor (up to 10 (up to 10 per
per QSM) QSM)
Wireless
Radio Powr Savr
Daylight Sensor
(up to 10 per QSM)
Wireless
®
TM
2
Lutron 1
|
®
