- Page 1 USER MANUAL USER MANUAL Advanta Advanta Bed Bed ™ ™ From Hill-Rom From Hill-Rom Product No. P1600 Product No. P1600...
- Page 2 © 2002 by Hill-Rom Services, Inc. ALL RIGHTS RESERVED. © 2002 by Hill-Rom Services, Inc. ALL RIGHTS RESERVED. No part of this text shall be reproduced or transmitted in any form or by any means, electronic No part of this text shall be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information or retrieval system or mechanical, including photocopying, recording, or by any information or retrieval system without written permission from Hill-Rom Services, Inc.
- Page 3 © 2002 by Hill-Rom Services, Inc. ALL RIGHTS RESERVED. © 2002 by Hill-Rom Services, Inc. ALL RIGHTS RESERVED. No part of this text shall be reproduced or transmitted in any form or by any means, electronic No part of this text shall be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or by any information or retrieval system or mechanical, including photocopying, recording, or by any information or retrieval system without written permission from Hill-Rom Services, Inc.
-
Page 4: Table Of Contents
Table of Contents Table of Contents Typographical Typographical Conventions Conventions ......1 Back Light Back Light . - Page 5 Table of Contents Table of Contents Drainage Bag Holders Drainage Bag Holders ....... . 32 .
-
Page 6: Typographical Typographical Conventions Conventions
Typographical Conventions Typographical Conventions T T ypographical C ypographical Conventions onventions This manual contains different typefaces and icons designed to improve readability and increase This manual contains different typefaces and icons designed to improve readability and increase understanding of its content. Note the f understanding of its content. -
Page 7: Introduction

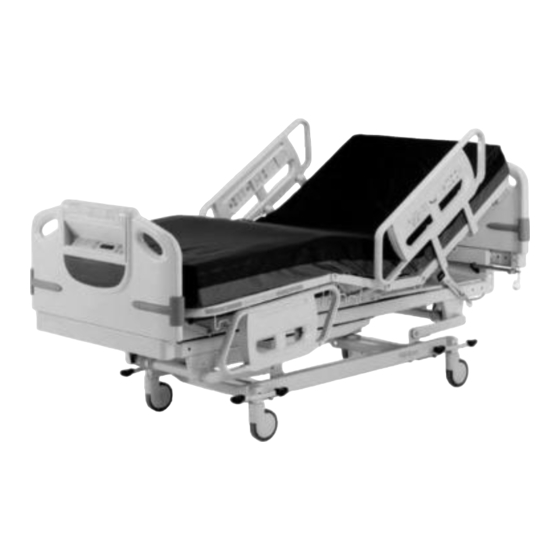

Introduction Introduction Optional ZoneAire® Mattress Caregiver siderail Patient siderail control panels control panels Removable Removable Speaker headboard footboard (can be used for emergency CPR) Caregiver footboard control panel Removable IV pole Optional Patient Position Monitoring (PPM) system Optional bed scale Drainage bag ... -
Page 8: Technical Specificatio Technical Specifications Ns
Technical Specifications Technical Specifications Table 2. Technical Specifications EATURE IMENSION Total length 91” (231 cm) Retracted length 78.5” (199.4 cm) Mattress support width 35” (89 cm) Mattress support length 83” (211 cm) Maximum width (siderails stored) 36” (91 cm) Maximum width (siderails up) 42.75”... -
Page 9: Siderail And Footbo Siderail And Footboard Controls Ard Controls
Siderail and Footboard Controls Siderail and Footboard Controls The head end siderails and the footboard contain most of the bed controls. The following tables list the caregiver controls for the siderails and footboard, and the patient controls for the siderails. The tables also indicate whether the item is standard or op tional. - Page 10 Siderail and Footboard Controls Caregiver Footboard Controls—Standard L NTERTAINMENT AND IGHTING Siderail Back Lighting On/Off Night Light On/Off TV/Radio On/Off (Audio Mute) L IDERAIL OCKOUTS Siderail Head Siderail Knee Siderail Hi-Lo All Motors P C OSITION ONTROLS Bed Up/Bed Down Trendelenburg/Reverse Trendelenburg Chair In/Chair Out NDICATORS...
-
Page 11: Caregiver Controls S
Caregiver Controls Caregiver Controls CPR Release The CPR Release allows the caregiver to save valuable time in an emergency situation. When activated, the CPR Release automatically lowers the head section of the bed to the flat position, enabling emergency procedures to be performed without unnecessary loss of time. -
Page 12: Resetting The Cpr
Caregiver Controls Resetting the CPR If the head section stops lifting, but the head motor runs for a brief amount of time; the CPR needs to be reset. WARNING: Unplug the bed from its power source b efore inserting the IV rod for manual ope ration. Unexpected resumption of power can cause the IV rod to rotate and cause injury. -
Page 13: Braking
Caregiver Controls Braking When the brakes are engaged, al l four wheels lock, and the Brake Not Set indicators on the bed stop flashing. When the brakes are not engaged, the casters rotate, and the Brake Not Set indicators flash continuously. Location: At each caster on the bed. -
Page 14: Neutral
Caregiver Controls Neutral In the neutral position, the swivels and casters move freely, allowing the bed to be moved in any direction. This function is used for exact positioning of the bed and maneuvering in confined areas Location: At each caster on the bed. To Activate: At any wheel, push either the orange or gree n pedal down slightly until the pedal is flat (in a horizontal position). -
Page 15: Head Secti Head Section On
Caregiver Controls Head Section The Head Up/Head Down controls enable you to raise or lower the head section of the bed. T he head section of the bed can be raised to any desired angle of inclination up to 65°. -
Page 16: Trendelenburg/Reverse Trendelenburg
Caregiver Controls Trendelenburg/Reverse Trendelenburg The Advanta™ Bed can achieve up to 11° of Trendelenburg or Reverse Trendelenburg. You can activate the Trendelenburg and Reverse Trendelenburg controls at any bed height, and the bed adjusts its height a s necessary. Location: Footboard control panel. To Activate: Press and hold the Trend key to place the bed in to the Trendelenburg position. -
Page 17: Siderail Back Lighting Siderail Back Lighting
Caregiver Controls To Activate: Press and hold the Chair In key to place the bed i n the chair position. Press and hold the Chair Out key to place the bed in the flat position. NOTE: The head, knee, and h ilow functions may be used to articulate the bed o ut of the chair position. However, once the hilow function has been activated, the Chair Out ... -
Page 18: Sensor Control (Night Sensor Control (Night Light) Light)
Caregiver Controls When the green indicator light on Night Light key is on, the function is a ctive. Night Light Key Sensor Control (Night Light) The night light Sensor Control is located at the foot end of the bed frame, on the right-hand side. This control allows you to set the level of light at which the night light will come on. -
Page 19: Knee Section Lockout
Caregiver Controls Knee Section Lockout When activated, the Siderail Knee lockout control disables the Knee Up and Knee Down movement of the bed. Location: Footboard control panel. To Activate: Press and release the Siderail Knee lockout key. To Deactivate: Press and release the Siderail Knee lockout key. Lockout Controls ... -
Page 20: Tv/Radio On/Off (Optional) Tv/Radio On/Off (Optional)
Caregiver Controls TV/Radio On/Off (Optional The TV/Radio on/off key turns on and off the audio for the television and radio. Location: Footboard control panel. To Activate: Press and release the TV/Radio key. The indicator light illuminates, and the television and radio audio are activated. The television and radio volume controls on the patient siderail control panels are now operational.
