Elite 3.5 LCD ZUMspot kit user guide
Adding an external display

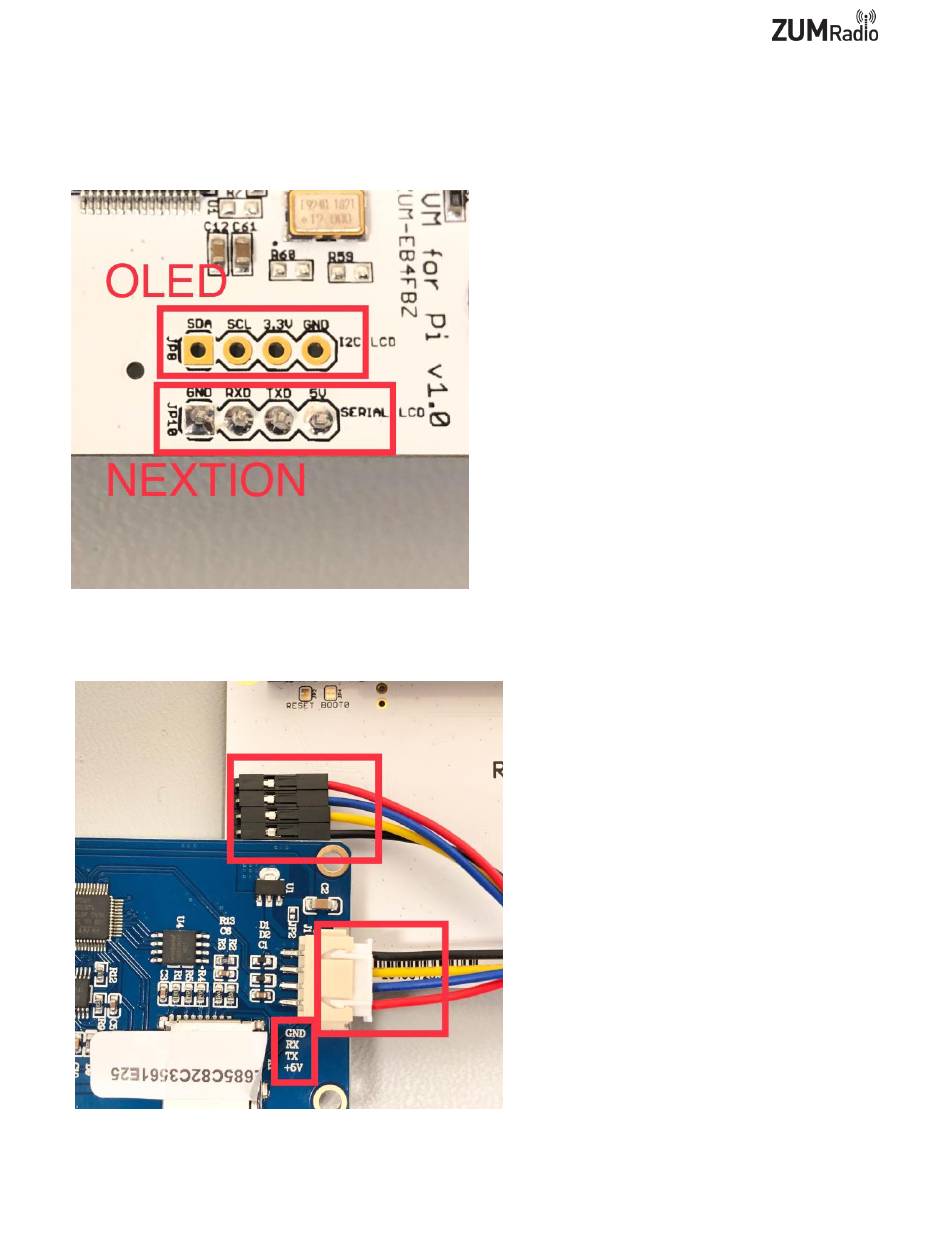

JP8 is where you can solder a header for connecting an OLED display. JP10 is where you can solder a
header for connecting a NEXTION display.
For connecting a NEXTION display, make sure that each colored wire matches the connections shown in
the image below.
