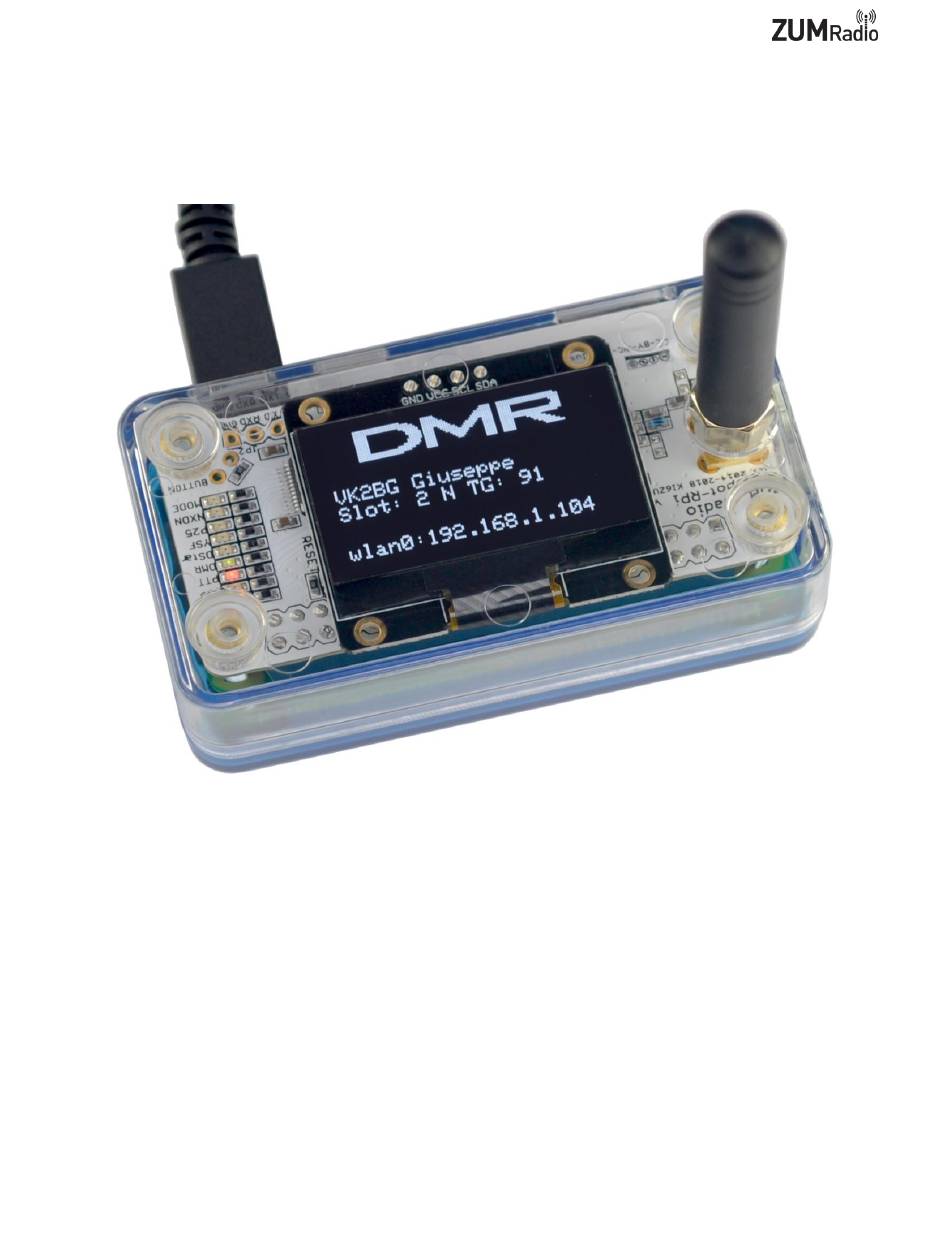

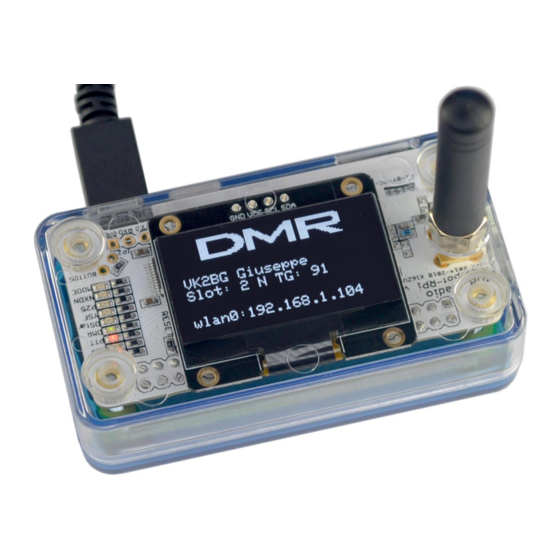

- Page 1 Mini 1.3 OLED ZUMspot kit user guide Mini 1.3 OLED ZUMspot The Mini 1.3 OLED ZUMspot kit is a low power simplex digital mode hotspot. It supports DStar, DMR, Fusion, NXDN, P25 and POCSAG. Copyright 2019-2022 ZUM Radio, Inc Rev 1.0...
-
Page 2: Table Of Contents
Mini 1.3 OLED ZUMspot kit user guide Table of Contents ZUMspot board specifications: ........................3 Kit includes: ..............................3 Setup: ................................4 Powering up: ............................4 Wi-Fi: ..............................5 Configure display type: ......................... 9 Configuration: ............................. 10 Configuration (example to enable D-Star): ..................11 Finished: .............................. -
Page 3: Zumspot Board Specifications
Mini 1.3 OLED ZUMspot kit user guide ZUMspot board specifications: ZUMspot board fully assembled and tested High performance 32-bit ARM processor Supports DMR, P-25, D-Star, System Fusion, NXDN and POCSAG Onboard LEDs to show status (Tx, Rx, PTT, Mode) ... -
Page 4: Setup
ZUMspot kit. Then plug the cable into the 5V/3A wall adapter and insert that into an AC outlet. ● If the Mini 1.3 OLED ZUMspot kit doesn’t power up, then press the switch on the cable and it should power up now. -
Page 5: Wi-Fi
Mini 1.3 OLED ZUMspot kit user guide Setup Pi-Star: Wi-Fi: ● Power up the Mini 1.3 OLED ZUMspot kit. ● After 3 minutes, scan for Wi-Fi access points from your phone or laptop. One should appear with the name “Pi-Star-Setup”... - Page 6 Mini 1.3 OLED ZUMspot kit user guide ● Select “Configure Wi-Fi Copyright 2019-2022 ZUM Radio, Inc Rev 1.0...
- Page 7 Mini 1.3 OLED ZUMspot kit user guide Click on “Scan for Networks (10 secs)” Copyright 2019-2022 ZUM Radio, Inc Rev 1.0...
- Page 8 Mini 1.3 OLED ZUMspot kit user guide ● Select your Wi-Fi SSID and enter your password. ● Click on “Save (and connect)” to save the Wi-Fi configuration ● Reboot your Mini 1.3 OLED ZUMspot kit ● Connect your phone/laptop computer to the same Wi-Fi access point as you just configured in Pi-Star ●...
-
Page 9: Configure Display Type
Mini 1.3 OLED ZUMspot kit user guide Configure display type: ● On the “Configuration” screen, look at the “MMDVMHost Configuration” section ● Make sure “MMDVM display Type” is set to “OLED type 6” ● Click “Apply Changes” when you are done Copyright 2019-2022 ZUM Radio, Inc Rev 1.0... -
Page 10: Configuration
In the “General Configuration” section, change the “Node Callsign” to your own, set the “Radio Frequency” to match your radio. Make sure the “Radio/Modem Type” is set to “ZUMspot - Raspberry Pi Hat (GPIO)”. Set the “System Time Zone” to your time zone, and set the “Dashboard Language”... -
Page 11: Configuration (Example To Enable D-Star)
Mini 1.3 OLED ZUMspot kit user guide Configuration (example to enable D-Star): ● You can turn on D-Star by selecting the “D-Star Mode” switch and clicking “Apply Changes” ● You can then configure D-Star to set the “Default Reflector” and clicking “Apply Changes”... -
Page 12: Finished
Mini 1.3 OLED ZUMspot kit user guide Finished: Once you have completed the Pi-Star configuration you can start using the Mini 1.3 OLED ZUMspot kit to connect to DSTAR, DMR and other networks. There is more information on configuring and using Pi-Star in this document: https://amateurradionotes.com/images/1-Playing_with_Pi-Star.pdf...
