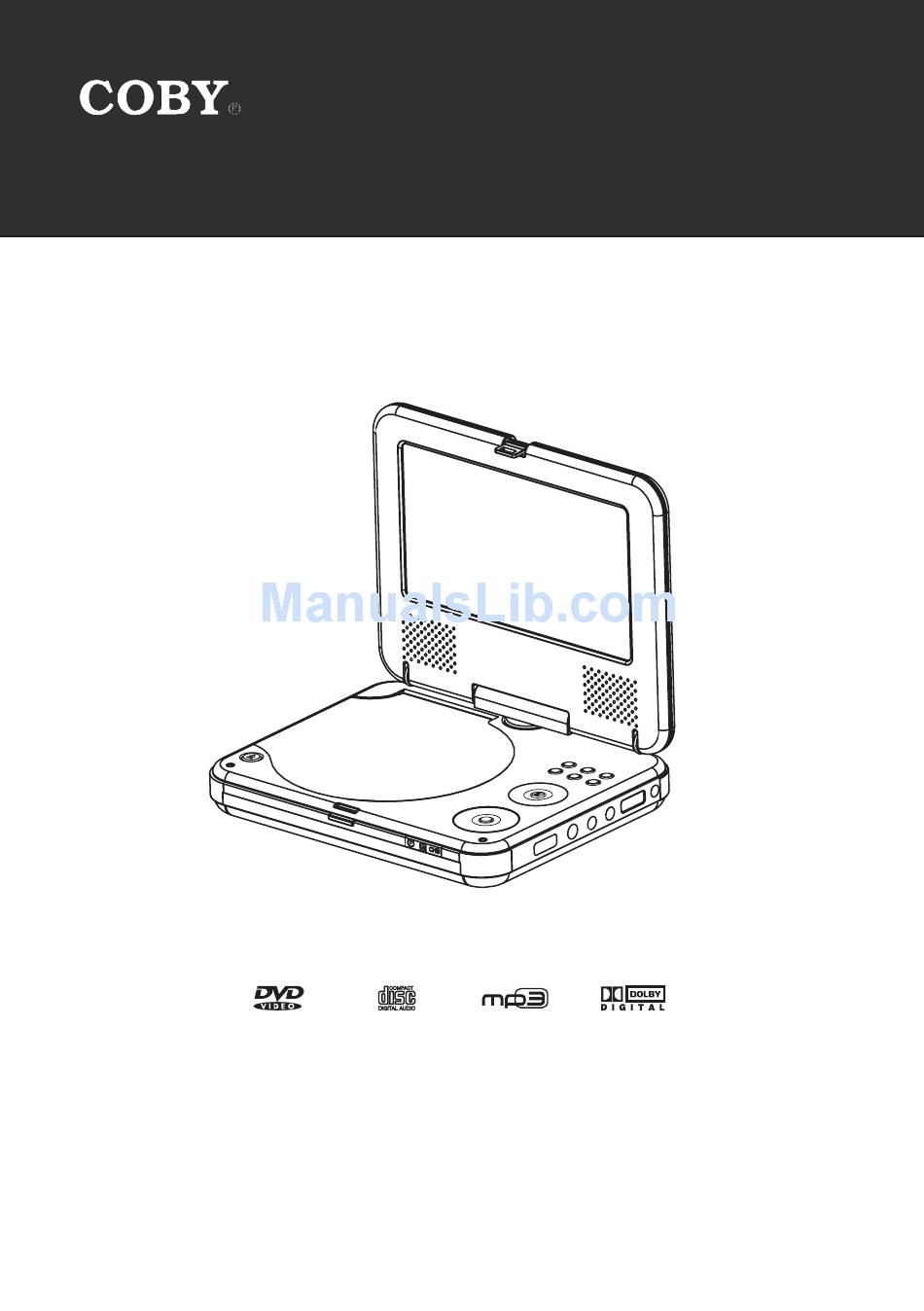

- Page 1 TF-DVD7307 7” Wide Screen TFT LCD Portable DVD/CD/MP3 Player with Swivel Screen Instruction Manual Please read this manual carefully before operation.
-
Page 2: Safety Instructions
Electronics Industries Alliance: www.eiae.org. For Customer Use: Enter below the serial number that is located on the bottom of the unit. Retain this information for future reference. Model No. TF-DVD7307 Serial No. - -... - Page 3 Never push objects of any kind into this device through openings as they may touch danger- ous voltage points or short out parts that could result in a fire or electric shock. Do not use headphones/earphones while cycling, driving, or operating a motorized vehicle. Do not use headphones/earphones at high volume.
-
Page 4: Table Of Contents
TABLE OF CONTENTS SAFETY INSTRUCTIONS ... 2 TABLE OF CONTENTS ... 4 ABOUT OPTICAL DISCS ... 6 Disc Requirements ...6 Disc Care and Maintenance ...6 Handling a Disc ...6 Cleaning a Disc ...6 PACKAGE CONTENTS ... 7 LOCATION OF CONTROLS ... 8 Main Unit ...8 Remote Control ...9 CONNECTIONS ... - Page 5 TABLE OF CONTENTS Repeat Mode...17 Repeat A-B Mode ...17 Multi-Angle/Subtitle/Audio ...18 Zoom ...18 Program ...18 DVD Program Mode ...18 CD Program Mode ...19 MP3 Program Mode ...19 SETUP ... 20 Language Setup ...0 Screen Setup ...0 Audio Setup ...1 Custom Setup ...1 SPECIFICATIONS ...
-
Page 6: About Optical Discs
ABOUT OPTICAL DISCS Disc Requirements This DVD player supports playback of the following discs. Type DVD-Video Discs Audio Compact Discs (CDs) MP3 CDs (CD-R, CD-RW) JPEG CDs This unit can play back CD-R and CD-RW discs that contain audio titles, MP3 files, or JPEG picture files. -
Page 7: Package Contents
PACKAGE CONTENTS Mute Clear Step TF-DVD7307 Remote Control Rechargeable Battery Pack Car/Boat DC Power Adapter AC Power Adapter Power Cord AV Cable (RCA) Headphones - 7 -... -
Page 8: Location Of Controls
LOCATION OF CONTROLS Main Unit POWER Switch OPEN Speaker POWER ON Indicator Battery Charge Indicator Remote Sensor Note: The Power On Indicator lights green during normal playback, and red when in Standby mode. SCREEN The Battery Charge Indicator lights red while the battery is charging, and green when it is fully charged. -
Page 9: Remote Control
LOCATION OF CONTROLS Remote Control Title Display Power LCD Mode Setup Menu Play/Pause Enter Direction Buttons Stop Mute Zoom Mute PREV/NEXT (Skip) Numeric Buttons FF/FR (Search) Step Clear Step Slow Repeat A-B Repeat Program Audio Subtitle Angle - 9 -... -
Page 10: Connections
CONNECTIONS Audio/Video (AV) Connections To VIDEO In/Out To OPTICAL/AUDIO In/Out AV OUT Set the AV Switch to the AV OUT position. Connect the player to a TV with the supplied AV Cable (RCA). Press the AV mode button on your TV to display your player’s output signal on the screen. AV IN Set the AV Switch to the AV IN position. -
Page 11: Dolby Pro Logic Surround (Optical Audio) Connection
CONNECTIONS Dolby Pro Logic Surround (Optical Audio) Connection Your player can output 5.1-channel surround sound audio through the Optical/Audio jack. You will need a Dolby Pro Logic Surround amplifier and an optical cable to use this feature. To OPTICAL/AUDIO Out Note: Please refer to your receiver’s instruction manual for more infor- mation on how to properly set up your surround sound system. -
Page 12: Getting Started
GETTING STARTED Remote Control • Refer to the diagram. Remove the bat- tery compartment cover located on the rear of the remote control. Insert batter- ies, making sure to match their polari- ties (+/-) to the markings on the inside of the compartment. -
Page 13: Using The Battery Pack (Dc)
GETTING STARTED Using the Battery Pack (DC) The rechargeable battery pack can be used for approximately 300 charge-cycles without any noticeable change in performance. Important: The battery should be charged fully (minimum 4 hours) before its initial use to ensure optimum lifetime performance. To install the battery pack: Place the battery into the recessed cradle located on the bottom of the player. -
Page 14: Basic Operations
BASIC OPERATIONS Basic Playback Prepare the power supply. Set the Power Switch to the ON position to turn the player on. Load a disc. Press the Open button to open the disc compartment lid. Insert a disc with the label-side up. -
Page 15: Menu Navigation
BASIC OPERATIONS Menu Navigation To navigate DVD disc menus or the player’s setup menus: • Press the DIRECTION buttons to select a desired feature or option in the menu. • Press ENTER to confirm a selection in the menu. • For some menu options, you may be able to use the numeric key- pad to input data. -
Page 16: Function Buttons
FUNCTION BUTTONS LCD Mode Press the LCD MODE button to adjust the brightness, contrast, and color of the LCD screen. Press the up/down DIRECTION buttons to select the desired setting to adjust. From top to bottom, the settings are: Screen, Brightness, Contrast, Color, and Reset. -
Page 17: More Functions
MORE FUNCTIONS Search Press SEARCH to go directly to a desired point of a disc (eg, Title, Chapter, Time). DVD Chapter/Title Search: • Press SEARCH once to display the Chapter/Title Search Bar shown to the right. • Press the left/right DIRECTION buttons to select (highlight) an entry field. •... -
Page 18: Multi-Angle/Subtitle/Audio
MORE FUNCTIONS Multi-Angle/Subtitle/Audio • During playback of a DVD that has been mastered with multiple angles, press ANGLE to view the available alternate camera angles. (A DVD may have up to 9 selectable angles.) • During playback of a DVD that has been mastered with subtitles, press SUBTITLE to view the available subtitle tracks. -
Page 19: Cd Program Mode
MORE FUNCTIONS CD Program Mode Load a CD and press PROGRAM. Press the right DIRECTION button to select the “Track” column; press the up/down DIRECTION buttons to select a track. Press PLAY (or ENTER) to confirm the selec- tion. Repeat steps 2-3 until you have finished pro- gramming your selections or when you have programmed the maximum 20 tracks. -
Page 20: Setup
Use the DIRECTION buttons to highlight the desired screen selection and press ENTER to confirm. Item Sets the aspect ratio of the display. TV Type (The TF-DVD7307 screen is 16:9.) The screensaver prevents burn-in Screen Saver damage to the player’s screen. -
Page 21: Audio Setup
Audio Setup Use the DIRECTION buttons to highlight the desired audio selection and press ENTER to confirm. Item Sets the player’s Optical Out (audio) signal. For use with 5.1-channel re- Digital Out ceivers (see your receiver’s manuals for more details). Custom Setup Use the DIRECTION buttons to highlight the desired Custom Setup selection and press ENTER to confirm. -
Page 22: Specifications
SPECIFICATIONS Power Supply Power Consumption Video Signal System Video Output Audio Output Video Input Audio Input S/N Ratio Dynamic Range (Audio) Display Type Display Resolution Unit Dimensions Weight AC: 100-0V UL Listed Adapter DC: 9V, A ≤ 9.8W NTSC / PAL 3.5mm mini-jack to RCA Composite Video 3.5mm Stereo Headphone 3.5mm Stereo Line-Out... -
Page 23: Troubleshooting
TROUBLESHOOTING If you have a problem with this player, please read the troubleshooting guide below and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. COBY Electronics Technical Support Hours: Monday to Friday, 8:30 AM–11:00 PM EST... - Page 24 TROUBLESHOOTING The remote control doesn’t work. • Ensure that the Power Switch has been physically set to the ON position. • Ensure that there are no obstacles between the remote and the player. • Point the remote at the remote sensor on the main unit. •...
