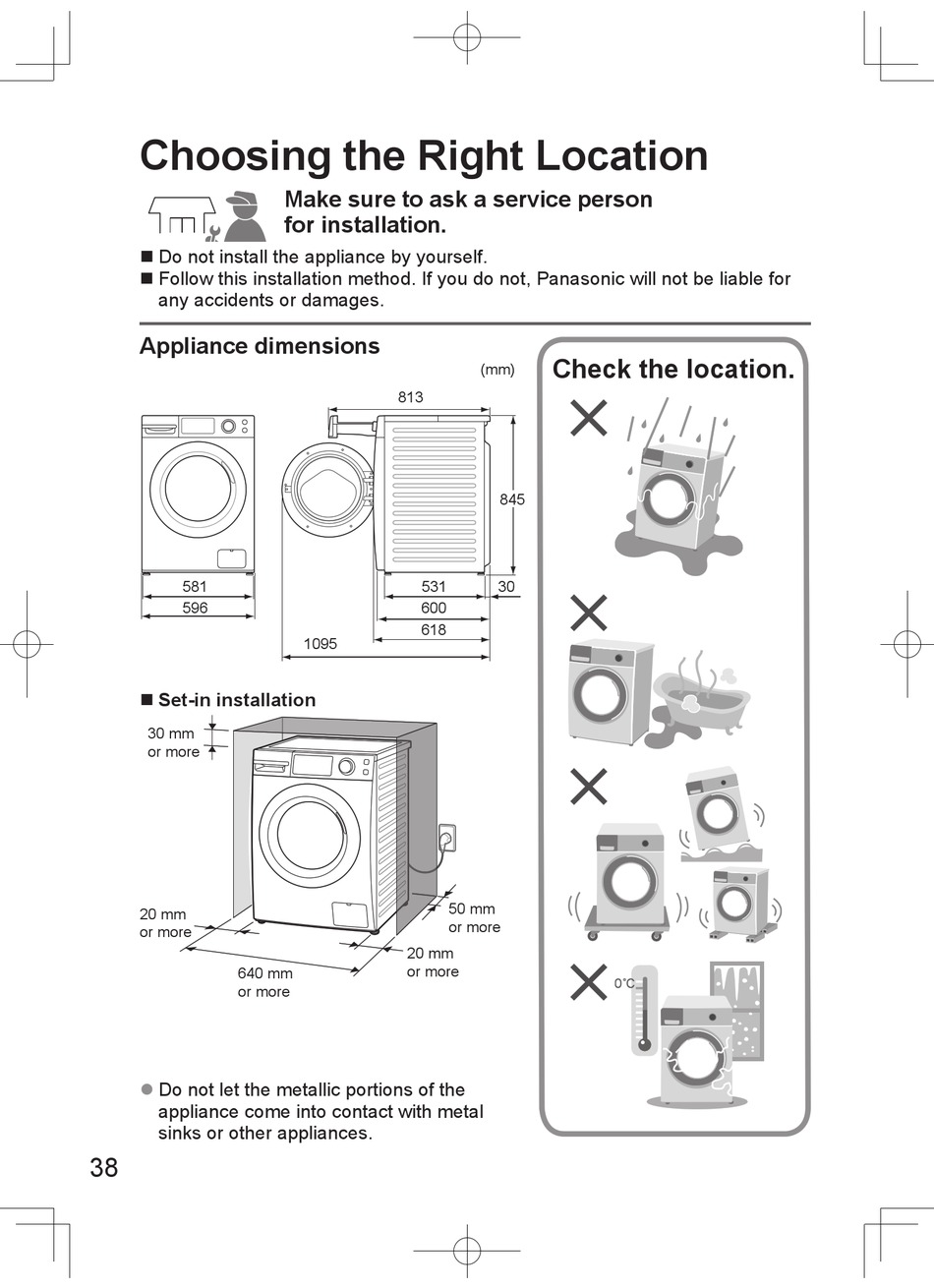

Choosing the Right Location

„ Do not install the appliance by yourself.
„ Follow this installation method. If you do not, Panasonic will not be liable for
any accidents or damages.
Appliance dimensions
581
596
„ Set-in installation
30 mm
or more
20 mm
or more
640 mm
or more
Do not let the metallic portions of the
z
appliance come into contact with metal
sinks or other appliances.
38
Make sure to ask a service person
for installation.
813
531
600
618
1095
50 mm
or more
20 mm
or more
Check the location.
(mm)
845
30
