Summary of Contents for Pilz PSEN op3.1

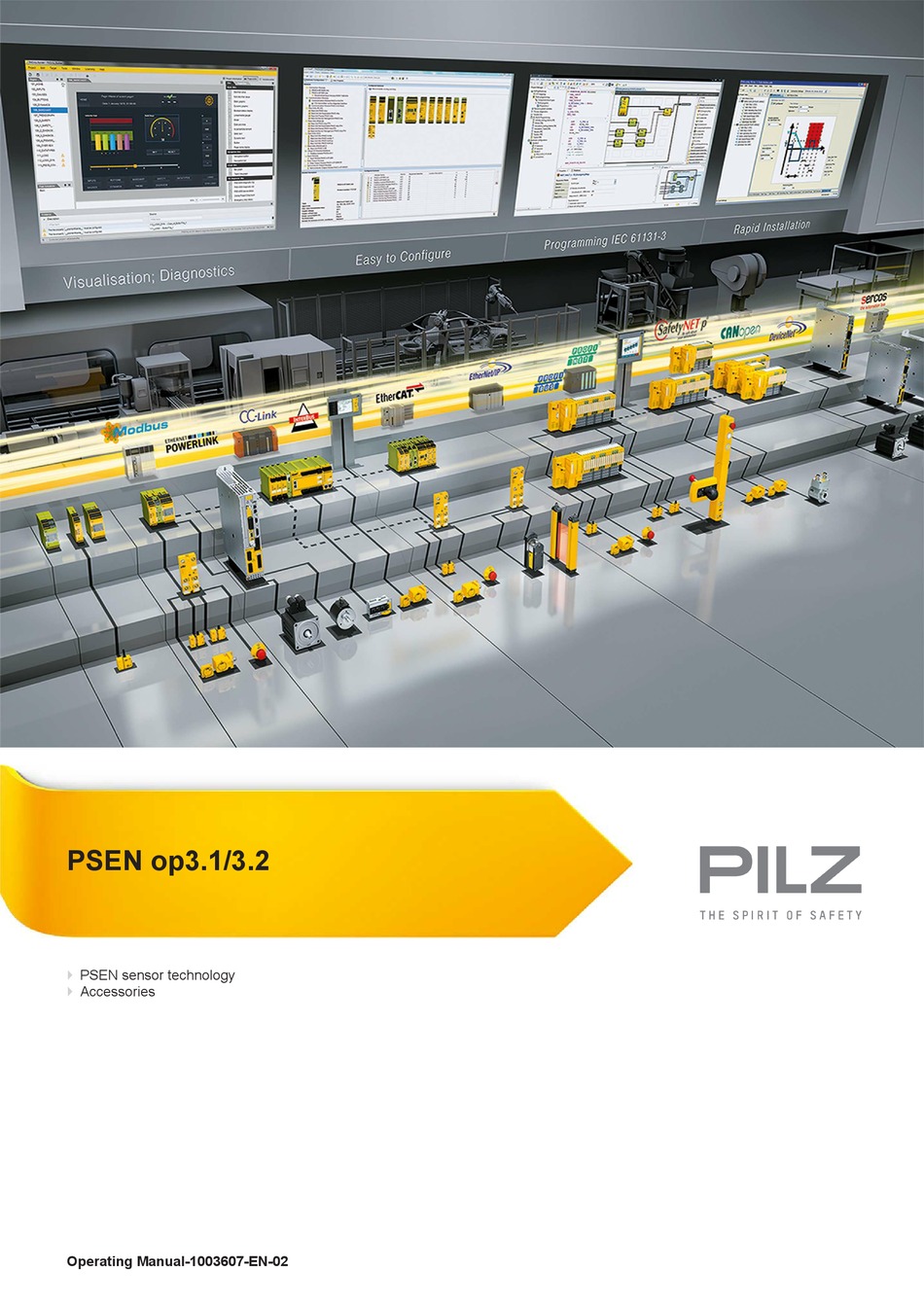

- Page 1 PSEN op3.1/3.2 PSEN sensor technology Accessories Operating Manual-1003607-EN-02...
- Page 2 Preface This document is a translation of the original document. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for internal purposes. Suggestions and comments for improving this documentation will be gratefully received.
- Page 3 PSEN op3.1/3.2 Introduction Validity of documentation This documentation is valid for the product PSEN op3.1/3.2. It is valid until new documenta- tion is published. This documentation explains the function and operation of an accessory for a safety light grid. When using the product, please refer to the operating manual for the safety light grid.
- Page 4 Overview Intended use The PSEN op3.1/3.2 may only be used to implement the muting function on a safety light grid without muting sensors. Use of the single-channel light beam device, transmitter in conjunction with the re- ceiver as muting sensor...
- Page 5 Wire the outputs from the receiver to the inputs provided on a safety light grid or control system for external muting sensors. Receiver Function Wire colour Assignment of the 4-pin +10 ... 30 VDC brown M12 male connector Output NC white blue Output NO black Operating Manual PSEN op3.1/3.2 1003607-EN-02...
-
Page 6: Installation And Setting
3. Move the transmitter and receiver horizontally and vertically until the orange LED illu- minates and then goes out. Attach the transmitter and receiver in the middle between these points. If the muting sensors are to detect small objects, the sensitivity of the receiver can be reduced. Operating Manual PSEN op3.1/3.2 1003607-EN-02... - Page 7 If the test inputs are activated and the light beam is not interrupted, the receiver must switch. a Carry out the test and only put the muting sensors into operation if the test has been successful. Display and operator elements Operating Manual PSEN op3.1/3.2 1003607-EN-02...
-
Page 8: Technical Details
Dimensions in mm Side view Front view Technical details General 630831 630832 Approvals CE, cULus Listed CE, cULus Listed Electrical data 630831 630832 Supply voltage Voltage 10,0 - 30,0 V 10,0 - 30,0 V Operating Manual PSEN op3.1/3.2 1003607-EN-02... -
Page 9: Order Reference
Weight 30 g 30 g Order reference Product type Features Order no. PSEN op3.1 Receiver NO/NC Single-channel light beam device, receiver with NO/ 630 831 NC outputs PSEN op3.2 Emitter M12 Single-channel light beam device, transmitter 630 832 Operating Manual PSEN op3.1/3.2... - Page 10 Back cover Support Technical support is available from Pilz round the clock. Americas Australia Scandinavia Brazil +61 3 95446300 +45 74436332 +55 11 97569-2804 Spain Canada Europe +34 938497433 +1 888-315-PILZ (315-7459) Austria Switzerland Mexico +43 1 7986263-0 +41 62 88979-30...
