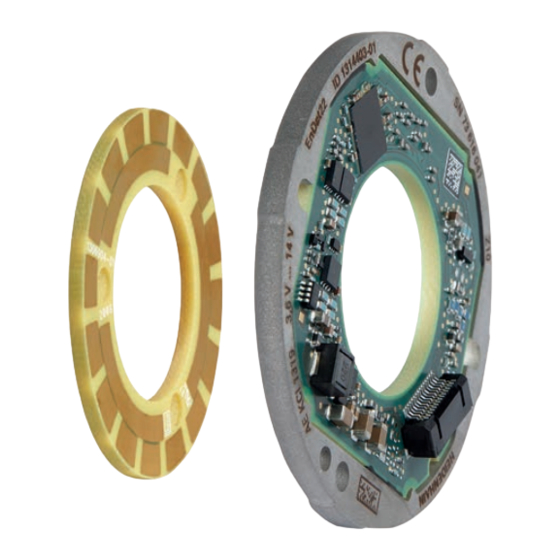

Absolute inductive rotary encoders without integral bearing

Advertisement

Quick Links

Product Information
KCI 1319
KBI 1335
Absolute Inductive
Rotary Encoders without
Integral Bearing
11/2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the KCI 1319 and is the answer not in the manual?

Questions and answers

Summary of Contents for HEIDENHAIN KCI 1319

  • Page 1 Product Information KCI 1319 KBI 1335 Absolute Inductive Rotary Encoders without Integral Bearing 11/2021...
  • Page 2  AE KxI 13xx ± 1.2 ±1.2 m = Measuring point for operating temperature = AE, separate, with different versions possible (KCI 1319/KBI 1335) M3x10 (4x) Disk/hub assembly 14.6 = 15-pin PCB connector = Mounting clearance between the circular scale surface and the AE flange surface;...
  • Page 3 15-pin PCB connector (with connection for external temperature sensor) Shock 6 ms ≤ 2000 m/s (EN 60068-2-27) Cable length  100 m (see the EnDat description in the Interfaces of HEIDENHAIN Encoders brochure) Operating temperature –40 °C to 115 °C Supply voltage DC 3.6 V to 14 V Rotary encoder U : DC 3.6 V to 14 V...
  • Page 4 Mounting The KCI 1319/KBI 1335 is mounted either The press-fitting process may be performed assemblies are press-fitted onto customer Mounting accessories via screw-fastening of the circular scale only once for each disk/hub assembly. For shafts that have already been used. Once...
  • Page 5 Vacant pins or wires must not be used! Connected inside encoder This Product Information document supersedes all previous editions, which thereby become invalid. The basis for ordering from HEIDENHAIN is always the Product Information document edition valid when the order is placed. DR. JOHANNES HEIDENHAIN GmbH Dr.-Johannes-Heidenhain-Straße 5...
