AV28X25EUS / AV28X25EIGY
AV28X25EKGY

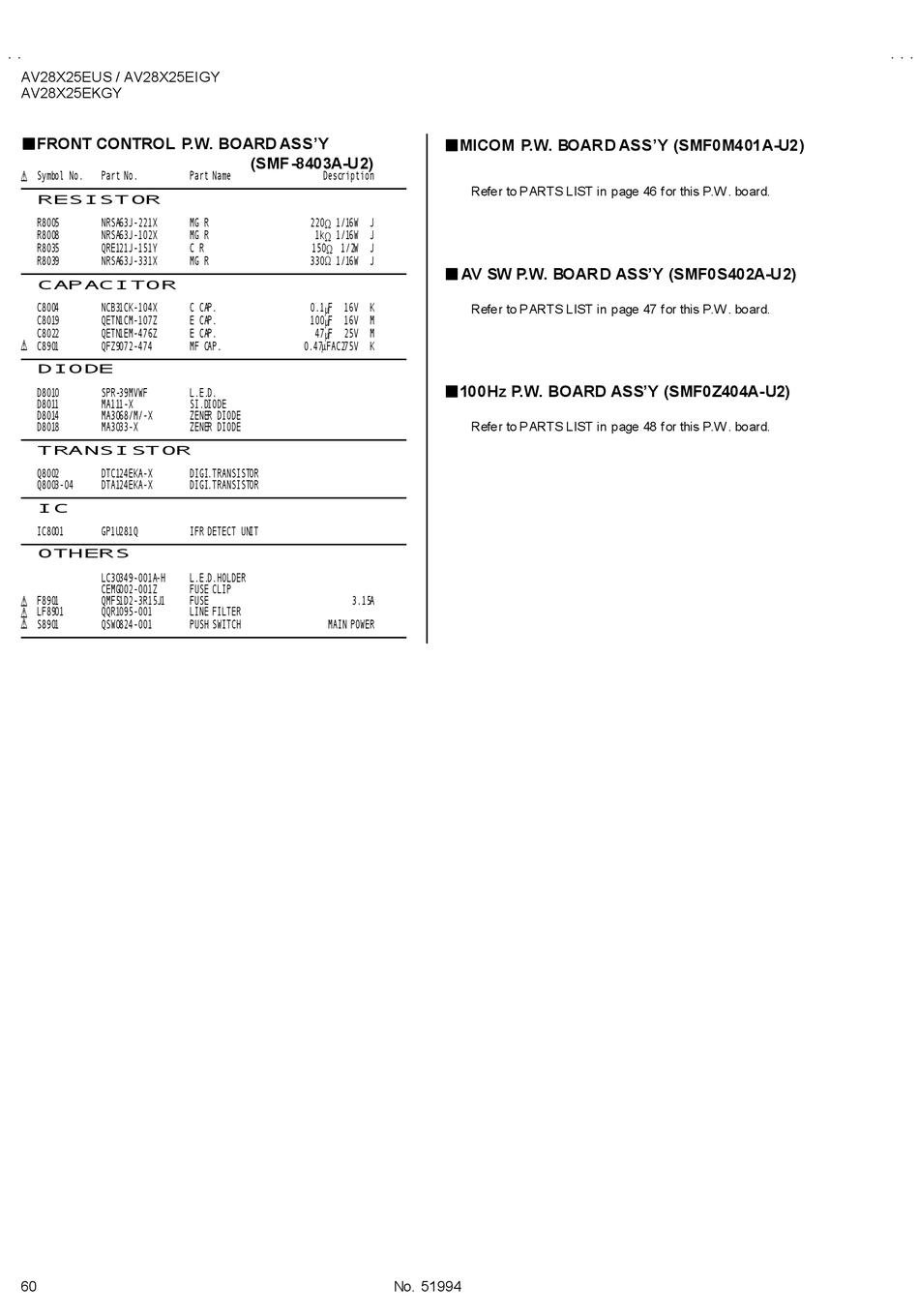

■ ■ ■ ■ FRONT CONTROL P.W. BOARD ASS'Y
! Symbol No. Part No. Part Name
RESISTOR
R8005 NRSA63J-221X MG R
R8008 NRSA63J-102X MG R
R8035 QRE121J-151Y C R
R8039 NRSA63J-331X MG R
CAPACITOR
C8004 NCB31CK-104X C CAP.
C8019 QETN1CM-107Z E CAP.
C8022 QETN1EM-476Z E CAP.
! C8901 QFZ9072-474 MF CAP.
DIODE
D8010 SPR-39MVWF L.E.D.
D8011 MA111-X SI.DIODE
D8014 MA3068/M/-X ZENER DIODE
D8018 MA3033-X ZENER DIODE
TRANSISTOR
Q8002 DTC124EKA-X DIGI.TRANSISTOR
Q8003-04 DTA124EKA-X DIGI.TRANSISTOR
IC
IC8001 GP1U281Q IFR DETECT UNIT
OTHERS
LC30349-001A-H L.E.D.HOLDER
CEMG002-001Z FUSE CLIP
! F8901 QMF51D2-3R15J1 FUSE
! LF8901 QQR1095-001 LINE FILTER
! S8901 QSW0824-001 PUSH SWITCH
60
(SMF-8403A-U2)
Description
220 Ω 1/16W J
1k Ω 1/16W J
150 Ω 1/2W J
330Ω 1/16W J
0.1 µ F 16V K
100 µ F 16V M
47 µ F 25V M
0.47µFAC275V K
3.15A
MAIN POWER
No. 51994
■ ■ ■ ■ MICOM P.W. BOARD ASS'Y (SMF0M401A-U2)
Refer to PARTS LIST in page 46 for this P.W . board.
■ ■ ■ ■ AV SW P.W. BOARD ASS'Y (SMF0S402A-U2)
Refer to PARTS LIST in page 47 for this P.W . board.
■ ■ ■ ■ 100Hz P.W. BOARD ASS'Y (SMF0Z404A-U2)
Refer to PARTS LIST in page 48 for this P.W . board.
