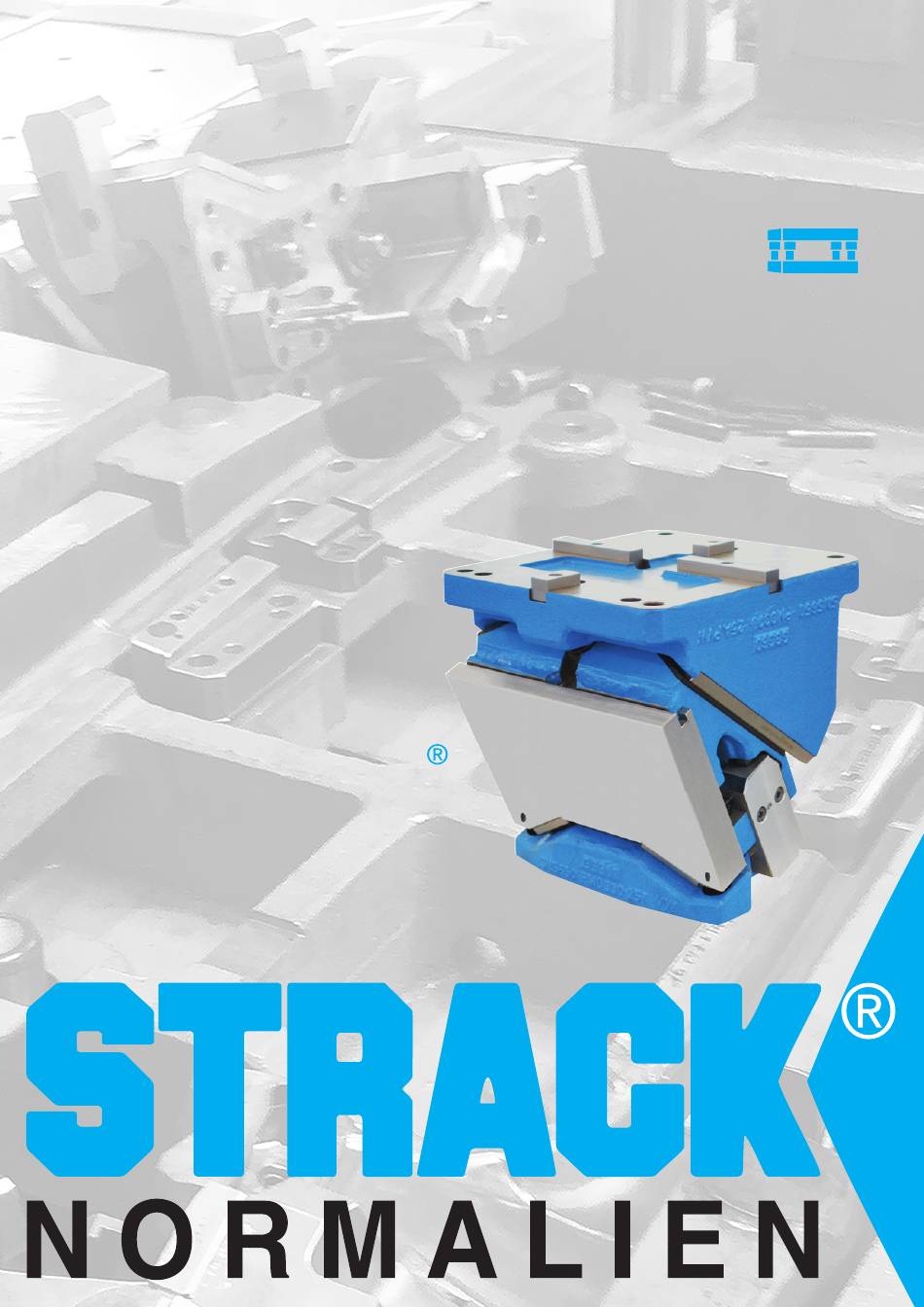

- Page 1 CAM UNIT SN5650-PMO-0065 — SN5650-PMO-0260 OPERATING INSTRUCTIONS PowerMax...
-
Page 2: Table Of Contents
14.1 Adjustment of the active return 14.2 Comparison bronze with solid lubricant and SNS sinter guiding elements 15. Appendix 15.1 Internet and CAD 15.2 General description of gas springs 15.3 Maximal operating conditions for gas springs 15.4 Calculations gas springs 15.5 Mounting instructions gas springs 15.6 Filling pressure list gas springs 16. Exploded view and item list STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 3: Preamble
Preamble Thank you for the confidence in the product of STRACK NORMA GmbH & Co. KG We are pleased about your decision to buy a product of STRACK. To facilitate the handling with the product, we established these operating instructions. The operating instructions are an important element to the side cam unit SN5650-PMO and provide the secure and efficient operating. It is intended for all persons which are working with these cam units and which are responsible for the secure operating. For reasons of the operating safety a copy of these operating instructions has to be left at the side cam unit to guarantee the direct access for the operating personnel. The security advices in the operating instructions have particularly been respected to recognize and to avoid possible dangers. Please read the operating instructions carefully and completely before mounting and initial operation of the side cam unit SN5650. A regular maintenance is necessary to guarantee a secure and economic application. If the instructions and advices of these operating instructions are not observed, any liability on our part for resulting damages and performance losses will be excluded. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 4: Safety Instructions. Please Absolutely Consider
NORMA with good professional knowledge. If the mounted STRACK nitrogen-gas spring is used incorrectly or not for the intended application, menace: Dangers for the health Dangers for the STRACK nitrogen-gas springs and other property holdings of the operator, Dangers for the efficiency of the STRACK nitrogen-gas springs. For all operations at the STRACK side cam, the valid Ordinance on Industrial Safety and Health paragraph 3 has to be considered. Press, tool and peripheral devices have to be suited, prepared and adjusted for the application of the STRACK side cams. Attention: Before and during the service- and maintenance operations at the tool respectively at the STRACK cam there is an increased risk of accident. Therefore these operations may only be effected at cam units which are driven back. Seized cam units at faultless gas springs can cause an abrupt decompression. Thus they can be an injury risk. Damaged gas spring may not be used again. The exchange of individual parts has to be agreed with STRACK NORMA. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 5: After Receipt Of Delivery
Not till then dispose of the transport- and packing material. If the content is damaged without visible damage of the packing material, please do not return it for repair or exchange. Please contact STRACK NORMA GmbH & Co. KG, Lüdenscheid, to get further information. Phone: 02351 / 8701 – 0 reception – 252 Mr. Müller STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 6: Characteristics
These PowerMax cam units consists of: - cam retainer - cam body - driver with the corresponding accessories All PowerMax cam units are equipped with gas springs. In this system, nitrogen with a purity grade of ≥99.8 vol.-% is used as active fluid medium for the gas springs. The cylinder dimension, cylinder number and filling pressure (different at the diverse cam types) determine the reset force which is available. Please consider that all PowerMax cam units are the successful result of a long development work. The resulting advantages optimally develop at the full exploitation of the respective cam stroke during the work process; that means, the stamping- and benching operation of the cam unit should be carried out in the front end position. The complete exploitation of the cam stroke allows the maximal intervention of the active return and the therewith connected highest possible supply of retracting- and stripper forces (about 10 % of the pressing force). In the front endpoint of the cam stroke there is the maximal retraction of the gas spring. Generally applies: The construction and the resulting values, like assembly height and restoring forces, require that the cam unit is mounted in the front end position. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 7: Description Of The Construction Types
The MEDIUM cam is equipped with guide elements out of sintermetal, the working surface is out of cast iron and the active return can be adjusted. The PREMIUM cam is equipped with guide elements out of sintermetal, the working surface is a remov- able mounting plate and the active return can be adjusted. Attention: The mounted gas springs serve for the additional reset of the cam slide. The working powers which are necessary for the operation are absorbed by the active return (only Medium- and Premium version). 4. Scope of delivery The PowerMax cam units are delivered preassembled and with a precise guide clearance. The mounted gas springs, unless otherwise desired, are delivered with maximal filling pressure. The working surface can already contain client-specific insertions. Also Premium special mounting plates belong to these. All cams can also be produced for the machining of high strength sheets, contrary to the angles in five steps described in the catalogue, in all intermediate angles according to customers’ requirements. Please contact us. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 8: Design Of The Powermax Side Cam
To be able to guarantee an equal running life, the load forces reduce, according to the position, on the working face. You will find detailed information in the catalogue indications concerning to your cam in the internet under: www.strack.de Basis <750,000 strokes Medium >1,000,000 strokes Premium >1,000,000 strokes Attention: If the cam should be superstructed with accessories a new calculation is necessary. Please contact us. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 9: Preparation Of Tool And Press
6. Preparation of tool and press Tool, press and peripheral devices have to be suited, prepared and adapted according to the indications of STRACK NORMA for the utilisation of the PowerMax cam unit. Drain off fluid (for example water or drawing compounds) well-directed by drainage. You have to take care that punching wastes don’t fall in or on the cam guidance. Cam slide and guidances can seize. Parts falling down can damage the guidances, hereby possibly the running life of the cam reduces. If there is a failure, the cam slide can’t be placed back in the initial position. 7. Shouldering The force distribution of the individual forces in the cams depends on the right shouldering in the tool and the cam angle. If the heights h1 and h2 (see the picture below) reduce in the tool, the forces of the shouldering can’t be completely absorbed. You will find detailed information in the catalogue indications concerning your cam in the internet under www.strack.de α STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 10: Production
AGIP Potra ATF Agip GR MU 2 BP Autran DX II Energrease ESSO ATF Suffix A Nebula EP 2 ESSO ATF - D Beacon EP 2 OMV ATF Serie OMV signum CX 2 SHELL Donax TM Retinax LX SHELL Donax TF STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 11: Handling
Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 8.1 Handling 8.1.1 Handling with safety ring bolt adapter (SN5655-PMO-SRA) The safety ring bolt adapter SRA facilitates the handling in many installation situations at the standard cams of the width 90, 125, 165, 230 and completes the existing hand- ling screw thread. The safety ring bolt adapter will be place on the prism surface and slips between the forced retreat to the noses hit and disengage the spring-loaded bolt and lock. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 12 The safety ring bolt adapter SN5655-PMO-SRA and the set of the assembling aid additionally supports you concerning the mounting of the cam slide together with the cam retainer in the tool. Because of the flexible positioning possibilities the cam can thus be positioned nearly parallel to the tool bottom. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 13 (Assembly lever) SN5650-PMU-0400 SN5653-M16-Montagehebel SN5653-M56 SN5650-PMO-0330 (Assembly lever) SN5650-PMO-0400 SN5650-PMO-0460 SN5650-PMU-0460 SN5650-PMO-0580 SN5650-PMU-0580 SN5650-PMO-0700 SN5650-PMU-0700 SN5650-PMO-0850 SN5650-PMU-0850 SN5650-PMO-1000 SN5650-PMU-1000 SN5650-PMO-1200 SN5650-PMU-1200 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 14: Handling With Safety Ring Bolt (Sn1594)
Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 8.1.2 Handling with safety ring bolt (SN1594) Beginning from the cam units 260, cam retainers and slides can simplified be mounted together by means of the safety ring bolt SN1594, because of the fact that the different positions of the handling screwing thread facilitates the mounting of the cam slide in the slide retainer. By changing the position of the safety ring bolt, the cam retainer and the cam slide can be simpler mounted together into the tool. Mounting of the cam retainer with the cam slide in the tool with lateral thread for the flexible mounting and turning of the cam. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 15: Marking Of The Cams
Z9093. Attention: Don’t remove the rails. If this should be inevitable in a case of a crash, the replacement strips have to be adjusted again. To avoid confusions within a series the assembly groups of the individual cams are marked within the series with numbers of 1 to ... (see picture below). During the mounting please absolutely consider the right coordination of the components to avoid problems. Additional markings on slide retainer and slide body make it possible to control the position of the cam in 1 the tool. 1 If the cam is moved together, the upper markings correspond; if the cam is extended the lower markings correspond. If the marking on the slide body is between the markings of the slide retainer, the whole cam is not driven back in the correct initial position. 1 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 16: Dismounting Of The Mounting Plate At Cam Widths 0065-0260 (Only Premium)
Loose the fixing screws of the guide strips. Remove the guide strips and put them aside (picture 1). Please take care that the sinter sliding surface is not damaged. Step 2 Push the mounting plate out of the precision groove guidance (picture 2). Reference borings on the sides of the mounting plate facilitate the adjustment and the positioning on the machining center. picture 1 picture 2 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 17: Mounting Of The Mounting Plate At Cam Units 0065-0260 (Only Premium)
9.1 Mounting of the mounting plate at cam widths 0065-02030 (only Premium) Step 1 Before pushing the mounting plate back in the groove guidance it is absolutely necessary to clean the stop lug (AN) and the t-nut guidance of both components, in order that the bearing surface for the guide strips builds a level during the assembly. The mounting plate is constructed in such a manner that the surface stands about 0.01 till 0.02 back behind the guide strip bearings. Step 2 Only mount the guide strips at the provided assembly site. Please that care the screws are secured with the screw locking adhesive Z9093. picture 1 picture 2 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 18: The Lock-Out-Systems
Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 10. The Lock-Out-Systems 10.1 Lock-Out-System SN5651-LOS This lock-out system can be used at mounted and dismounted standard cams. 10.2 Lock-Out-System SN5654-LOS This lock-out system can only be used at dismounted standard cams. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 19 SN5650-PMO-0230 SPB-0230 M12 x 140 32 x 15 SN5651-PMO-LOS- SN5651-LOS-SPS- SN5651-LOS-DS- SN5651-PMO-LOS-0230 SN5650-PMO-0260 SPB-0230 M12 x 140 32 x 15 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 20: Mounting Of The Lock-Out-System 5651-Los
Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 10.1.1 Mounting of the Lock-Out-System SN5651-LOS To fasten the cam for the insertion of borings, the fixation of the cam slide by means of a lock-out-system is necessary. For this purpose please act as following. picture 1 1. Dismounting of the gas spring picture 2 2. Dismounting of the slide stop with the damper STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 21 3 3. Mounting of the clamping block SN5651-LOS-SP Attention: Moving the body without the clamping block can cause damage to the sliding elements SN5651-LOS-DS picture 4 4. Clamping of the cam slide with the fixing screw SN5651-LOS-SPB SN5651-LOS-SPB / SPS 5. Clamping of the cam slide with the fixing screw SN5651-LOS-SPB STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 22: Lock-Out-System 5654-Los
SN5654-PMO-LOS-0065-55 55° SN3500-M8-40 SN5651-LOS-DS-19x15 SN5654-PMO-LOS-0065-60 60° SN3500-M8-40 SN5651-LOS-DS-19x15 SN5654-PMO-LOS-0065-65 65° SN3500-M8-40 SN5651-LOS-DS-19x15 SN5654-PMO-LOS-0065-70 70° SN3500-M8-40 SN5651-LOS-DS-19x15 SN5654-PMO-LOS-0065-75 75° SN3500-M8-40 SN5651-LOS-DS-19x15 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 23 SN5654-PMO-LOS-0165-55 55° SN3500-M10-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0165-60 60° SN3500-M10-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0165-65 65° SN3500-M10-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0165-70 70° SN3500-M10-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0165-75 75° SN3500-M10-55 SN5651-LOS-DS-32x15 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 24 SN5654-PMO-LOS-0260-55 55° SN3500-M12-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0260-60 60° SN3500-M12-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0260-65 65° SN3500-M12-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0260-70 70° SN3500-M12-55 SN5651-LOS-DS-32x15 SN5654-PMO-LOS-0260-75 75° SN3500-M12-50 SN5651-LOS-DS-32x15 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 25: Information Of The Lock-Out-System 5654-Los
10.2.1 Information of the Lock-Out-System SN5654-LOS Distribution of force: The new developed lock out system makes it possible to fix the corresponding standard cam free of play in its front end position. In doing so, the cam body is screwed with the cam reception. The special thing is that the clamping screws act under an angle on the corresponding bearing face. That means the cam body is once pulled by the divided (resulting) force against the prismatically arranged guide rails and at the same time is pulled against the pressure piece. Now the cam body is positioned free of play exactly in its front end position and is prepared for addi- tional machining. Please consider that the Lock-out-System can only be used in dismounted standard cams. At the most Power-Max standard cams the fixing holes are partly covered, if the cam body is in the front end position. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 26: Dismounting / Mounting Of The Gas Springs
1. Removing of the gas springs picture 1 Risk of injury picture 2 2. Mounting of the gas springs STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 27: Modification Of The System Pressure Of The Gas Springs
12.1 Discharging of the pressure at a gas spring 1. If necessary remove the closing plug. 2. To loose the valve, use a 3 mm socket wrench. Turn it to the right till the gas escapes (1-2 turns). 3. As soon as the gas spring is discharged, turn the valve to the left till the initial position is reached. The gas spring is ready to be charged. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 28: Increase Of The Pressure / Charging Of A Gas Spring
G1/8” in the gas spring. Continue with step 3. pressure (close the valve). For the gas springs with the connecting thread 5. The valve in the gas spring closes automati- M6-A/M8: cally. To discharge the pressure which is 2a Turn the adapter M6-A/M8 on the connecting still in the charging equipment, turnthe thread G1/8”. screw of the discharging valve slowly till the 2b Turn the charging equipment with the connector residual pressure escapes. Finally turn the M6 in the gas spring. Continue with step 3. adjusting screw of the discharging valve immediately back to its initial position. 6. Turn the charging equipment out of the gas spring. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 29 You must be able to press the piston rod begins to escape. down by hand to secure that the gas Stop and wait till the gas has escaped. Finally spring is depressurized! A dismounting screw the disc valve in anticlockwise direction to of the gas spring may only be effected in close it again (picture 4). a depressurized condition! SN2955-M6 Discharging lug SN2992 picture 2 picture 3 picture 4 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 30: Standstill And Storing
For the transport or storage of the tool with a mounted STRACK nitrogen gas spring system, it is reasonable to discharge the system pressure. Please consider that, according to the construction, components of the tool, during a longer storing, can uncontrollably be pushed together because of the lowering of the system p ressure of the gas springs in the cam units (Accident Prevention Regulation). Please check the system pressure of the gas spring before restarting the tool. If you have to increase the system pressure, act as described in chapter 11.2. 14. Maintenance Guide strips out of steel are hardened and normally are not submitted to any wear. If necessary these strips are adjusted during the mounting in the company STRACK to guarantee a low guide clearance. The fixing screws of these strips are secured with the bolt adhesive Z9093. The guide strips out of bronze with solid lubricant respectively sintered metal are submitted to a greater wear compared with the steel strips. The strips are produced in a narrow tolerance range. The exchange of these elements is thus effected without a new adjustment. If both guide partners are exchanged, the guide clearance has to be examined and if necessary has to be adjusted newly. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 31: Adjustment Of The Active Return
Loosen the fixing screws of the active returns (A) and of the adjusting wedge (B). Pull the adjusting wedge back and put the driver on the prism of the cam slide. After the installation of the driver on the cam slide push the active returns on the inserts of the driver and fix them by mov- ing the adjusting wedges in the direction of the arrow. Subsequently fix the screws in the reverse order. Fix the fastening screws of the adjusting wedges and the active returns, subsequently you secure the active return (A) and control the guide clearance with a 0.01 mm preci- sion calibre band. To avoid a tipping of the driver, both sides should be tightened in the same way. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 32: Comparison Bronze With Solid Lubricant And Sns Sinter Guiding Elements
Integrierter Schmierstoff / Integrated lubricant / Lubrifiant intégré Fe+Cu+Graphit+MoS2 Schmierstoffanteil / Portion of lubricant / Part du lubrifiant 15 -- 20 % STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 33 ESSO / Mobil Beacon EP2 ATF DEX II Tribol GR 4020 PD Castrol Spirax S1 ATF TASA SHELL Retinax LX STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 34 Already after 185.750 parts clear impressions of up to 0.02 mm in the counter bearing of the bronze guide rail. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 35: Appendix
Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 15. Appendix 15.1 Internet and CAD The company STRACK NORMA has created an online presence for the PowerMax cam elements which is tailored to the requirements of the constructing engineers. www.strack.de By using the link you can reach the corresponding homepage. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 36: General Description Of Gas Springs
All STRACK gas springs are supplied with a quality certificate. COMPONENT CHARACTERISTICS Body Developed in one piece up to strokes of 125 mm. In higher strokes they have a tubular construction with a welded lid. As a difference with other brands, STRACK incorporates a threaded joint between the two elements that eliminates the possible fatigue factor in the weld bead. Stem Fatigue-resistant steels are employed, which have specific treatments that ensure a long useful life. STRACK offers the maximum quality MICROFINISH on the surface of all its stems, thus ensuring a longer service life by reducing friction and wear and tear in the seals.. Bushing It incorporates a scraper, an element that avoids the entrance of filth. All bushings are designeavoiding a metal-to-metal contact, recurring to self-lubricating guiding elements. Reference to gastightness, specific seals are used, which have been painstakingly tested and which offer a high working yield even near their maximum limits of use. STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 37: Maximal Operating Conditions For Gas Springs
Maximum rate picture 2 The calculation of maximum rate per minute (N) is calculated following this formula: K = C alculation coefficient N = _________ (values detailed in the technical specifications for each model) (2 x S) + 50 S = Working stroke STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 38: Calculations Gas Springs
With the purpose of helping our customers we have a technical advice service. By means of this service, you will receive advice from specialised technicians, and all your queries will be answered. We will help you chose the most adequate product depending on the type of work you wish to carry out. Garantee and duration The guarantee that STRACK offers in gas springs is for one year as from the date of acquisition, or the equi- valente to a stem lineal displacement of 100,000 metres in gas springs with strokes equal to or over 25 mm. whereas in gas springs with shorter strokes the guarantee is of 2,000,000 cycles. The guarantee (which covers parts and labour costs) is applicable if and when the following conditions are fulfilled: 1. T he gas springs does not present defects due to dents (blows, scratches, welding detatchments, rust and so on..). 2. T heir application and use has been strictly within the limits of the technical conditions specified, and of the various applocable recommendations. 3. T he gas spring has not been manipulated (opening the gas spring cancels the guarantee). STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 39: Mounting Instructions Gas Springs
If possible fix the gas spring on the tool using the attachment holes at the bottom of the body or assembly accesories. Do not use threaded hole on the stem to fix the gas spring onto the tool. Do not install the gas spring onto the tool in such a way it makes a free stem ejection possible. The installation of a compressed gas spring is dangerous due to serious safety risks. The gas spring is to work completely perpendicularly to the contact surface. Lateral forces reduce the gas spring’s service life. Protect the gas spring from direct contact with liquid pollution: lubricants, cleaners and so on.. Protect the gas spring against mechanical damage or blows, especially the stem. Any imperfection may bring about a loss of pressure. Service temperature should not exceed 80°C. Higher temperatures will affect the seals, reducing the gas spring’s service life. Do not excede maximum filling pressures established for each Gas spring. Higher pressures will reduce both the gas spring service life and endanger its use. 03.2014 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... -
Page 40: Filling Pressure List Gas Springs
SN2808-C-1100 160 1100 7,07 212 283 354 424 495 566 636 707 778 848 919 990 1061 1131 1131 Näherungswerte, Abweichungen möglich / Approximate values, tolerances possible / Valeurs approchées, tolérances possibles STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 41 6627 SN2820-7500 150 7500 50,26 1508 2010 2513 3016 3518 4021 4523 5026 5529 6031 6534 7036 7539 7539 Näherungswerte, Abweichungen möglich / Approximate values, tolerances possible / Valeurs approchées, tolérances possibles STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 42 735 SN2910-M50 142 1000 7,06 212 282 353 424 494 565 635 706 777 847 918 988 1059 1059 Näherungswerte, Abweichungen möglich / Approximate values, tolerances possible / Valeurs approchées, tolérances possibles STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 43 PowerMax Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
-
Page 44: Exploded View And Item List
34.3 10.1 34.1 117.1 11.1 22.3 23.3 22.1 23.1 22.2 23.2 29.1 0°-30° 35°-75° 37.2 19.2 37.3 19.1 106.1 17.1 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de... - Page 45 PowerMax Operating instructions -- PowerMax cam unit PMO PowerMax cam unit SN5650-PMO-0065 — SN5650-PMO-0260 STRACK NORMA GmbH & Co. KG · Königsberger Str. 11 · D-58511 Lüdenscheid · Tel +49 2351 8701-0 · www.strack.de...
- Page 46 STRACK NORMA GmbH & Co. KG Königsberger Str. 11 D-58511 Lüdenscheid Postfach 16 29 D-58466 Lüdenscheid Tel +49 2351 8701-0 Fax +49 2351 8701-100 Mail info@strack.de Web www.strack.de 08.2018...
