Model
P470H
Hydraulic Drive Pump
Updated 04/22
Contents:
Installation Instructions:
Pump Specifications:
Exploded View:
Parts List / Kits:
Torque Specifications
Repair Instructions:
Dimensions:
Warranty Information:
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service Manual
page 2
page 3
page 4
page 5
page 5
pages 6-7
back page
back page
Advertisement
Related Manuals for Giant P470H
Summary of Contents for Giant P470H

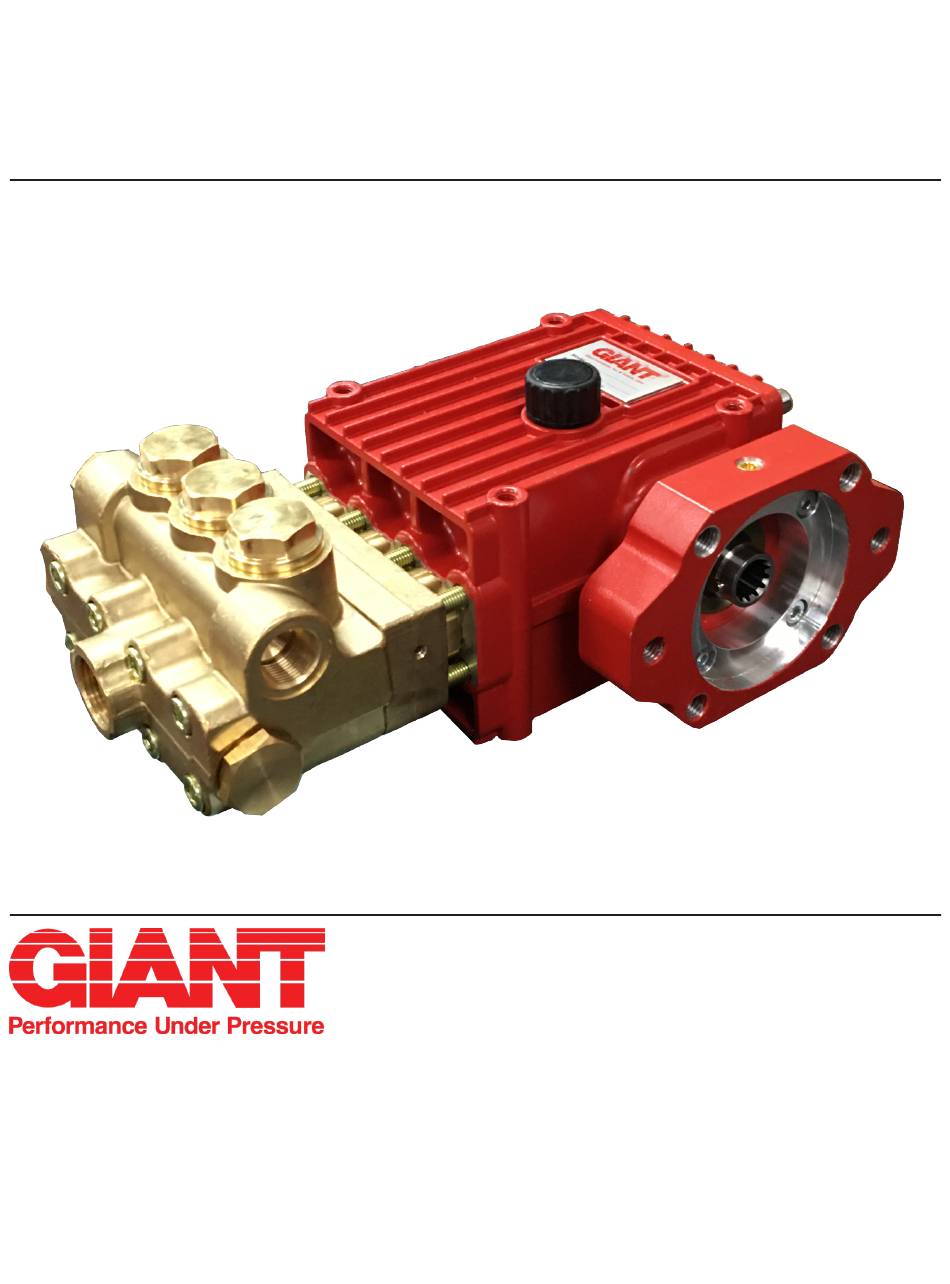

- Page 1 Model Triplex Ceramic Plunger Pump Operating Instructions/ P470H Repair and Service Manual Hydraulic Drive Pump Contents: Installation Instructions: page 2 Pump Specifications: page 3 Exploded View: page 4 Parts List / Kits: page 5 Torque Specifications page 5 Repair Instructions:...
- Page 2 ISO VG 220 GL4 (e.g. Aral Degol BG220) or takes place. Close suction line. Disconnect SAE 90 GL4 gear oil (Giant p/n 01154). fuses to ensure that the driving motor does not get switched on accidentally.
- Page 3 Specifications Model P470H U.S. METRIC Volume ................Up to 18.4 GPM ........69.7 L/min Discharge Pressure ............Up to 2030 PSI ..........140 Bar Max. Inlet Pressure ............-4.35 to 145 PSI ........-0.3 to 10 bar Power Required ............25.7 BHP ............. 19.2 kW Maximum Crankshaft Rotation Speed ..................Up to 1450 RPM Stroke ................0.94”...
- Page 4 Exploded View - P470H...
- Page 5 P470H PARTS LIST ITEM PART DESCRIPTION QTY. ITEM PART DESCRIPTION QTY. 07203 Support Ring 08377 Crankcase 07258 Copper Gasket 08378 Oil Fill Plug with Gasket 06790 Crosshead Pin 06479 Crankcase Cover 08366 Oil Seal 07186 Oil Sight Glass w/Gasket 06928...
- Page 6 REPAIR INSTRUCTIONS - P470H PUMPS To Check Valves 1. Remove plugs (32) with 2. Remove the exposed 3. Pull out valve seat (27) and socket wrench. spring tension cap O-ring (31) with a valve puller. (30) from valve seat by Check O-ring for wear.
- Page 7 REPAIR INSTRUCTIONS - P470H PUMPS 9. Check plunger surfaces (16). Damaged surfaces lead to accelerated seal wear. Deposits of all 10. If the plunger pipe (16B) is worn, remove kinds must be removed from the plungers. tension screw (16D) and remove together with plunger pipe.
- Page 8 Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those products returned freight prepaid to Giant Industries which are deemed to be defective due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration.
