Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron.
www.dosatronusa.com
l

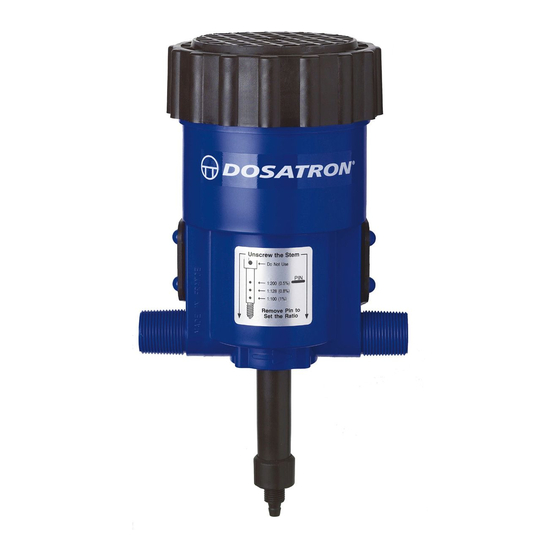

D128R Service

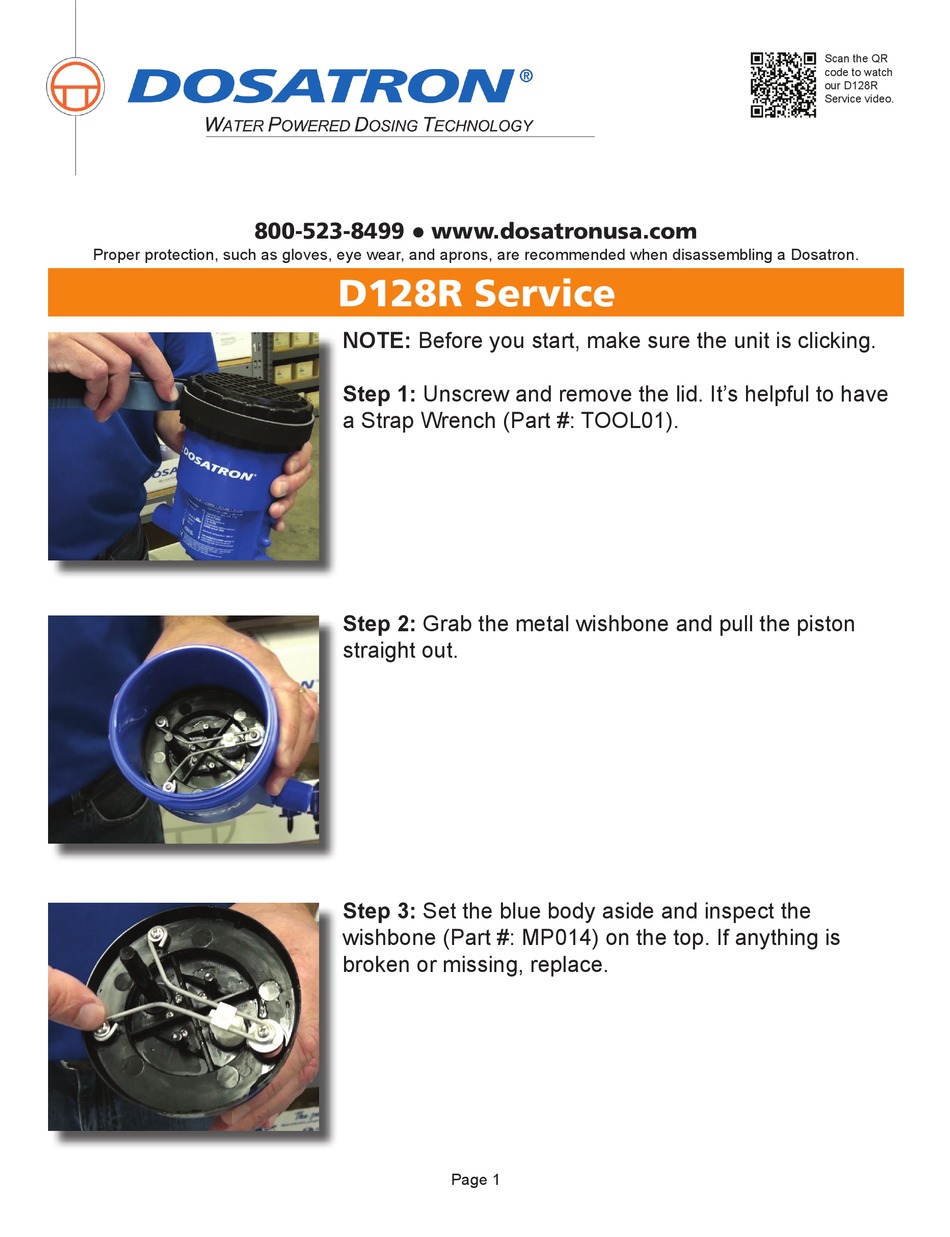

NOTE: Before you start, make sure the unit is clicking.
Step 1: Unscrew and remove the lid. It's helpful to have
a Strap Wrench (Part #: TOOL01).
Step 2: Grab the metal wishbone and pull the piston
straight out.
Step 3: Set the blue body aside and inspect the
wishbone (Part #: MP014) on the top. If anything is
broken or missing, replace.
Page 1
Scan the QR
code to watch
our D128R
Service video.
