- Page 1 Smart Controller for HDMI over IP series User Manual CONTACT 1.888.499.9906 | support@bzbgear.com | bzbgear.com FOLLOW US...
-
Page 2: Table Of Contents
However, like all electronic equipment, the BG-VOP-CB should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. -
Page 3: Introduction
IP based BG-VOP-MT transmitters and receivers. With high expandability, a single BG-VOP-CB can serve up to 1024 transmitters and unlimited receivers at once. An intuitive web- based GUI enables users to drag and drop any source to any display, build video wall, create custom OSD, and schedule the operation for video and power. -
Page 4: Specifications
SPECIFICATIONS Model Name BG-VOP-CB Technical Role of usage Smart Controller Input 1x RJ-45 Output 1x HDMI HDMI connector Type A [19-pin female] RJ-45 connector WE/SS 8P8C Mechanical Housing Metal enclosure 90 x 78 x 29mm Model Dimensions Package 198 x 137 x 74mm... -

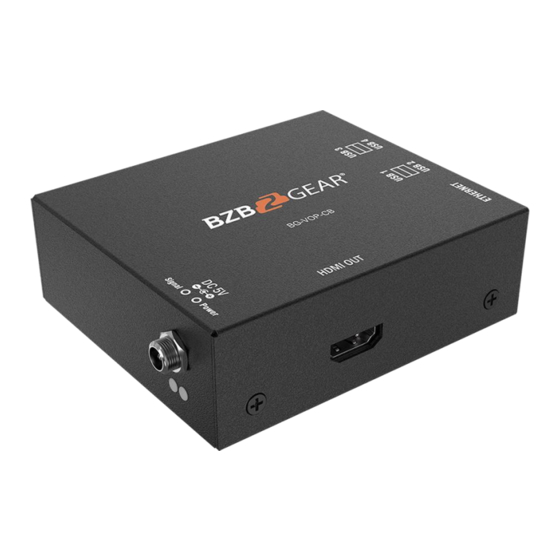

Page 5: Panel Descriptions
Activity LED indicator: When the storage device is being used, the light will blink Power LED indicator: When unit connect a power supply unit, the light will shine +5V DC:+5V DC power jack Output: HDMI output, it displays the information of controller RJ-45: Ethernet control port USB: Reserved CONNECTION DIAGRAM BG-VOP-CB... -
Page 6: Operation Approach
Method A: Web Control User Interface pages Connect the HDMI over IP extenders to the Router/Ethernet Hub. Login Open the browser and enter the IP address of BG-VOP-CB and 8080 as the port number. For example, 169.254.7.232:8080. Account: admin Password: admin... - Page 7 Control Interface Mapping Setup Video Wall History Log-out Event 1. Mapping On this Page, you can see runtime status of all TX/RX device in controller. The way to do input/output mapping is to drag TX icon to RX icon. It also provides 10 profile spaces to save the frequently used scenarios into the device.
- Page 8 Type Button Function Edit device name Click the button to search for corresponding TX/RX device, and the device LED light will blink for 5-10 seconds. RX/TX Settings Group ID IP address Turn on/off the Video Number of RX subscribed to this TX Drag the TX icon to the button to switch all RX...
- Page 9 (2) Multiple RX Video Wall Layout In this part, users can set the bezel for multiple RX at one time. Select the RX to be set, and then click the button. (3) Advanced Options This section allows users to adjust the video wall settings in a more precise way. This method should only be used for fixed video wall displays that will not use multiple presets.
- Page 10 3. OSD BG-VOP-CB provides 8 custom OSD windows for users to input the texts or images to be shown with the video. User can click the button to upload photos (only accept png or jpg files). Also click the button to adjust the message text, photo, transparency, position, color and size.
- Page 11 4. Event User can set up the condition of trigger point and e-mail groups in advance. When event happens, then BG-VOP-CB will take action for self-recovery, real-time notification and alert e- mail. 5. Setup (1) Devices After connecting the HDMI over IP transmitter and receiver units to the Router/Ethernet Hub, the BG-VOP-CB will automatically add the device into the control system.
- Page 12 (3) System Config In this part, users can set system type according to device, time zone, network, and user interface. (4) FW Update Before you start to update, please make sure the computer and device in the same network domain. Click "Upload Firmware File" to select the firmware file (.zip). You can also hold down the mouse, drag the picture, and then drop it into the search box.
-
