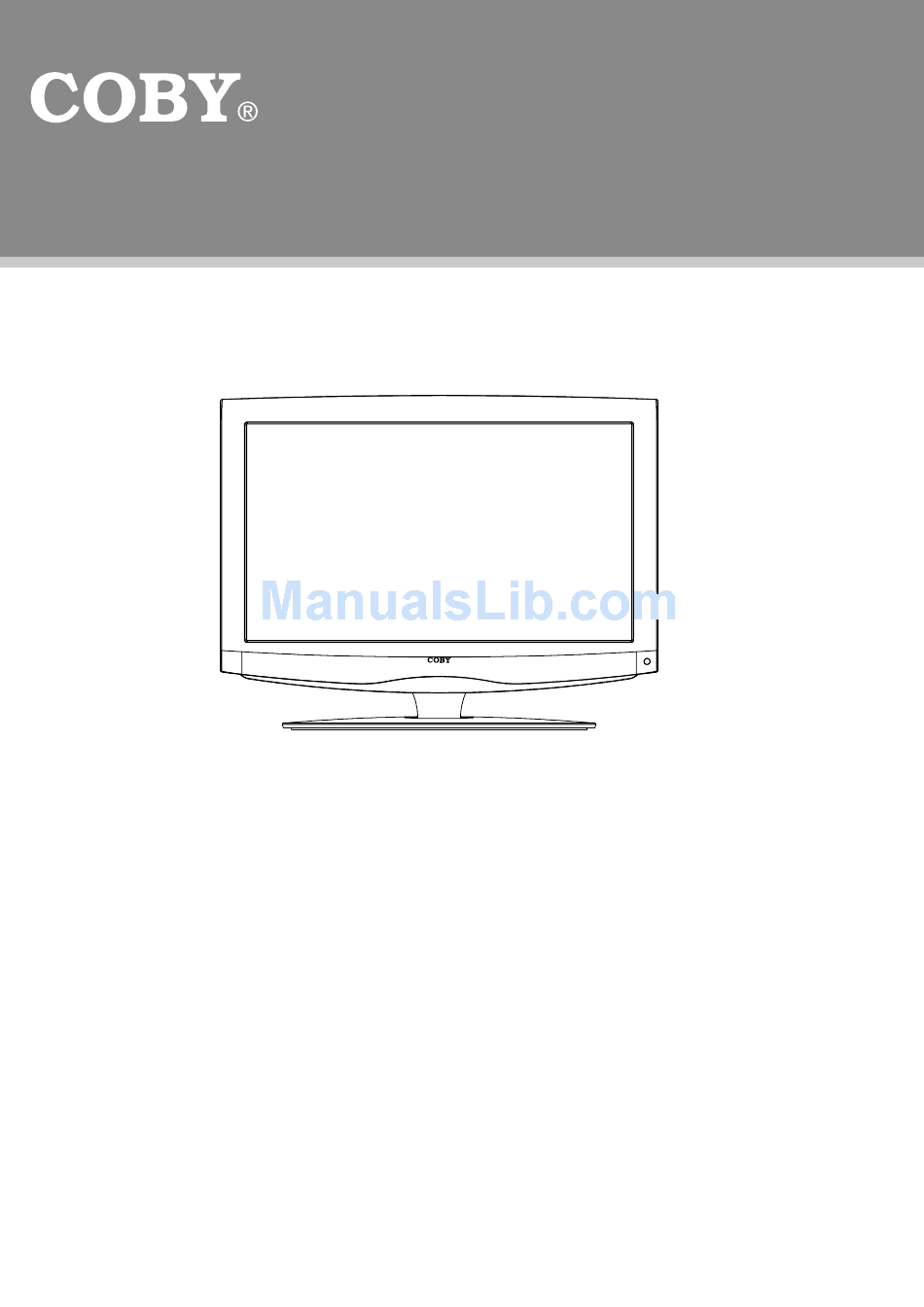

Page 1: Instruction Manual
TFT LCD Widescreen Television Instruction Manual TFTV1925/2225 Please read this manual carefully before connection and use... -
Page 2: Power Supply
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. For Customer Use: Enter below the serial number that is located on the rear of the unit. Retain this information for future ref- erence. - Page 3 FCC Statement: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be...
-
Page 4: Important Safety Instructions
Important Safety Instructions Read Instructions: All the safety and operating instructions should be read before the product is operated. Retain Instructions: The safety and operating instructions should be retained for future reference. Heed Warnings: All warnings on the product and in the operating instructions should be adhered to. Follow Instructions: All operating and usage instructions should be followed. Cleaning: Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a dry cloth for cleaning. Attachments: Use only attachments recommended by the manufacturer. Use of other attachments may be hazardous. Water and Moisture: Do not use this product near water (e.g., near a bath tub, washbowl, kitchen sink, laundry tub, in wet basements, or near a swimming pool and the like). Accessories: Do not place this product on an unstable cart, stand, tripod, bracket, or table. Use only with carts, stands, tripods, brackets, or tables recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer ’s instructions and should use a mounting accessory recommended by the manufacturer. - Page 5 Important Safety Instructions Damage Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) when the power-supply or plug is damaged; b) if liquid has been spilled or if objects have fallen into the product; c) if the product has been exposed to rain or water; d) if the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation; e) if the product has been dropped or damaged in any way; f) when the product exhibits a distinct change in performance—this indicates a need for service. Replacement Parts: When replacement parts are required, be sure that your service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part.
-
Page 6: Table Of Contents
Table of Contents Table Of Contents Precautions Important Safety Instructions Main Feature-----------------------------------------------------------------------------------------------------------------------------1 Package Contents-----------------------------------------------------------------------------------------------------------------2 Unit View---------------------------------------------------------------------------------------------------------------------3 Remote Control ------------------------------------------------------------------------------------------------------------------4 Cable Connections----------------------------------------------------------------------------------------------------------------6 TV Function----------------------------------------------------------------------------------------------------------------10 AV Function-----------------------------------------------------------------------------------------------------------------------------14 PC Function----------------------------------------------------------------------------------------------------------------------------15 Troubleshooting -----------------------------------------------------------------------------------------------------------------------16 Specifications ----------------------------------------------------------------------------------------------------------------------17... -
Page 7: Main Feature
Main Features This product incorporates the LCD display and the TV receiver in one system. Multiple Mode S-VIDEO COMPONENT HDMI High Quality Property High Resolution Adopt an MPEG2 decoding format to achieve horizontal resolution more than 500 lines. Superior sound Built-in Dolby Digital decoder to output high quality sound effects. Screen Support the picture size of a normal screen (4:3) and a wide screen (16:9) LCD (Liquid Crystal Display) Designed with color TFT liquid crystal display clearly shows the data. NOTE: It is normal for a TFT screen to experience some light or dark spots appearing on the LCD screen. -
Page 8: Package Contents
Package Contents Please make sure the following items are included with your LCD TV/monitor. If any item is missing, contact your dealer. a, Main Unit b, Power Cord & RCA Cable c, Remote Control Unit... -
Page 9: Unit View
1. TFT SCREEN Present high resolution pictures 2. POWER INDICATOR Lights blue in the standby/power-on mode, 3. REMOTE SENSOR Sense the remote control signal. 4. VOL+/- Adjust sound output level. 5. CH+/- Press to skip channels. 6. MENU Display the system setup menu. 7. SOURCE Press this button to display a working mode option menu, use the up/down direction button to select the desired mode, press OK to enter. 8. POWER Press to turn on/off the player. 9. Wall Mounting Thread X 4 10. Connector Panel 11. Unit Stand Wall Mounting - Attach the TV case to the wall • Separate the TV case and the stand-base by removing screws before installation. • Use the VESA standard mountings to fix the unit on the wall. Take care when mounting, it may cause damage or serious injury should it fall from its mountings. See the Specification page for VESA informaiton. A variety of mounts are available in your local retailer, see instructions when installing the unit. -
Page 10: Remote Control
Remote Control Drawing 1. POWER Press to turn on/off the unit. 2. Numeric Keypad Press to input data. 3. "-" Button Used with number buttons to access TV programs. 4. VOLUME +/- Press to adjust sound level. 5. CH/LIST Press to display the program list. 6. FORMAT Press to set the screen format. 7. SLEEP Press to access the sleep timer. 8. CC Set the closed caption mode. 9. EPG Access the Electronic Program Guide. 10. SOUND Press to set the sound mode. 11. LIGHT Press to set the front panel light on/off. 12. MUTE Press to muffle/release sound. 13. RETURN Press to reveal the previously viewed channel. 14. SOURCE Press this button to display the working mode menu, use the up/down direction button to select a desired mode, press OK to enter. 15. CH+/- Press to skip channels. 16. MENU Press to show the system menu. 17. FAV Press to display the favorite channel list. 18. P.Mode Select the picture mode. 19. Direction &OK Use direction buttons to select options in the system setup menu, press OK to confirm settings. - Page 11 Remote Control Preparation • Remove the battery compartment cover located on the rear of the remote control. Insert 2 x “AAA” batteries, making sure to match their polarities (+/-) to the markings on the inside of the compartment. Replace the cover. • Batteries in the remote will last for approximately 6 months under the normal use. Replace the batteries if the remote control does not work. Do not mix old with new batteries, or different types of batteries. • Remove the batteries from the remote if it will not be used for a long period of time. Warnings: The battery used in this device may present a fire or chemical burn if mistreated. Do not recharge, disassemble, incinerate, or heat the battery (~212ºF).
-
Page 12: Cable Connections
Cable Connections Figure. Cable connections Antenna/Power Connection Connect TV RF sources to the antenna port. TV RF signals include: receiving antenna/CATV net. You can use 75 Ohm coaxial cable to connect outdoor antenna. Insert one end of the supplied power cord to the player’s power jack and the other end to the 110-240V AC wall outlet. Wall Outlet 100~240V VGA Input - PC Connection The VGA port of the TV is capable of accepting high-definition signals from computers with a VGA output jack. When used as a computer moniter, turn off both units and then connect the VGA jack and the PC Audio In jack with a 15-Pin D-Sub cable and a 3.5mm stereo audio cable. The mentioned cables are not included with this product. IMPORTANT NOTICE Be sure to have all necessary connections properly done before connect the power supply. If you have difficulty inserting the plug, turn it over and re-insert it. If the product will not be used for a long period of time, disconnect the power. - Page 13 Cable Connections Coaxial Output - Digital Audio Output Connector When MPEG audio or Dolby Digital audio is played, Dolby Digital bitstream or MPEG audio bitstream is sent to the player’s digital audio output connector. When the player is connected to a Dolby or MPEG audio decorder via this output socket, you can enjoy theater-quality audio in your home. An optical audio cable is required when a Dolby Digital decoder or MPEG audio decoder is used. The mentioned cable is not included with this product. External Audio and Video Signal Input - HDMI, RCA, S-VIDEO,COMPONENT. The player's AV function would enable users to view programs from external signal sources.
- Page 14 Cable Connections HDMI Input HDMI (High Definition Multimedia Interface) is a new type of connection that transmits digital audio and video signals simultaneously over a single cable. A HDMI cable is required for the HDMI connection. These HDMI input connectors are capable of receiving video at resolutions up to 1080p (1080-progressive). HDMI Cable Component Input (Y Cb/Pb Cr/Pr) The component port is capable of accepting high-definition signals from standard video sources. (e.g., cable/ satellite boxes, DVD players, VCRs, etc.) Connect the Y, Cb/Pb, Cr/Pr port by the component cable to input the video signal. Component cabel is not included with this product. Use the red and white plug of supplied AV cable to connect R,L port for audio transmission. External AV Source External AV Source...
- Page 15 Cable Connections S-Video Input The S-Video port is capable of accepting signals from standard video sources. (e.g., cable/satellite boxes, DVD players, VCRs, etc.) Connect the S-Video port by the S-Video cable to input the video signal. S-Video cable is not included with this product Connect the L, R port by the white/red plug of the supplied AV cable to input the audio signal. External AV Source RCA Input The CVBS port is capable of accepting signals from standard video sources(e.g., cable/satellite boxes, DVD players, VCRs, etc.) Connect the VIDEO port with the yellow plug of the the supplied AV cable. Connect the L, R port with the white/red plug of the supplied AV cable to input the audio signal. Supplied RCA Cable External AV Source...
-
Page 16: Tv Function
Preparations Connect cables.(Refer to the “Cable Connections” section for details). Press the POWER button to turn on the player. Press the MODE button to select the TV signal mode. Press the CH+/- buttons to skip channels. Or you can press the number buttons to input channels directly. For the initial use, you need to scan channels under the Channel Menu. See the "Channel Menu" section for details. System Setup Menu Various features can be preset through the setup menu, please read this section carefully. • Press MENU to display the system menu window.. • Press the left/right direction button to select the desired menu, press the down direction button or the OK button to enter. While working with the menu, Press the up/down direction button to select the option. Press the left/right direction button to adjust. Press MENU to exit/back up the setup menu. Picture Menu ITEM DESCRIPTION... - Page 17 Audio Menu ITEM DESCRIPTION Sound Mode Set the sound mode. (Standard, Music, Movie, Sports,Personal). Bass Adjust the bass. Treble Adjust the treble. Balance Adjust the sound balance. Surround Set the audio surround effect on/off. AVC Set AVC on/off. MTS Set the MTS audio for the ATV mode. (Mono, Stereo, SAP) Audio Set the audio language. (English, French, Spanish) Language Time Menu ITEM DESCRIPTION Sleep Timer The unit will shut down automatically on the Sleep Time. The available option is 5/10/15/30/45/60/90/120/180/240 min, Off. The count down would start immediately after setting. You can access this function by repeatedly pressing the SLEEP button on the remote also. To check the timer left, press the SLEEP button on the remote once. To cancel the sleep timer, set the timer to Off. Time Zone Set the DTV time zone. (Pacific, Alaska, Hawaii, Eastern, Central, Mountain) Daylight Saving Time Set the DTV daylight saving function on/off. Clock Display the DTV clock information.
- Page 18 Setup Menu ITEM DESCRIPTION Menu Language Set the menu language. Transparency Set the OSD(On-Screen-Display) transparency on/off. Zoom Set the display aspect ratio. (4:3, Cinema, Normal, 16:9) Noise Reduction Adjust the screen noise appearance. (Weak, Middle, Strong, Off) Advanced This option is available for the VGA mode Closed Press the right direction button to access the Closed Caption menu. Caption There are four options listed under the Closed Caption menu. CC Mode - Set the CC mode. ( Off, On, CC On Mute) Basic Selection - Set the basic CC type. (CC1~4, Text 1~4) Advanced Selection - Set the advanced CC type. (Service 1~6) Option - Press the right direction button to enter Option. Under the option menu, set Mode as Custom to edit the DTV CC type to your own liking. DLC Set DLC on/off Restore Default Set the player to the factory default. Lock Menu ITEM DESCRIPTION Enter You are required to enter the 4-digit password to access the Lock menu. The initial password is 0000. Change To change the password, input the old password - - > input the Password...
- Page 19 Channel Menu ITEM DESCRIPTION Air/Cable Setup the antenna type as Air or Cable. Auto Scan Search channels automatically. Select this option, press the right button to start searching, press MENU to stop. When use Cable system, you need to select the cable system first from AUTO, STD, IRC and HRC before scaning. Favorite Make the favorite channels collection. Select this option, press the right direction button to access the Favorite List. In the Favorite List, press the up/down direction button to select the desired channel. Press OK to mark it as the favorite channel. To disable the setting, press OK again. Press the left/right button to turn pages in the FAV list. Show/Hide Hide unwanted programs. Select this option, press the right direction button to access the Show/Hide menu. In the Show/ Hide menu, press the up/down direciton button to select the program, press OK to hide, press OK again to revea the hidden program. Press the left/right button to turn pages in the Show/ Hide list. Channel No Press the left/right button to select the desired channel. Channel Label Edit the channel label. 1. Select the channel you want to put a label. You can use the Channel No option or directly locate the channel by the number panel/CH+/- button. 2. Select “Channel Label”, press the right direction button to show the edit menu. In the menu, press the left/right direction button to move left/right, press the up/down direction button to change characters. DTV Signal Display the DTV signal intensity. TV Function...
-
Page 20: Av Function
The player’s AV input function would enable user to view programs from external signal sources. When input AV signals, read the user's manual of the external device as well. Connect the external AV signal source. Refer to the “Cable Connection” section for details Press the MODE button to select the relevant AV mode (AV, S-Video, Component, HDMI). System Setup Menu Various features can be preset through the system menu, please read this section carefully. • Press MENU to display the system menu window.. • Press the left/right direction button to select the desired menu, press the down direction button or the OK button to enter. While working with the menu, Press the up/down direction button to select the option. Press the left/right direction button to adjust. Press MENU to exit/back up the setup menu. NOTE: Please see the TV section for menu descriptions AV Function Warm... -
Page 21: Pc Function
You can use the unit’s TFT LCD as your computer’s monitor. Shut down the unit and the computer, connect the VGA jack and PC Audio In jack. See the “Cable Connection” section. Turn on the units and press the MODE button to select VGA System Setup Menu Various features can be preset through the system menu, please read this section carefully. • Press MENU to display the system menu window.. • Press the left/right direction button to select the desired menu, press the down direction button or the OK button to enter. While working with the menu, Press the up/down direction button to select the option. Press the left/right direction button to adjust. Press MENU to exit/back up the setup menu. NOTE: Please see the TV section for menu descriptions. Adjust the PC Screen Upon switching to the PC mode, the moniter will be automatically regulated for a proper functioning. If the result is not up to your expectation, please perform the... -
Page 22: Troubleshooting
If you have a problem with this device, please read the troubleshooting guide section and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. Symptom Check and Action No Power • Make sure the unit has been powered on manually. • Check if the power cord has been properly connected to the power outlet. • Check if the main power has been switched on. No Picture • Try another TV channel • Check if the system connection is proper and secure. • Check if the connection cables are damaged. No Sound • Increase the volume. • Check if the MUTE function of the unit has been activated. -
Page 23: Specifications
TFTV 1925/2225 Active Area TFT Panel Characteristic Resolution Display Color Pixel Pitch TV System TV Charactoristic Antenna Impedance Power Consumption Standard Operating Temperature Range Dimension/Weight Wall Mounting Specification 18.5"/22" 1366X768 6 bit -16.7 M 0.3(H) x 0.3(V) ATSC/NTSC 75Ω 100-240V 50/60Hz On Working Speaker 1ºc-41ºc VESA M ( ), ( ) x ( ) MM 30W(Max) 2x(4Ω,5W)
