Summary of Contents for Coby TFTV2425
-

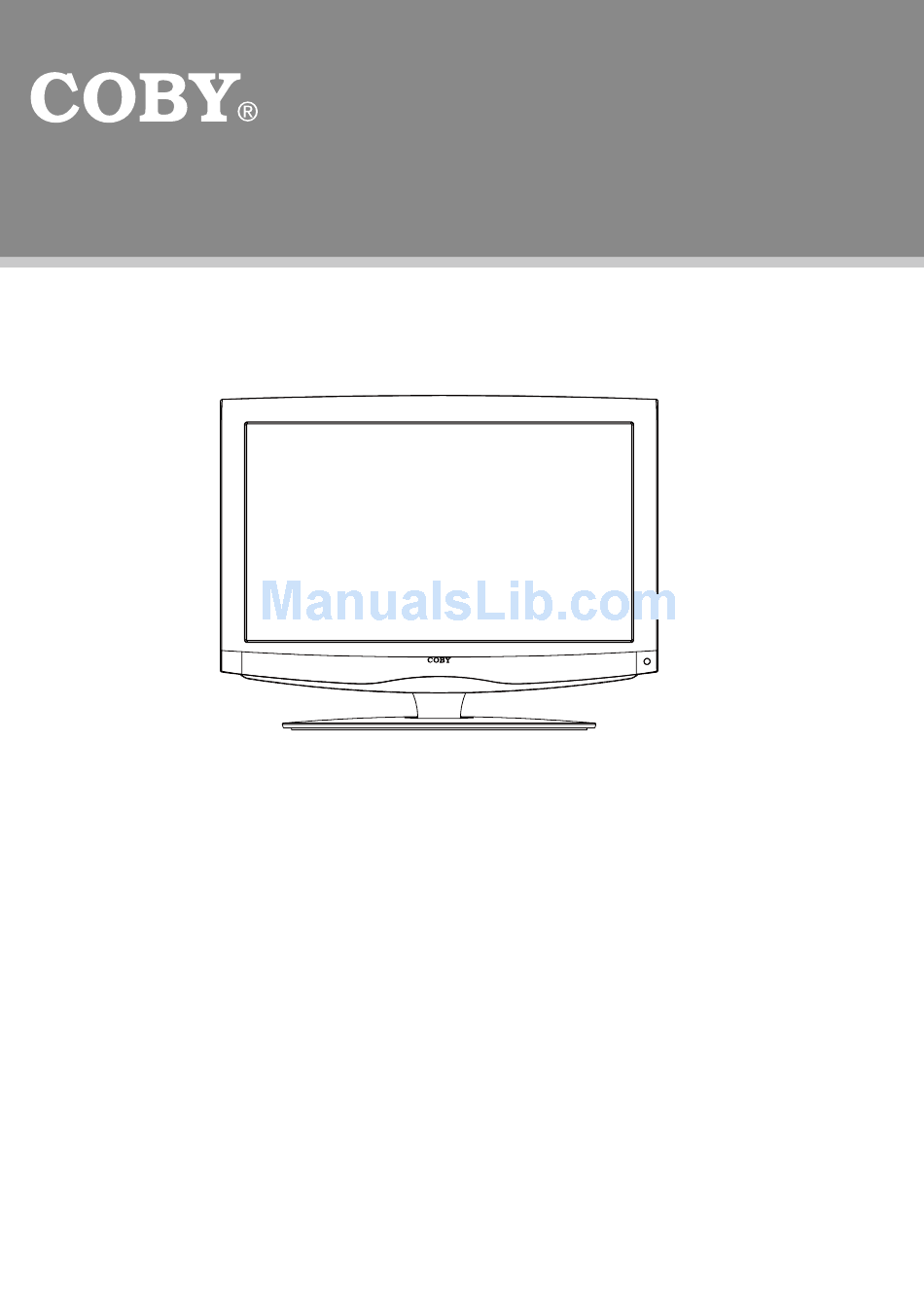

Page 1: Instruction Manual
TFT LCD Widescreen Television Instruction Manual TFTV2425/1525/1925/2225 Please read this manual carefully before connection and use TFTV1525/1925/2225 VER.S2... - Page 2 Precautions The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and servicing instructions in the literature accompanying the appliance.
- Page 3 Precautions WARNING: To prevent fire or shock hazard, do not expose this device to rain or moisture. Dangerous high voltage is present inside the enclosure. Do not open the cabinet. Note: If the product suddenly has no response or powers off, an electrostatic discharge may be the cause. In this circumstance, please follow the procedures below for recovery: •...
-
Page 4: Important Safety Instructions
Important Safety Instructions Warnings and precautions To prevent any injuries, the following safety precautions should be observed in the installation, use, servicing and maintenance of this equipment. Before operating this equipment, please read this manual completely, and keep it nearby for future reference. Important Safety Instructions Read Instructions: All the safety and operating instructions should be read before the product is operated. - Page 5 Legal and Trademark Notices Coby is a registered trademark of Coby Electronics Corporation. All other trademarks and logos are property of their respective owners unless indicated otherwise. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
-
Page 6: Table Of Contents
Table of Contents Table Of Contents Precautions Important Safety Instructions Main Feature-----------------------------------------------------------------------------------------------------------------------------1 Package Contents-----------------------------------------------------------------------------------------------------------------2 Unit View---------------------------------------------------------------------------------------------------------------------3 Remote Control ------------------------------------------------------------------------------------------------------------------4 Cable Connections----------------------------------------------------------------------------------------------------------------6 TV Function----------------------------------------------------------------------------------------------------------------10 AV Function-----------------------------------------------------------------------------------------------------------------------------14 PC Function----------------------------------------------------------------------------------------------------------------------------15 Troubleshooting -----------------------------------------------------------------------------------------------------------------------16 Specifications ----------------------------------------------------------------------------------------------------------------------17... -
Page 7: Main Feature
Main Features This product incorporates the LCD display and the TV receiver in one system. Multiple Mode S-VIDEO COMPONENT HDMI High Quality Property High Resolution Adopt an MPEG2 decoding format to achieve horizontal resolution more than 500 lines. Superior sound Built-in Dolby Digital decoder to output high quality sound effects. -
Page 8: Package Contents
Package Contents Please make sure the following items are included with your LCD TV/monitor. If any item is missing, contact your dealer. a, Main Unit b, Power Cord & RCA Cable c, Remote Control Unit... -
Page 9: Unit View
Unit View 1. TFT SCREEN Present high resolution pictures 2. POWER INDICATOR The indicator lights bright blue when the TV is on, it will dim when the TV is turned off (standby mode). 3. REMOTE SENSOR Sense the remote control signal. 4. -
Page 10: Remote Control
Remote Control Remote Control Drawing 1. POWER Press to turn on/off the unit. 2. Numeric Keypad Input numberic data. Access the TV channel directly. 3. Sub-channel Selector <-> This button is usualy used with the numeric keypad to tune to a channel substation (e.g., 4-1, 4-2). e.g. - Page 11 Remote Control Remote Control Preparation • Remove the battery compartment cover located on the rear of the remote control. Insert 2 x “AAA” batteries, making sure to match their polarities (+/-) to the markings on the inside of the compartment. Replace the cover.
-
Page 12: Cable Connections
Cable Connections Antenna/Power Connection Connect TV RF sources to the Coaxial TV Antenna In jack. TV RF signals include: receiving antenna/ CATV net. You can use 75 Ohm coaxial cable to connect outdoor antenna. Insert one end of the supplied power cord to the player’s power jack and the other end to a 110-240V AC wall outlet. - Page 13 Cable Connections Coaxial Output - Digital Audio Output Connector If you are using the built-in TV tuner, you may want to play the TV audio through your stereo system for better sound quality. Select TV from the Input source menu to use this connection to watch TV with digital audio sound.
- Page 14 Cable Connections HDMI Input HDMI (High Definition Multimedia Interface) is a new type of connection that transmits digital audio and video signals simultaneously over a single cable. A HDMI cable is required for the HDMI connection.This cable has a male HDMI Type-A connector on each end, carrying both digital video and audio. These HDMI input connectors are capable of receiving video at resolutions up to 1080p (1080-progressive).
- Page 15 Cable Connections S-Video Input The S-Video port is capable of accepting signals from standard video sources. (e.g., cable/satellite boxes, DVD players, VCRs, etc.) Connect the S-Video port by the S-Video cable to input the video signal. S-Video cable is not included with this product Connect the L, R port by the white/red plug of the supplied AV cable to input the audio signal.
-
Page 16: Tv Function
TV Function Preparations Connect cables.(Refer to the “Cable Connections” section for details). Press the POWER button to turn on the player. Select the TV signal mode, using the SOURCE button. Press the CH+/- buttons to skip channels. Or you can press the number buttons to input channels directly. - Page 17 TV Function Audio Menu ITEM DESCRIPTION Set the audio mode as Custom/Standard/Theater/ Mode Music/News. Treble/Bass/Balance Press the left/right direction button to adjust settings. When you select an audio Mode other than "Custom", these items are automatically given parameters to correspond with the chosen preset mode, so any change to these parameters would return the Mode setting to “Custom”...
- Page 18 TV Function Settings Menu ITEM DESCRIPTION You are required to enter the 4-digit password to access this Parental option. The initial password is 0000. Controls Button Lock - This option would enable users to lock buttons on the unit panel. Block Unrated TV -The option would enable users to lock unrated TV program.
- Page 19 TV Function Settings Menu ITEM DESCRIPTION This option would enable users to adjust Date/Time information Time as well as to setup the sleep timer. Date/Time - Enter this option, set "Mode" as "Auto" / "Custom". When Mode is set as "Auto", system would adjust date/time information automatically after you select a desired Time Zone.
-
Page 20: Av Function
AV Function The player’s AV input function would enable user to view programs from external signal sources. When input AV signals, read the user's manual of the external device as well. Connect the external AV signal source. Refer to the “Cable Connection” section for details Use the SOURCE button to select the relevant AV mode (AV, S-Video, Component, HDMI). -
Page 21: Pc Function
PC Function You can use the unit’s TFT LCD as your computer’s monitor. Shut down the unit and the computer, connect the VGA jack and PC Audio In jack. See the “Cable Connection” section. Turn on units and use the SOURCE button to select VGA System Setup Menu Various features can be preset through the setup menu, please read this section carefully. -
Page 22: Troubleshooting
Trouble Shooting If you have a problem with this device, please read the troubleshooting guide section and check our website at www.cobyusa.com for Frequently Asked Questions (FAQs) and firmware updates. If these resources do not resolve the problem, please contact Technical Support. Symptom Check and Action •... -
Page 23: Specifications
Specification TFTV 2425 Active Area 23.6" TFT Panel 1920x1080 Resolution Characteristic Display Color 16.7M 0.2715(H) x 0.2715(V) Pixel Pitch TV System ATSC/NTSC TV Charactoristic Antenna Impedance 75Ω Standby Power Consumption <1W AC100-240V 50/60Hz Power Consumption On Working 50W(Max) Standard Speaker 2x(4Ω,5W) 0ºc-40ºc Operating Temperature Range... - Page 24 Specification TFTV 1925 (S2) Active Area 18.5" TFT Panel 1366X768 Resolution Characteristic Display Color 6 bit -16.7 M 0.3(H) x 0.3(V) Pixel Pitch TV System ATSC/NTSC TV Charactoristic Antenna Impedance 75Ω Standby Power Consumption <1W AC100-240V 50/60Hz Power Consumption On Working 30W(Max) Standard Speaker...
