SIM -05 Installation Instructions

Shock and glass breake detector

Advertisement

Quick Links

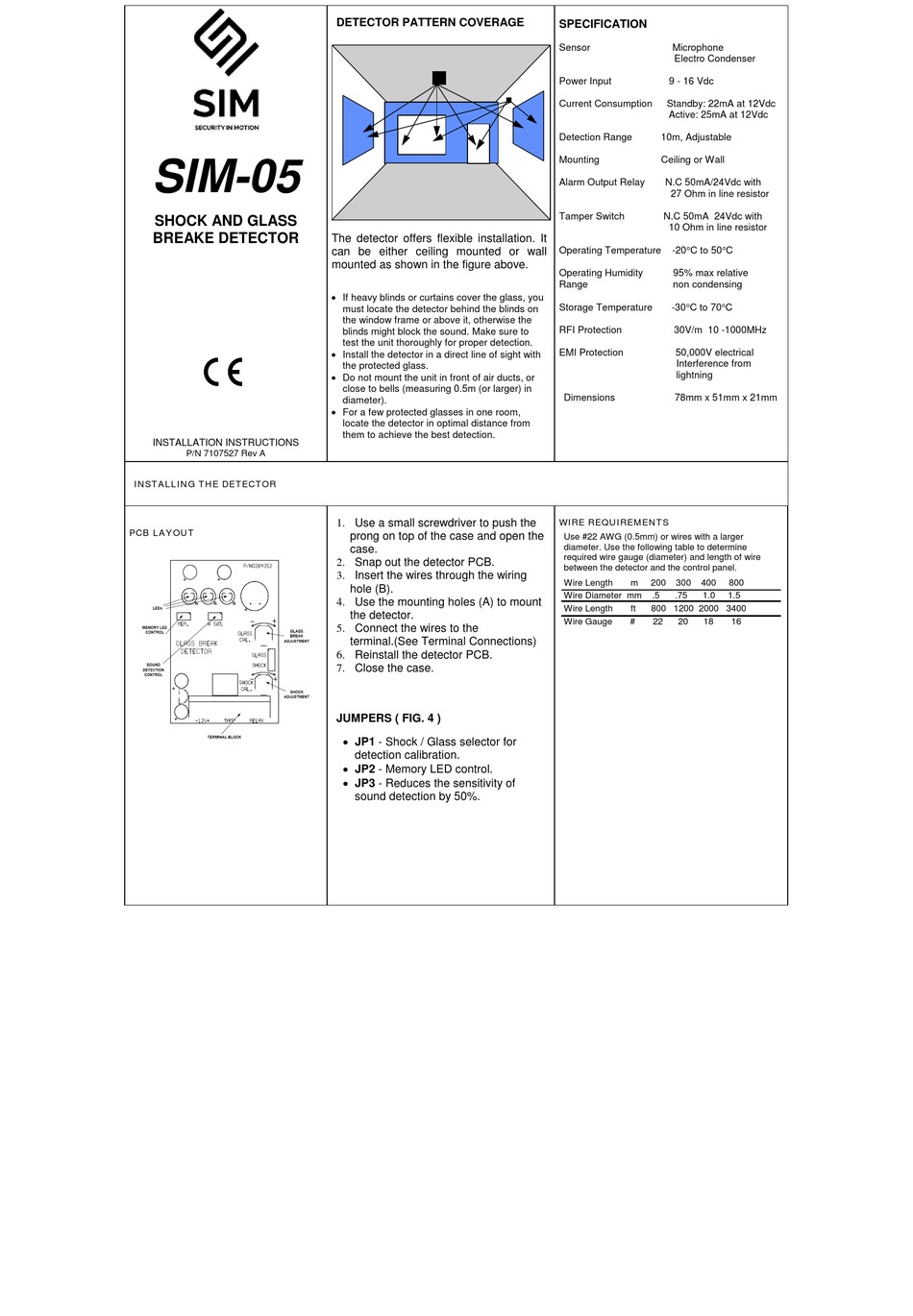

SIM-05
SHOCK AND GLASS
BREAKE DETECTOR
INSTALLATION INSTRUCTIONS
P/N 7107527 Rev A
INSTALLING THE DETECTOR
PCB LAYOUT
DETECTOR PATTERN COVERAGE
The detector offers flexible installation. It
can be either ceiling mounted or wall
mounted as shown in the figure above.
 If heavy blinds or curtains cover the glass, you
must locate the detector behind the blinds on
the window frame or above it, otherwise the
blinds might block the sound. Make sure to
test the unit thoroughly for proper detection.
 Install the detector in a direct line of sight with
the protected glass.
 Do not mount the unit in front of air ducts, or
close to bells (measuring 0.5m (or larger) in
diameter).
 For a few protected glasses in one room,
locate the detector in optimal distance from
them to achieve the best detection.
1. Use a small screwdriver to push the
prong on top of the case and open the
case.
2. Snap out the detector PCB.
3. Insert the wires through the wiring
hole (B).
4. Use the mounting holes (A) to mount
the detector.
5. Connect the wires to the
terminal.(See Terminal Connections)
6. Reinstall the detector PCB.
7. Close the case.
JUMPERS ( FIG. 4 )
 JP1 - Shock / Glass selector for
detection calibration.
 JP2 - Memory LED control.
 JP3 - Reduces the sensitivity of
sound detection by 50%.
SPECIFICATION
Sensor
Microphone
Electro Condenser
Power Input
9 - 16 Vdc
Current Consumption
Standby: 22mA at 12Vdc
Active: 25mA at 12Vdc
Detection Range
10m, Adjustable
Mounting
Ceiling or Wall
Alarm Output Relay
N.C 50mA/24Vdc with
27 Ohm in line resistor
Tamper Switch
N.C 50mA 24Vdc with
10 Ohm in line resistor
Operating Temperature
-20C to 50C
Operating Humidity
95% max relative
Range
non condensing
Storage Temperature
-30C to 70C
RFI Protection
30V/m 10 -1000MHz
EMI Protection
50,000V electrical
Interference from
lightning
Dimensions
78mm x 51mm x 21mm
WIRE REQUIREMENTS
Use #22 AWG (0.5mm) or wires with a larger
diameter. Use the following table to determine
required wire gauge (diameter) and length of wire
between the detector and the control panel.
Wire Length
m
200
300
400
800
Wire Diameter mm
.5
.75
1.0
1.5
Wire Length
ft
800 1200 2000 3400
Wire Gauge
#
22
20
18
16
