Summary of Contents for SIM SIM-120

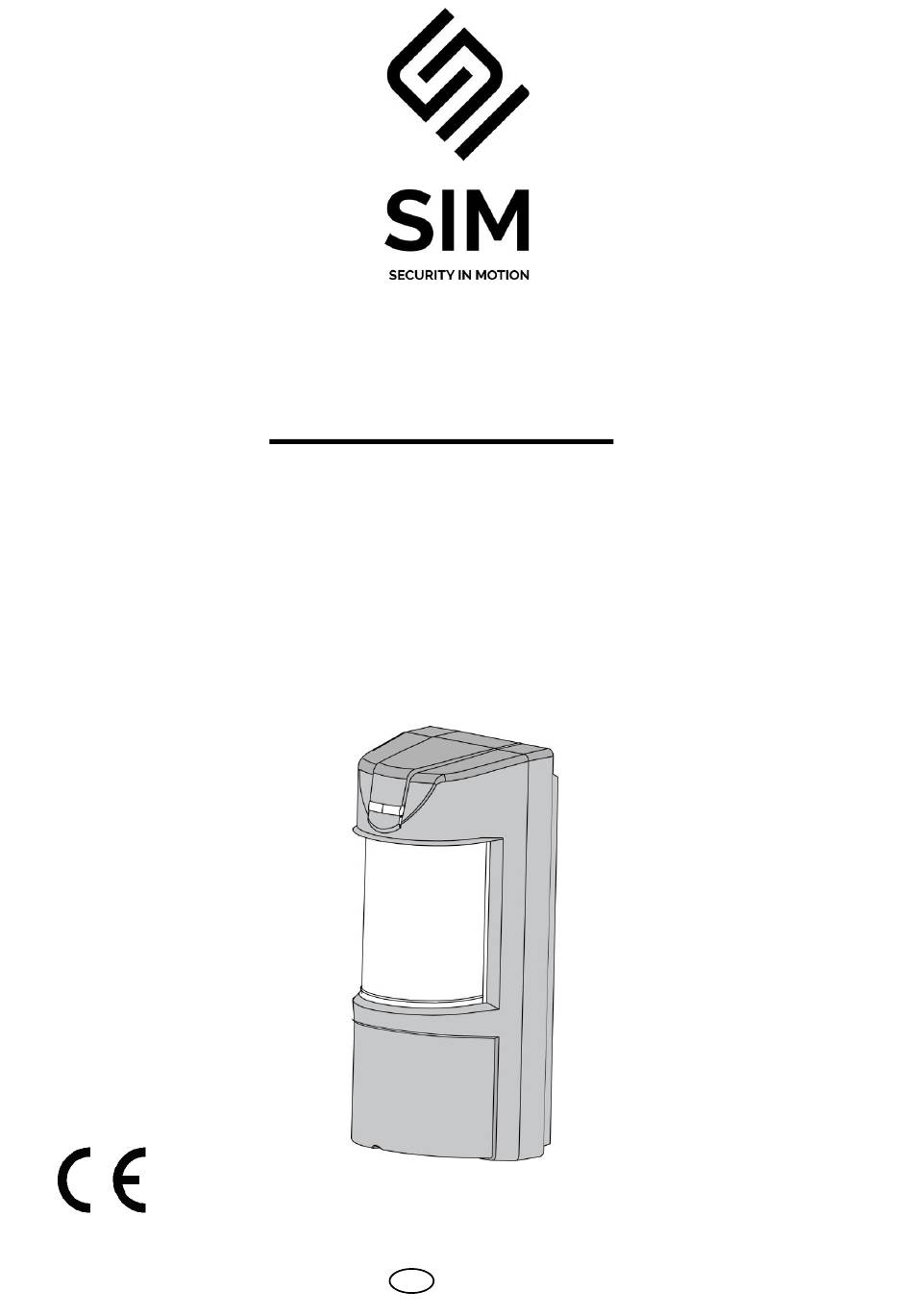

- Page 1 SIM-120 OUTDOOR PIR + MW DETECTOR INSTALLATION MANUAL P/N 7106901 Rev. A...
-
Page 2: Table Of Contents
Table Of Content General ............................3 Features ............................. 3 Assembly description: ........................ 3 Detection Pattern: ........................4 Selecting mounting location ....................... 5 Detector Installation ........................6 Terminal Block Connections ...................... 8 Wire Size Requirements ....................8 Settings & Adjustments ......................9 Detection beam direction .................... -
Page 3: General
Assembly description: The SIM-120 includes big indication led prism that can be easily observed from long distance. Having a back metal bracket, the SIM-120 can be easily mounted to walls and poles using mounting screws or metal bands (supplied). The SIM-120 is combined of three detection elements:... -
Page 4: Detection Pattern
Bracket locking screw Detection Pattern: The SIM-120 has a 90° top view PIR and MW detection pattern with over 15m detection distance (when installed at 1.2m above the ground surface). The SIM-120 has an internal rotating housing (which includes the 2 PIR elements and the MW) that can be adjusted horizontally, so its 90°... -
Page 5: Selecting Mounting Location
The bracket provides SIM-120 installation on a wall or pole. The wall or pole should be leveled. Choose a location most likely to intercept an intruder according to detection pattern on page 6. -
Page 6: Detector Installation
Detector Installation 1. Install the detector in such manner that the intruder 2. The detector is to be installed at height of 2.6 ft is most likely to cross the detection area from side to (0.8m) to 4.9 ft (1.5m) side. - Page 7 10. Attach the sealing “U” shaped Sponge Pad to the 9. Break the relevant rear knockouts on plastic base rear side for your installation and slide the wires from wire opening from the rear side after the wires the outside via the paths and knockout to the internal connection and prior to final product affixing to the side of the detector.
-
Page 8: Terminal Block Connections
Terminal Block Connections Terminal 1 - Marked “-” (GND) - Connect to the ground of the CP. Terminal 2 - Marked “+” (+12V) - Connect to a positive Voltage of 9.6 -16Vdc source (usually from the alarm CP) Terminals 3 & 4 - Marked “TAMP” - If a Tamper function is required connect these Terminals to a 24-hour normally closed protective zone in the CP. -
Page 9: Settings & Adjustments
8.2 Detection range setting The SIM-120 detection range may vary between 10 ft (3m) and 49 ft (15m), while installed on 4 ft (1.2m) height above the ground surface. Changing the detection range is achieved by sliding the upper detection element up or down. -
Page 10: Sensitivity, Range And Pet Immune Adjustment
8.3 Sensitivity, Range and Pet immune Adjustment The calibration of range and sensitivity is performed by single digital 16 position rotary switch. There are 3 groups of switch setting according to detection range. Each group is divided to several levels of sensitivity according to installation environment. The sensitivity is determined by a rotating switch (16 positions). -
Page 11: Indications Setting
LED OFF Buzzer ON Factory default setting Factory default setting The SIM-120 has two types of indications: 1. LED 2. Buzzer The installer may determine both indications’ operation during detection (ON or OFF) by using switch number “1” for the buzzer and switch number “2” for the LED. -
Page 12: Operation
Place the top cover to the base and close it using the bottom screw. Operation Note! Connect the SIM-120 to a positive Voltage output of 9.6 -16VDC source. Use only a listed power limited source. The detector shall be provided with minimum of 4 hours of standby power from either a listed compatible control unit or power supply. -
Page 13: Specifications
11 Specifications Detection Method Double PIR AND MW Microwave Frequency 24.125 GHz Power Input 9.6 to 16Vdc Active: 24mA (±5%) Current Draw Standby: 21mA (±5%) Temp Compensation Yes, Dual slop temperature compensation Alarm Period 2 sec (±0.5sec) Form C (NC, NO, Common) Alarm Outputs 28Vdc 0.1 A with 10 Ohm Two Switches... - Page 14 www.sim-security.net...
