SIM -04 Installation Instructions

SIM-04
DIGITAL DUAL DETECTOR
PIR AND MICROWAVE
INSTALLATION INSTRUCTIONS
P/N 7106762 Rev A

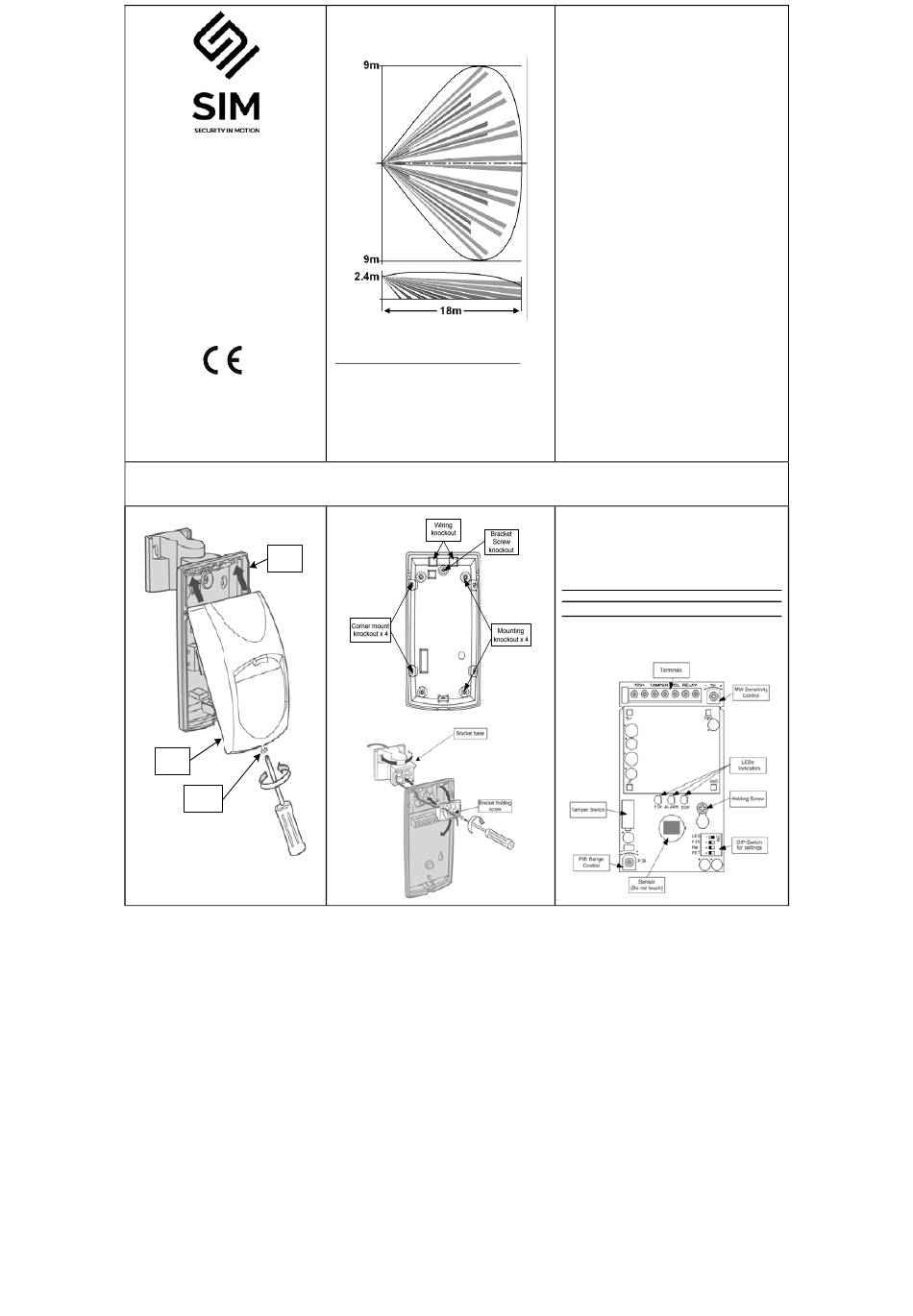

INSTALLING THE DETECTOR

Base
Cover
Holding
Screw

Wide Angle Lens

AVOID THE FOLLOWING LOCATIONS:

Facing direct sunlight.

Facing areas that may change temperature rapidly.

Areas where there are air ducts or substantial
airflows.

Avoid screen, curtain that may block detection area.

Do not install outdoors.

SPECIFICATION

Detection Method PIR element &
microwave pulse
Doppler
Power Input 8.2 to 16 Vdc
Current Draw Active :
Standby: 16.5 mA
Temperature
Compensation YES
Alarm Period 2 +/- 1 sec
Alarm Output N.C 28Vdc 0.1 A
with 10 Ohm series
protection resistors
Tamper Switch N.C 28Vdc 0.1A
with10 Ohm series protection
resistor - open when cover is
removed
Warm Up Period 1 min
LED Indications
Yellow blinking during warm up period and self
testing
Red LED: ON during alarm
Green LED: PIR CHANNEL
Yellow LED: MW CHANNEL
Dimensions 115mm x 61mm x
37.5mm
Weight 120g

WIRE REQUIREMENTS

Use #22 AWG (0.5mm) or wires with a larger
diameter. Use the following table to determine
required wire gauge (diameter) and length of wire
between the detector and the control panel.
Wire Length m 200 300 400 800
Wire Diameter mm .5 .75 1.0 1.5
Wire Length ft 800 1200 2000 3400
Wire Gauge # 22 20 18 16

PCB LAYOUT

25.5 mA
